The mighty controller

Inspiration

Built off the succsess of doom controller, ARC MC is a significantly more advanced controller for Minecraft.

What it does

Controls Minecraft using a motion controller and dance mat.

How we built it

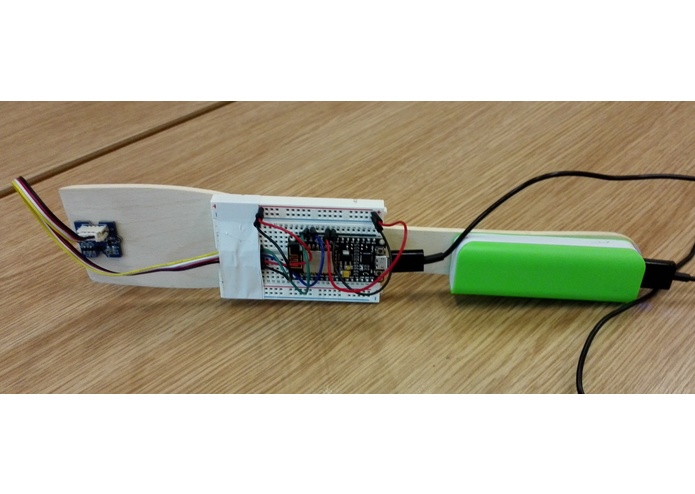

Node MCU sending accelerometer data to a neural network that classifies each movement into a pickaxe swing, shovel dig, sword hit and axe chop. This data then interfaces with a custom Minecraft mod that preforms the appropriate actions.

Challenges we ran into

We originally tried to send the data from the accelerometer to the PC via TCP but this proved unsuccessful and so we instead opted for UDP which we managed to get working.

Accomplishments that we're proud of

What we learned

What's next for ARC MC

Built With

accelerometer
ai
arduino
c++
dance-mat
hardware
java
minecraft
modding
motion-control
neural-network
rgb
udp

Submitted to

R. U. Hacking? 2019
- Winner 2nd Place

Created by

I mapped the dance pad for use as movement control in-game, and coded in Java a Minecraft mod to take our inputs from the motion controller hardware and have it influence the game's functions.

Matthew Sutcliffe
I wanted to challenge myself into learning some hardware related skills, and thought Arduino was a good place to start, which also allowed me to break into C++.
I ended up writing the networking functionality between the Arduino's accelerometer, and the Java program that will be manipulating the data. I did this using a UDP connection between my PC and the Arduino, with a formatted message in the buffer to be read by the java program and interpreted.

Callum Allison
cs17jjc Cuthbertson
