This repository contains our submission for UOFTHacks 13, where we placed 2nd overall in the challenge “Hack the Human-Robot Experience”, hosted by LeLamp (by Human Computer Lab).

This repository holds the code for controlling LeLamp. The 12V Runtime-Agent edition is a major architectural upgrade that transforms LeLamp from a basic robot control system into a sophisticated agentic workflow platform with enterprise-grade features including workflow automation, advanced audio capabilities, sleep/wake management, and comprehensive state persistence.

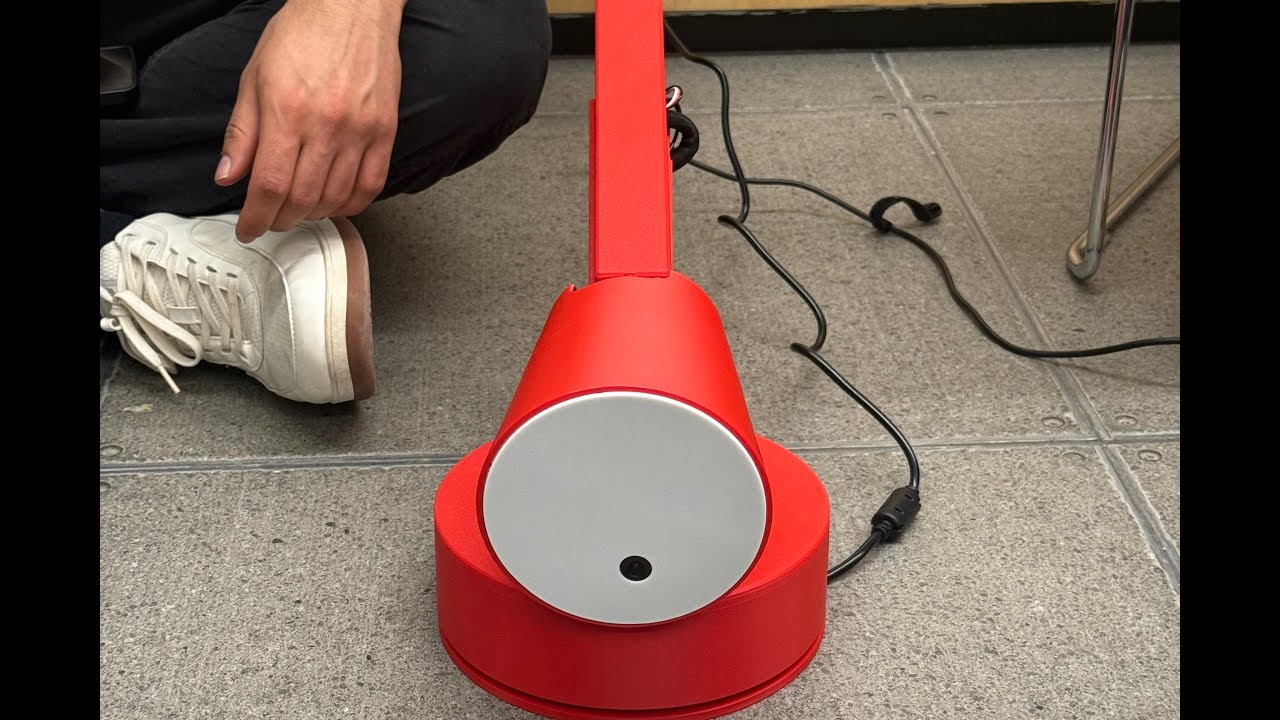

LeLamp is an open source robot lamp based on Apple's Elegnt, made by [Human Computer Lab]

LeLamp Runtime is a Python-based control system that interfaces with the hardware components of LeLamp including:

• Servo motors for articulated movement with enhanced animation system
• Audio system (microphone, speaker, and sound effects library)
• RGB LED lighting with advanced sequences
• Camera system with vision integration
• Voice interaction with personality system
• Workflow execution engine for complex multi-step autonomous tasks
• Sleep/wake modes with local wake word detection
• SQLite database for state persistence and monitoring
• Timer and alarm system with workflow integration

lelamp_runtime/
├── main.py                     # Main runtime entry point with workflow integration
├── config.yaml                 # Comprehensive configuration (personality, vision, webui, etc.)
├── pyproject.toml             # Project configuration and dependencies
├── lelamp.db                  # SQLite database for persistence (auto-created)
├── lelamp/                    # Core package
│   ├── globals.py             # Global service registry for cross-module access
│   ├── setup_motors.py        # Motor configuration and setup
│   ├── calibrate.py           # Motor calibration utilities
│   ├── list_recordings.py     # List all recorded motor movements
│   ├── record.py              # Movement recording functionality
│   ├── replay.py              # Movement replay functionality
│   ├── functions/             # NEW: Modular function tool system (mixins)
│   │   ├── motor_functions.py
│   │   ├── rgb_functions.py
│   │   ├── animation_functions.py
│   │   ├── audio_functions.py
│   │   ├── timer_functions.py
│   │   ├── workflow_functions.py
│   │   ├── sensor_functions.py
│   │   └── sleep_functions.py
│   ├── personality/           # NEW: Personality system
│   │   └── instructions.txt   # Character definition and behavior rules
│   ├── workflows/             # NEW: Pre-built workflow definitions
│   │   ├── bedside_alarm/     # Smart alarm with vision & snooze
│   │   ├── wake_up/           # Calendar-integrated wake routine
│   │   ├── focus_session/     # Focused work session manager
│   │   └── dancing/           # Dancing choreography
│   ├── service/               # Service modules
│   │   ├── workflows/         # NEW: Workflow execution engine
│   │   │   ├── workflow_service.py  # Orchestration & state management
│   │   │   ├── workflow.py          # Graph-based workflow structures
│   │   │   └── db_manager.py        # SQLite persistence layer
│   │   ├── audio/             # NEW: Audio management system
│   │   │   └── audio_service.py     # Sound effects library & playback
│   │   ├── motors/
│   │   │   └── animation_service.py # Enhanced with sleep mode
│   │   ├── rgb/
│   │   │   ├── rgb_service.py       # Enhanced LED control
│   │   │   └── sequences/
│   │   │       ├── alarm.py         # NEW: Urgent flash sequence
│   │   │       ├── count.py         # NEW: Sequential LED demo
│   │   │       ├── burst.py
│   │   │       ├── ripple.py
│   │   │       └── ...
│   │   ├── vision/            # Vision and face tracking
│   │   ├── timer_service.py   # Enhanced timer/alarm system
│   │   └── wake_word_service.py  # Local wake word detection
│   ├── follower/              # Follower mode functionality
│   ├── leader/                # Leader mode functionality
│   └── test/                  # Hardware testing modules
├── system/                    # System integration files
│   ├── service/
│   │   └── lelamp.service     # Systemd service configuration
│   ├── udev/                  # Udev rules for hardware
│   │   ├── 99-gpio.rules      # GPIO permissions
│   │   ├── 99-lelamp.rules    # USB serial symlink
│   │   └── 99-usb-cameras.rules
│   └── asound/                # ALSA audio configurations
│       ├── asound-seeed2micvoicec.conf
│       └── asound-halox.conf
└── uv.lock                    # Dependency lock file

This branch introduces major architectural improvements and new capabilities:

• Graph-based workflow engine with conditional branching and state management
• 4 pre-built workflows: bedside_alarm, wake_up, focus_session, dancing
• SQLite persistence for workflow runs, steps, errors, and performance metrics
• Dynamic tool loading: Workflows can define custom tools loaded at runtime
• Trigger system: Time-based and keyword-based workflow progression
• Categorized error tracking: System, LLM, Vision, Network, State, Tool, Human, Unexpected

• go_to_sleep(): Full sleep sequence with motor disable, LED off, volume mute
• Local wake word detection: Runs local Whisper model without cloud connectivity (cost-free)
• wake_up(): Full restoration with animations and service reconnection
• Timer/alarm integration: Alarms trigger wake-up automatically
• Energy saving: Disables motor torque during sleep

• Auto-discovery system: Scans assets/AudioFX/ directory recursively
• 160KB sound database with categorized effects
• Non-blocking playback with queue system
• Agent integration: play_sound_effect(), search_sounds(), list_available_sounds()
• Volume control: set_volume() function

• Modular mixin system for clean code organization
• 9 function modules: Motor, RGB, Animation, Audio, Timer, Workflow, Sensor, Sleep functions
• Enhanced capabilities:
  • Weather and news integration (get_weather(), get_news())
  • Advanced timer/alarm system with labels and repeat patterns
  • Workflow management functions
  • System shutdown controls

• instructions.txt: Comprehensive personality definition
• Character: "Slightly clumsy, extremely sarcastic, endlessly curious robot lamp"
• Behavior rules for sleep mode, workflows, sound effects, animations
• Company background and creator information

• Global service registry: Cross-module service access via lelamp/globals.py
• Proper lifecycle management: Start/stop/cleanup for all services
• Signal handling: Graceful shutdown on SIGINT/SIGTERM
• Background tasks: Idle timeout, workflow progression checks
• Thread-safe operations: Proper asyncio and threading integration

• SQLite database (lelamp.db) with comprehensive schema
• Workflow tracking: Metadata, runs, steps, errors, state, triggers, stats
• Timer persistence: Timers survive restarts
• Alarm management: Recurring alarms with enable/disable

• FastAPI-based web interface
• Real-time stats via WebSocket
• Video feed endpoint for vision
• Motor control API
• Face tracking toggle
• Status and configuration endpoints

• config.yaml: Centralized configuration for all services
• Personality settings: Name, description, instructions file path
• Vision settings: Enable/disable, frame rate, max size
• WebUI settings: Port configuration with auto-fallback
• Endpointing tuning: Speech delay parameters
• RGB settings: Idle timeout, default colors, ring definitions

• system/service/lelamp.service: Auto-start on boot with systemd
• system/udev/: Udev rules for GPIO, USB serial, and cameras
• system/asound/: ALSA configurations for different audio setups
• Restart policy: Automatic restart with 30s delay
• Proper working directory and user configuration
• Easy enable/disable/status commands

For manufacturing or provisioning multiple devices, use the OEM install script. This script automates the complete setup of a fresh Raspberry Pi:

curl -sSL https://raw.githubusercontent.com/humancomputerlab/lelampv2/main/oem_install.sh | bash

With remote access (Tailscale + Raspberry Pi Connect):

TAILSCALE_AUTH_KEY=tskey-xxx RPI_CONNECT_KEY=xxx curl -sSL https://raw.githubusercontent.com/humancomputerlab/lelampv2/main/oem_install.sh | bash

1. Creates lelamp user with default password (lelamp)
2. Reads device serial number from hardware
3. Sets hostname to lelamp-SERIAL (last 8 chars of serial)
4. Enables SSH access
5. Configures WiFi regulatory country
6. Sets up WiFi AP mode for first-time setup (lelamp_SERIAL / lelamp123)
7. Installs Tailscale for remote VPN access (if key provided)
8. Installs Raspberry Pi Connect for remote desktop (if key provided)
9. Runs the full LeLamp component installation
10. Installs Piper TTS and Ollama for local AI
11. Registers device with Hub server (if configured)
12. Reboots into setup mode

Once the device reboots:

• With AP mode: Connect to WiFi lelamp_XXXXXXXX, then open http://192.168.4.1
• With Tailscale: Access via lelamp-XXXXXXXX on your Tailnet
• With RPI Connect: Access via Raspberry Pi Connect dashboard
• Local network: Access via http://lelamp-XXXXXXXX.local

Run this one-liner on your Raspberry Pi to install everything:

curl -fsSL https://raw.githubusercontent.com/humancomputerlab/boxbots_lelampruntime/12Vruntime-agent/install.sh | bash

This interactive script will:

• Detect your Raspberry Pi model
• Install all system dependencies (UV, LiveKit CLI, audio tools)
• Optionally install Raspotify for Spotify Connect
• Clone the repository and install Python dependencies
• Set up udev rules for USB serial and GPIO
• Configure user groups and permissions
• Optionally set up motors, environment variables, and systemd service

If you prefer to install components individually instead of using the quick install script:

git clone -b 12Vruntime-agent https://github.com/humancomputerlab/boxbots_lelampruntime.git
cd boxbots_lelampruntime

If you have Git LFS problems, use this instead:

GIT_LFS_SKIP_SMUDGE=1 git clone -b 12Vruntime-agent https://github.com/humancomputerlab/boxbots_lelampruntime.git
cd boxbots_lelampruntime

Each component has its own installer script in the install/ directory:

# System dependencies (portaudio, sox, git, etc.)
./install/install_dependencies.sh

# UV package manager (installs to /usr/local/bin)
./install/install_uv.sh

# Python dependencies
./install/install_python.sh

# Audio hardware (ReSpeaker HAT, custom devices)
./install/install_audio.sh

# GPIO permissions for RGB LEDs
./install/install_gpio.sh

# Udev rules for USB devices (motors, camera)
./install/install_udev.sh

# Motor setup and ID configuration
./install/install_motors.sh

# LiveKit CLI
./install/install_livekit.sh

# Raspotify (Spotify Connect) - optional
./install/install_raspotify.sh

# MediaPipe for advanced face tracking - optional
./install/install_mediapipe.sh

# Environment variables (.env file)
./install/install_env.sh

# Systemd service for auto-start
./install/install_service.sh

Each script supports --help for usage information and -y for non-interactive mode.

The runtime includes several key dependencies:

Core Control:

• feetech-servo-sdk: Servo motor control
• lerobot: Robotics framework integration
• numpy: Mathematical operations

Voice & Audio:

• livekit-agents: Real-time voice interaction
• openai: LLM integration for agent intelligence
• sounddevice: Audio input/output
• pydub: Audio manipulation and playback

Hardware (Raspberry Pi):

• adafruit-circuitpython-neopixel: RGB LED control
• rpi-ws281x: Raspberry Pi LED control

New in 12V Runtime-Agent:

• fastapi: Web UI server
• uvicorn: ASGI server for WebUI
• aiosqlite: Async SQLite database operations
• pyyaml: Configuration file parsing
• python-dateutil: Date/time manipulation for timers/alarms
• feedparser: RSS news feed parsing

Prior to following the instructions here, you should have an overview of how to control LeLamp through this tutorial.

1. Find the servo driver port:

This command finds the port your motor driver is connected to.

uv run lerobot-find-port

2. Setup motors with unique IDs:

This command set up each motor of LeLamp with an unique ID.

./install/install_motors.sh

3. Calibrate motors:

This command calibrates your motors. Make sure to run this after motor setup!

uv run -m lelamp.calibrate --port /dev/lelamp

The calibration process will:

• Calibrate both follower and leader modes
• Ensure proper servo positioning and response
• Set baseline positions for accurate movement

The runtime includes comprehensive testing modules to verify all hardware components:

uv run -m lelamp.test.test_rgb

uv run -m lelamp.test.test_audio

uv run -m lelamp.test.test_motors --port /dev/lelamp

One of LeLamp's key features is the ability to record and replay movement sequences:

To record a movement sequence:

uv run -m lelamp.record --port /dev/lelamp --name movement_sequence_name

This will:

• Put the lamp in recording mode
• Allow you to manually manipulate the lamp
• Save the movement data to a CSV file

To replay a recorded movement:

uv run -m lelamp.replay --port /dev/lelamp --name movement_sequence_name

The replay system will:

• Load the movement data from the CSV file
• Execute the recorded movements with proper timing
• Reproduce the original motion sequence

To view all recordings for a specific lamp:

uv run -m lelamp.list_recordings

This will display:

• All available recordings for the specified lamp
• File information including row count
• Recording names that can be used for replay

Recorded movements are saved as CSV files with the naming convention: {sequence_name}.csv

If you want to start LeLamp's voice app upon booting, a systemd service file is included at system/service/lelamp.service.

Option 1: Use the install script (recommended)

The install.sh script includes a systemd service installation step that will:

• Auto-detect your UV path and working directory
• Install the service to /etc/systemd/system/
• Optionally enable and start the service

./install.sh
# Follow the prompts when it asks about systemd service installation

Option 2: Use the included service file

# Copy the service file to systemd directory
sudo cp system/service/lelamp.service /etc/systemd/system/

# Reload systemd to recognize the new service
sudo systemctl daemon-reload

# Enable and start the service
sudo systemctl enable lelamp.service
sudo systemctl start lelamp.service

Option 3: Manually create the service file

sudo nano /etc/systemd/system/lelamp.service

Add this content (update paths if needed):

[Unit]
Description=LeLamp Runtime Service
After=network.target sound.target

[Service]
Type=simple
User=your_username
WorkingDirectory=/home/your_username/lelamp-runtime
ExecStart=/home/your_username/.local/bin/uv run python main.py console
Restart=always
RestartSec=30
Environment=HOME=/home/your_username

[Install]
WantedBy=multi-user.target

Then enable and start:

sudo systemctl daemon-reload
sudo systemctl enable lelamp.service
sudo systemctl start lelamp.service

Service controls:

# Check service status
sudo systemctl status lelamp.service

# View live logs
sudo journalctl -u lelamp.service -f

# Stop the service
sudo systemctl stop lelamp.service

# Disable from starting on boot
sudo systemctl disable lelamp.service

# Restart the service
sudo systemctl restart lelamp.service

Notes:

• Boot time might vary with each run
• Extended usage (>1 hour) can heat the motors - consider using sleep mode for idle periods
• The service will automatically restart if it crashes (30s delay)

The 12V Runtime-Agent edition includes a sophisticated voice agent with workflow support, sleep mode, sound effects, and comprehensive automation capabilities.

Create a .env file in the root directory with the following content:

OPENAI_API_KEY=your_openai_api_key
LIVEKIT_URL=your_livekit_url
LIVEKIT_API_KEY=your_livekit_api_key
LIVEKIT_API_SECRET=your_livekit_api_secret

Getting LiveKit credentials:

Refer to LiveKit's guide. Install LiveKit CLI, then:

lk app env -w
cat .env.local

This creates an .env.local file with all LiveKit secrets.

Getting OpenAI credentials:

Follow this FAQ.

# Download required files (only needed once)
uv run main.py download-files

# Start the agent with all features
uv run main.py console

Edit config.yaml to customize:

personality:
  name: LeLamp
  instructions_file: lelamp/personality/instructions.txt

vision:
  enabled: false  # Set to true for vision capabilities

webui:
  enabled: false  # Set to true for web interface
  port: 80        # Auto-falls back to 8080 if 80 unavailable

rgb:
  idle_timeout_seconds: 30
  default_color: [0, 0, 150]

Changing Lamp ID

If your lamp ID is not lelamp, update it in main.py:

async def entrypoint(ctx: agents.JobContext):
    agent = LeLamp(lamp_id="your_lamp_name")  # <- Change this

The agent now supports:

• Workflows: "Start bedside alarm", "Begin focus session"
• Sleep mode: "Go to sleep", "Wake up"
• Sound effects: "Play a happy sound", "Search for celebration sounds"
• Timers/Alarms: "Set a 5 minute timer", "Set alarm for 7am tomorrow"
• Weather/News: "What's the weather?", "Tell me the news"
• Animations: curious, excited, happy_wiggle, wake_up, nod, sad, dancing, thinking, idle, sleep
• RGB control: Change colors, patterns, and sequences
• System control: "Shutdown system"

User: "Go to sleep"
→ LeLamp enters sleep mode (motors off, LEDs off, local wake word only)

User: "Hey LeLamp" (while sleeping)
→ LeLamp wakes up with animation

User: "Set alarm for 7am tomorrow with bedside alarm workflow"
→ Creates alarm that will trigger the multi-step wake routine

User: "Play a happy sound"
→ Searches and plays a sound effect from the library

User: "Start focus session"
→ Begins the focus_session workflow with energy tracking

User: "What's the weather?"
→ Reports current weather for configured location

The workflow system enables complex multi-step autonomous behaviors. Each workflow is a directed graph with conditional branching based on state.

1. bedside_alarm (214 lines, 14 steps)

   • Smart alarm clock with vision-based sleep detection
   • Multi-step wake-up routine with conditional logic
   • Snooze handling with 5-minute timer re-trigger
   • Phone usage detection
   • Weather and news integration
   • State-driven routing based on sleeping/awake status

2. wake_up (74 lines)

   • Calendar-integrated wake-up routine
   • Gentle wake sequence with animations
   • Morning briefing

3. focus_session (105 lines)

   • Focused work session manager
   • Energy-based routing
   • Break reminders
   • Session tracking

4. dancing (55 lines)

   • Fun dancing choreography
   • Synchronized LED and motor animations

Each workflow in lelamp/workflows/{workflow_name}/ contains:

• workflow.json: Directed graph definition

  • Nodes: Individual steps with instructions
  • Edges: Conditional transitions based on state
  • State schema: Typed variables (boolean, integer, string, object)
  • Entry points: Different start nodes based on trigger type

• tools.py: Custom workflow-specific tools

  • Dynamically loaded/unloaded at runtime
  • Available only during workflow execution

Via Voice Agent:

"Start bedside alarm"
"Begin focus session"
"Let's dance"

Via Function Calls:

# List available workflows
get_available_workflows()

# Start a workflow
start_workflow("bedside_alarm")

# Get current step
get_next_step()

# Complete step and advance
complete_step({"is_sleeping": False, "energy_level": 8})

# Check workflow status
get_workflow_status()

Workflows can be triggered by:

• Voice command: User says "Start [workflow_name]"
• Alarm: Set alarm with workflow name attached
• Keyword: Specific phrases trigger workflow start
• Time interval: Workflow progresses automatically after time delay

All workflow execution is tracked in lelamp.db:

• workflow_runs: Each execution instance
• workflow_steps: Step-by-step execution log
• workflow_errors: Categorized error tracking
• workflow_state: State variable snapshots
• workflow_stats: Performance metrics

View workflow history:

sqlite3 lelamp.db "SELECT * FROM workflow_runs ORDER BY started_at DESC LIMIT 10"

Enable the web interface in config.yaml:

webui:
  enabled: true
  port: 80  # Falls back to 8080 if unavailable

Features:

• Real-time stats via WebSocket
• Video feed endpoint for vision
• Motor control API
• Face tracking toggle
• Status and configuration endpoints

Access at: http://<raspberry-pi-ip>:80

• Extended usage (>1 hour) can heat the motors
• Use sleep mode to disable motor torque when idle: "Go to sleep"
• Adjust idle timeout in config.yaml to automatically switch to default animation

• Stop any running instances: sudo systemctl stop lelamp.service
• Check for zombie processes: ps aux | grep main.py
• Kill if needed: sudo killall -9 python

• Check ALSA configuration: cat /proc/asound/cards
• Test audio device: uv run -m lelamp.test.test_audio
• Verify volume: alsamixer
• Check sound library loaded: Look for "Loaded X sounds" in logs

• Check logs: sudo journalctl -u lelamp.service -n 50
• Verify paths in service file match your installation
• Ensure UV is installed for the correct user
• Test manually: uv run main.py console

• Check database for errors: sqlite3 lelamp.db "SELECT * FROM workflow_errors"
• Verify workflow status: sqlite3 lelamp.db "SELECT * FROM workflow_runs WHERE status='running'"
• Check logs for workflow service messages
• Ensure workflow tools are loading correctly

• Verify local Whisper model downloaded
• Check microphone permissions
• Test with: "Hey LeLamp" (default wake phrase)
• Check logs for wake word service messages

The 12V Runtime-Agent branch represents a professional-grade upgrade from a basic robot control system to an enterprise agentic platform:

• Global service registry (lelamp/globals.py) for cross-module access
• Proper lifecycle management: Start/stop/cleanup for all services
• Signal handling: Graceful shutdown on SIGINT/SIGTERM with cleanup
• Thread-safe operations: Proper asyncio and threading integration
• Background tasks: Idle timeout monitoring, workflow progression checks

• Categorized error classes: System, LLM, Vision, Network, State, Tool, Human, Unexpected
• Stack trace logging with full context
• Recoverable vs fatal error distinction
• Database error tracking for post-mortem analysis

• SQLite persistence for all critical state
• Workflow state snapshots at each step
• Timer/alarm persistence across restarts
• Performance metrics and statistics tracking

• Function mixin system for clean separation of concerns
• Dynamic tool loading for workflow-specific capabilities
• Service isolation with well-defined interfaces
• Configuration-driven behavior via config.yaml

• Non-blocking audio playback with queue system
• Efficient RGB updates with idle timeout management
• Local wake word detection for cost-free sleep mode
• Resource cleanup to prevent memory leaks

This is an open-source project by Human Computer Lab. Contributions are welcome through the GitHub repository.

• Branch: 12Vruntime-agent
• Base: LeLamp Runtime with 12V motor support
• Key Features: Workflow engine, sleep/wake management, sound effects library, database persistence
• Status: Production-ready for advanced autonomous behaviors

Check the main LeLamp repository for licensing information.
