This is a fork of bonito which integrates slow5. It currently works for the basecaller module, using seq_reads_multi() from the pyslow5 library. Random access can easily be added with get_read() and get_read_list_multi() for the other bonito modules.

A few flags are added as well:

• "--slow5", action="store_true", default=False: expect slow5/blow5 files rather than fast5 for input
• "--slow5_threads", default=4 : number of threads to use in pyslow5 (threads handled on C side of library)
• "--procs", default=8 : number of processors to use in bonito (have not tested altering these, and kept default for testing)
• "--slow5_batchsize", default=4096 : batch size to use for memory management with slow5. Larger batchsize uses more RAM

python3.8 -m venv bonitoS5
source bonitoS5/bin/activate
pip install --upgrade pip

git clone https://github.com/Psy-Fer/bonito.git
cd bonito
pip install -r requirements.txt
python setup.py develop

bonito --help

Bonito results will show that for a single sample BLOW5 and FAST5 give similar runtime as FAST5 multiprocessing is implemented. However, we show that FAST5 multiprocessing is not scalable beyond a few samples as random accesses quickly saturate the disk system capability, whereas sequential I/O in BLOW5 is very lightweight and allows scalability over dozens of samples.

When the disk system is solely allocated for Bonito: FAST5: 31.5 min SLOW5: 28 min

On a GPU server with 4 Tesla V100s and 40 cores reading data from a mounted NAS, we executed four instances of FAST5 basecalling and SLOW5 basecalling in parallel. FAST5 instances took around 1 hour whereas SLOW5 instances took 30 mins. This shows that SLOW5 is lightweight and can scale up.

FAST5 times: 1:03:40 1:05:44 1:06:02 1:04:40 SLOW5 times: 32:39.06 32:59.78 32:40.15 32:51.6

When the disk system is under extreme load (represents a scenario where we basecall hundreds of samples on an local cluster). Simulated scenario by running fio to introduce a huge disk I/O load. FAST5: 15 hours SLOW5: 52 min

Commands used for benchmarking

(yes, mem cache was cleared between all benchmarks)

bonito basecaller --batchsize 2048 -v dna_r9.4.1_e8.1_fast@v3.4 fast5/NA12878_SRE/20201027_0537_3A_PAF25452_97d631c6/fast5_pass/  --device cuda > a.fastq

bonito basecaller --batchsize 2048 -v dna_r9.4.1_e8.1_fast@v3.4 slow5_merged/ --slow5 --slow5_threads 8 --slow5_batchsize 4096 --device cuda  > b.fastq

# synthetic workload to represent basecalling hundreds of samples in parallel:

fio --randrepeat=1 --ioengine=libaio --direct=1 --gtod_reduce=1 --name=test --filename=test --bs=100k --iodepth=32 --size=16G --readwrite=randread

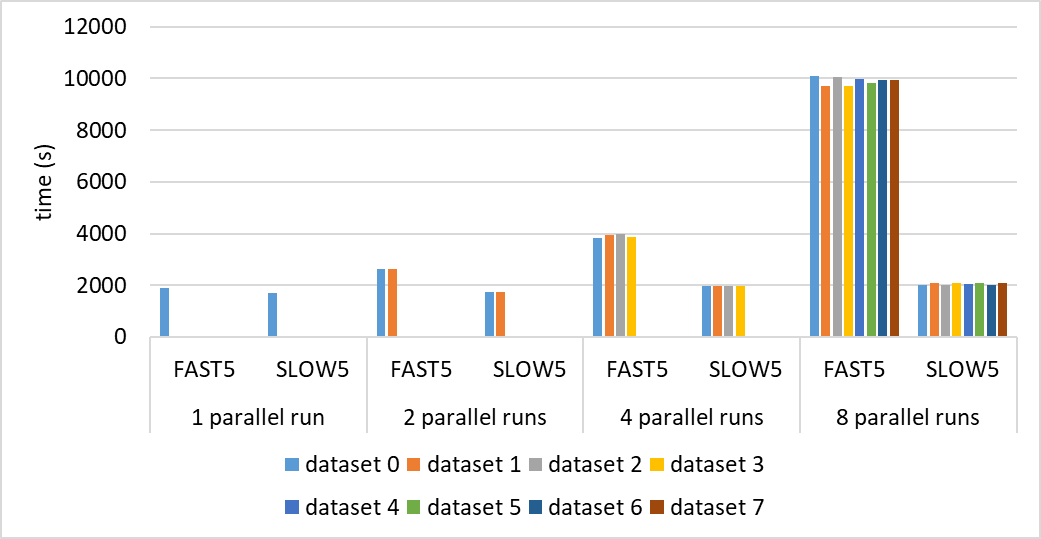

This figure with up to 8 parallel runs shows how slow5 scales better than fast5.

By increasing the speed by which a basecaller can process multiple parallel jobs, we can save users time, and if running on cloud infrastructure, a lot of money. This also shows how slow5 could increase the number of flowcells the basecallers could "keep up" with. (see also our guppy modifications and buttery-eel)

A PyTorch Basecaller for Oxford Nanopore Reads.

$ pip install --upgrade pip
$ pip install ont-bonito
$ bonito basecaller dna_r10.4_e8.1_sup@v3.4 /data/reads > basecalls.bam

Bonito supports writing aligned/unaligned {fastq, sam, bam, cram}.

$ bonito basecaller dna_r10.4_e8.1_sup@v3.4 --reference reference.mmi /data/reads > basecalls.bam

Bonito will download and cache the basecalling model automatically on first use but all models can be downloaded with -

$ bonito download --models --show  # show all available models
$ bonito download --models         # download all available models

The default ont-bonito package is built against CUDA 10.2 however CUDA 11.1 and 11.3 builds are available.

$ pip install -f https://download.pytorch.org/whl/torch_stable.html ont-bonito-cuda111

Modified base calling is handled by Remora.

$ bonito basecaller dna_r10.4_e8.1_sup@v3.4 /data/reads --modified-bases 5mC --reference ref.mmi > basecalls_with_mods.bam

See available modified base models with the remora model list_pretrained command.

To train a model using your own reads, first basecall the reads with the additional --save-ctc flag and use the output directory as the input directory for training.

$ bonito basecaller dna_r9.4.1 --save-ctc --reference reference.mmi /data/reads > /data/training/ctc-data/basecalls.sam
$ bonito train --directory /data/training/ctc-data /data/training/model-dir

In addition to training a new model from scratch you can also easily fine tune one of the pretrained models.

bonito train --epochs 1 --lr 5e-4 --pretrained dna_r10.4_e8.1_sup@v3.4 --directory /data/training/ctc-data /data/training/fine-tuned-model

If you are interested in method development and don't have you own set of reads then a pre-prepared set is provide.

$ bonito download --training
$ bonito train /data/training/model-dir

All training calls use Automatic Mixed Precision to speed up training. To disable this, set the --no-amp flag to True.

$ git clone https://github.com/nanoporetech/bonito.git  # or fork first and clone that
$ cd bonito
$ python3 -m venv venv3
$ source venv3/bin/activate
(venv3) $ pip install --upgrade pip
(venv3) $ pip install -r requirements.txt
(venv3) $ python setup.py develop

• bonito view - view a model architecture for a given .toml file and the number of parameters in the network.
• bonito train - train a bonito model.
• bonito evaluate - evaluate a model performance.
• bonito download - download pretrained models and training datasets.
• bonito basecaller - basecaller (.fast5 -> .bam).

• Sequence Modeling With CTC
• Quartznet: Deep Automatic Speech Recognition With 1D Time-Channel Separable Convolutions
• Pair consensus decoding improves accuracy of neural network basecallers for nanopore sequencing
