ESSENTIAL Range
ESSENTIAL Monitors
ESSENTIAL
4.3″ Digital Mirror Monitor
Model |
Part Number |
| VBV-243M | 5323 |
- 12-24Vdc
- Size (WxDxH): 280 x 92 x 30.5mm
- 1 year warranty
Features
- On screen milti-lingual display menu
- Digital LCD panel
- 2 Auto-trigger
- Auto dimmer
- Illuminated keypad
- On-screen distance markers
- TV system: PAL / NTSC
Picture Quality
- Resolution: 480 x 272
- Contrast ratio: 600:1
- Brightness: 1000cd/m2
- Viewing angles: Side 65° x Top 60° x Bottom 50°
Power
- Power consumption: 6.6 Watts
- Current: 0.53 Amps
Durability & Standards
- Vibration rating: 6G
- Operating temperature: -20 to +70°C
- CE marked
- FCC approved
Product Data
| Model | Product Data |
| VBV-243M | View data |
ESSENTIAL Camera Monitor Kits
Suitable for rigid vehicles.
NEW
Single AHD Camera Monitor System
Model |
Part Number |
| VBV-6172-000: 1080p camera system with VBV-6170M 7″ AHD monitor | 7595 |
Viewing Angle (HxVxD)
106 x 56 x 120°
IP Rating
IP69K
Camera Size (WxHxD)
76 x 59 x 52mm
Monitor Size (WxHxD)
205 x 126 x 26mm
Warranty
1 year
Contents
- 1 x VBV-6170M Monitor & Sunshield
- 1 x VBV-6132C Camera & Bracket
- 1 x VBV-L4120 20M Extension Cable
- 1 x VBV-670M BKT Monitor Bracket
- 1 x VBV-613XC FIX Camera Fitting Kit
Camera Features
- Normal view
- AHD 2.0 (1080P)
- NTSC & PAL
Monitor Features
- 2 camera inputs (CVBS, 720P & 1080P compatible)
- 1 auto trigger
- Sun shield
- Multi-lingual menus
- 16:9 display
- Normal/Mirror via OSD menu
Picture Quality
- Monitor resolution: 1024×600
- Camera Resolution: 1920×1080
- Contrast ratio: 500:1
- Brightness: 400 cd/m2
- Monitor viewing angles:
- Left 85° x Right 85° x Bottom 85° x Top 85°
Power
- Power consumption:
(Monitor): 4.2W max. @ 12Vdc
(Camera): IR Off: 75mA(Max), R On: 215mA(Max) - Current Consumption:
350mA max. @ 12Vdc
Durability & Standards
- Vibration Resistance: 5.9G
- Mechanical vibration:
Camera: 8.5G
Monitor: 4G - Operating temperature: -20° to +70°C
- CE marked
- FCC approved
- ICES Approved
ESSENTIAL

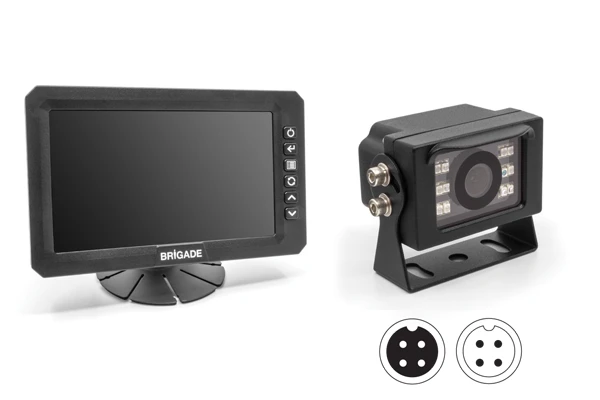

7″ Monitor with Camera
PAL Model
Model |
Part Number |
| VBV-670-000: PAL Camera monitor system | 5774 |
NTSC Model
Model |
Part Number |
| VBV-671-000: NTSC Camera monitor system | 5816 |
Model |
Part Number |
| VBV-671-000: NTSC Camera monitor system | 5816 |
Viewing Angle (HxVxD)
89 x 65 x 115° PAL (114° NTSC)
IP Rating
IP67
Camera Size (WxHxD)
76 x 59 x 52mm
Monitor Size (WxHxD)
205 x 126 x 26mm
Warranty
1 year
Contents
- 1 x VBV-670M monitor
- 1 x monitor sunshield
- 1 x monitor bracket
- 1 x VBV-63XC camera
- 1 x 20m VBV-L4020 extension cable
- Fitting kit
Camera Features
- Normal view
- 1/3″ PixelPlus CMOS
- TV Lines: 425
Monitor Features
- 2 camera inputs
- 1 auto trigger
- Sun shield
- Multi-lingual menus
- Normal/Mirror via OSD menu
Picture Quality
- Monitor resolution: 800×400
- Contrast ratio: 500:1
- Brightness: 250 cd/m2
- Monitor viewing angles: Side 70° x Top 45° Bottom 65°
Power
- Power consumption: 4.2 Watts
- Current: 0.4 Amps
Durability & Standards
- Mechanical vibration:
Camera: 8.5G Monitor: 4G - Operating temperature: -30 to +70°C
- CE marked
- FCC approved
to connect additional camera
PAL Model
Model |
Part Number |
| VBV-630C: PAL Essential camera | 5772 |
NTSC Model
Model |
Part Number |
| VBV-631C: NTSC Essential camera | 5817 |
Model |
Part Number |
| VBV-631C: NTSC Essential camera | 5817 |
Cable:
- VBV-L4020: 20m Essential extension cable (5773)
ESSENTIAL
5″ Monitor with Camera
PAL Model
Model |
Part Number |
| VBV-650-000: PAL Camera monitor system | 4765 |
NTSC Model
Model |
Part Number |
| VBV-650-000N: NTSC Camera monitor system | 4766 |
Model |
Part Number |
| VBV-650-000N: NTSC Camera monitor system | 4766 |
Viewing Angle (HxVxD)
81 x 59 x 106° PAL (108° NTSC)
IP Rating
IP67
Camera Size (WxHxD)
65 x 59 x 55mm
Monitor Size (WxHxD)
150 x 99 x 31mm
Warranty
1 year
Contents
- 1 x VBV-650M monitor
- 1 x monitor bracket
- 1 x VBV-620C camera PAL or VBV-621C camera NTSC
- 1 x 20m VBV-L4020 extension cable
- Fitting kit
Camera Features
- Mirror view
- CMOS
- TV Lines: 420
Monitor Features
- 1 camera input
Picture Quality
- Monitor resolution: 640×480
- Monitor viewing angles: Side 70° x Top 50° Bottom 70°
Power
- Power consumption: 2 Watts
Durability & Standards
- Operating temperature: -10 to +70°C
