Algo Visualizer

Simple Visualization, it elevates your mind.

Comment

Inspiration

Everyone around is trying to learn programming and become great software developers at tech giants, but the most basic thing that everyone starts learning form are basic algorithms. there is no better way to learn other than visualization of concepts, so we decided to make an app that helps beginners grasp difficult concepts and become great developers.

What it does

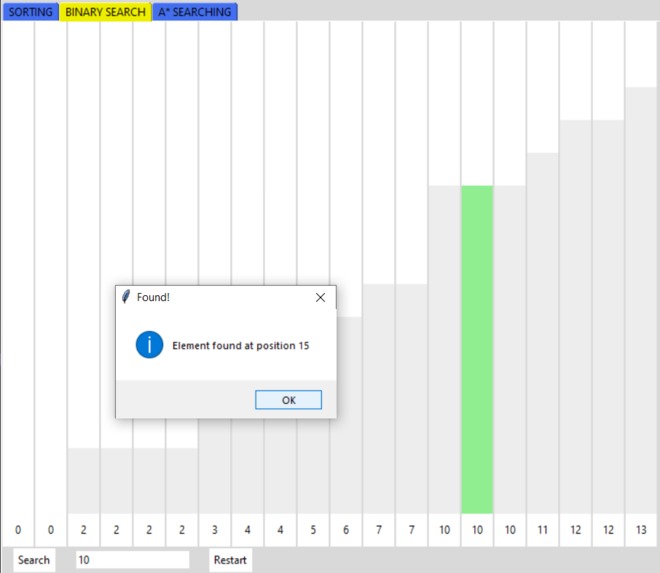

It contains several sorting, searching and graph algorithms. Aiming towards making understanding easier through visualization

How we built it

we have used Python and used Tkinter It is the standard Python interface to the Tk GUI toolkit. link

Challenges we ran into

Learning new algos and working on them to make sure that they work visually, user-friendly design. First time experiencing how a team works, how the work of one person affects the whole team not using version system like git from the start resulted in a mess, even in a small 2-day hackathon codes were all over the place, using git could reduce all this confusion.

Still were grateful for this opportunity and also for our difficulties as we got to learn and gain experience which will help us perform better in future hackathons

Accomplishments that we're proud of

Making a finished product within 2 days which can be beneficial for a lot of purpose i)for beginners at understanding difficult algorithms ii)Can be used as a teaching tool at schools and colleges.

Working as a team on a project with talented people, keeping with others and learning new things and skills along the way.

What we learned

Learnt a lot of algos in the process of making this application. Learnt to use appropriate technology and sharing of code using git.

What's next for Algo Visualizer

There is a lot of room to grow as this was only a trailer of our original vision. We will try to make the visualizer more appealing and adding more and more algos and try to add more theory content for beginners and make it a must-have teaching tool.

Built With

+ 6 more
Share this project:

Updates

posted an update —

we can find the path using bfs(blue) and astar(yellow) from tkinter import * import time import random

print(random.randint(0, 9)) window = Tk() window.title("Misbah")

uncomment at Walls, rows, randomwalls

Walls = [] rows = 30 cols = 30 player = (0, 0) end = (cols-2, rows-2)

random walls creation

for i in range(cols): for j in range(rows): if random.randint(0, 9) < 2 and (i, j) not in player and (i, j) not in end: Walls.append((i, j))

Walls = [(1,0),(1,1),(1,2,),(1,3),(1,4),(1,5),(1,7),(1,8),(3,1),(3,2),(3,3),(3,4),(3,5),(3,7),(4,1),(4,3),(4,5),(4,7),(5,1),(5,3),(5,5),(5,6),(5,7),(6,5),(6,7),(7,0),(7,1),(7,2),(7,3),(7,5),(7,7)]

rows = 9

cols = 9

player = (0, 0)

end = (4, 2)

width to set inner-square size

Width = 500/rows

platform = Canvas(window, width=cols*Width, height=rows*Width) platform.pack()

def render_grid(): global rows, cols, Width, player, end for i in range(cols): for j in range(rows): platform.create_rectangle( i*Width, j*Width, (i+1)*Width, (j+1)*Width, fill="white", width=1)

platform.create_rectangle(player[0]*Width, player[1]*Width,
                          (player[0]+1)*Width, (player[1]+1)*Width, fill="blue", width=1)
platform.create_rectangle(
    end[0]*Width, end[1]*Width, (end[0]+1)*Width, (end[1]+1)*Width, fill="green", width=1)

for (i, j) in Walls:
    platform.create_rectangle(
        i*Width, j*Width, (i+1)*Width, (j+1)*Width, fill="black", width=1)

render_grid()

def render_path(path,color): global Width for (i, j) in path: platform.create_rectangle( i*Width, j*Width, (i+1)*Width, (j+1)*Width, fill=color, width=1) time.sleep(0.1)

def start_game(): window.mainloop()

my.py:

import Board import threading import heapq from collections import deque

class SquareGrid: def init(self, width, height): self.width = width self.height = height self.walls = []

def in_bounds(self, id):
    (x, y) = id
    return 0 <= x < self.width and 0 <= y < self.height

def passable(self, id):
    return id not in self.walls

def neighbors(self, id):
    (x, y) = id
    results = [(x+1, y), (x, y-1), (x-1, y), (x, y+1)]
    if (x + y) % 2 == 0:
        results.reverse()  # aesthetics
    results = filter(self.passable, results)
    results = filter(self.in_bounds, results)
    return results


def depth_first_neighbors(self, id):
    (x, y) = id
    results = [(x-1, y), (x, y-1), (x+1, y), (x, y+1)]
    if (x + y) % 2 == 0:
        results.reverse()  # aesthetics
    results = filter(self.in_bounds, results)
    results = filter(self.passable, results)
    return results

def cost(self, from_node, to_node):
    return 1

rows = Board.rows cols = Board.cols Width = Board.Width start = Board.player goal = Board.end

start, goal = (0, 0), (3, 2)

diagram1 =SquareGrid(cols, rows)

[(1, 2), (1, 7), (1, 8), (2, 7), (2, 8), (3, 7), (3, 8)]

diagram1.walls = Board.Walls

class PriorityQueue: def init(self): self.elements = []

def empty(self):
    return len(self.elements) == 0

def put(self, item, priority):
    heapq.heappush(self.elements, (priority, item))

def get(self):
    return heapq.heappop(self.elements)[1]

def heuristic(a, b): (x1, y1) = a (x2, y2) = b return abs(x1 - x2) + abs(y1 - y2)

def a_star_search(graph, start, goal): openLoop = PriorityQueue() openLoop.put(start, 0) closedLoop = [] came_from = {} cost_so_far = {} cost_so_far[start] = 0 came_from[start] = None

while not openLoop.empty():
    current = openLoop.get()
    #print ("current = ", current)

    if current == goal:
        print("goal reached")
        break
    for next in graph.neighbors(current):
        tentative_cost = cost_so_far[current] + graph.cost(current, next)
        if next not in cost_so_far or tentative_cost < cost_so_far[next]:
            cost_so_far[next] = tentative_cost
            priority = tentative_cost = heuristic(goal, next)
            openLoop.put(next, priority)
            came_from[next] = current

return came_from, cost_so_far

def bfs_search(graph,start,goal): openLoop = PriorityQueue() openLoop.put(start, 0) closedLoop = [] came_from = {} cost_so_far = {} cost_so_far[start] = 0 came_from[start] = None

while not openLoop.empty():
    current = openLoop.get()
    #print ("current = ", current)

    if current == goal:
        print("goal reached")
        break
    for next in graph.neighbors(current):
        tentative_cost = cost_so_far[current] + graph.cost(current, next)
        if next not in cost_so_far or tentative_cost < cost_so_far[next]:
            cost_so_far[next] = tentative_cost
            # priority = tentative_cost = heuristic(goal, next)
            priority = tentative_cost
            openLoop.put(next, priority)
            came_from[next] = current

return came_from, cost_so_far

def reconstruct_path(came_from, start, goal): current = goal path = [] while current != start: path.append(current) current = came_from[current] path.append(start) path.reverse() return path

came_from_bs, cost_so_far = bfs_search(diagram1, start, goal) total_path_bs = reconstruct_path(came_from_bs, start, goal)

came_from_a_star, cost_so_far3 = a_star_search(diagram1, start, goal) total_path_a_star = reconstruct_path(came_from_a_star, start, goal)

print (total_path)

def run(): global total_path_bs,total_path_ds,total_path_a_search Board.render_path(total_path_bs,"blue") Board.render_path(total_path_a_star,"yellow")

t = threading.Thread(target=run) t.daemon = True t.start() Board.start_game()
