Inspiration
We like Kermit!
What it does

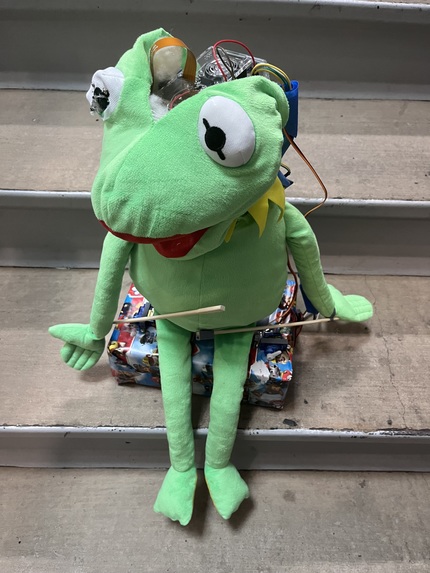

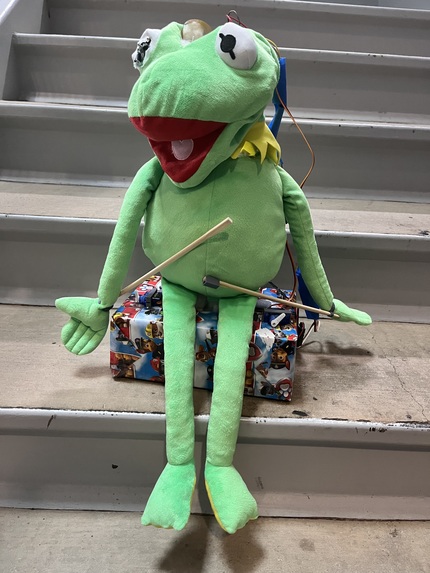

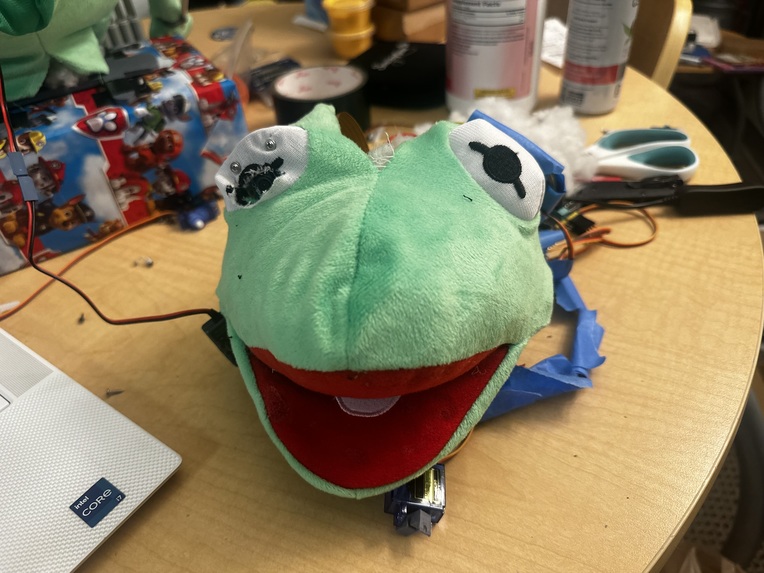

Kerminator uses a camera built into his eye to track the user, and follows them by turning his head. He can do some arm motions, and uses an AI generated voice to answer questions.
How we built it
Kerminator follows the user using an arducam 219x connected to a raspberry pi. YOLOface was used to track users, and Kerminator is controlled with 4 servos and 1 vex motor, which are controlled using I2C from the rasberry pi.

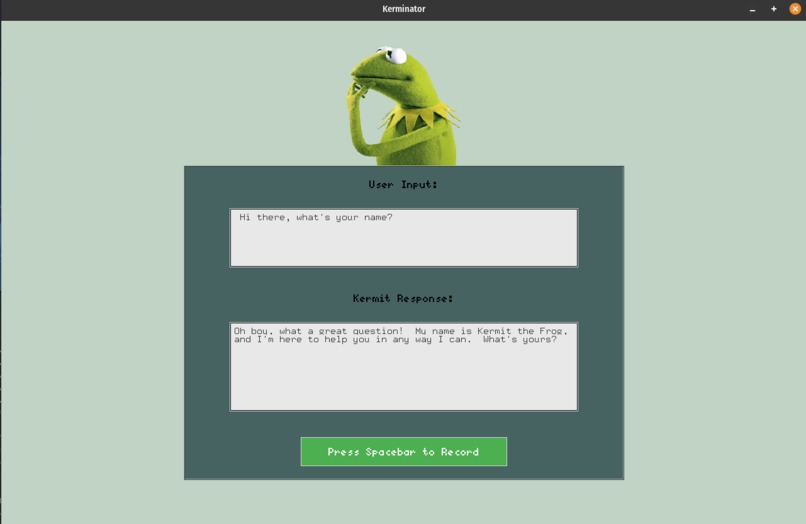

Microphone input => STT => NLP response => TTS => Raspberry Pi PyAudio => Whisper => Llama 2 7B => Tortoise TTS => SCP

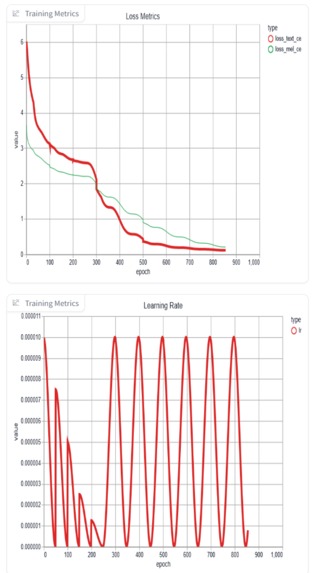

Trained model to mimic Kermit’s voice.
Challenges we ran into
Vex motors are meant to be run on raspberry pi's. As such, getting the motors to run on raspberry pi's i2c's was a hassle and required us to directly manipulate register values. Furthermore, it required a different variety of i2c, causing issues since there is only one i2c bus.
Accomplishments that we're proud of
Being able to combine a mechanical aspect in with software to create a unified final product.
What we learned
How I2C works.
What's next for Kerminator
Fine tuning, better manufacturing, and a less unsettling place to put the camera.
Built With
- i2c
- opencv
- python
- raspberry-pi
- solidworks
- yolo
