💡Inspiration

Gaming is often associated with sitting for long periods of time in front of a computer screen, which can have negative physical effects. In recent years, consoles such as the Kinect and Wii have been created to encourage physical fitness through games such as "Just Dance". However, these consoles are simply incompatible with many of the computer and arcade games that we love and cherish.

❓What it does

We came up with Motional at HackTheValley wanting to create a technological solution that pushes the boundaries of what we’re used to and what we can expect. Our product, Motional, delivers on that by introducing a new, cost-efficient, and platform-agnostic solution to universally interact with video games through motion capture, and reimagining the gaming experience.

Using state-of-the-art machine learning models, Motional can detect over 500 features on the human body (468 facial features, 21 hand features, and 33 body features) and use these features as control inputs to any video game.

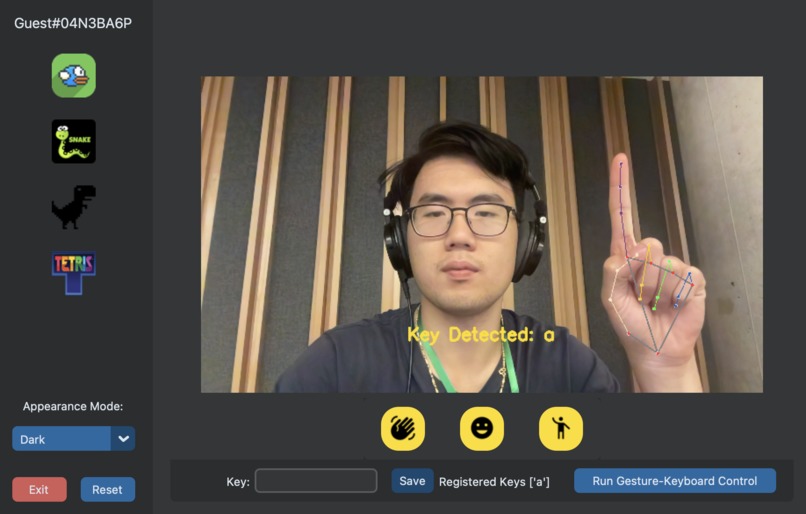

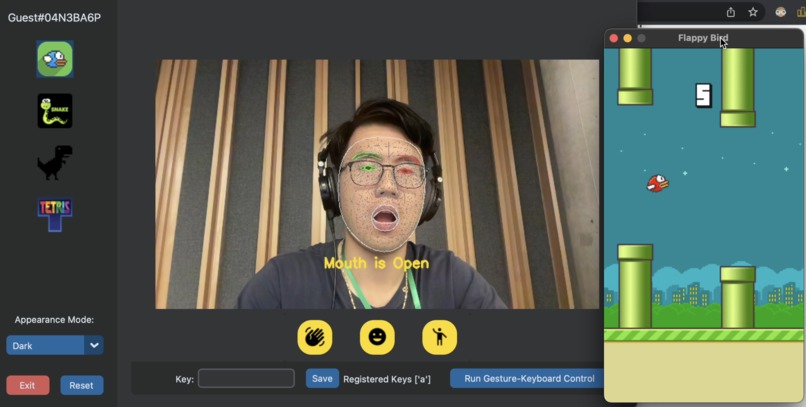

Motional operates in 3 modes: using hand gestures, face gestures, or full-body gestures. We ship certain games out-of-the-box such as Flappy Bird and Snake, with predefined gesture-to-key mappings, so you can play the game directly with the click of a button. For many of these games, jumping in real-life (body gesture) /opening the mouth (face gesture) will be mapped to pressing the "space-bar"/"up" button.

However, the true power of Motional comes with customization. Every simple possible pose can be trained and clustered to provide a custom command. Motional will also play a role in creating a more inclusive gaming space for people with accessibility needs, who might not physically be able to operate a keyboard dexterously.

🤔 How we built it

First, a camera feed is taken through Python OpenCV. We then use Google's Mediapipe models to estimate the positions of the features of our subject. To learn a new gesture, we first take a capture of the gesture and store its feature coordinates generated by Mediapipe. Then, for future poses, we compute a similarity score using euclidean distances. If this score is below a certain threshold, we conclude that this gesture is the one we trained on. An annotated image is generated as an output through OpenCV. The actual keyboard presses are done using PyAutoGUI.

We used Tkinter to create a graphical user interface (GUI) where users can switch between different gesture modes, as well as select from our current offering of games. We used MongoDB as our database to keep track of scores and make a universal leaderboard.

👨‍🏫 Challenges we ran into

Our team didn't have much experience with any of the stack before, so it was a big learning curve. Two of us didn't have a lot of experience in Python. We ran into many dependencies issues, and package import errors, which took a lot of time to resolve. When we initially were trying to set up MongoDB, we also kept timing out for weird reasons. But the biggest challenge was probably trying to write code while running on 2 hours of sleep...

🏆 Accomplishments that we're proud of

We are very proud to have been able to execute our original idea from start to finish. We managed to actually play games through motion capture, both with our faces, our bodies, and our hands. We were able to store new gestures, and these gestures were detected with very high precision and low recall after careful hyperparameter tuning.

📝 What we learned

We learned a lot, both from a technical and non-technical perspective. From a technical perspective, we learned a lot about the tech stack (Python + MongoDB + working with Machine Learning models). From a non-technical perspective, we worked a lot working together as a team and divided up tasks!

⏩ What's next for Motional

We would like to implement a better GUI for our application and release it for a small subscription fee as we believe there is a market for people that would be willing to invest money into an application that will help them automate and speed up everyday tasks while providing the ability to play any game they want the way they would like. Furthermore, this could be an interesting niche market to help gamify muscle rehabilition, especially for children.
