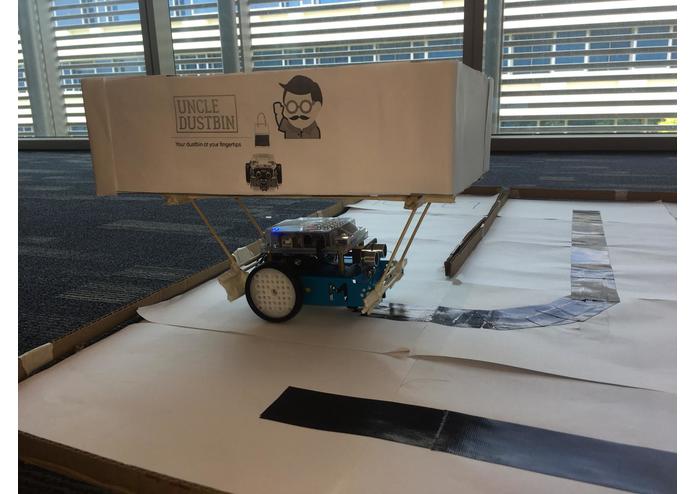

  uncle dustbin in action

•

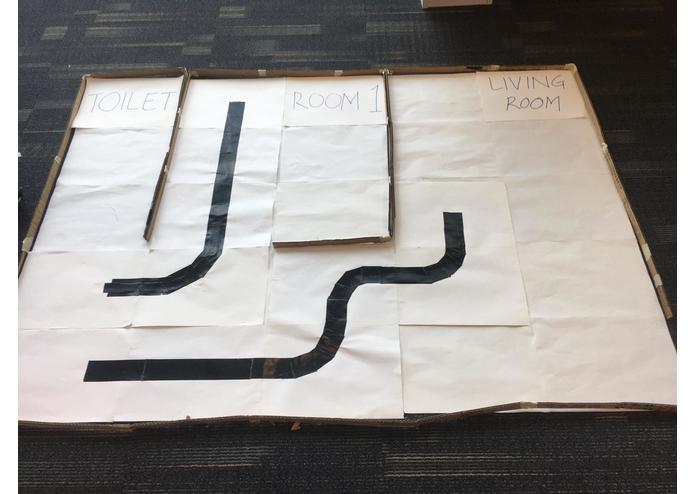

  birds eye view of the map

Inspiration

We got inspired to doing this project from our lazyness from getting out of the our couch when we are very much enjoying watching netflix.

What it does (gif animation):

Artist Impression (gif animation)):

Actual Impression:

Uncle Dustbin in action... Bird's Eye View of the House

How we built it

we wrote a line tracing program for the mbot in Python. The mbot would trace the lines and go to different rooms to collect trash.

mBot identifies a black track on a light colour surface to make mBot move along a track.

we use some engineering so that we can can mount and unmount the dustbin head so that it will be interchangeable.

The following introduces four situations where mBot is relative to the black line, which can be dealt with using the following strategies:

1. if it is on the black line, it keeps moving forward;
2. if it deviates from the black line, it turns left or right in time to keep itself on the line;
3. if it is not on the black line, it turns back to find the black line.

Challenges we ran into

the robot had issues tracing and following the line

Accomplishments that we're proud of

the robot was able to trace and follow the line after many changes to the code

What we learned

how to use and program the mbot

What's next for uncle dustbin

Uncle Dustbin 2.0

Built With

• arduino
• mbot
• python
