Freestyle FPV quadcopter frame

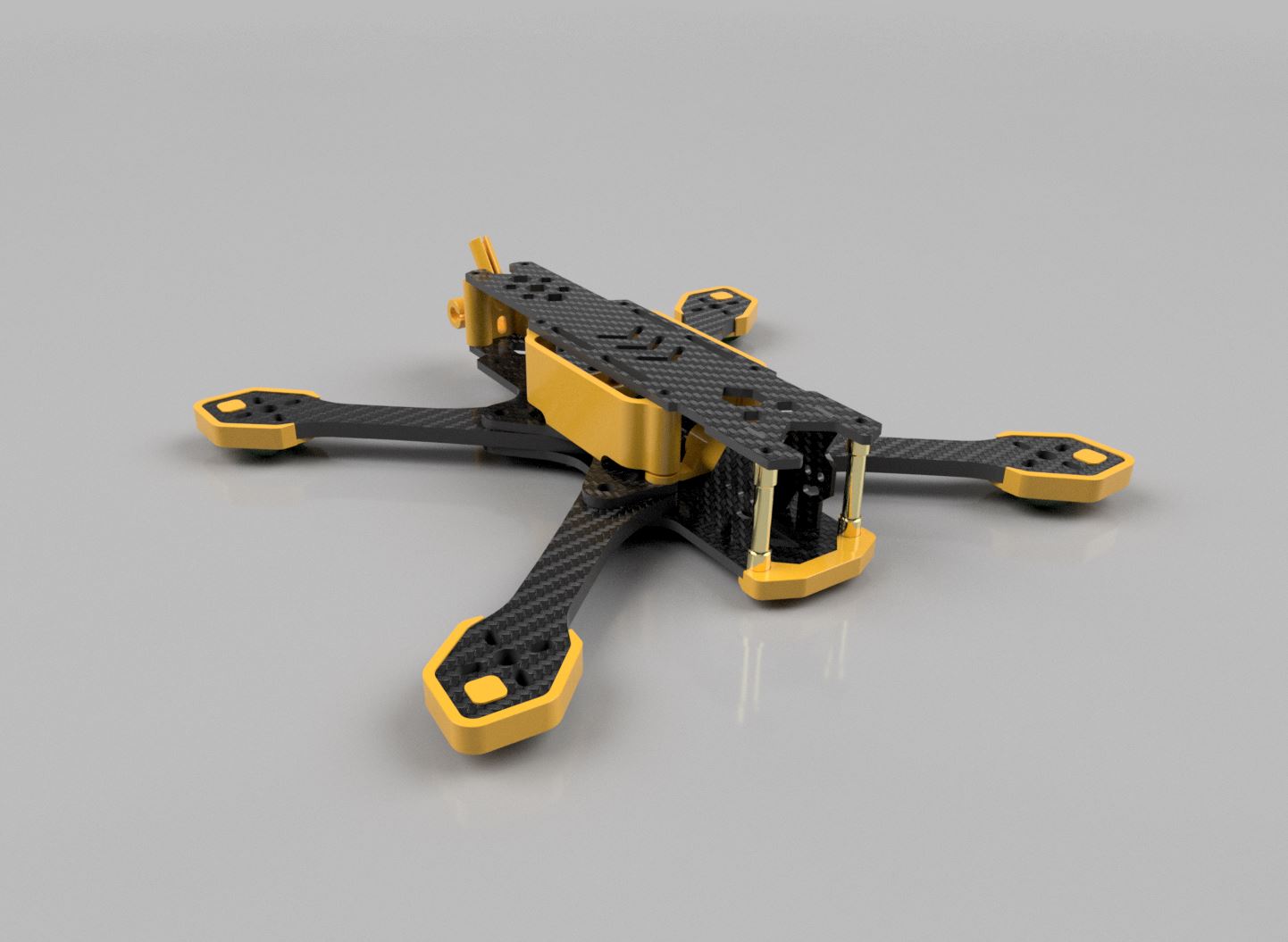

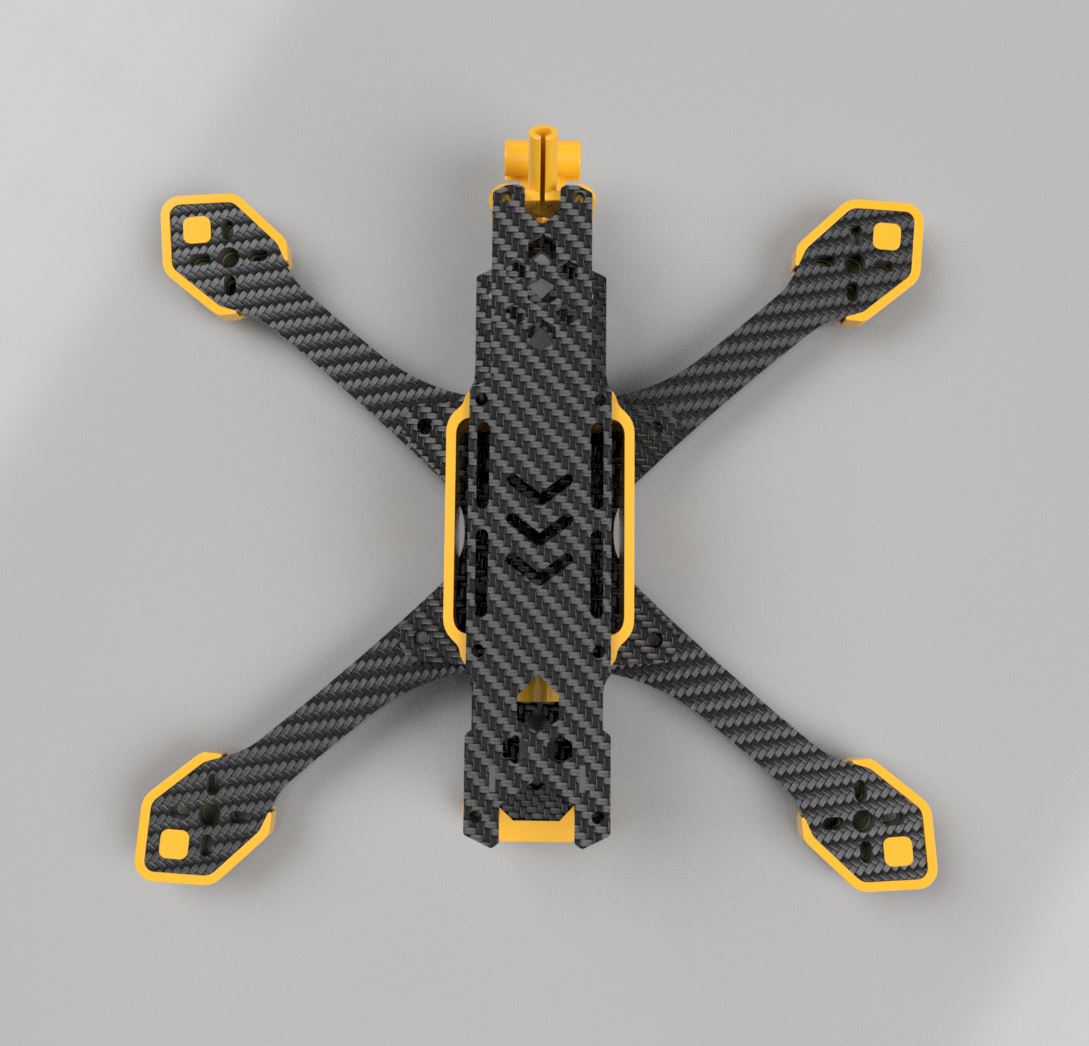

This is a carbon fibre freestyle frame designed with modularity in mind. The main body is suitable for 5-inch to 7-inch propellers. Arms are available here in squished-X configuration (5 inch) as well as deadcat configuration (5 to 6 inch). The frame in it's current design is cut from sheets/plates of carbon fibre composite, recommended thickness noted in DXF filenames and STEP-files. Additional mounts and parts are available as 3d-printable files.
The frame can be used with 30x30 (recommended for easy arm replacement) or 20x20 stacks. The frame is designed for a 20x20-25.5x25.5mm VTX (Caddx Vista, HDZero, Walksnail or analog) but can hold a full size DJI Air Unit using a TPU cage (noted in DXF file name). The frame is designed to carry an action camera like the GoPro Hero with low displacement on center of gravity.
All TPU is designed for 6mm knurled standoffs and will be lose and cause gyro noise if used with smaller standoffs.
Arms of all styles will not always be updated at the same time as focus lies on X-configuration 5-inch. Feel free to contact me for arm options and updates.
If you don't want to cut the frame yourself I'm trying to keep the current version available with hardware at: https://armattanproductions.com/pages/shop_product_grid/7553
-Added deadcat 6-inch arm kit
-Added deadcat 5-inch arm kit and extended O3 camplates
-Added split body design with new electronics mounting holes in one-file format in STEP, OBJ, and Fusion360 F3D formats
-DJI O3 compatible both with standard cam plates and added TPU front mount for less wide angle obstuction (Note: TPU front mount for O3 requires 200mm camera cable) (Should be Walksnail compatible, not verified as of 2023-06-15)

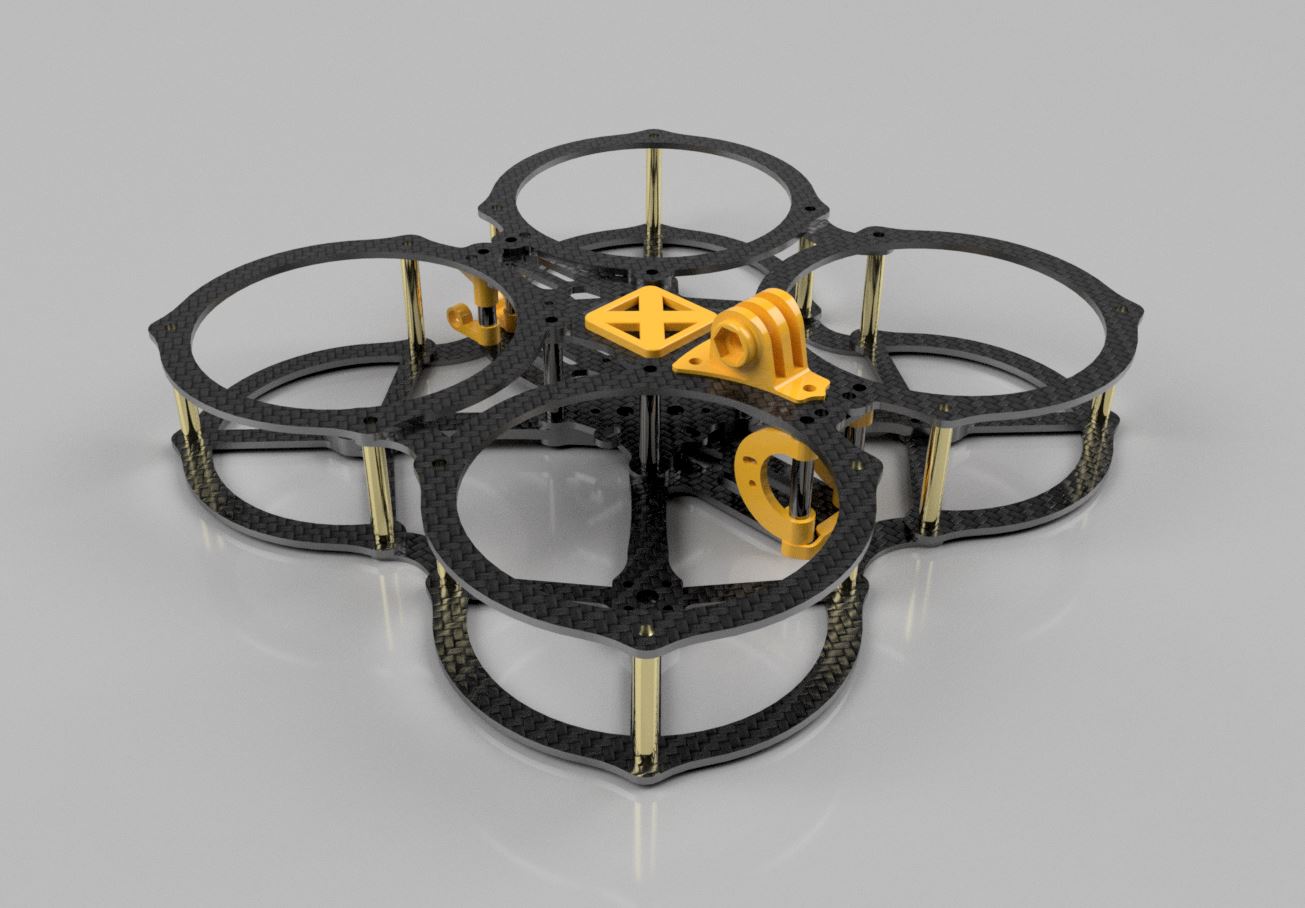

-Added complete Humblebee 3-inch freestyle+cinewhoop frame design
-Note: Most TPU parts for the old body can easily be modified for split deck as deck height is the main difference.
YJ1.4:
Humblebee:
