Client-Server Model

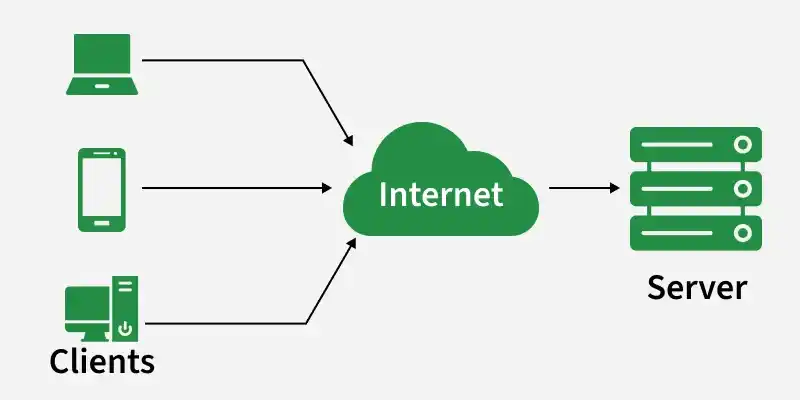

The Client-Server Model is a network architecture in which clients send requests for resources or services, and servers process these requests, returning the required responses.

• Client: A device or program that requests data or services (e.g., web browser).
• Server: A system that stores resources, manages data, and responds to client requests.
• Request–response mechanism: Communication follows a structured cycle — client requests, server responds.
• Centralized management: Data and services are controlled from servers, improving security and consistency.

Working

The client-server model works on a request–response flow where a client requests a service/data and the server processes that request and returns a response.

• Client is a device/app that requests services from a server, like a web browser or email app.
• Server is a system that listens for requests and responds by sending data or performing operations.
• Servers can handle many clients at the same time using concurrent request handling.
• Example client apps include Chrome/Firefox and Gmail/Outlook.
• Example servers include web servers (Apache/Nginx), email servers, and database servers.

How Client-Server Communication Works in C++

In C++, sockets are used for communication between the client and the server over a network.

Example:

Server Code (server.cpp)

#include <iostream>
#include <cstring>
#include <unistd.h>
#include <netinet/in.h>

int main() {
    int server_fd, new_socket;
    struct sockaddr_in address;
    int addrlen = sizeof(address);
    char buffer[1024] = {0};

    // Create socket
    server_fd = socket(AF_INET, SOCK_STREAM, 0);

    // Setup address
    address.sin_family = AF_INET;
    address.sin_addr.s_addr = INADDR_ANY;
    address.sin_port = htons(8080);

    // Bind socket
    bind(server_fd, (struct sockaddr*)&address, sizeof(address));

    // Start listening
    listen(server_fd, 3);
    std::cout << "Server waiting for connection...\n";

    // Accept a client connection
    new_socket = accept(server_fd, (struct sockaddr*)&address, (socklen_t*)&addrlen);

    // Read message from client
    read(new_socket, buffer, 1024);
    std::cout << "Client says: " << buffer << std::endl;

    // Send reply
    const char* reply = "Hello from server!";
    send(new_socket, reply, strlen(reply), 0);

    close(new_socket);
    close(server_fd);
    return 0;
}

Client Code (client.cpp)

#include <iostream>
#include <cstring>
#include <unistd.h>
#include <arpa/inet.h>

int main() {
    int sock = 0;
    struct sockaddr_in serv_addr;
    char buffer[1024] = {0};

    // Create socket
    sock = socket(AF_INET, SOCK_STREAM, 0);

    serv_addr.sin_family = AF_INET;
    serv_addr.sin_port = htons(8080);
    inet_pton(AF_INET, "127.0.0.1", &serv_addr.sin_addr);

    // Connect to server
    connect(sock, (struct sockaddr*)&serv_addr, sizeof(serv_addr));

    // Send message
    const char* hello = "Hello from client!";
    send(sock, hello, strlen(hello), 0);

    // Receive reply
    read(sock, buffer, 1024);
    std::cout << "Server says: " << buffer << std::endl;

    close(sock);
    return 0;
}

How a Browser Interacts With a Server

• User enters a URL in the browser (example: www.example.com).
• Browser performs a DNS lookup to convert the domain name into an IP address.
• Browser establishes a connection and sends an HTTP/HTTPS request to the server using that IP.
• Server responds with website resources like HTML, CSS, JavaScript, and images.
• Browser renders the webpage by processing these files and displaying the content.

Types of Client-Server Architecture

Client-server architecture is commonly classified by how many layers handle presentation, logic, and data.

1. 2-Tier Architecture

In a 2-tier architecture, the client communicates directly with the server, which is typically responsible for both processing and data storage.

• It consists of two layers: the client layer and the server layer.
• The client handles the user interface and may perform some processing before sending requests.
• The server processes client requests and manages the database.
• This architecture is suitable for small applications and environments with limited users.
• However, it becomes difficult to scale and manage when many clients connect to the server simultaneously.

2. 3-Tier Architecture

In a 3-tier architecture, the system is divided into three layers to improve performance, security, and scalability.

• It consists of the presentation layer (client), application layer (business logic), and data layer (database server).
• The client interacts with the application server instead of communicating directly with the database.
• The application server processes requests, applies business logic, and retrieves or stores data in the database.
• This structure enhances security because the database is not directly exposed to clients.
• It is widely used in web applications and enterprise systems due to its flexibility and easier maintenance.

Advantages

• It centralizes data and services, which makes management and updates easier.
• It improves security because access control and authentication can be enforced on the server.
• It supports multiple clients at the same time, so many users can use the same service concurrently.
• It makes data sharing consistent because clients get information from a single trusted source.
• It becomes easier to maintain because most changes can be done on the server without updating every client.

Limitations

• It creates a dependency on the server, so services may stop if the server fails.
• It can become a bottleneck when many clients send requests at the same time.
• It requires higher server cost because servers need strong hardware, storage, and continuous availability.
• It needs network connectivity, so poor networks can reduce performance or block access.
• It can be complex to scale properly because load balancing, replication, and backups may be required.

Applications

• Web browsing uses browsers as clients and web servers to deliver webpages and APIs.
• Email systems use email clients and mail servers to send, store, and retrieve messages.
• Online banking systems use mobile/web apps to access secure banking servers.
• Social media platforms use client apps to request feeds, posts, and media from backend servers.
• Cloud storage services use client apps to upload, download, and sync files from storage servers.
• Database-driven applications use clients to query and update data stored on database servers.
