Joulehound

FLOPs lie about energy — memory access costs ~100× more than compute. Joulehound measures what AI agents actually burn on Arm silicon, proving the NEXUS metric tracks real joules while FLOPs don't.

Comment

Inspiration

FLOPs are the lingua franca of AI efficiency and a bad proxy for what mobile users actually pay: energy. Horowitz (ISSCC 2014) showed a DRAM access costs orders of magnitude more than an arithmetic op; the NEXUS/TOML model (Syed, FLAIRS 2026) grounds efficiency in transistor operations instead. We put proxies on trial on real Arm silicon, with the device's own battery as judge — and the verdict surprised even the physics.

What it does

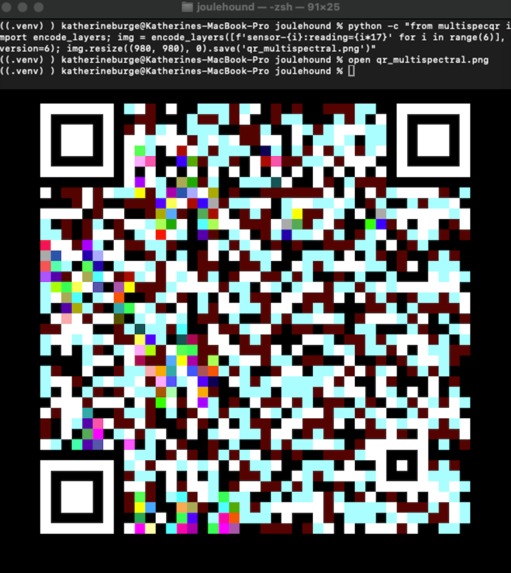

Joulehound runs a local agentic workload — decode a 6-layer multispectral QR carrying sensor readings, act on it with an on-device LLM — in two configs on an Arm Android device, while sampling the device's own power telemetry and integrating to joules. No external meter, no lab gear. Each run is scored three ways: a FLOPs proxy, a physics-grounded NEXUS prediction (Horowitz per-op energies loaded through nexus-ml-metrics' public coefficient API), and measured battery energy.

  • baseline — re-decodes the QR and calls the brain every step
  • optimized — pollard-governed: decode once and cache, gate redundant calls, early-stop

The QR is a stand-in. Any on-device agentic loop with a repeated perception step — OCR, sensor parsing, image preprocessing — has the same redundancy pathology; the meter and methodology transfer unchanged.

The result

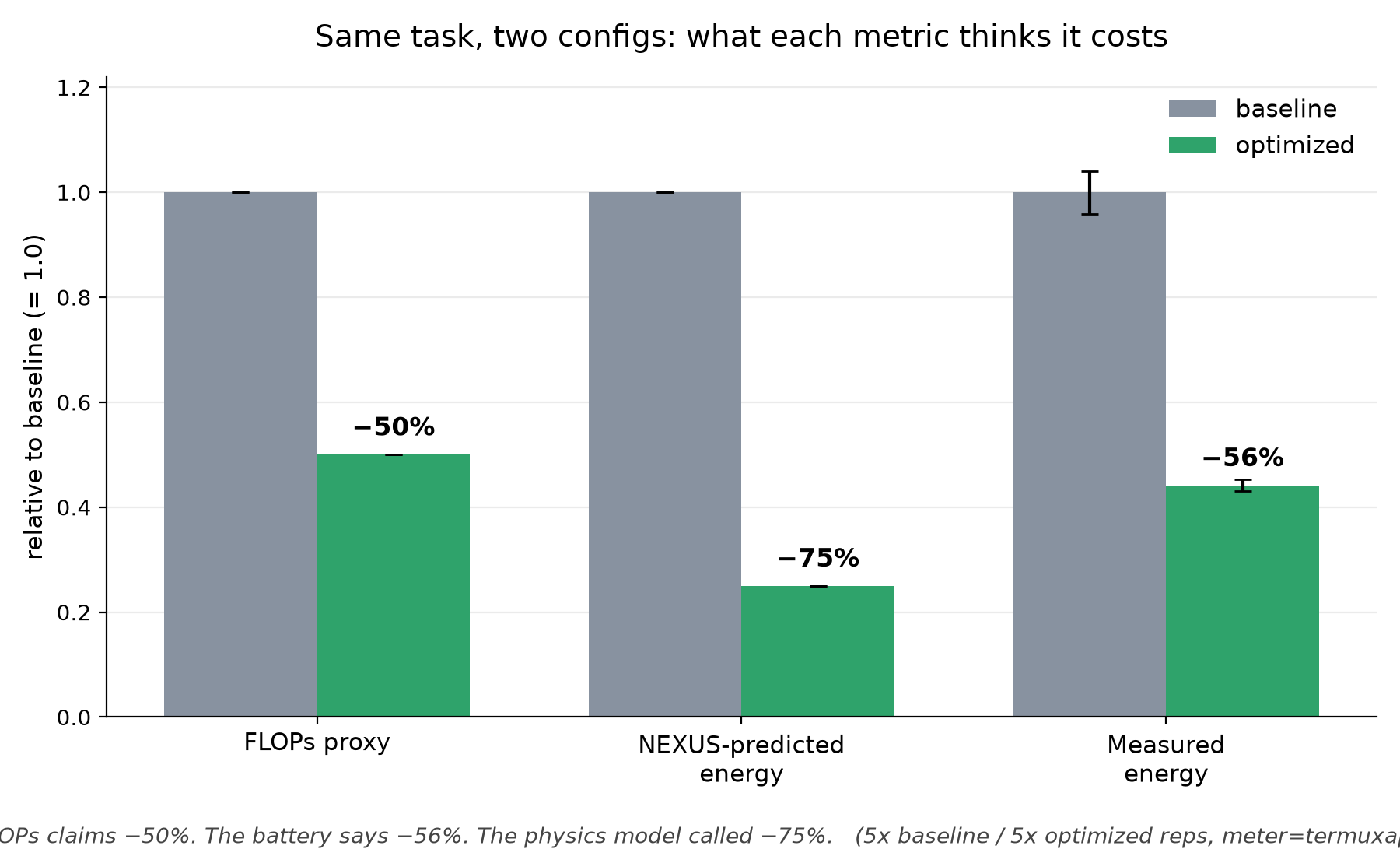

FLOPs vs physics vs battery — measured on a Galaxy Tab S9+

On a Galaxy Tab S9+ (5 reps per config after 3 discarded warm-ups, screen off, unplugged, airplane mode):

FLOPs claimed −50%. The physics model predicted −75%. The battery said −56%. Both proxies missed, in opposite directions.

Metric baseline optimized change
FLOPs proxy 2.00 M 1.00 M −50%
NEXUS-predicted energy (relative; α uncalibrated) 1.00 0.25 −75%
Measured battery energy 27.67 J 12.22 J −56%
Dynamic energy (1.343 W idle floor removed) 24.7 J 10.7 J −57%

Measured run statistics — Galaxy Tab S9+, N=5 per config after 3 discarded warm-ups; screen off, unplugged, airplane mode; ~1 Hz battery-API meter:

config mean energy avg power duration CoV
baseline 27.673 J ~11.1 W 2.23 s 4.1%
optimized 12.215 J ~10.0 W 1.14 s 2.5%

Full per-rep CSVs ship in the repo (results_steady.csv, results_ramp.csv). FLOPs is blind to everything silicon does. The transistor-operation model priced our image traffic at DRAM rates — but the 720 KB workload image fits in the Snapdragon's cache, so the "expensive" redundant decodes were served from SRAM. That is an experimental demonstration of exactly why the NEXUS β table ships uncalibrated: physics beats FLOPs directionally; measurement beats both. Subtracting the measured 1.34 W idle floor, the dynamic energy the optimization controls fell −57%.

Bonus finding: in a run without warm-ups, the identical baseline code cost 12.7 J/rep on efficiency cores and ~30 J/rep after the DVFS governor migrated it to performance cores — a 2.4× energy swing at constant FLOPs. We publish that run as data (results_ramp.csv), not as an outtake.

How we built it

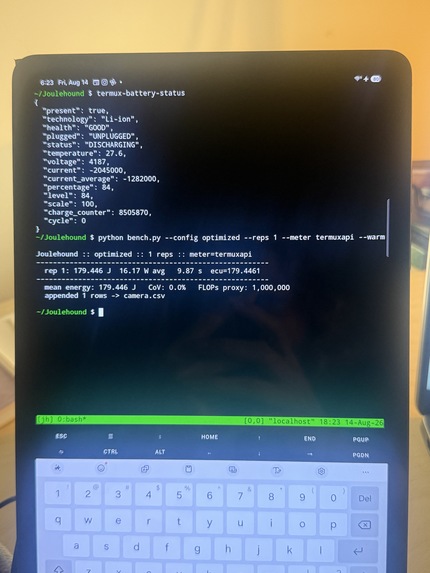

multispecqr's threshold decoder (6 payload layers, ~720 KB image — seconds of deterministic, cache-interesting compute) + a llama.cpp brain (Qwen 2.5 Instruct Q4_K_M, compiled with NEON on-device) governed by pollard budgets. The meter speaks the official Android battery API through Termux:API at ~1 Hz — because recent One UI SELinux-blocks battery sysfs entirely — with slow-meter correctness built in: both edges of every rep sampled synchronously, the t=0 reading taken before the clock starts so meter IPC latency is never billed to the workload, vendor unit chaos (µA/mA, mV/V, sign) normalized and covered by 7 unit tests. bench.py refuses to run if a decode round-trip fails, so the numbers can never describe a workload that quietly stopped being real. CI executes the full pipeline on every push.

Challenges we ran into

The device fought us with six distinct monsters in one night: One UI denying battery sysfs (→ Android-API meter); Termux's Python 3.14 sitting past the wheel horizon — nexus-ml-metrics declaring a pandas dependency it never imports, and multispecqr 0.4.1 being pure python wearing a <3.13 metadata cap that made pip silently substitute a skeleton alpha; no prebuilt OpenCV existing anywhere for Termux (→ a 20-line cv2 shim that routes multispecqr's decoder to its own pyzbar fallback, verified byte-identical); Termux's zbar package linking libdbus without declaring it; and llama-cpp-python's loader predating PEP 738's sys.platform == "android", throwing "Unsupported platform" on a platform it was literally running on (one-line patch). Then the data itself taught us: our first clean run had 43% CoV because the DVFS governor changed personalities mid-experiment — which became the warm-up protocol and a publishable finding. Every workaround ships in termux-setup.sh; several are upstream bug reports in waiting.

Accomplishments we're proud of

A three-way proxy-vs-physics-vs-battery result on consumer Arm hardware with zero external equipment and a $0 toolchain, reproducible by anyone (git clone → bash termux-setup.sh → two bench commands), with the prediction made before the measurement and the misses explained rather than hidden.

What we learned

Mobile energy is decided by things FLOPs cannot see: memory locality (our cache-resident image broke the DRAM-priced prediction), DVFS core choice (2.4× at constant FLOPs), and system floors. Physics-grounded models are the right direction — and they need per-silicon calibration, which is precisely the NEXUS paper's thesis.

What's next

Calibrate α and a cache-aware β split for specific Arm cores; upstream the Horowitz table to nexus-ml-metrics; file the five upstream bugs; extend the meter to per-cluster energy on big.LITTLE.

Built with

multispecqr (6-layer QR encode/decode — the agent's eyes) · pollard (budgeted runtime governing the optimized loop) · nexus-ml-metrics (ECU/MCER/DDEV + the coefficient API our Horowitz β table loads through) · llama.cpp via llama-cpp-python (on-device LLM brain, NEON build) · Qwen 2.5 3B Instruct GGUF · Termux + Termux:API (the $0 toolchain and the battery pipe) · pyzbar / zbar (per-layer QR decode behind the cv2 shim) · qrcode · matplotlib (the chart).

Setup

Laptop (no hardware needed): clone, pip install -r requirements.txt, run both configs with --meter fake, then make_chart.py. Device: any Arm Android device (tested on a Samsung Galaxy Tab S9+, Snapdragon 8 Gen 2). Install Termux and Termux:API from F-Droid, clone, run bash termux-setup.sh, then both configs with --warmup 3 --meter termuxapi. Measure unplugged, in airplane mode, screen off.
