Test Data

Routebase has a native test-data system, so you need no inline setup in every test, no shared "magic" databases, and no external shell scripts that drift out of sync with your specs. It rests on three concepts that compose:

Concept	What it is
Fixture	A reusable, structured data set (YAML or JSON) referenced from tests and mocks via {{fixture.*}} placeholders.
Seed	A sequence of HTTP steps that runs before or after a test suite to set up or clean up state.
Snapshot	A recorded "known good" state that can be restored before each suite run for a consistent baseline.

In a typical setup, a suite runs a pre-run seed that POSTs fixture entries to your API, and its test cases reference those fixtures in their requests. A snapshot then resets everything to a clean baseline before each run.

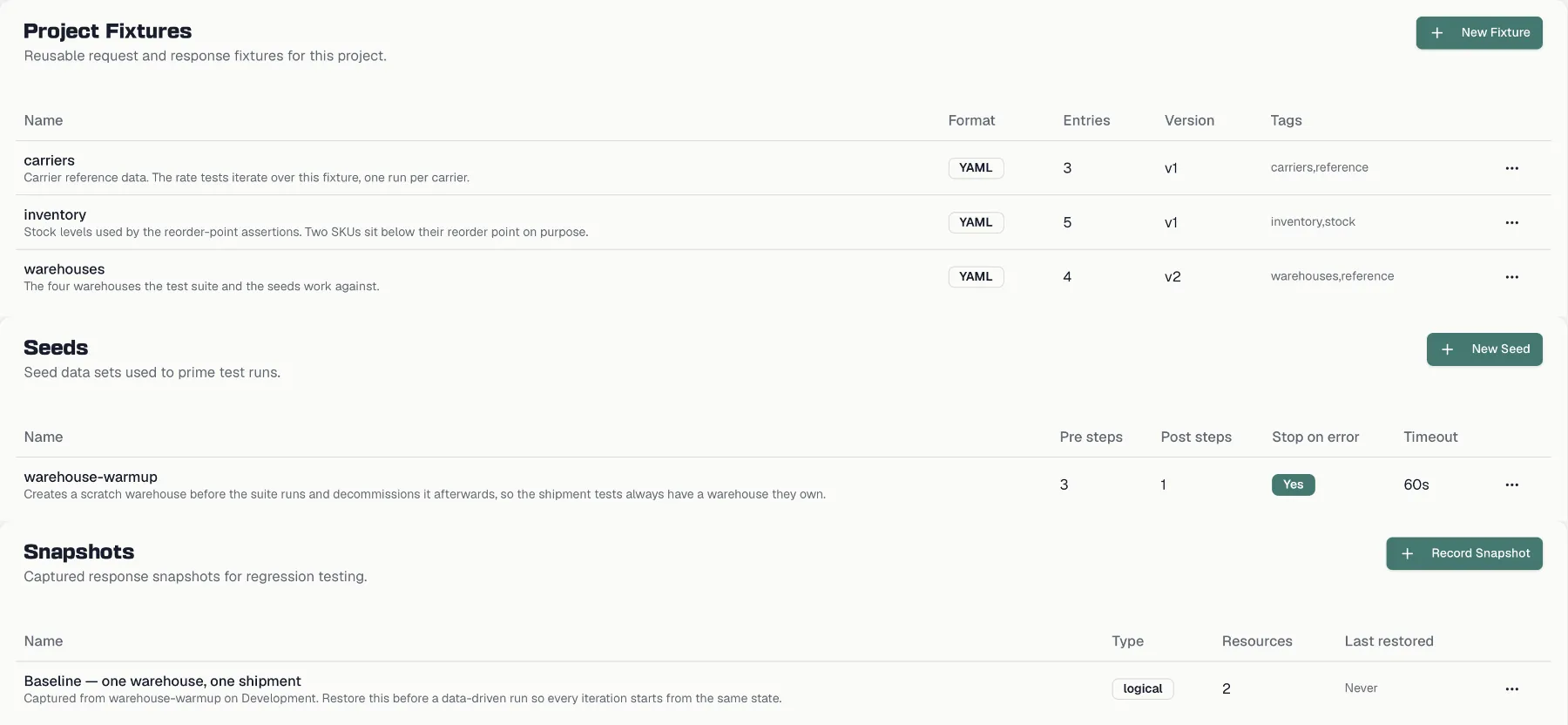

The Test Data page

Open Test Data from the sidebar, which requires tests:read. The page is split into three sections:

Section	Contents
Fixtures	This project's fixtures. The empty state reads "Create your first fixture to share test data across tests, mocks and docs."
Seeds	Reusable setup and cleanup HTTP sequences.
Snapshots	Recorded restore points.

Fixtures

A fixture is a named set of structured data. Click New Fixture, which requires tests:write. The dialog explains it up front with "Fixtures are reusable test data sets. Link a schema to fill a typed table, or edit the raw YAML/JSON directly."

Every fixture carries a Name such as users, an optional Description, and comma-separated Tags such as auth,users,smoke. How you edit the content depends on the editor mode.

Table vs. Advanced

A toggle at the top of the dialog switches between two editors:

Mode	When to use
Table	The default for project fixtures. Link one of your schemas and fill a typed, spreadsheet-style table with one row per record. Content is always stored as JSON.
Advanced (YAML/JSON)	The raw code editor for nested or non-tabular data. Pick the Format, either YAML or JSON, at creation, because the format is fixed afterwards.

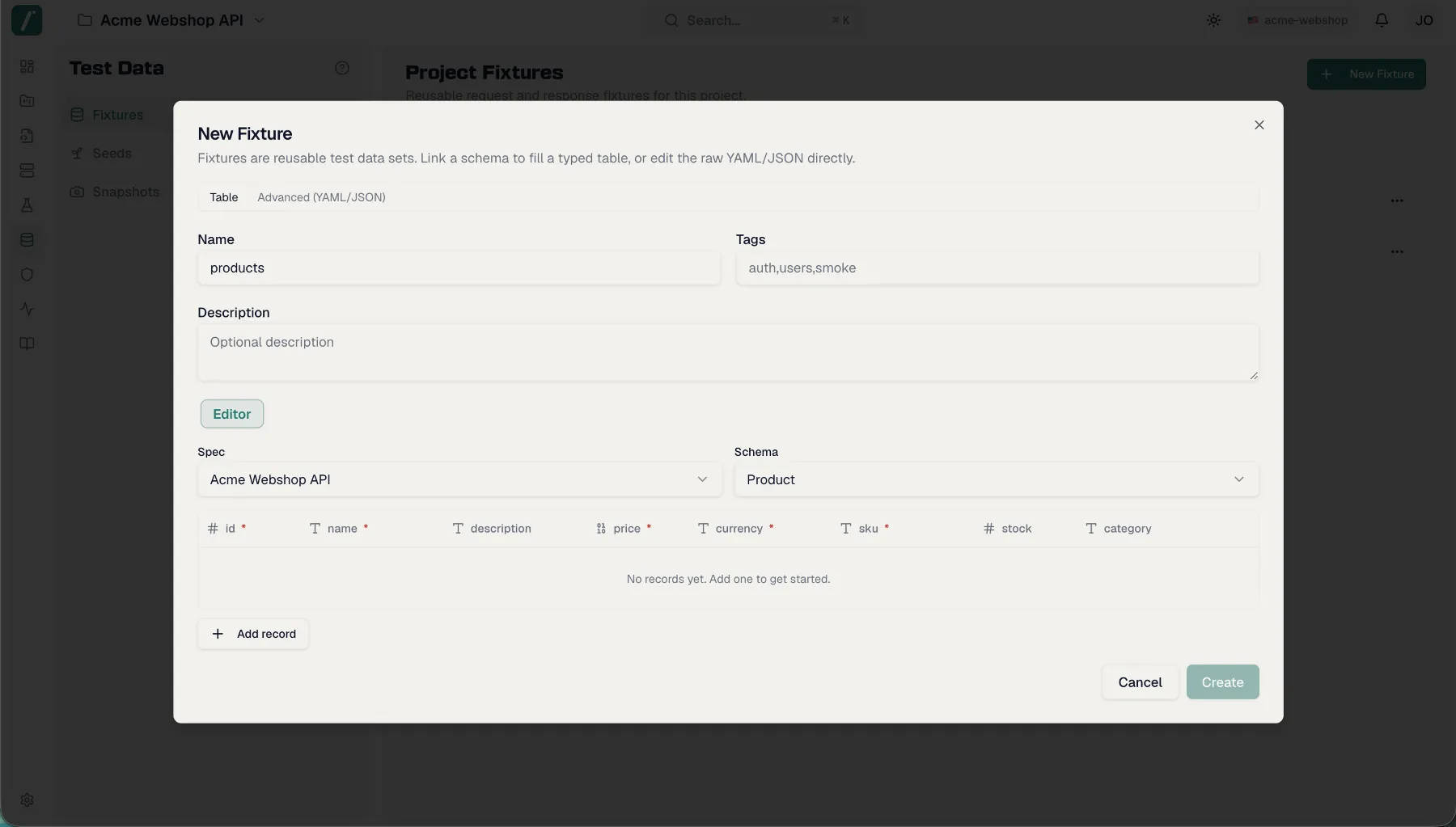

Table mode

Pick a schema with the Spec → Schema selectors at the top of the editor. The chosen schema's properties become the table's typed columns, and you add and edit records row by row. Until you pick one, the editor prompts "Select a schema above to define your columns." Table mode always stores JSON, so there is no format choice. There is no separate preview either, because the table is the view.

Linking a schema keeps fixtures aligned with the shapes your API actually uses. A fixture whose schema matches an endpoint's request body can also be inserted directly into a seed step, as described under Seeds below.

Advanced mode

Advanced mode is a syntax-highlighted code editor for the raw fixture content. Parse errors are shown inline and block saving. Here is a YAML example:

alice:
  email: alice@example.com
  role: admin
bob:
  email: bob@example.com
  role: member

Dialog tabs

Both modes share the dialog's tabs:

• Editor holds the table or the code editor for the mode you are in.
• Preview shows the fixture rendered as a table, and it appears in Advanced mode only.
• Warnings appears when the fixture has validation warnings, and warnings never block saving.
• Used By lists which test cases and suites reference the fixture, and it appears in edit mode only.

Every save creates a new version, so the list shows the current version as v3, v4 and so on. Open History from a fixture's menu to browse previous versions and restore any of them with one click. Up to 50 versions are retained per fixture, and older ones prune automatically.

Deleting a fixture is a soft delete, so tests that reference it fail until it is restored, and the confirmation dialog says so.

Fixture limits

Each fixture is capped at 1 MB. The number of fixtures depends on your plan, which allows 5 on Free, 25 on Starter, 100 on Pro and an unlimited number on Enterprise. At the limit, creating a fixture opens an upgrade prompt.

The count is per owner rather than per organization, so each project gets its own allowance, and the organization library below will get one of its own on top of them.

Organization fixture library

Cross-project data such as test credit cards, sample addresses and country codes is a natural fit for an organization-wide library that every project can import. This shared library is not yet available and will roll out in a later release. For now, fixtures live in the project where you create them.

Substitution syntax

You can reference a fixture anywhere Routebase renders a request template. That covers test-case URLs, headers, bodies, assertion expected values, seed steps and mock responses.

{{fixture.users.alice.email}}              — dot path
{{fixture.users[0].id}}                    — array index
{{fixture.users[*]}}                       — wildcard (returns array)
{{fixture.users[?(@.role=='admin')]}}      — filter (== / !=)

Pipes

Pipes transform the resolved value, and you chain them with |:

Pipe	Effect
toJson	Serialize to a JSON string
toJsonArray	Serialize as a JSON array
count	Number of entries
first	First entry
last	Last entry
random	Random entry
pluck:<field>	Extract one field from each entry
where:<field>=<value>	Filter entries by equality
jsonPath:<expr>	JSONPath expression over the entries

Chaining example:

{{fixture.users | where:role=admin | pluck:email | toJsonArray}}

Mixing namespaces

Fixture placeholders coexist with three other namespaces. Environment variables are referenced by their bare name as in {{BASE_URL}}, data-set columns use {{data.*}}, and dynamic values look like {{$uuid}} and {{$timestamp}}.

{{BASE_URL}}/users/{{fixture.users.alice.id}}

Template inputs highlight each namespace in its own color and offer autocomplete as soon as you type {{. Fixtures are teal, environment variables blue, data columns purple and dynamic values green.

Seeds

Seeds are ordered HTTP sequences that prepare and tear down test data. Click New Seed in the Seeds section, which requires tests:write. The editor has three tabs:

• Metadata holds the Name such as Standard Catalogue, a Description, a Stop on error toggle that aborts the sequence on the first failed step, and a Timeout (seconds) for the whole sequence, which defaults to 60.
• Pre-Run Steps and Post-Run Steps hold the two step lists.

Step types

Each step is a card with a type selector:

Type	Purpose
HTTP Request	Fire a single HTTP call, with a method, URL, headers, body, expected status codes such as 200,201, and captures.
Fixture Loop	Iterate over every entry of a fixture and fire one request per entry. Choose the fixture from the Fixture to loop over dropdown and name a Loop variable such as user, then reference {{user}} in the URL or body. Only array-style fixtures can be looped, and others appear in the list but are disabled.
Delay	Sleep for a number of milliseconds, up to 300,000, which helps with rate-limited APIs.
Test Case Ref	Run an existing test case as part of the sequence. Click Pick test case… to choose one, or toggle Enter id manually to paste a test-case id.

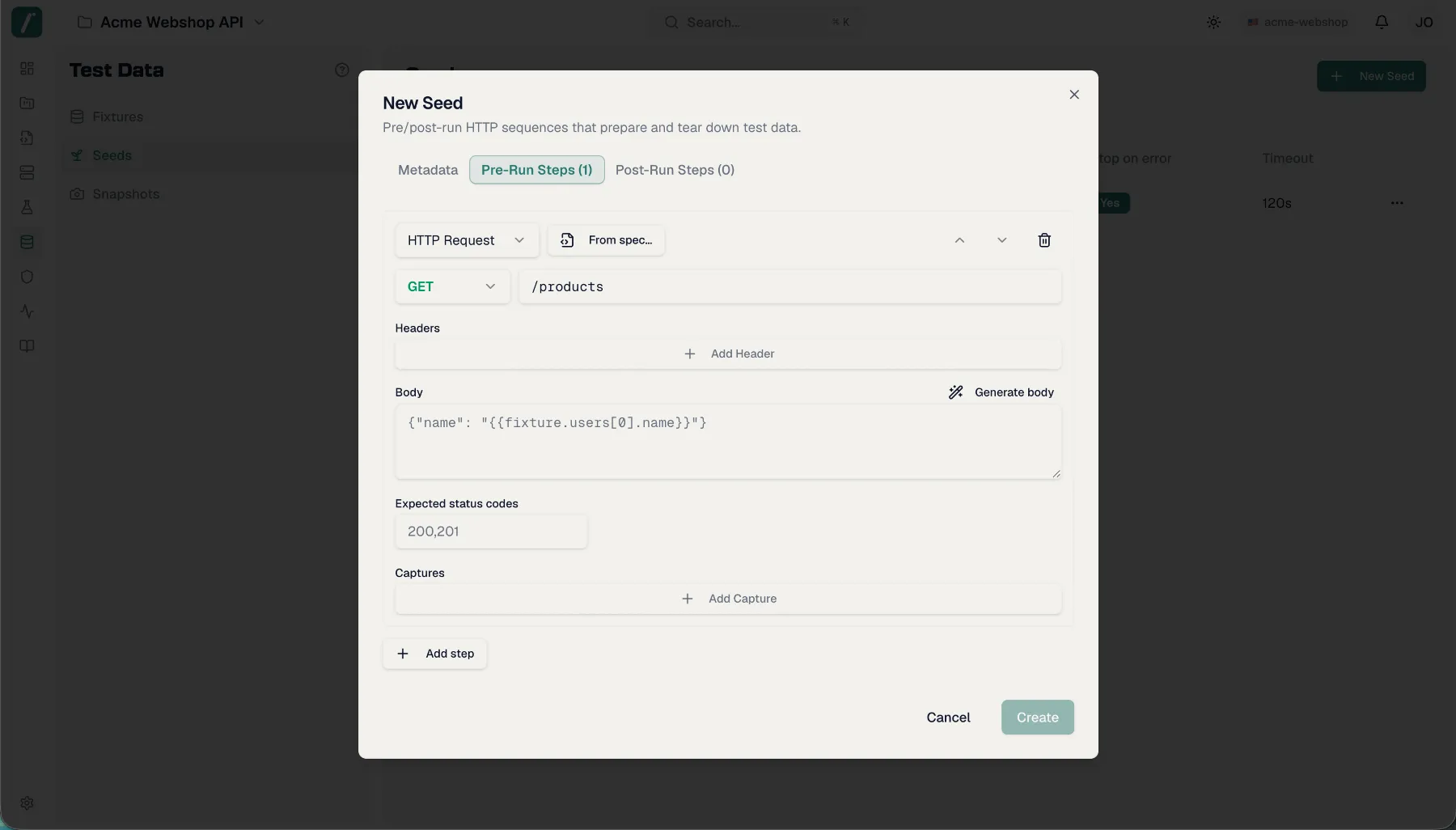

Building an HTTP step

HTTP Request and Fixture Loop steps have a spec-aware editor, so you rarely type a request by hand:

• From spec… picks an endpoint straight from one of your API specs. Choose the API Specification and an optional version, then search the endpoint list. Selecting an endpoint fills the step's method and URL.
• Method and URL are a method dropdown next to a URL field with {{...}} highlighting. Start typing {{ for autocomplete of variables and fixtures.
• Body comes with a Generate body button that builds a sample body from the endpoint's request schema. When the endpoint defines a request schema, the body offers Form and Raw tabs, and otherwise it is a single raw editor with autocomplete for {{fixture.*}} and {{var}}. If a fixture is linked to the endpoint's request schema, the editor offers to insert a reference to it.
• Headers is a structured name and value editor, and values accept {{var}} placeholders.
• Expected status codes takes a comma-separated list such as 200,201 that the step must return to count as a success.
• Captures extracts values from the response into runtime variables. The response-path field autocompletes JSONPaths derived from the picked endpoint's response schema.

Captures use a name:jsonPath list, as in id:$.id,token:$.token. Captured variables are available to later steps, and for pre-run seeds they also reach the suite's test cases. Prefix a capture name with fixture. to merge the value into the fixture namespace instead.

Steps can be reordered with the up and down controls, and removed individually.

Dry Run

The Dry Run button validates a seed without touching your API. Routebase resolves all variables and fixtures, expands loops, and returns the planned call list plus any errors and warnings. Use it to catch broken paths before a real run.

Snapshots

A snapshot pins a reproducible setup state. Recording and restoring snapshots requires the tests:execute permission.

1. In the Snapshots section, click Record Snapshot, which is described as "Runs the selected seed once and stores cleanup instructions so the state can be restored before each suite run."
2. Enter a Name such as After Onboarding and an optional Description, pick the Environment, and choose the Base seed to execute.
3. Click Record snapshot.

The snapshot list shows each snapshot's type, resource count and last restore time. View details opens the resource manifest, which lists the cleanup calls a restore executes in deletion order, along with any Warnings from recording such as resources whose delete route could not be derived. Restore replays the cleanup and re-executes the base seed.

Privacy. Snapshots store resource IDs and cleanup instructions only, so no personal data is persisted. Fresh test data is generated on every restore from the base seed and fixtures. The create and detail dialogs surface this as an info notice.

Attaching test data to a suite

Open Suite Settings in the Test Runner to wire seeds and snapshots into a suite:

• Pre-run seed is described as "Runs before the first test case. A failing pre-run seed aborts the suite."
• Post-run seed is described as "Runs after the last test case. Failures are surfaced as warnings only."
• Reset snapshot is described as "Restored before the pre-run seed. Cleanup runs in reverse order, then the base seed re-executes to produce fresh data. A failing restore aborts the suite."

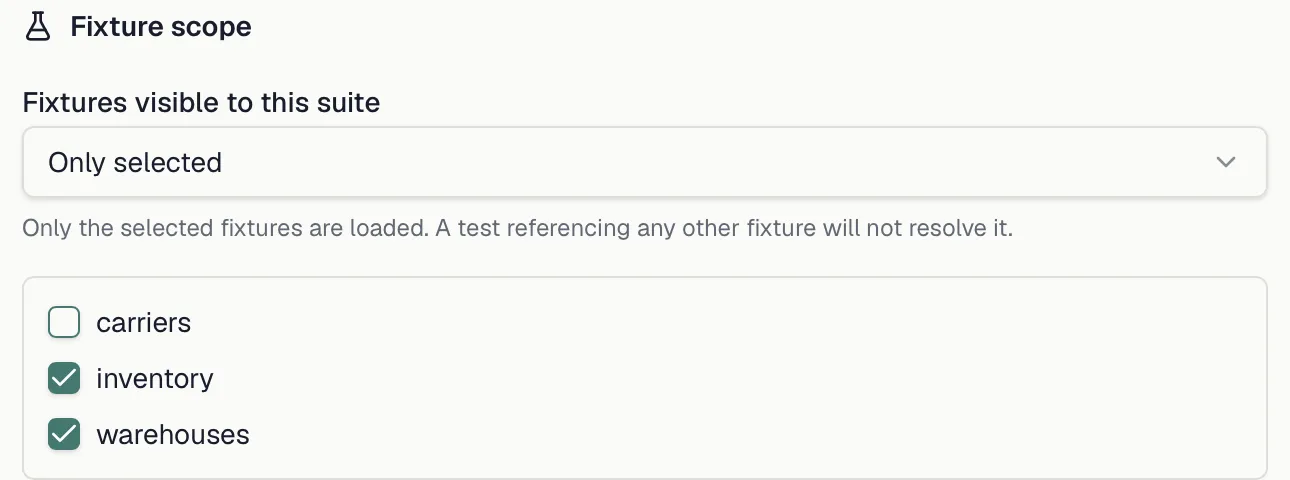

• Fixture scope decides which fixtures the suite's runs can see. All fixtures is the default and loads every project fixture plus every imported organization fixture. Only selected loads just the fixtures you tick, so a test referencing any other fixture will not resolve it. All except selected loads everything but the ticked ones. The names shown are the ones a run resolves a fixture under, so imported organization fixtures appear under their alias where they have one.

Scope is set per suite and applies to every case in the run. The suite loads one fixture set once, so that values captured with CaptureToFixtureName stay visible to later cases.

During a run, the results panel shows dedicated Pre-Run Seed, Post-Run Seed and Snapshot Reset banners with per-step outcomes, elapsed times and any captured variables.

Using fixtures beyond tests

• Mock Server can serve a fixture as a rule's response. A Fixture Reference renders the fixture every time the rule matches, optionally through a pipe, while Smart Mock (Fixture + Faker) resolves {{fixture.*}} placeholders inside a dynamic template. See Mock Server.
• AI agents via MCP can read your test data, because the Routebase MCP server exposes the list_fixtures and get_fixture tools. See MCP Quickstart.

Sample data for new projects

When you create a project, you can start from a sample data set. Hello World Starter gives you a minimal set of fixtures and a simple seed, while Pet Store (rich demo) is a full demo with fixtures and seeds that suits exploring every test-data feature right away.

Limits at a glance

Limit	Value
Fixture size	1 MB per fixture
Fixtures per owner (each project, and the org library separately)	5 (Free) / 25 (Starter) / 100 (Pro) / unlimited (Enterprise)
Versions per fixture	50, with the oldest pruned automatically
Seed timeout	60 s default, configurable per seed
Delay step	up to 300,000 ms
