WebSocket and Its Difference from HTTP

Web applications handle data in two main ways: non-real-time, where updates occur only when the client requests them, and real-time, where information is delivered instantly as it changes. Choosing the right communication protocol is important for performance and user experience.

• HTTP is used for non-real-time communication where the client requests data when needed.
• WebSocket is used for real-time communication where data is delivered instantly between client and server.

HTTP

HTTP follows a request-response model where the connection closes after each request. It’s simple and reliable but not ideal for real-time updates.

• Each request carries full HTTP headers, which increases overhead especially for frequent updates.
• Suitable for traditional web applications where instant updates are not critical, as it is stateless and transactional.

Example: A news website fetching the latest headlines every 10 seconds using standard HTTP requests.

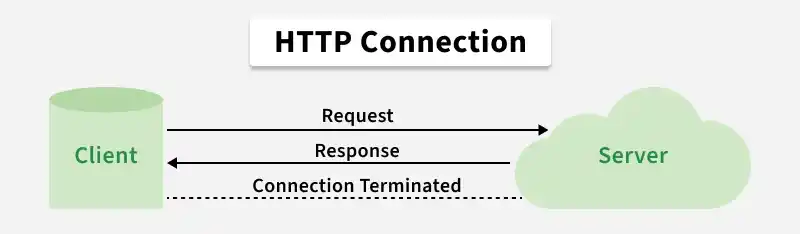

Normal HTTP Flow (When we visit a webpage)

WebSocket

WebSocket enables persistent, full-duplex communication between client and server, allowing real-time data flow without repeated requests. Unlike short polling, which repeatedly asks the server for updates, or long polling, which waits for the server to respond before sending the next request, WebSocket maintains a continuous connection. This makes it far more efficient for applications requiring frequent, instant updates.

• Keeps the connection open to enable continuous two-way communication between client and server.
• Reduces overhead by exchanging only message data, making it ideal for live chat, online games, and stock tickers.

Example: A chat application where messages appear instantly on both client and server without new HTTP requests.

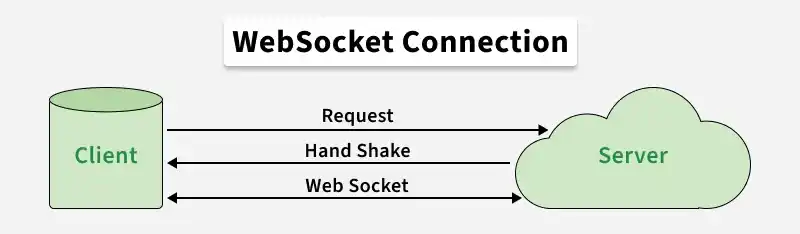

WebSocket Flow (When we use a web chat based application)

Woking

WebSocket enables real-time, full-duplex communication by upgrading a standard HTTP connection. Here’s the flow:

1. Connection Initiation: The client sends an HTTP request with the header Upgrade: websocket to request a protocol switch.
2. Handshake: The server responds with 101 Switching Protocols to confirm the upgrade to WebSocket.
3. Persistent Connection: The connection switches from HTTP to WebSocket, remaining open for continuous communication.
4. Full-Duplex Communication: Both client and server can send messages independently at any time without initiating new requests.
5. Data Frames: Messages are transmitted as frames (text or binary), allowing efficient and structured data exchange.
6. Low Overhead: Only message data is exchanged; HTTP headers are not repeated, reducing bandwidth usage.
7. Keep-Alive: The connection stays active until either the client or server explicitly closes it.
8. Close Handshake: One side sends a close frame, the other acknowledges, and then the TCP connection is terminated gracefully.

Applications

WebSocket is widely used in applications requiring real-time, low-latency, bidirectional communication. Common use cases include:

• Instant Messaging & Chat Apps: WhatsApp Web, Slack, Facebook Messenger – keep messages in sync between devices instantly.
• Collaborative Tools: Google Docs – real-time collaborative editing where changes appear immediately for all users.
• Video Conferencing & Live Collaboration: Zoom, Microsoft Teams – live presence indicators, chat messages, and interactive meeting controls.
• Financial & Trading Platforms: TradingView – real-time updates of stock, crypto, and forex prices.
• Live Location & Ride-Tracking Services: Uber – updates driver location and ride status in real time.
• Online Multiplayer Games: Many browser-based games use WebSockets to provide low-latency interactions between players.

Limitations

WebSocket is ideal for real-time, continuous data streams, but it is not always the best choice.

• Use WebSocket for live updates, continuous feeds, or interactive applications that require near real-time communication.
• Use HTTP for one-time requests or infrequently accessed data, such as fetching historical records or static content.
• WebSocket keeps connections open, which can increase server resource usage.
• Choosing the right protocol ensures better performance and avoids unnecessary overhead.

HTTP Vs WebSocket Connection

HTTP is a stateless protocol over TCP (connection-oriented, reliable via retransmission), while WebSocket is a stateful, full-duplex, bidirectional protocol.

Note: Depending on your project you have to choose where it will be WebSocket or HTTP Connection.
