Inspiration

Don't just read research—watch it think. Most AI summaries are just walls of text that lose the complex architecture of a research paper. Synth Lab is a multimodal "Live Notebook" that doesn't just explain research papers; it architecturally reconstructs them. As the agent analysis methodology of one or more arXiv papers, it simultaneously "draws" the logic in real-time using interleaved D3.js concept maps and Mermaid diagrams.

What it does

Synth Lab is an AI-powered research architect that transforms the static text of arXiv papers into "living" structural models. Instead of simply summarizing, Synth Lab performs a Technical Synthesis: it deconstructs a paper's core methodology and reconstructs it as a progressively rendered, hierarchical diagram.

The application operates in 4 tabs:

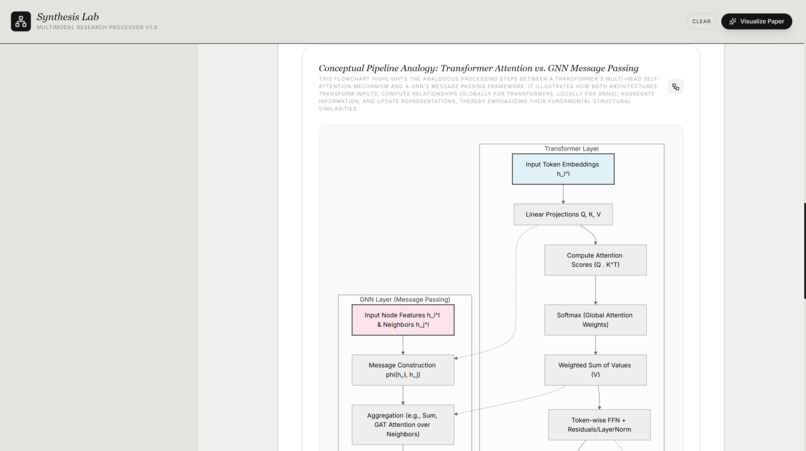

Technical Synthesis: 1 or more research papers are technically synthesized into a mermaid.js Flow Mode chart and a Final Chart. It provides a master architectural diagram that consolidates the entire paper into a high-level system overview, suitable for research planning and experiment design. The Flow Mode (The Breakdown) specifically uses Mermaid.js to generate evolving flowcharts that allow users to visually "unpack" complex research steps. Users can trigger "Sub-diagrams" to drill deeper into specific technical modules.
Research Agent: Provides Further textual analysis and subgraphs for the users topic understanding
Deep Dive: A multimodal view that interleaves D3.js lexical "Bubble Maps"providing a meta-analysis of the paper’s weight—quantifying word density and thematic importance visually.

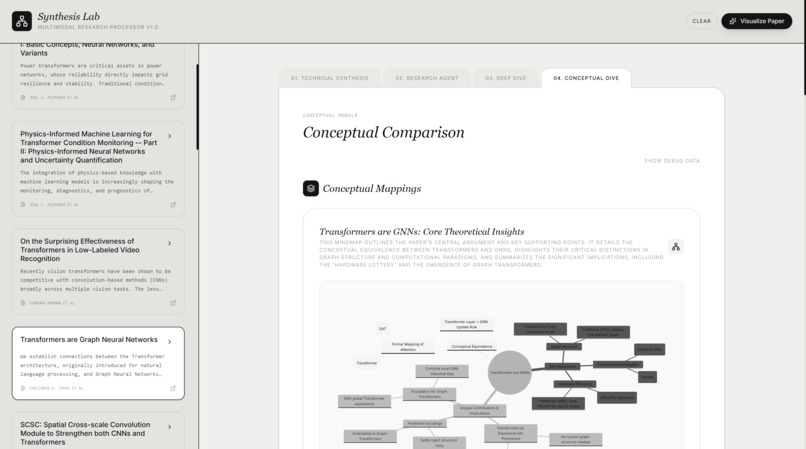

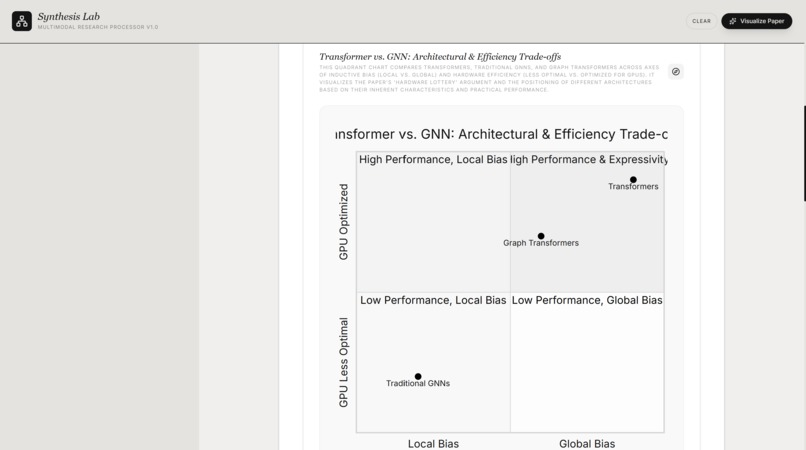

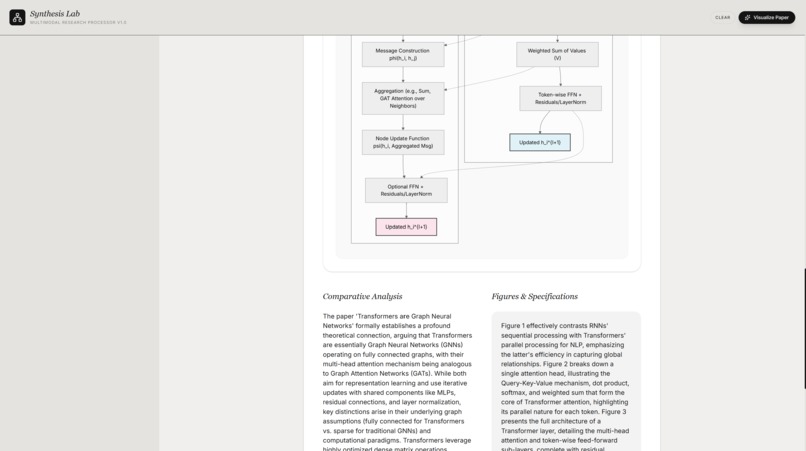

Conceptual Dive: Interleaved Charts rendered by an agent breaking down concepts in multiple research papers and giving a topic by topic analysis.

How we built it

We built a high-concurrency pipeline using the TypeScript Gemini ADK and Gemini 2.5 Flash.

The Orchestrator: A Node.js backend hosted on Google Cloud Run that manages the stream between the arXiv API and the Gemini model.

Technical Synthesis Engine: We developed a custom "Anchor" system. As Gemini parses the paper, it identifies specific technical "nodes" and immediately emits Function Tool calls to trigger visual updates.

The Interface: A React dashboard designed for "Interleaved Media." The UI doesn't wait for a full response; it listens for partial Mermaid and D3 payloads, rendering the logic structure as it is "thought" by the model.

Challenges we ran into

The primary challenge is the Pipeline Latency especially in the Conceptual dive tab. Generating a full technical synthesis of a 30-page paper requires significant token processing. Currently, the generation speed for complex diagrams remains slower than desired. I am working on optimizing the streaming capabilities—specifically, moving from "block-rendering" to "character-streaming" for the Mermaid code so the user sees the graph "sketching" itself node-by-node rather than waiting for valid syntax blocks.

Accomplishments that we're proud of

Architectural Interleaving: Successfully synchronized the text explanation with the diagram updates, ensuring the "Reasoning" and the "Visual" are never out of phase.
Sub-diagram Recursion: Being able to take one node of a generated chart and "break it down further" into its own sub-synthesis.
GCP Hosting: Ran into build issues but successfully fixed them

What we learned

We learned that visual reasoning is a distinct skill from text generation. Training an agent to output valid and readable Mermaid.js syntax while maintaining a technical narrative requires strict system-instruction design. We also gained deep insight into managing long-lived server-sent events (SSE) on Google Cloud.

What's next for Synth Lab

Granular Streaming: Implementing a custom Mermaid parser that can handle broken/partial syntax strings to provide a true "no-wait" visual experience.
Cross-Paper Comparative Maps: Allowing the agent to synthesize multiple papers into a single "State of the Art" (SOTA) comparison diagram.
D3 Interaction: Making the D3 Lexical Bubbles interactive, allowing users to click a word to see its direct context within the original PDF.
