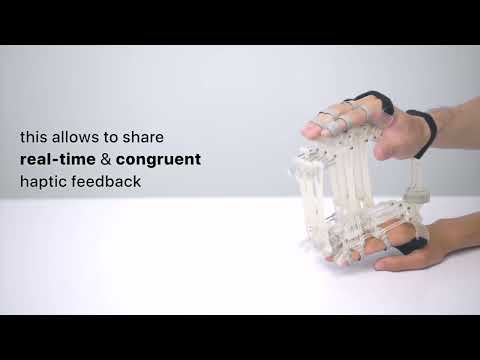

This is the repository for 3D printed files used in the wearable device in the "DigituSync: A Dual-User Passive Exoskeleton Glove That Adaptively Shares Hand Gestures" paper (ACM UIST2022).

All 3D printed parts were made with the FormLab Form3 printer from methacrylate resin. Linkages were manufactured with laser cutted 2.0mm thick acrlyic plate.

• 16x Dowel Pin (45mm)
• 14x Dowel Pin (14mm)
• 8x Dowel Pin (12mm)
• 26x Magnet (small, finger linkage)
• 11x Magnet (medium, finger linkage)
• 2x Magnet (large, wrist linkage)
• 2x Wrist Strap
• Finger Strap
• 16x O-Ring
• M2.5 Hex Socket Cap Screw
• M2.5 Flat Washer
• 4x M2 Hex Socket Cap Screw & M2 Nuts

When using or building upon this device in an academic publication, please consider citing as follows:

Jun Nishida, Yudai Tanaka, Romain Nith, Pedro Lopes. 2022. DigituSync: A Dual-User Passive Exoskeleton Glove ThatAdaptively Shares Hand Gestures. In Proceedings of ACM Symposium on User Interface Software and Technology 2022 (UIST’2022). Association for Computing Machinery, New York, NY, USA. https://doi.org/10.1145/3526113.3545630
