Delivering quality telemetry data from all types of vehicles and machinery
Open IoT platform for end-to-end telemetry data delivery and edge computing on vehicles and machinery
Data loggers for vehicles, equipment and machinery
Connect vehicle and machine data directly to business systems. Log CAN, CAN-FD, J1939 and OBD-II parameters and export data over USB, WiFi, 4G/LTE or Ethernet, or integrate via the open-source AutoPi API. Deploy edge applications on Raspberry Pi–based devices using Docker and Tailscale for secure remote access.
AutoPi builds on more than 9 years of experience in CAN bus data logging, telemetry extraction and edge computing for prototypes, pilots and production fleets.
In stock | Order now -> Ships tomorrow.
Data logger for dual CAN / CAN-FD
AutoPi CAN-FD Pro
NEW
Records high-speed CAN, CAN-FD, J1939 and OBD-II traffic with capture rates above 3000 frames/sec.
4 GB RAM and 32 GB on-board storage for logging and buffering.
Built around Raspberry Pi Compute Module for customizable edge applications.
Extendable with additional storage, external inputs and rugged mounting options.
Raspberry Pi based IoT device
AutoPi TMU CM4
UPGRADED
Built on Raspberry Pi Compute Module 4 with open-source software stack for customization.
Designed for edge computing with Docker, Tailscale and AutoPi Cloud for remote access and management.
Extendable with AutoPi HAT solutions, external antennas and industrial enclosures for demanding environments.
OBD-II data logger for tracking and EV parameters
AutoPi Mini
UPGRADED
Plug-and-play OBD-II device for OEM parameter logging and EV-specific telemetry.
Well suited for EV battery monitoring, range analysis and usage-based applications. Data can be sent to third-party cloud platforms or handled through AutoPi Cloud.
Can be combined with AutoPi Fleet Management for vehicle tracking, usage data and basic diagnostics.
AutoPi Cloud
Everything needed to operate and analyze connected fleets.
AutoPi Cloud combines device management, fleet management and data logging into a single platform. It offers detailed insight into vehicle status, CAN bus activity and installed edge applications. Use the fleet management layer to keep track of vehicle position, usage and health, and the device layer to configure logging profiles, triggers and alert handling.
Edge devices can record large amounts of CAN, CAN-FD and OBD-II data and upload it to cloud storage or external analytics pipelines. Configuration and updates are handled centrally, making it practical to operate many vehicles across different regions.
AutoPi Cloud access is included with all AutoPi devices.
-
Advanced CAN logging.
- Configure logging for dual CAN-FD streams and upload data continuously to remote storage or on-premise systems. Use the edge device for on-device decoding with DBC files and export in JSON, MDF4 or CSV formats. Mixed 11-bit and 29-bit identifiers are supported on the same installation.
-
Remote edge computing.
- Deploy and monitor containerized applications directly on the devices using Docker and Tailscale. Scale processing from simple filtering to local model inference, without changing the hardware platform. Custom applications can be versioned and rolled out per project, per fleet or per vehicle.
-
Device management.
- Manage configuration and behavior for all devices from a central interface. Define rules per vehicle, group or project, including which signals are logged, when data is uploaded and how alerts are generated. This gives consistent behavior across different installations and vehicle types.
-
Over-the-air updates.
- Update firmware, base images and applications remotely without physical access to the vehicle. AutoPi Cloud handles roll-out plans, progress tracking and potential rollbacks, which is important when devices are deployed across different sites and time zones.
-
Powerful API.
- Integrate AutoPi devices and cloud services through HTTP REST and MQTT endpoints. Access data such as location, speed, engine parameters, EV battery state-of-charge and custom application metrics, and route it into existing backends or data platforms.
-
Fleet management.
- Monitor location, usage and status for entire fleets from a single dashboard. The fleet view supports drill-down on individual vehicles and can be combined with alerts, maintenance intervals and usage-based reporting, making it easier to operate mixed fleets across sites.
Extendable
Extend the AutoPi devices to any vehicle or machinery
Extension and adapter cables make it possible to install AutoPi devices in a wide range of vehicle architectures. Heavy-duty adapters cover common J1939 connectors used in trucks, construction equipment and industrial machinery, while the standard adapter range includes OBD-II extensions, power cables, splitters and OEM-specific adapters.
This approach keeps installation flexible, preserves access to diagnostic ports and supports both light-duty and heavy-duty networks without redesigning the hardware.

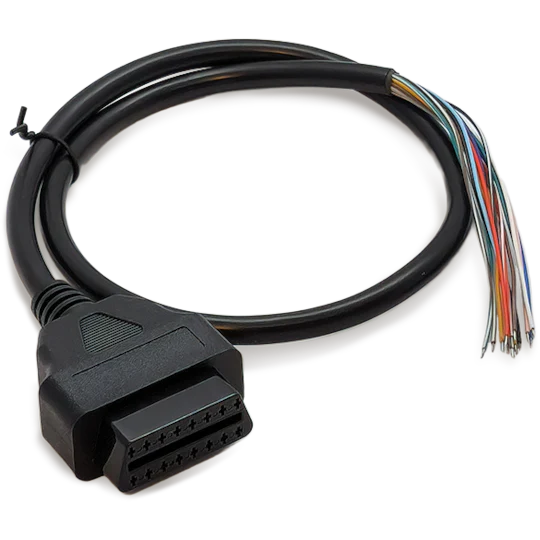

Female CAN bus cable with open wires

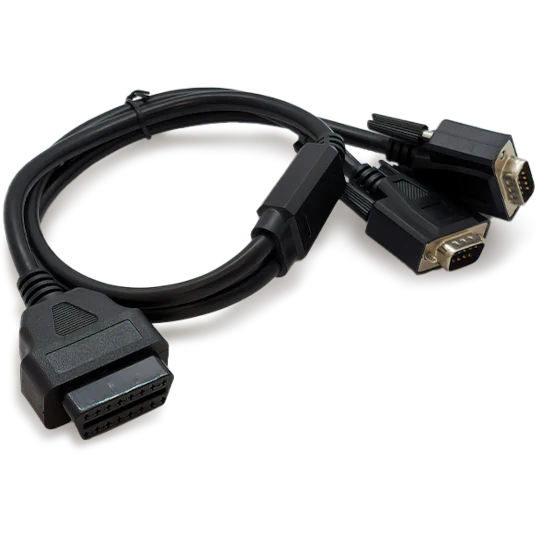

OBD-II to dual DB9 adapter

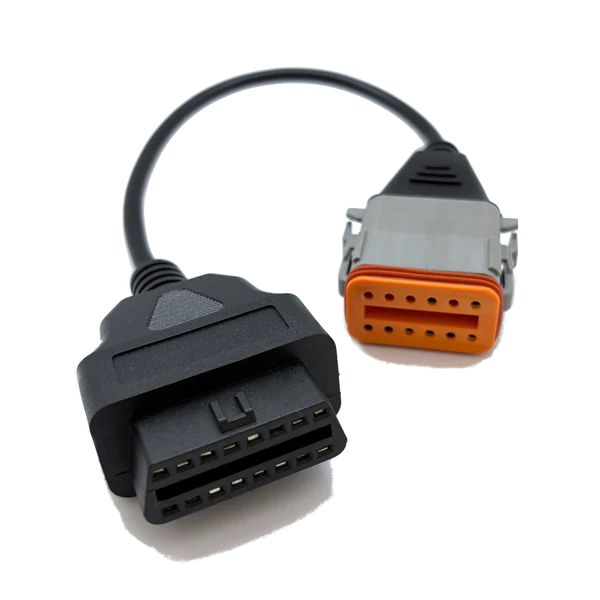

Cummins-Komatsu truck 12-pin J1939 to 16-pin OBD-II adapter

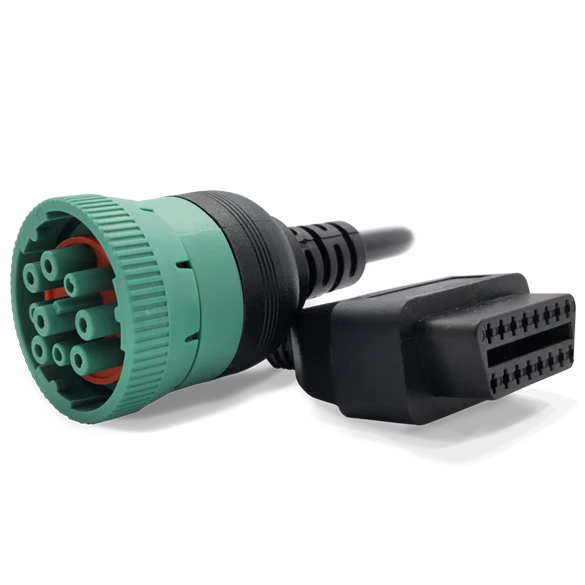

Cummins 9-pin J1939 (J1708) to 16-pin OBD-II adapter cable
Caterpillar (538-5051) truck 9-pin J1939 to 16-pin OBD-II adapter
AutoPi Solutions
Connect your business.
Connect with data loggers.
The AutoPi device range covers different usage patterns. AutoPi CAN-FD Pro is built for dual CAN-FD logging and high-throughput data collection, with export to external clouds or local storage. TMU CM4 focuses on edge computing, where Docker-based applications process data near the vehicle before forwarding selected information. AutoPi Mini specializes in EVs and provides extended parameter sets from OEM-specific PIDs, including battery health and range-related metrics.
All devices integrate with AutoPi Cloud for configuration and monitoring, and can be deployed in mixed fleets where each vehicle type uses the device that fits its requirements.
In stock | Order now -> Ships tomorrow.
-
Plug-and-play.
- Ready for installation in 12 V and 24 V systems without prior programming. CAN-FD Pro and TMU CM4 can be mounted in heavy-duty machinery or passenger vehicles, while AutoPi Mini connects directly to OBD-II ports, which is typical in EV passenger cars.
-
Powered by Raspberry Pi.
- Open-source stack built on standard Linux (Raspbian), SocketCAN, Python and SaltStack. CAN-FD Pro and TMU CM4 use Raspberry Pi Compute Module 4, providing an industry-recognized platform. AutoPi Mini uses an embedded architecture optimized for compact designs.
-
Global coverage.
- Integrated 4G/LTE CAT1/4 modem (3G/EDGE fallback) with worldwide support in a single hardware variant. When combined with the AutoPi connectivity solution, coverage is available in more than 180 countries for cross-border projects.
-
Full CAN bus support.
- CAN-FD Pro records dual high-speed classic CAN or CAN-FD and supports J1939 and OBD-II traffic. TMU CM4 offers full CAN bus support for custom applications. AutoPi Mini operates on OBD-II queries with focus on EV parameters, which fits passenger vehicle deployments.
-
Designed for interoperability.
- Hardware and cabling are designed to be extended and adapted. External antennas, HAT solutions, storage upgrades and IP67 enclosures can be added to match project or OEM requirements, instead of starting from a custom design for each use case.
-
Made in Denmark.
- Designed and engineered in Denmark and produced in the European Union using components from EU and US suppliers. Devices are certified for global usage (CE, FCC, RoHS), which simplifies deployment across international fleets and pilot projects.
Something unclear?
Frequently asked questions
You should choose the automotive data logger that best fits your project and your requirements. If still in doubt, contact us — we will help you setup with the most suitable solution.
Our general recommendation is as follows:
-
AutoPi Mini: You are searching for a plug & play data logger, that logs OEM and standard (EV & ICE) data parameters.
-
AutoPi TMU CM4: You want more detailed CAN data from vehicles / machines and custom configurations options.
-
AutoPi CAN-FD Pro: You require a full CAN dump of dual CAN/CAN-FD buses, with the option of additional 2 external flash drives.
Overall, the Autoi CAN-FD Pro is far superior for CAN bus data logging that supports mixed 11 bit and 29 bit frame IDs, onboard CAN decoding, remote live debugging and interaction through secure VPN, hardware encryption, etc. — then we strongly recommend this, unless you specifically require something else.
The automotive data loggers are designed to be user-friendly, letting you capture CAN bus & OBD data from a vehicle or machine's Controller Area Network (CAN) and/or On-board Diagnostics II (OBD-II) system.
-
The automotive data logger connects to the vehicle / machine's OBD-II port.
-
Once powered on, the data logger listen to the data stream and start logging raw data — depending on your project, it can either:
-
Store raw CAN data on an SD card
(This allows for local data storage, useful for projects where data analysis will be performmed on-site or later on an external computer).
-
Upload raw and/or decoded CAN bus/OBD data
(Data can be uploaded to our cloud backend, your own server, or a SaaS solution, useful for remote access and real-time insights).
-
Onboard CAN decoding
(Using DBC files, Python scrips, etc., the data logger can decode CAN signals directly on the device. This feature is ideal for projects that require immediate, on-device analysis or for devices without a constant connection to an external server. Only available on the AutoPi CAN-FD Pro).
-
-
From here, you can access the log files remotely or locally and begin analyzing detailed insights about vehicle or machinery performance, diagnostics, and more.
For more details, see our getting started guides which will guide you through each step and set up your automotive data logger.
To get the most out of your AutoPi automotive data loggers, we strongly recommend using the AutoPi Cloud platform — a combination of device- and fleet management.
With our device and vehicle management platform, you will get insights to all the detail you need to manage your business.
-
Use our fleet management cloud to keep track on your vehicles and the performance of these.
-
Use our device management platform to deploy advanced software configurations to the edge devices or to record large amounts of data from the vehicle CAN bus.
Get to know more of the features or get access to our FREE demo cloud, please schedule a demo.
There are many ways how you can make use of our automotive data loggers, and the possibilities are nearly endless — it all comes down to knowing your requirements.
Our data logger devices excel in areas where you need them most. They are commonly used in the following applications:
-
Vehicle telematics: Plans to gather essential data like engine performance, speed, and fuel usage across the entire fleet with easy integration.
-
EV battery data: Plans to track battery health metrics — charge level, temperature, voltage — to keep EVs running smoothly in real-time.
-
Heavy-duty maintenance: Plans to log J1939 data to monitor equipment wear and run remote diagnostics via 4G/WiFi to reduce machine downtime.
-
Customization: Plans to create a custom project and prototypes, using the Raspberry Pi — ideal for flexibility and unique requirements.
-
GPS fleet tracking: Plans to get real-time GPS data to manage vehicle routes and locations with a simple plug & play setup.
-
Development: Plans to collect raw CAN data for testing or analysis, with plenty of storage and USB support for larger projects.
Want to learn which device your project needs? Please contact us.
Yes, both our automotive data loggers and management platform are designed to support white labeling:
-
Devices can be ordered without the standard logo, and custom engraving on the casing is available if requested.
-
Our management platform can be white-labeled to include your branding on both the interface and subscription plans.
-
A SIM card is included with certain devices, allowing you to manage subscriptions directly and maintain full control over connectivity.
-
The device supports the installation of your own OS, making it highly adaptable to your specific requirements.
For more details about our white-label options, please contact us.
Approximately 2-5 business days — depending on your address.
-
We aim to dispatch orders within 48 hours of receiving payment.
-
A tracking number will be provided once your order has shipped.
-
We offer worldwide shipping — if your country is not listed, please contact us.
