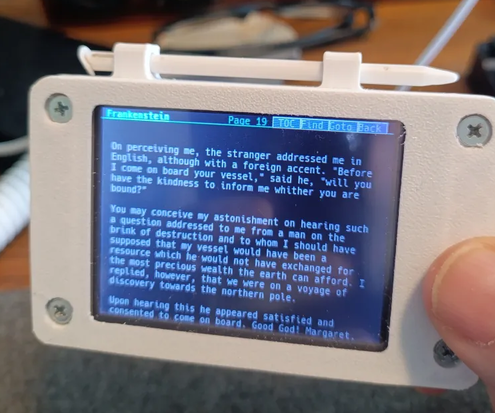

A simple operating system for ESP32 Cheap Yellow Display (CYD) with dynamic app loading.

Website: https://esposito.ralsina.me

• Dynamic app loading from SD card
• Event-driven architecture
• Palm-style app lifecycle (checkpoint/save state)
• Single-tasking, single-app model
• Touchscreen and keyboard support (BBQ20)
• Multiple color palettes (CGA, CGA Light, Solarized Dark, Solarized Light)
• Arduboy game compatibility layer
• Game Boy (DMG) and Game Boy Color emulation via gameboy app (40-60 FPS)
• Switchable fonts (Hack, IBM Plex Mono, Inconsolata, Ioskeley, Kode Mono, Nova)
• WiFi connectivity with HTTP/HTTPS support

• Framework: ESP-IDF
• Display: LovyanGFX on ST7789 (320x240), text mode and graphics mode
• App Storage: SD card filesystem
• Event System: Central event queue with app subscriptions
• App Loading: ELF binaries loaded dynamically from SD card
• Input: BBQ20 keyboard (I2C) + resistive touchscreen

Esposito is a personal device. Applications are fully trusted (no sandboxing), physical access is root, and the network is untrusted. The full model — including what is and is not protected, what is implemented today versus planned, and how to recover from a misbehaving app — is in docs/trust-model.md.

Each app is compiled to a relocatable ELF binary (program.elf) and must export these functions:

void app_init(app_context_t *ctx);            // Restore state or fresh start
void app_checkpoint(app_context_t *ctx);      // Save state to SD
void app_close(app_context_t *ctx);           // Cleanup
void app_event(app_context_t *ctx, event_t *e); // Handle subscribed events

idf.py build

Esposito includes a desktop emulation environment for testing apps without real hardware. It uses SDL2 to simulate the display and keyboard, and reimplements the OS API surface in C for Linux.

sudo apt install libsdl2-dev gcc make

cd linux
./run.sh                    # Default: hello_world
./run.sh reader             # Run the reader app
./run.sh file_picker        # Run file picker

The emulator creates /sdcard/ as a staging directory. You can point ESP_SD_CARD at an existing mount:

ESP_SD_CARD=/mnt/sdcard ./run.sh reader

The emulator lives in linux/ and reimplements the OS API surface in plain C + SDL2:

• No real WiFi or HTTP — os_http_get() returns errors
• Touch simulated via mouse clicks
• No serial port — serial_init / serial_write are no-ops
• No sound
• App switching (os_load_app) checkpoints and exits the current app (the emulator runs one app at a time)
• 320×240 display at native pixel resolution

The emulator runs as a normal Linux process. All code is compiled with -g, so you can run under GDB or use printf for debug output.

idf.py flash

Esposito supports two firmware update paths.

Use the Settings app:

1. Open Settings.
2. Go to System.
3. Use Check Update to compare current and latest versions.
4. Use Update Firmware to download and apply the update.

Notes:

• OTA download is resumable and can continue across interrupted HTTP transfers.
• The updater validates the downloaded image before applying it.

You can also update firmware by placing a firmware image on the SD card.

1. Copy the firmware binary to:

   /sdcard/system/firmware.bin

2. Reboot the device.

At boot, Esposito checks for that file. If present, it launches the update stub, applies the image, and then returns to normal boot.

Tips:

• Ensure the file is a valid ESP32 app image (starts with ESP image magic 0xE9).
• Keep only the firmware you want to apply in that location.

• ESP32 Cheap Yellow Display (2USB version)
• BBQ20 Keyboard
• Touchscreen display
• SD card

esposito/
├── main/           # Core OS implementation (event loop, ELF loader, HAL, drivers)
├── apps/           # Application libraries (compiled to ELF binaries)
├── libs/           # Shared libraries for apps (ui2, json, arduboy, lua, serial_rx)
├── fonts/          # Font definitions for display
├── boards/         # Per-board hardware configuration (board.h, display_config.h)
├── components/     # ESP-IDF components (LovyanGFX display driver)
├── scripts/        # Build helpers (build_app.sh, build_test.sh, font generators)
├── tests/          # Host-side unit tests (greatest framework)
├── linux/          # Desktop emulator (SDL2) for host-side development
├── docs/           # Architecture and design documents
├── stub/           # OTA update stub partition
├── site/           # Static site sources (website)
├── books/          # Book content for the reader app
├── CMakeLists.txt  # ESP-IDF project root
├── Makefile        # Convenience targets (check, flash, emulate, deploy-all)
├── partitions.csv  # Flash partition layout
├── sdkconfig       # ESP-IDF configuration
└── README.md

• apps/hecto/README.md - Paged text editor with large file support
• apps/kilo/README.md - Lightweight text editor
• apps/shell/README.md - Command-line interface

• apps/reader/README.md - E-book reader with page navigation
• apps/file_manager/README.md - File browser and manager
• apps/file_picker/README.md - File selection dialog

• apps/settings/README.md - System settings and configuration
• apps/calc/README.md - Four-function calculator
• apps/clock/README.md - Clock with NTP sync

• apps/lali/README.md - LLM chat client (OpenRouter)

• apps/paint/README.md - Drawing application
• apps/image_viewer/README.md - Image viewer

• apps/breakout/README.md - Breakout game clone
• apps/snake/README.md - Snake game
• apps/gameboy/README.md - Game Boy emulator
• apps/numbers/README.md - Math puzzle game (Arduboy port)

• apps/lua/README.md - Lua 5.4 REPL and script runner
• apps/hello_world/README.md - Example "Hello World" app

This project references the terminado project for keyboard and display implementation.
