iPalo
Example usage

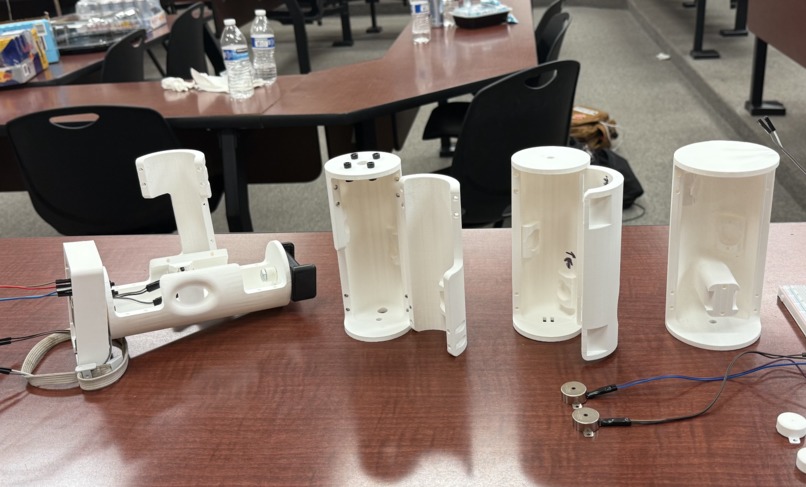

Iterations

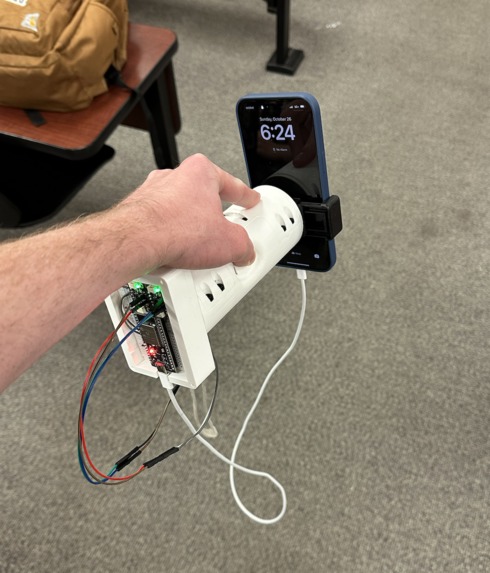

Example usage

Inspiration

Traditional white canes used by individuals with visual impairments rely on continuous tapping to detect obstacles such as steps, curbs, and drop-offs. While effective, they can be cumbersome and inconvenient to carry in public settings.

We wanted to build something that feels the world before you touch it — a modern walking aid powered by LiDAR sensing and haptic force feedback.

Using an iPhone’s LiDAR sensor, an ESP32 microcontroller, and linear resonance actuator haptic motors, we created a system that simulates the tactile feel of a cane tap.

What It Does

iPalo measures the distance between the phone and the ground or nearby obstacles.

The system continuously scans in the direction the device is pointed and provides directional haptic feedback on either side of the device based on the obstacle’s orientation relative to the user, delivered as firm sequences of “clicks.”

The closer the object, the stronger and faster the “tap” feedback, allowing users to feel terrain changes in real time.

To build on top of this, we added voice commands that allows the user to utilize an AI assistant to receive a description of their surroundings.

How We Built It

LiDAR Sensing: Used ARKit’s SceneDepth API to get a continuous depth map from the iPhone’s LiDAR sensor.
Plane Estimation: Implemented a multistep plane-fitting pipeline for stable directional haptic feedback. Outlier samples were removed using the RANSAC algorithm, followed by Total Least Squares plane fitting for accurate surface estimation. Exponential smoothing was applied to reduce jitter from rapid plane-direction changes.
Calculating Haptic Control: Determined which haptic motor to activate using the normalized x-component of the plane’s normal vector in camera space, where the x-axis represents the plane's horizontal direction relative to the camera. The distance from the estimated plane was used to modulate the click frequency of the active motors.
Bluetooth Communication: Used a low-power BLE interface between the iPhone and an ESP32 microcontroller to send haptic control signals.
Force Feedback: Utilized linear solenoid actuator by sending waveform-ids to a DRV2506 LRA driver over an I2C bus.
AI Pipeline: Developed an end-to-end system and API that allows users to receive spoken descriptions of their surroundings. Integrated Apple Speech-to-Text with a voice-command detection algorithm based on Levenshtein distance to trigger image capture. The captured image was processed through Google Gemini for scene description, and ElevenLabs provided real-time text-to-speech output.

Challenges We Ran Into

Getting accurate distance data on varying surfaces.
Developing an ergonomic device case.
Fixed I2C addresses limited device multiplexing, requiring a redesign to use two haptic motors instead of three.
Synchronizing real-time BLE communication with LiDAR frame updates.
Ensuring stable, smooth plane estimates without jitter or sudden jumps.
Tuning the haptic feedback so it felt like a natural “tap” rather than a buzz or vibration.
Developing for iOS posed many unexpected challenges. Such as camera accessibility.
Creating a fast pipeline with multiple generative AIs.
