Sending Commands

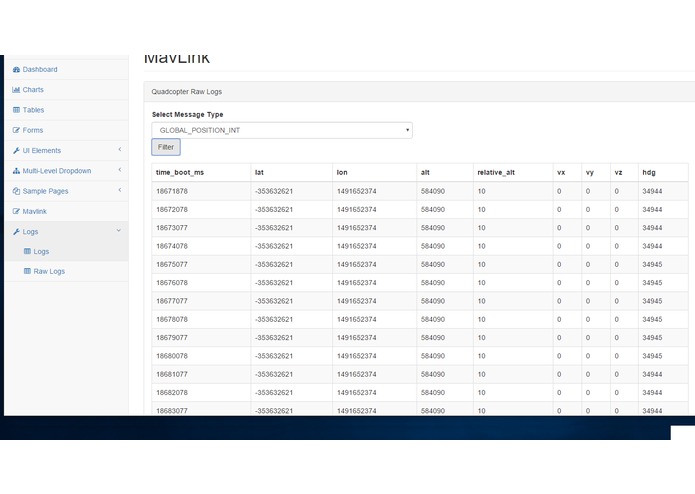

Real-time Telemetry Data

Inspiration

Our inspiration is a long-term dream project of mine where I would like to connect a drone the cellphone network so that it has access to 3G internet. This way the range of the drone is unlimited which I think is pretty exciting.. This way I could take on road trips and never have to leave my keyboard :D #programmer

What it does

How I built it

The quadcopter flies using the Arduino with the whole IMU and GPS set up. Then we connected a RaspberryPi to the drone. Using the pins on it RPi we can send serial data to the Arduino's Telemetry ports using the Mavlink protocol which ArduCopter is designed to respond to. The RaspberryPi running a small Python and Node script acts as a proxy to connect via a websocket to our server as well as building the mavlink messages and serialzing / deserializing data. This way the server running in the cloud can send commands to the Drone!

Challenges I ran into

Setting up the Raspberry Pi caused us a lot of problems :( And loading the ArduCopter Firmware on the Arduino proved to be problematic at times with compatibility issues.
