The SW-420 sensor is a motion sensor with three pins (VCV, GND, CH_PIN)
You can buy the parts here: https://www.amazon.com/SW-420-Normally-Closed-Vibration-Sensor/dp/B01FDGTTY8
For more info on the sensor refer to the following: https://wiki.seeedstudio.com/Grove-Vibration_Sensor_SW-420/

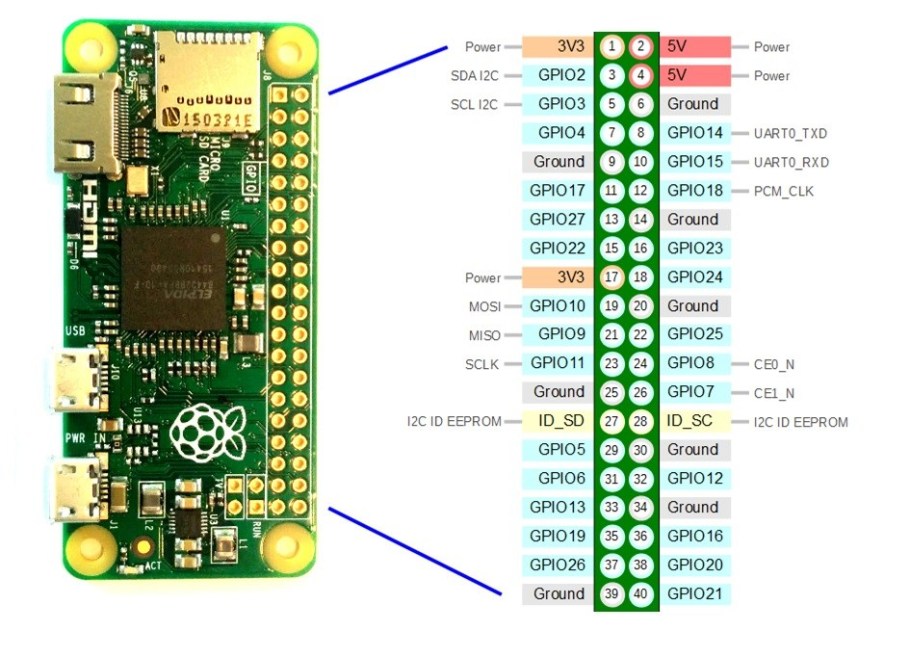

To set up our hardware to work with our code you need to understand the pinout for the Raspberry Pi Zero W
You need the VCV pin to go to the 5V pin on the pi The GND port on the Ground port on the pi The CH_pin has to go the pin of Channel 21 on the pi
From there all you need to do is run the program fitness.py on your raspberry pi, and you will have a working fitness tracker that can track the intensity of your training and the calories burned
As long as you have the pi and your laptop on the same wifi the pi should automatically connect to your dashboard and give you live updates on your workout
You can check out the intensity graph and the caloric loss graph on the website to see how your workout went
Twilio Api: We used this to give live updates and feedback to the user based on their inputs to the website and the data collected via the fitness tracker Google Cloud: Maps Api to list gyms near you and locate gyms. Sign-in with google to make user profiles. Website: Functionality includes, data collection, dashboard with progress, and chat bot
RPi.GPIO
time
gspread(pip3 install gspread)
oauth2client(pip3 install oauth2client)
datetime (pip3 install datetime)
LA Hacks 2021 Gym Share Team: Sahil Tallam, Ishaan Bansal, Samarth Shah, Rohan Patra, Agrim Dhingra
