The Java EE 6 Programming Model Explained:
How to Write Better Applications
Jerome Dochez
GlassFish Architect
Oracle

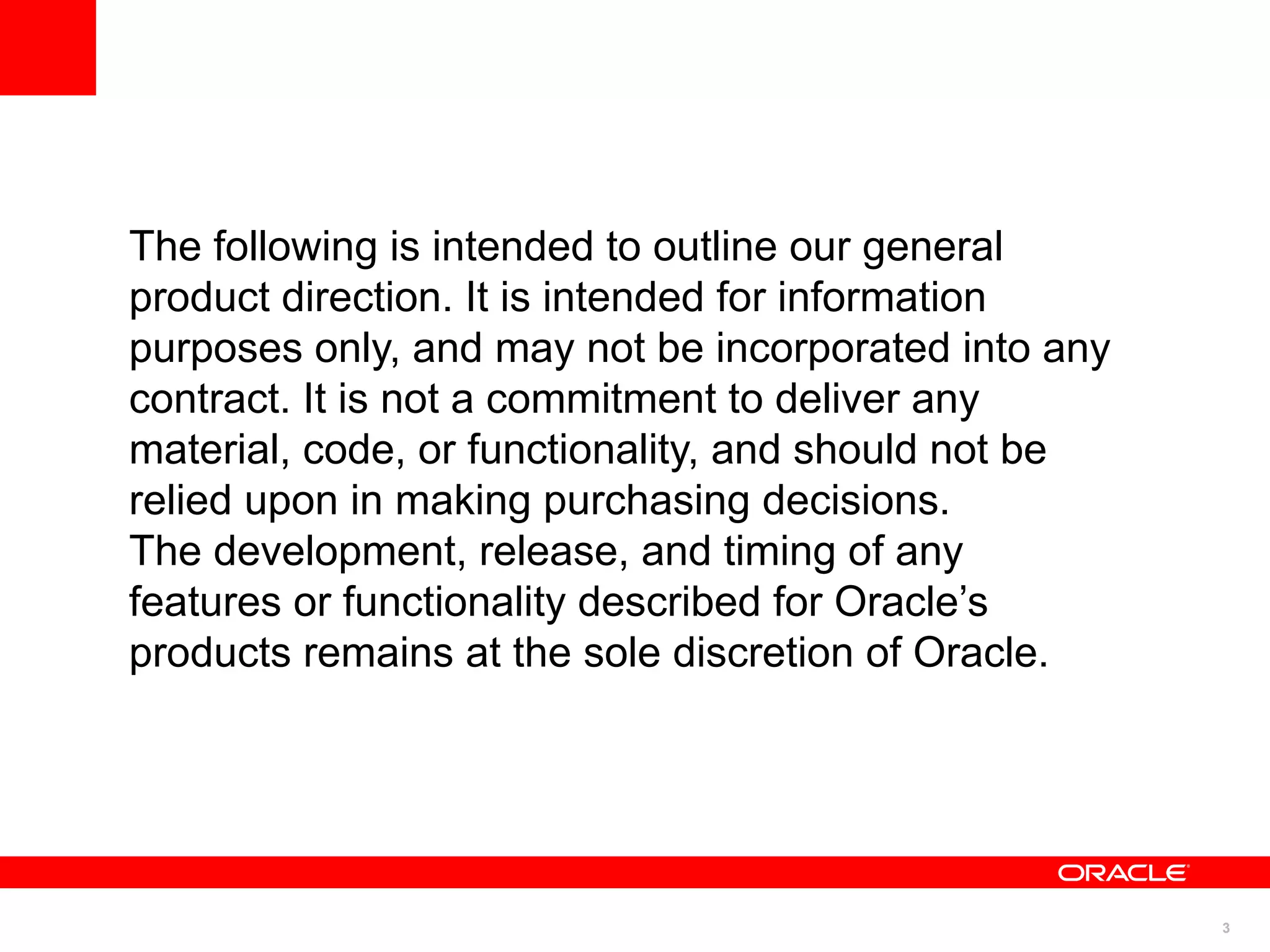

The following is intended to outline our general
product direction. It is intended for information
purposes only, and may not be incorporated into any
contract. It is not a commitment to deliver any
material, code, or functionality, and should not be
relied upon in making purchasing decisions.
The development, release, and timing of any
features or functionality described for Oracle’s
products remains at the sole discretion of Oracle.

3

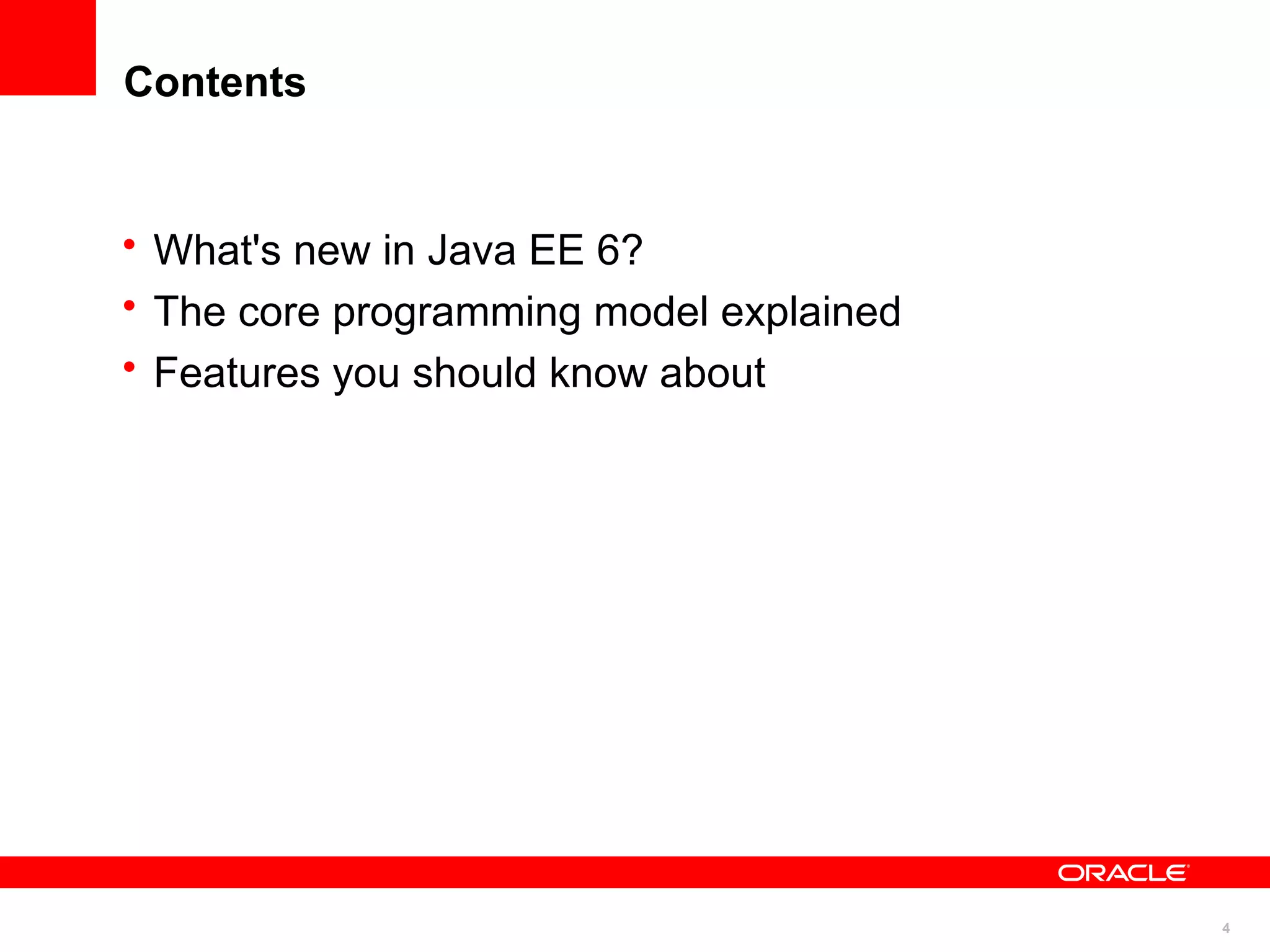

Contents

• What's new in Java EE 6?
• The core programming model explained
• Features you should know about

4

What's New in Java EE 6

5

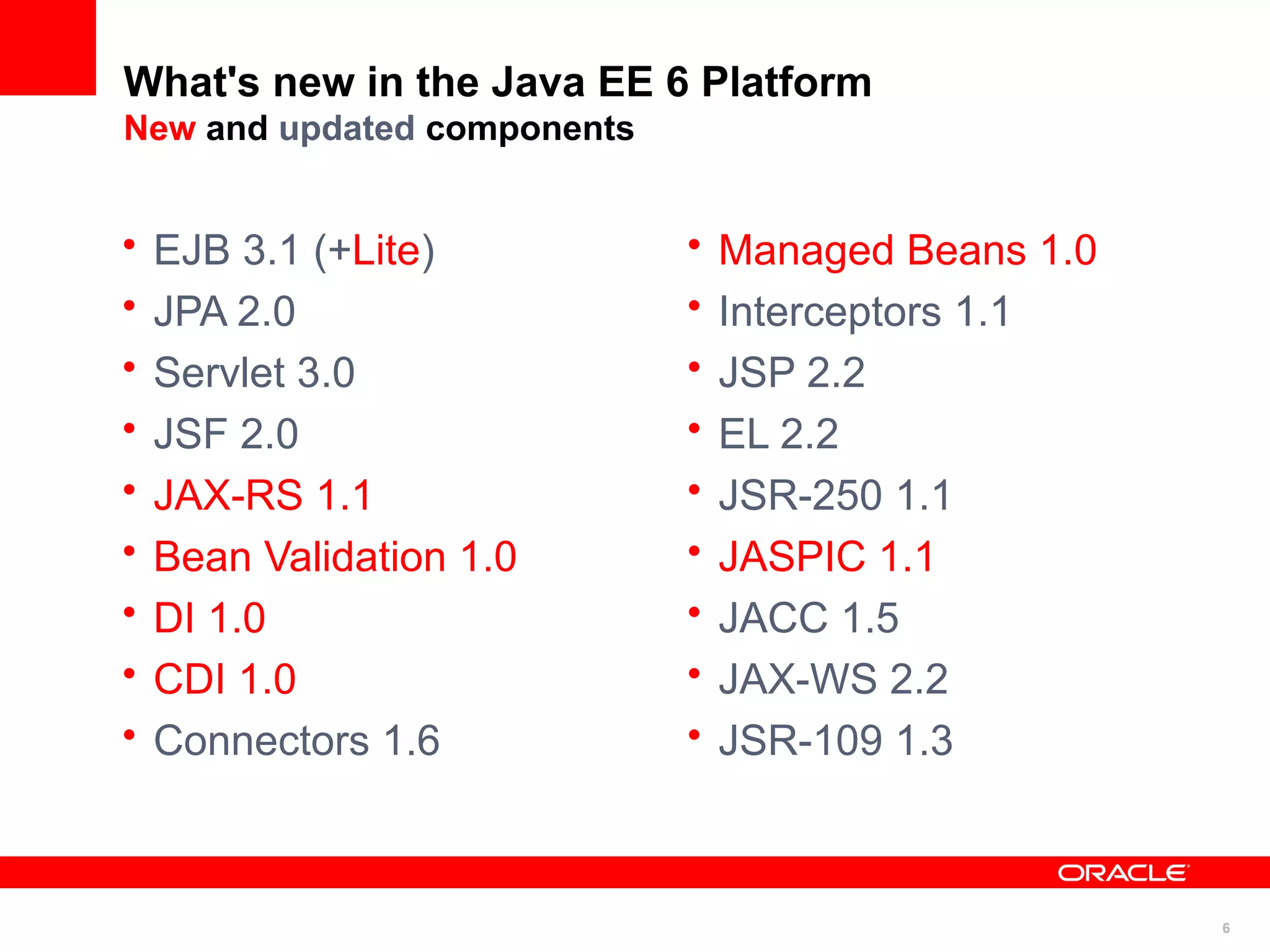

What's new in the Java EE 6 Platform
New and updated components

• EJB 3.1 (+Lite) • Managed Beans 1.0
• JPA 2.0 • Interceptors 1.1
• Servlet 3.0 • JSP 2.2
• JSF 2.0 • EL 2.2
• JAX-RS 1.1 • JSR-250 1.1
• Bean Validation 1.0 • JASPIC 1.1
• DI 1.0 • JACC 1.5
• CDI 1.0 • JAX-WS 2.2
• Connectors 1.6 • JSR-109 1.3

6

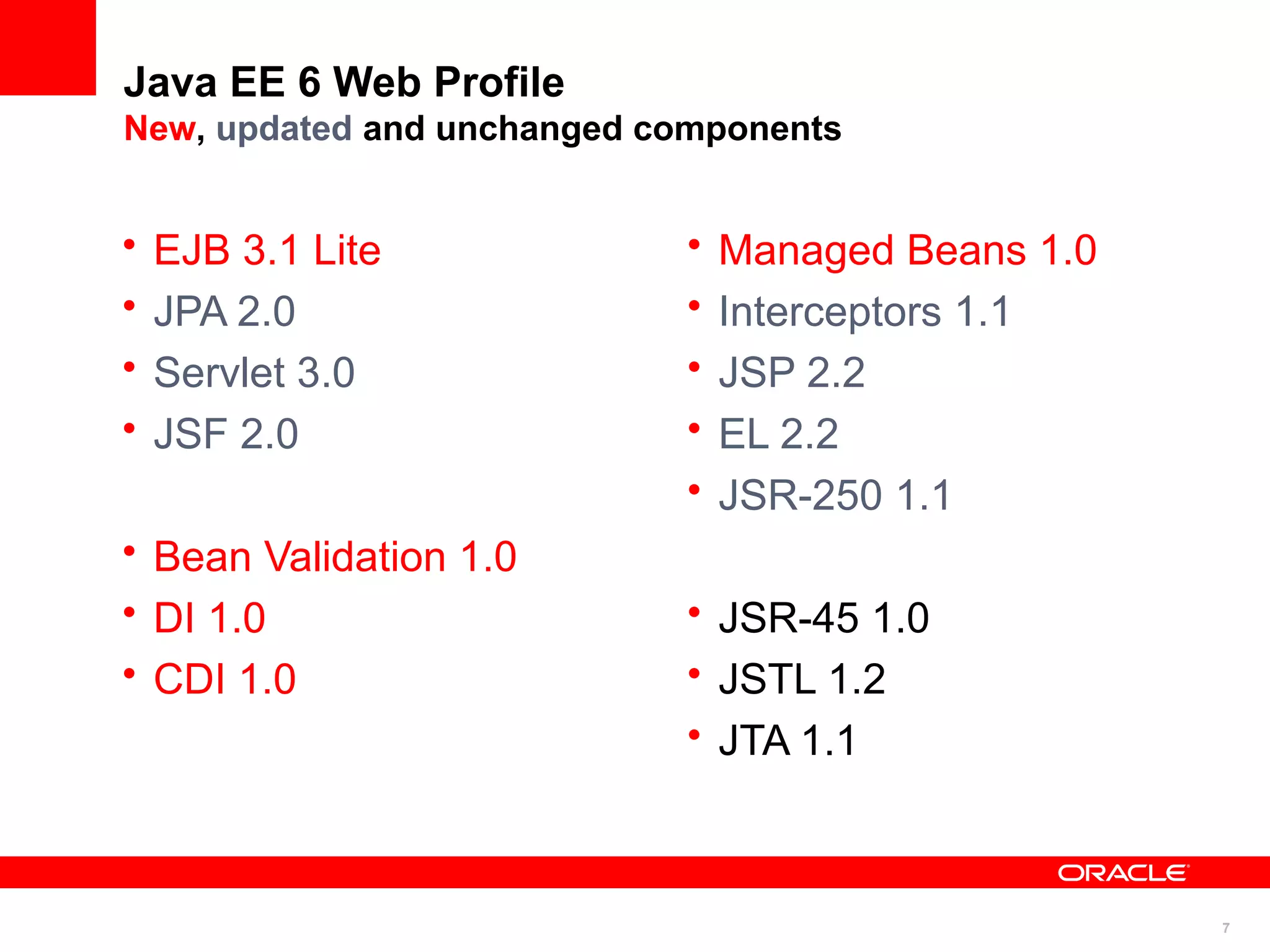

Java EE 6 Web Profile
New, updated and unchanged components

• EJB 3.1 Lite • Managed Beans 1.0
• JPA 2.0 • Interceptors 1.1
• Servlet 3.0 • JSP 2.2
• JSF 2.0 • EL 2.2
• JSR-250 1.1
• Bean Validation 1.0
• DI 1.0 • JSR-45 1.0
• CDI 1.0 • JSTL 1.2
• JTA 1.1

7

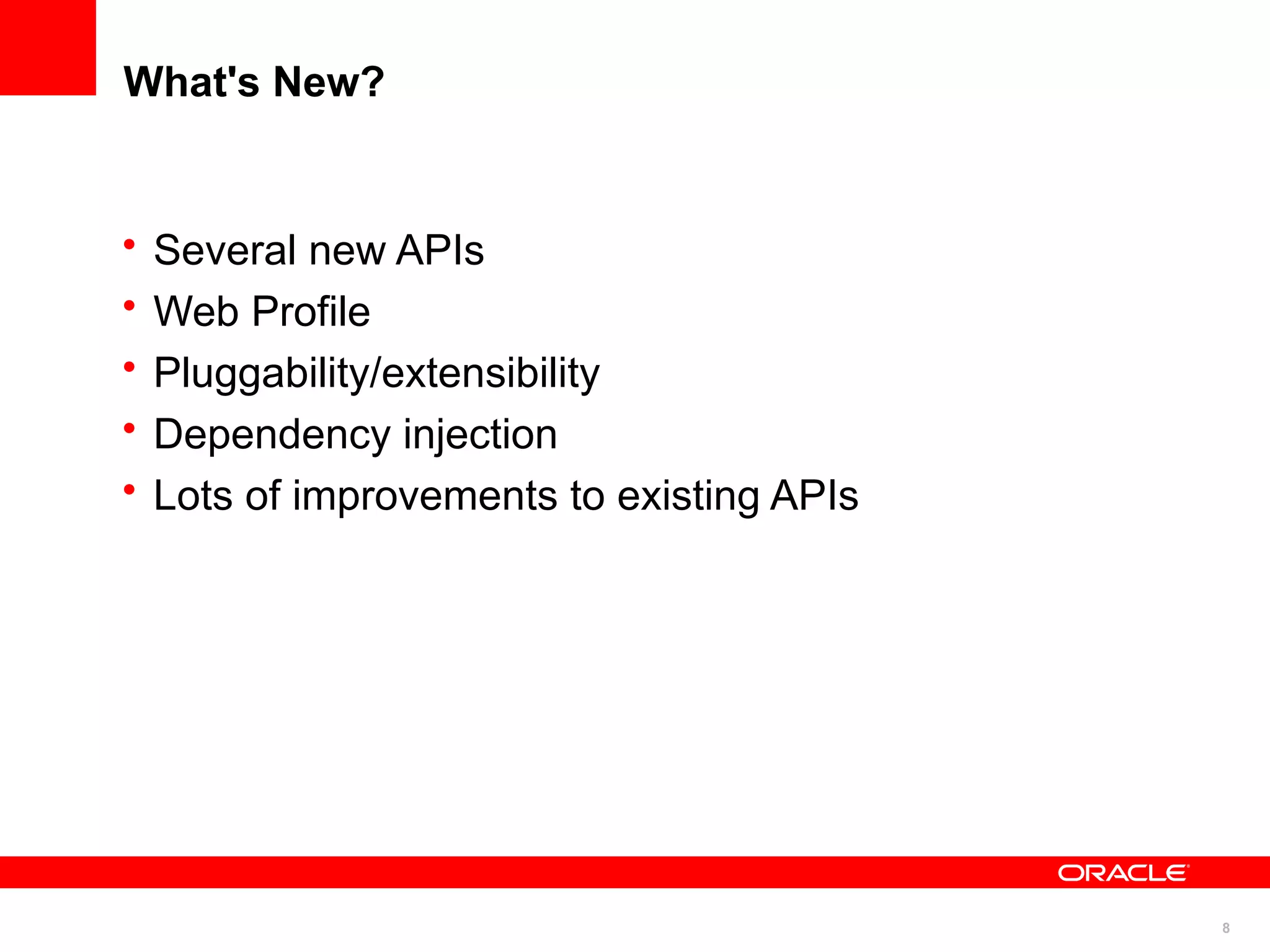

What's New?

• Several new APIs
• Web Profile
• Pluggability/extensibility
• Dependency injection
• Lots of improvements to existing APIs

8

The Core Programming Model Explained

9

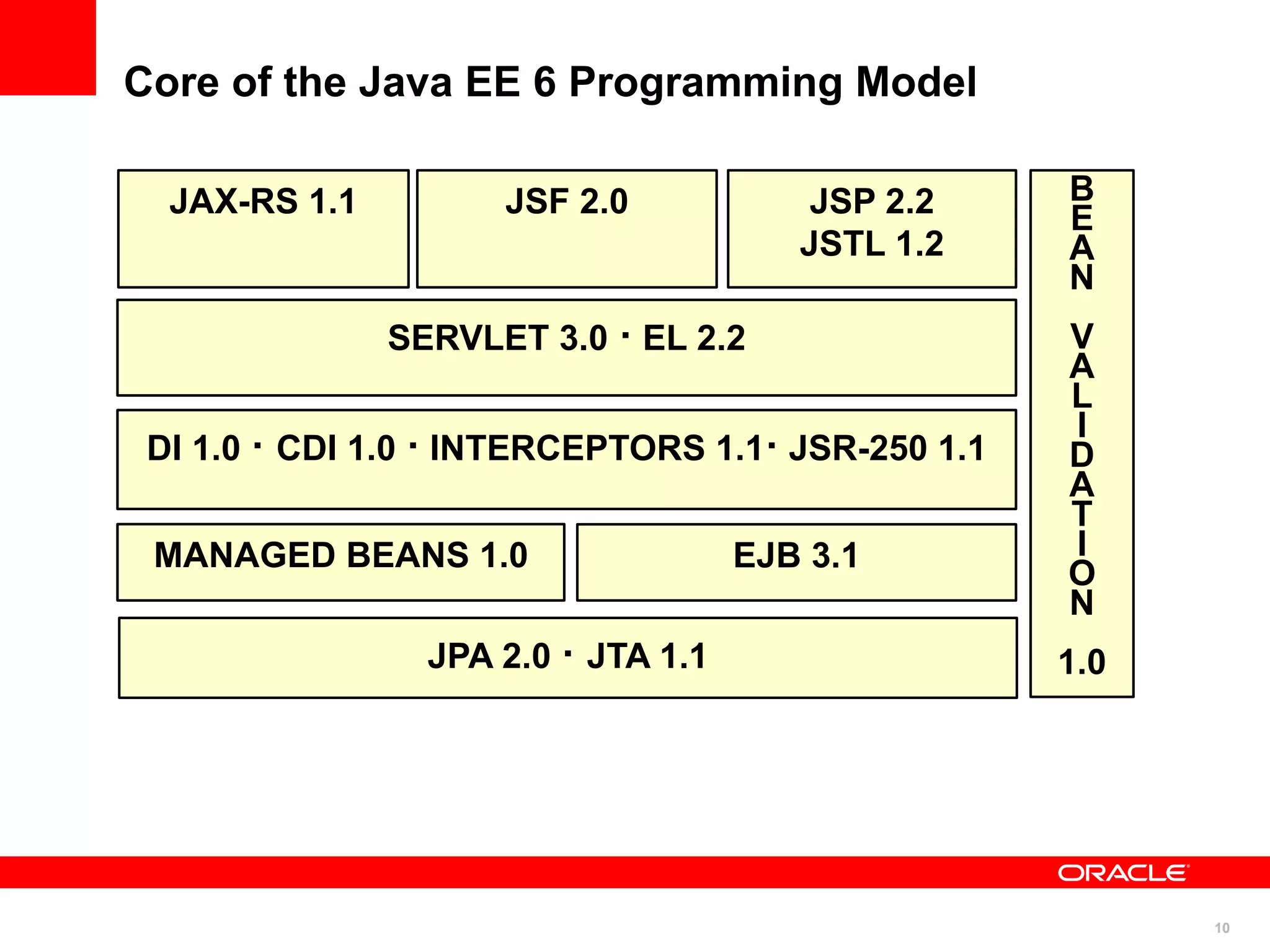

Core of the Java EE 6 Programming Model

JAX-RS 1.1 JSF 2.0 JSP 2.2 B
E
JSTL 1.2 A
N
SERVLET 3.0 · EL 2.2 V
A
L
I
DI 1.0 · CDI 1.0 · INTERCEPTORS 1.1· JSR-250 1.1 D
A
T
MANAGED BEANS 1.0 EJB 3.1 I
O
N
JPA 2.0 · JTA 1.1 1.0

10

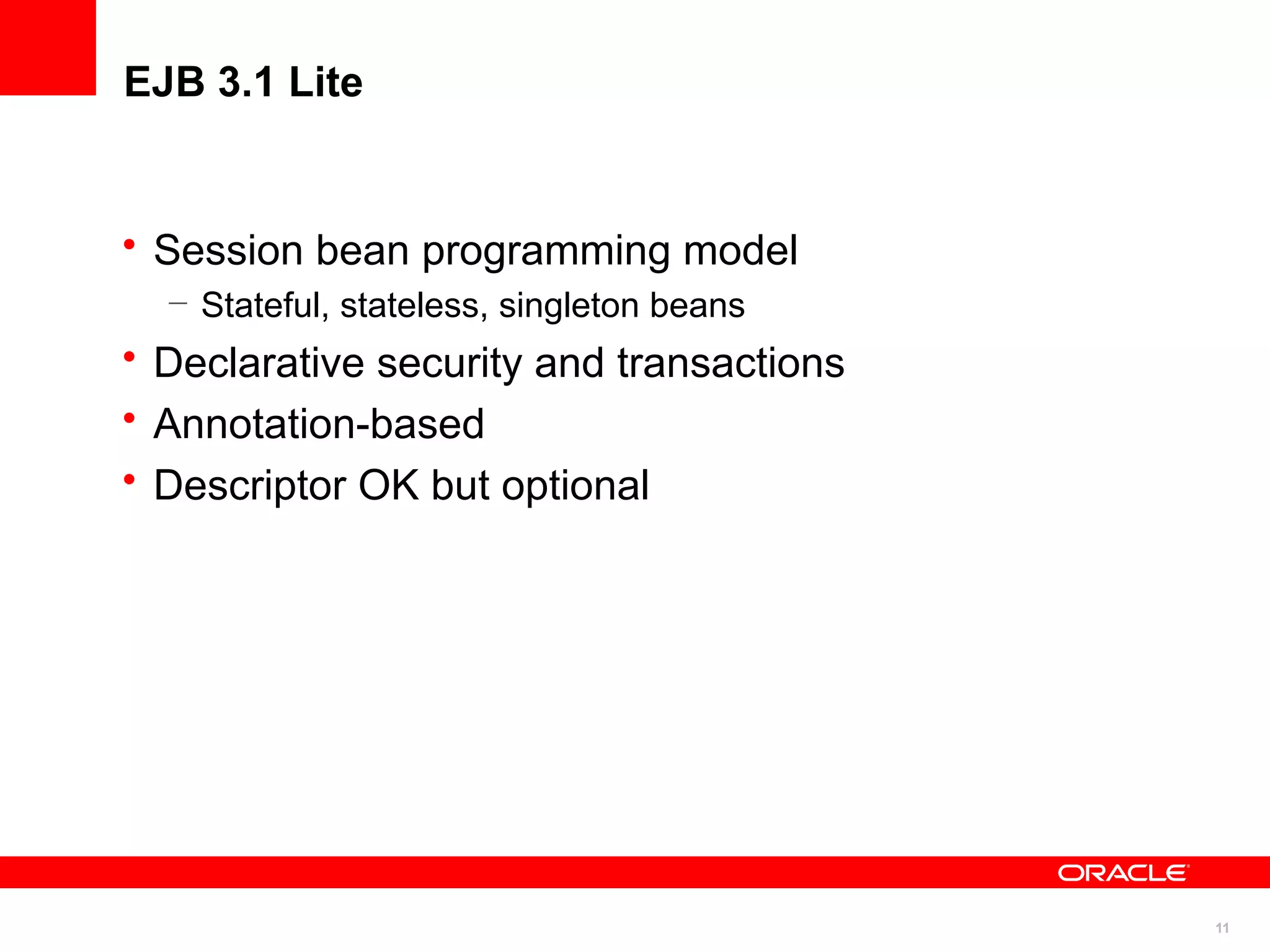

EJB 3.1 Lite

• Session bean programming model
– Stateful, stateless, singleton beans
• Declarative security and transactions
• Annotation-based
• Descriptor OK but optional

11

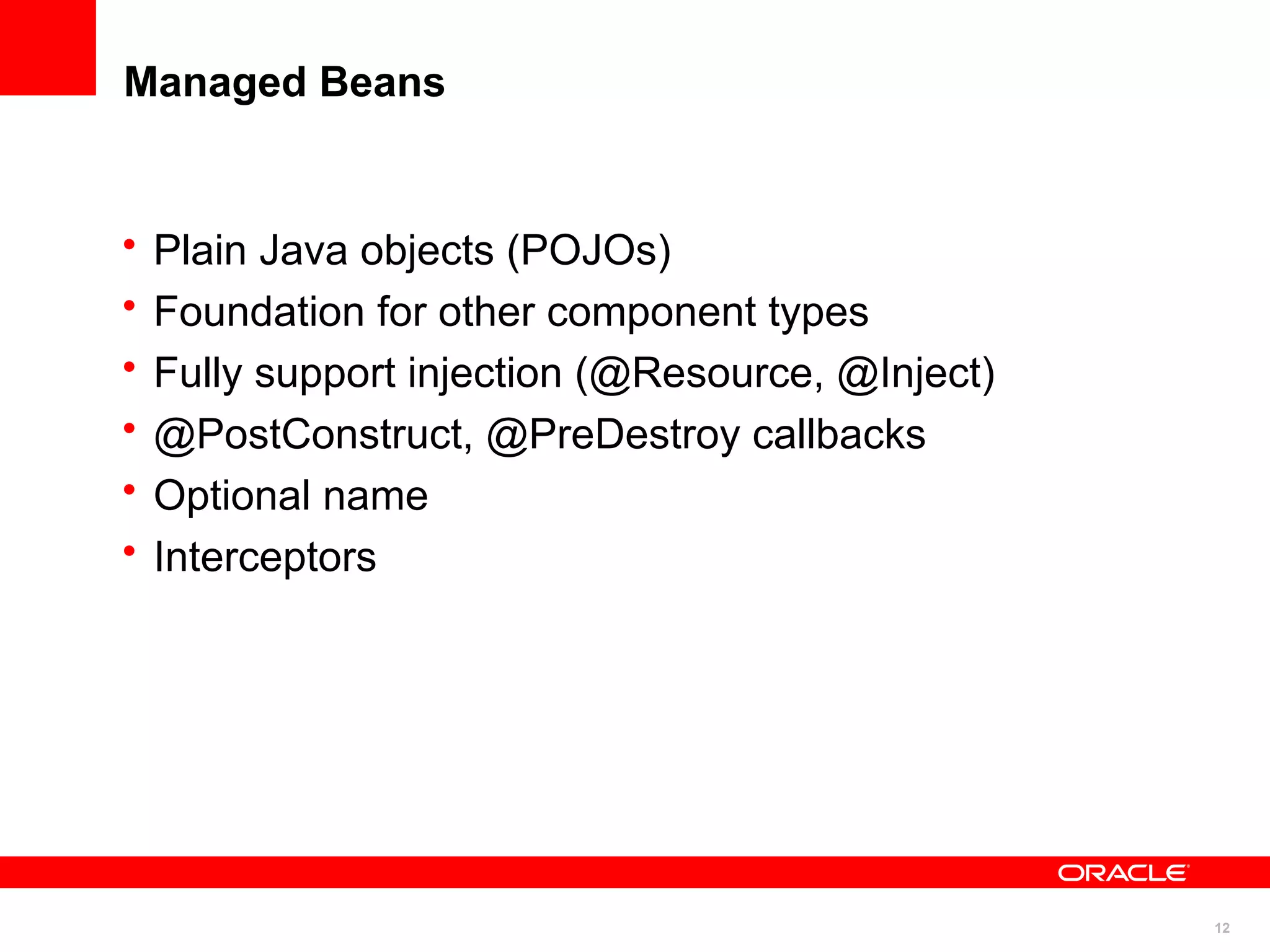

Managed Beans

• Plain Java objects (POJOs)
• Foundation for other component types
• Fully support injection (@Resource, @Inject)
• @PostConstruct, @PreDestroy callbacks
• Optional name
• Interceptors

12

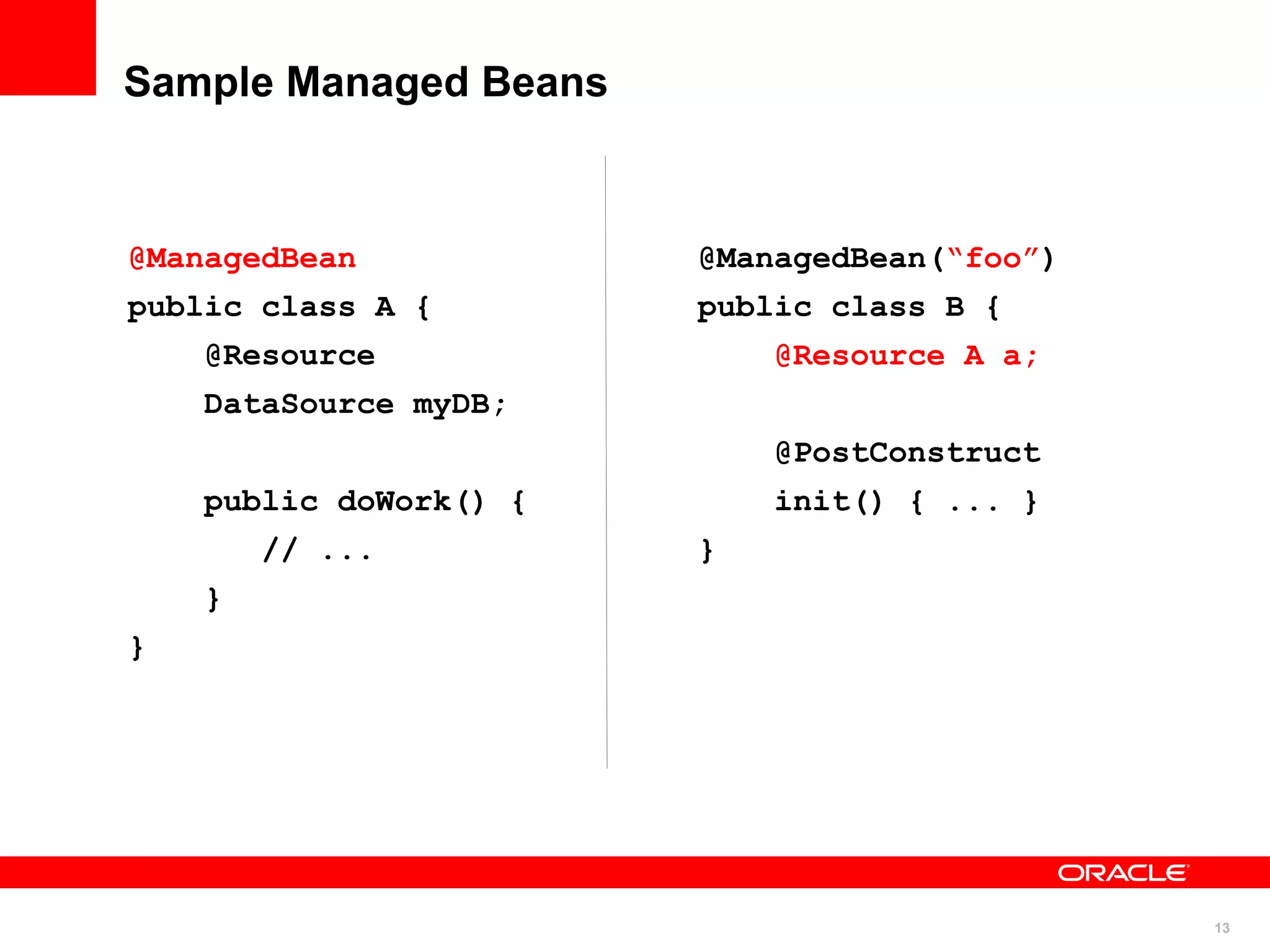

Sample Managed Beans

@ManagedBean @ManagedBean(“foo”)
public class A { public class B {
@Resource @Resource A a;
DataSource myDB;
@PostConstruct
public doWork() { init() { ... }
// ... }
}
}

13

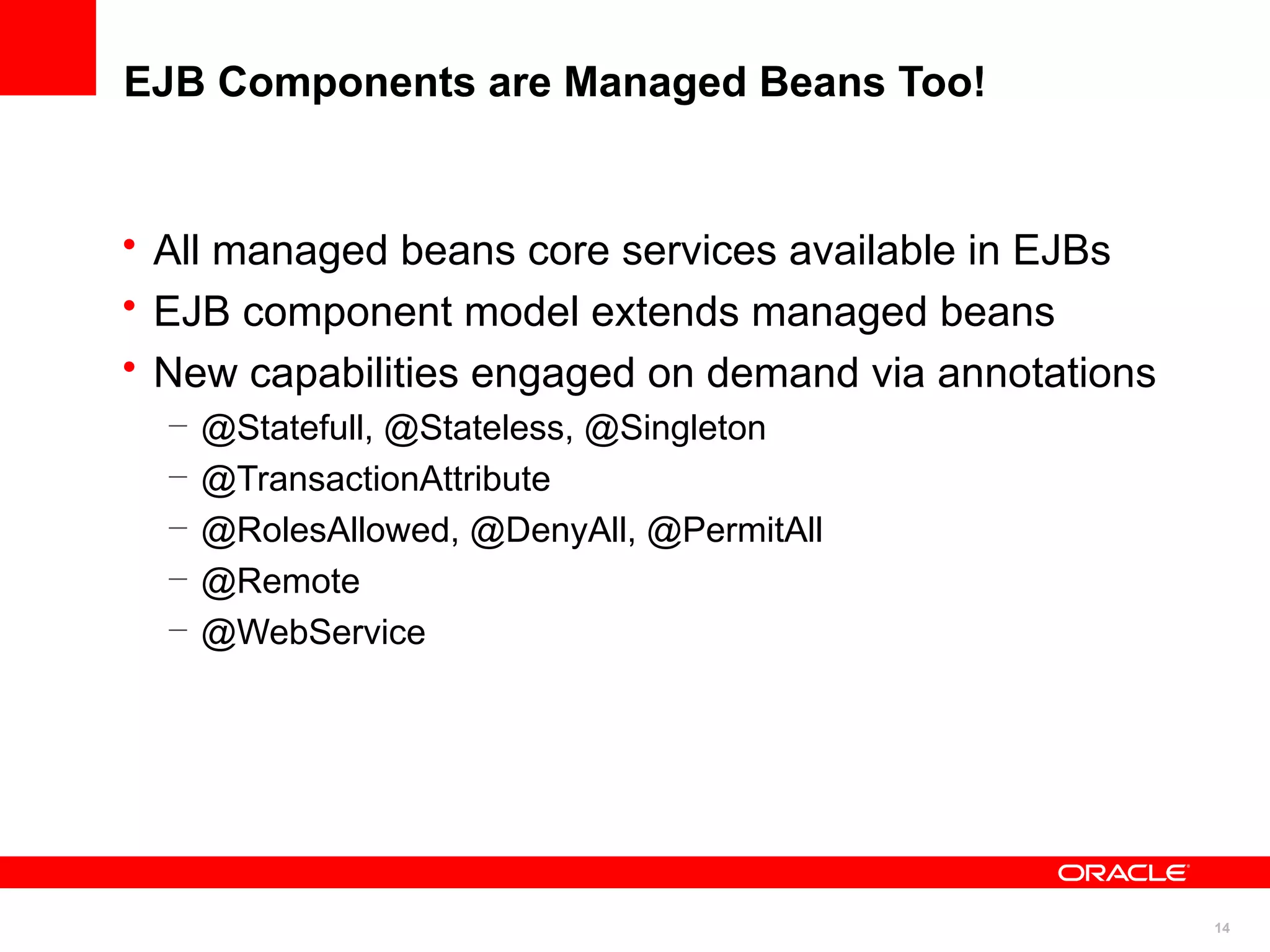

EJB Components are Managed Beans Too!

• All managed beans core services available in EJBs
• EJB component model extends managed beans
• New capabilities engaged on demand via annotations
– @Statefull, @Stateless, @Singleton
– @TransactionAttribute
– @RolesAllowed, @DenyAll, @PermitAll
– @Remote
– @WebService

14

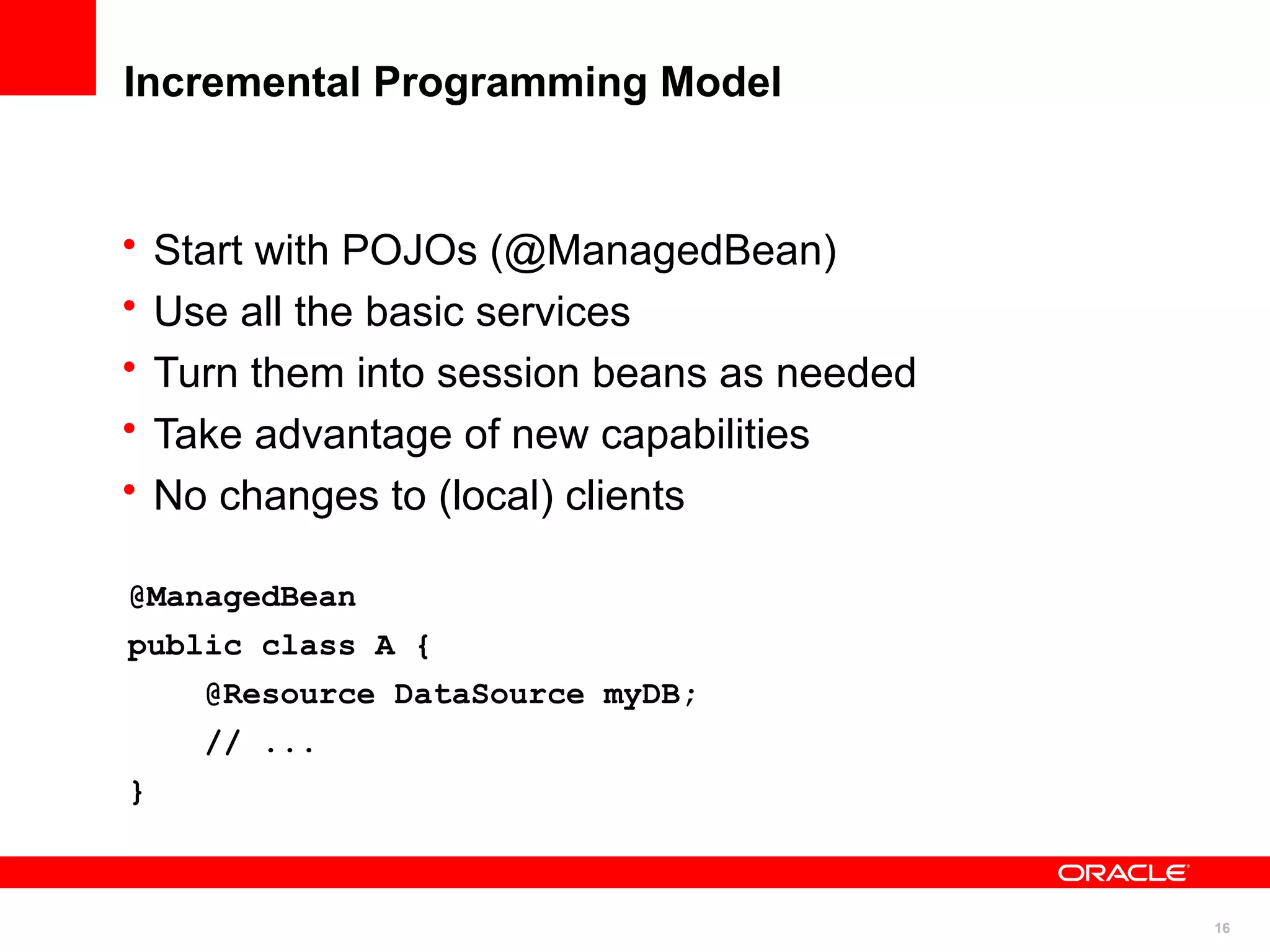

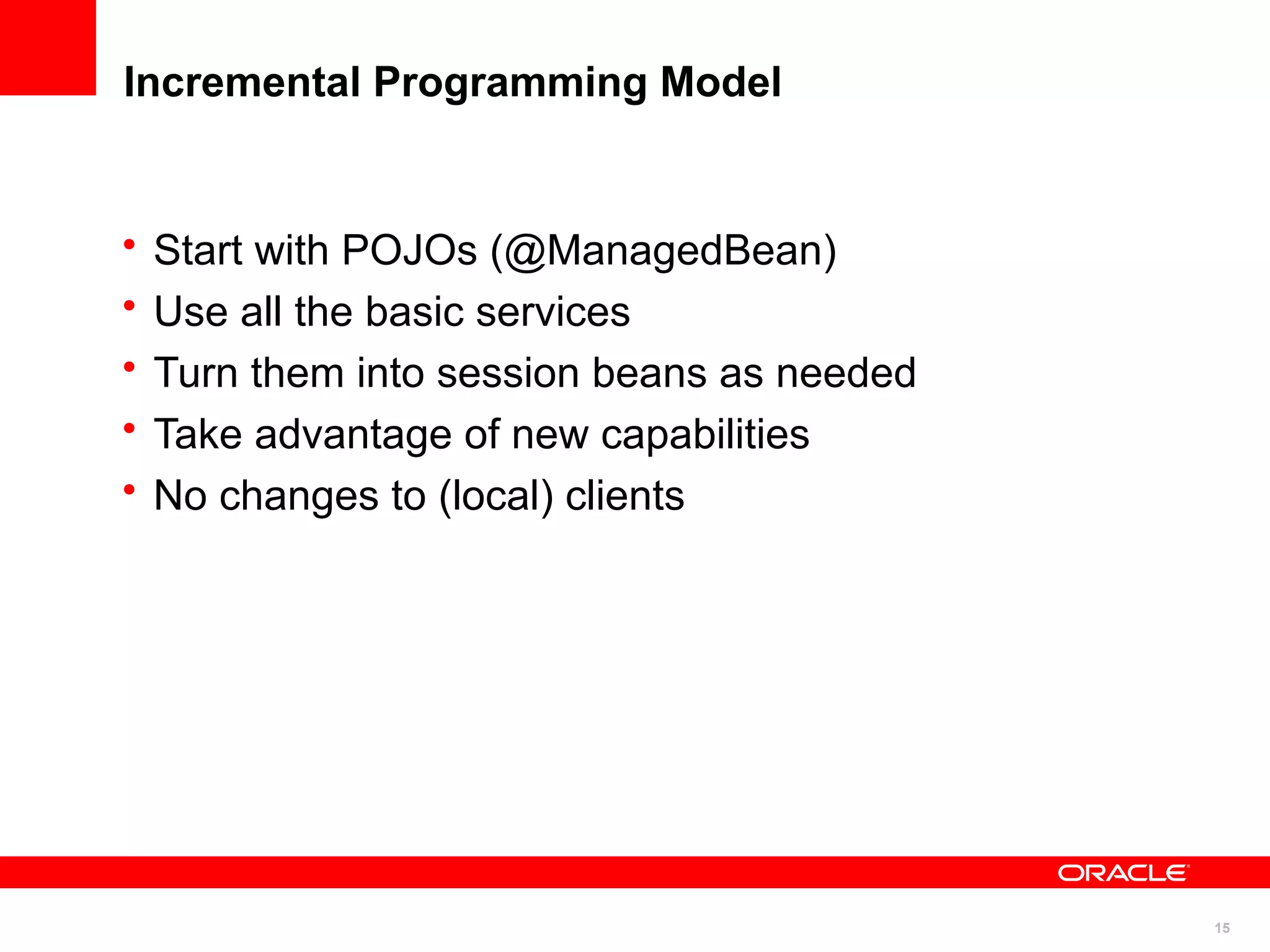

Incremental Programming Model

• Start with POJOs (@ManagedBean)
• Use all the basic services
• Turn them into session beans as needed
• Take advantage of new capabilities
• No changes to (local) clients

15



@ManagedBean
public class A {
@Resource DataSource myDB;
// ...
}

16

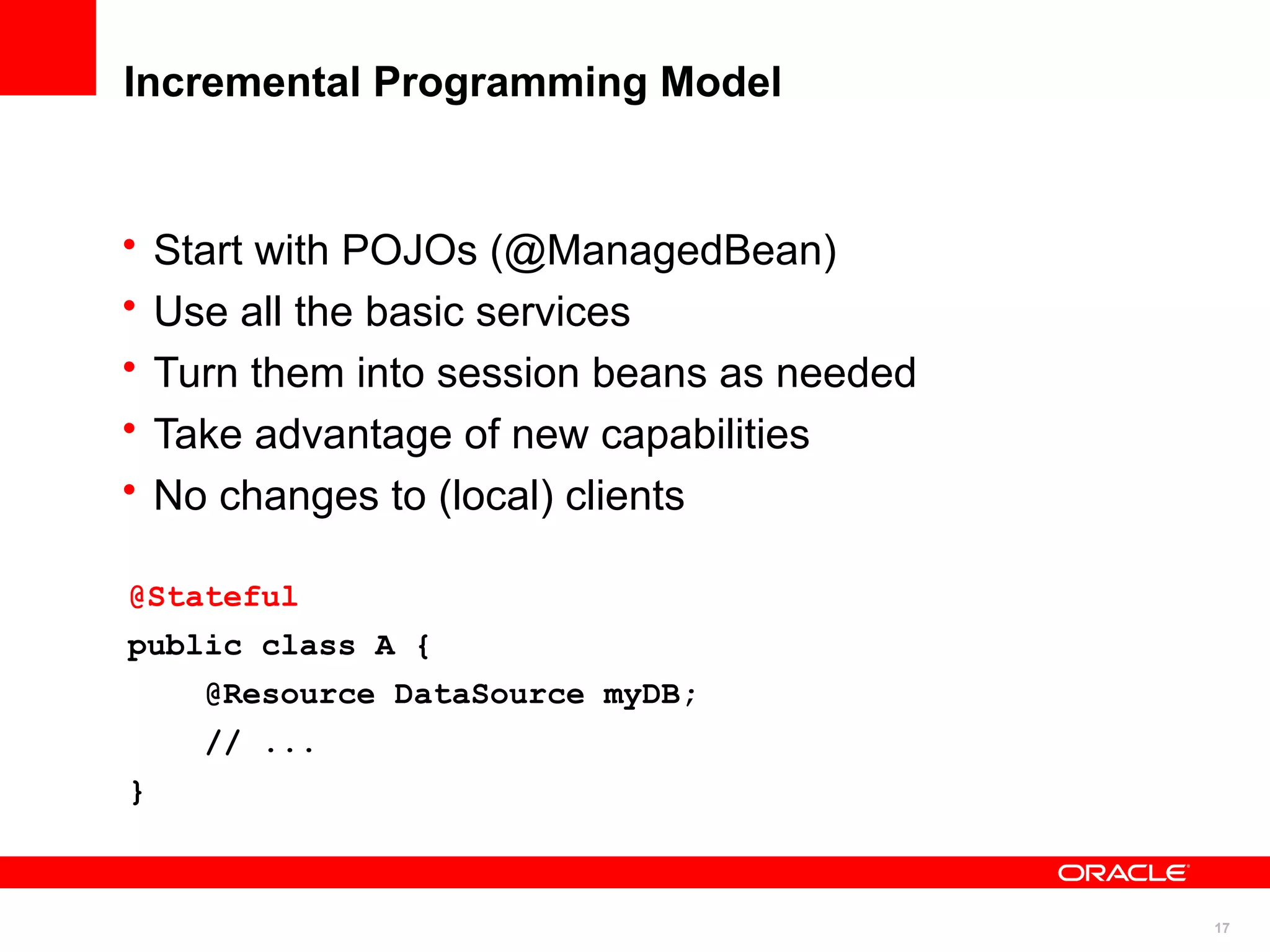

@Stateful
public class A {
// ...
}

17

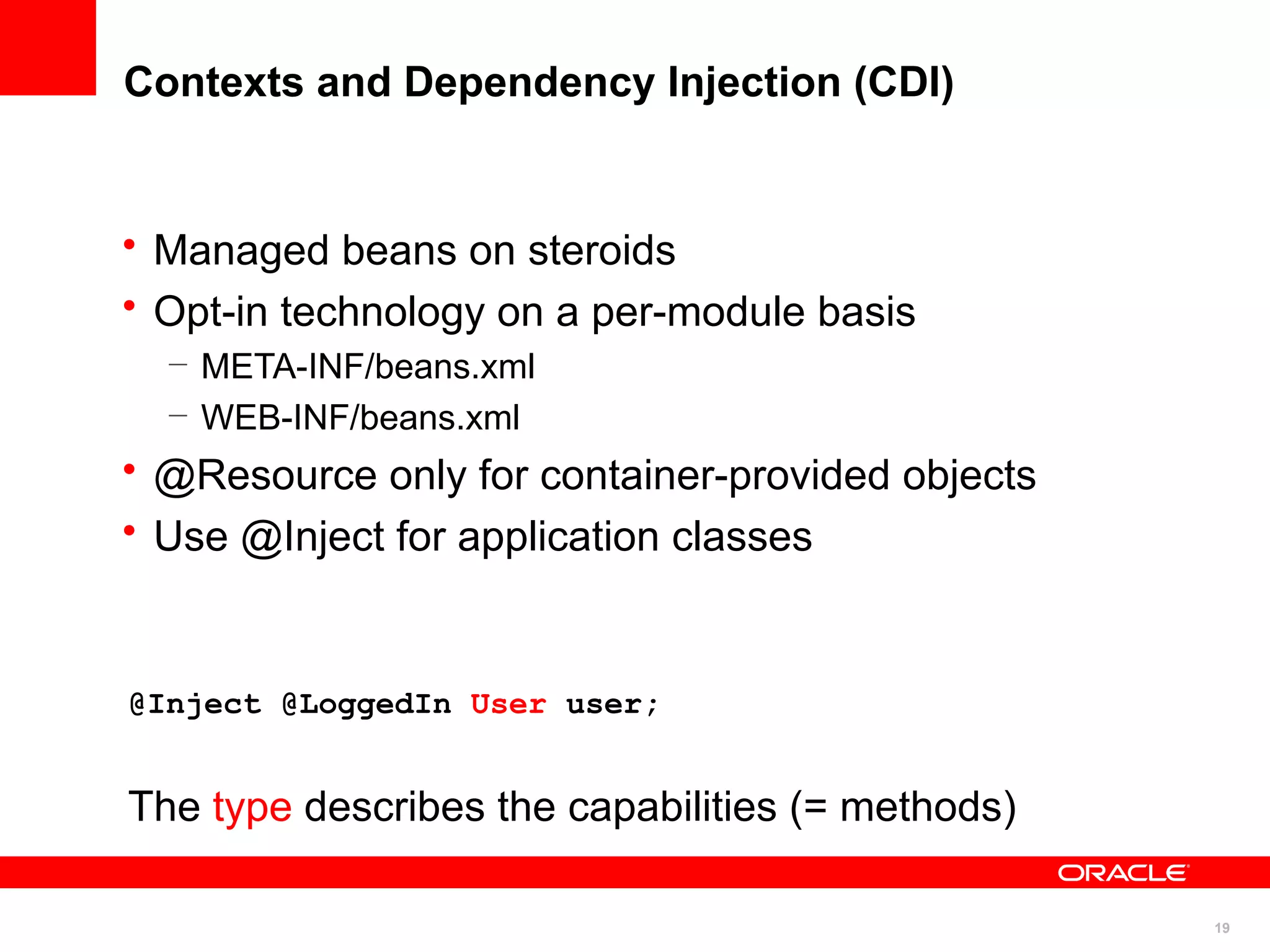

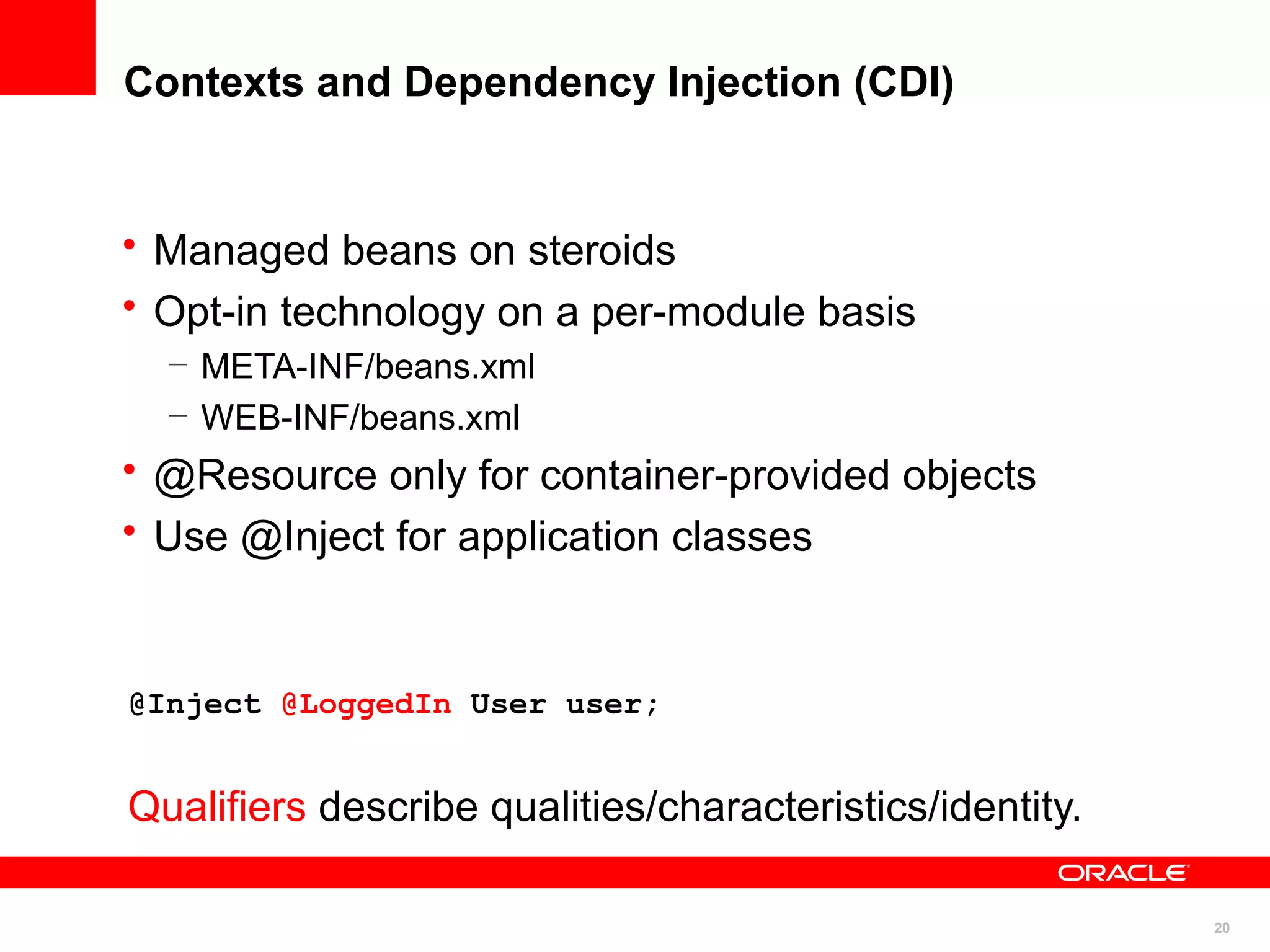

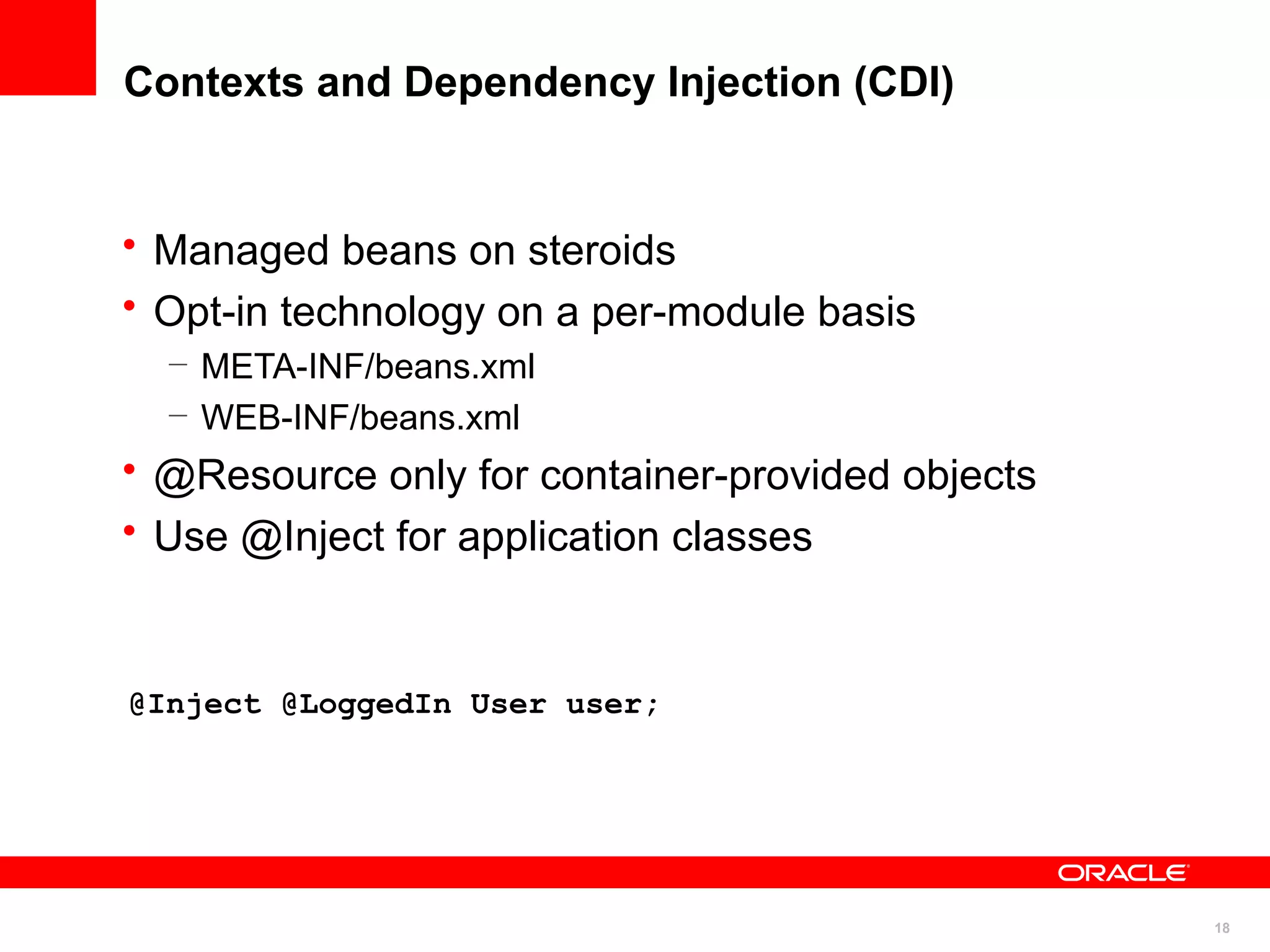

Contexts and Dependency Injection (CDI)

• Managed beans on steroids
• Opt-in technology on a per-module basis
– META-INF/beans.xml
– WEB-INF/beans.xml
• @Resource only for container-provided objects
• Use @Inject for application classes

@Inject @LoggedIn User user;

18




The type describes the capabilities (= methods)

19




Qualifiers describe qualities/characteristics/identity.

20

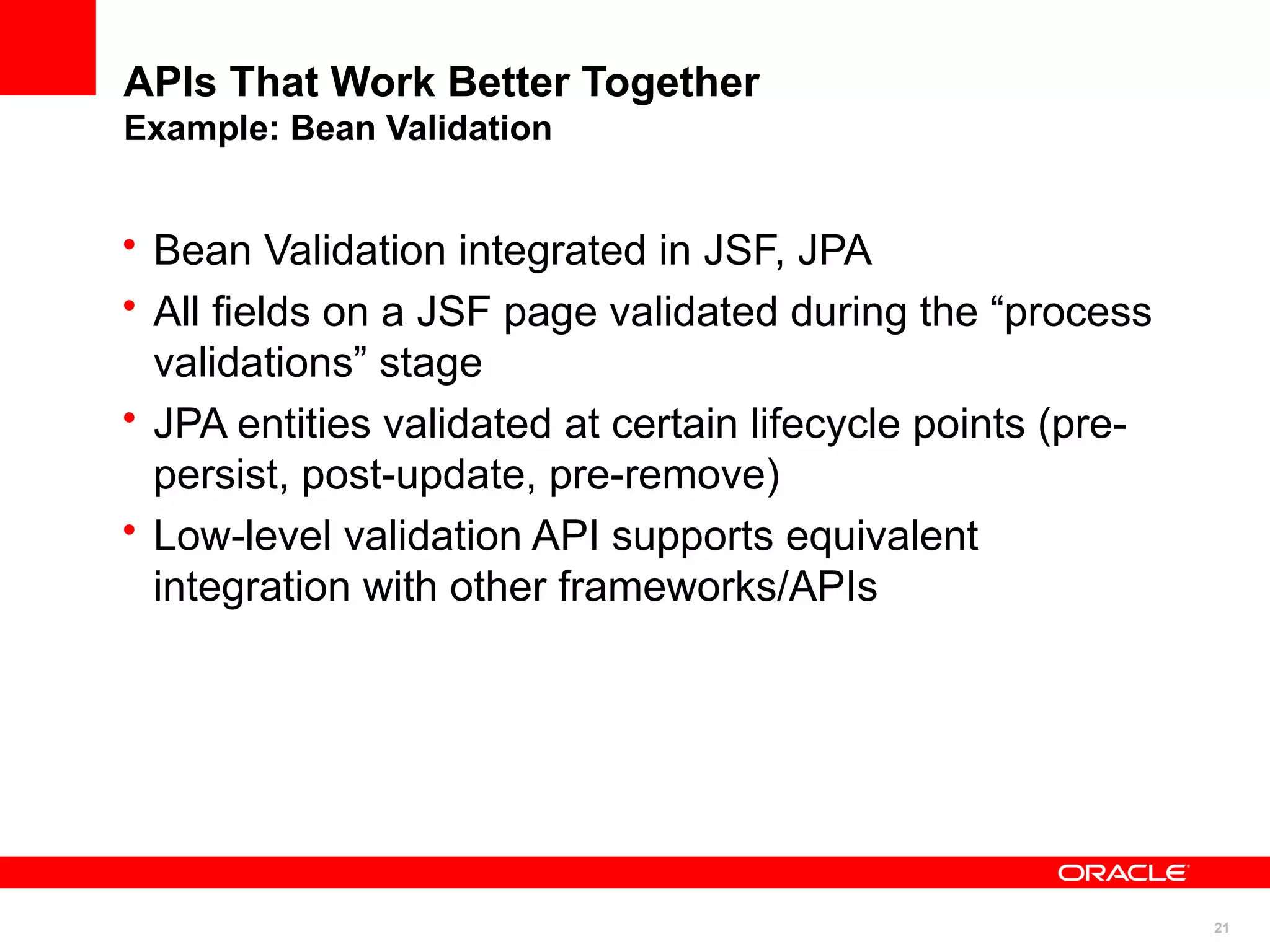

APIs That Work Better Together
Example: Bean Validation

• Bean Validation integrated in JSF, JPA
• All fields on a JSF page validated during the “process
validations” stage
• JPA entities validated at certain lifecycle points (pre-
persist, post-update, pre-remove)
• Low-level validation API supports equivalent
integration with other frameworks/APIs

21

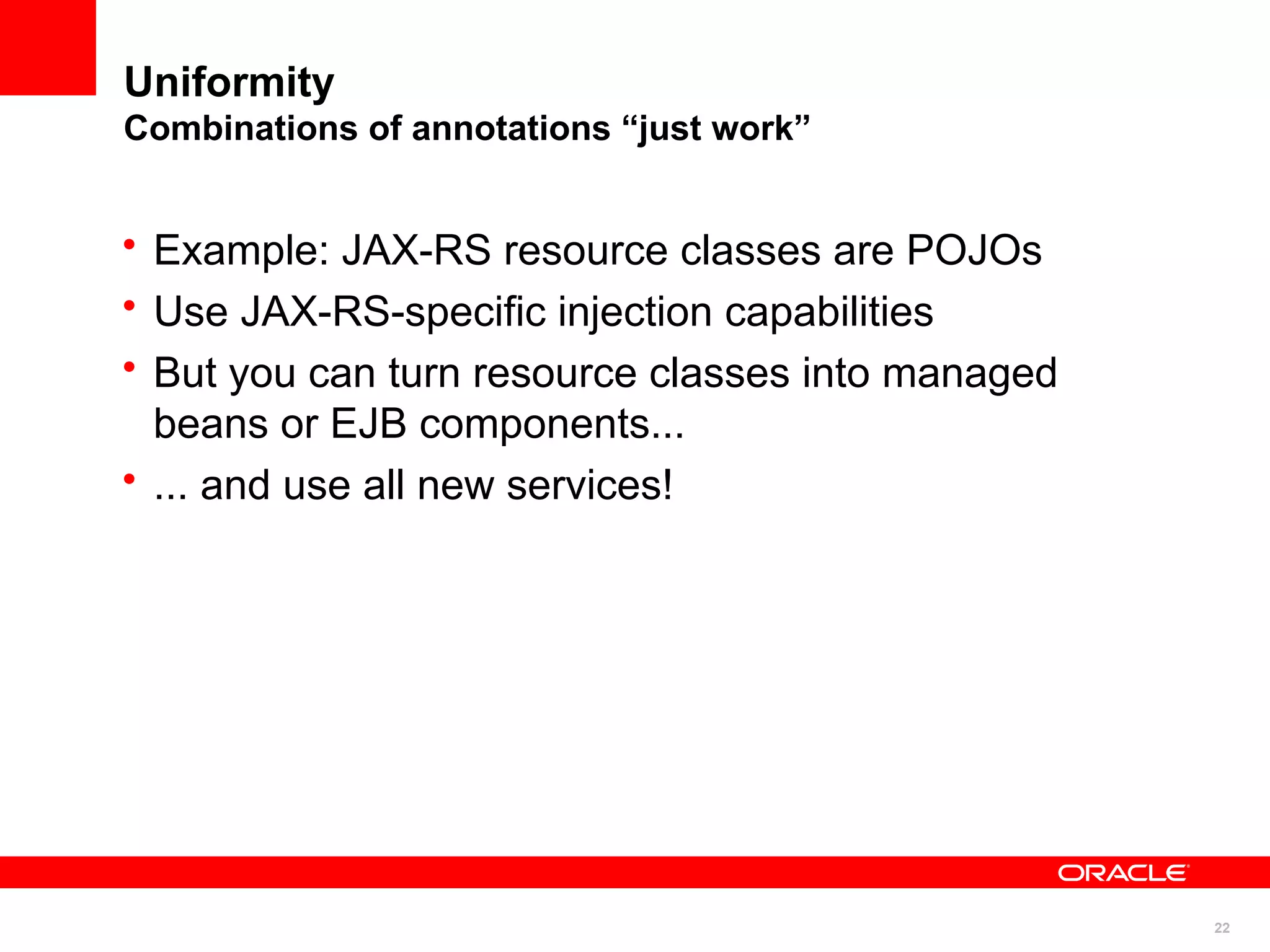

Uniformity
Combinations of annotations “just work”

• Example: JAX-RS resource classes are POJOs
• Use JAX-RS-specific injection capabilities
• But you can turn resource classes into managed
beans or EJB components...
• ... and use all new services!

22

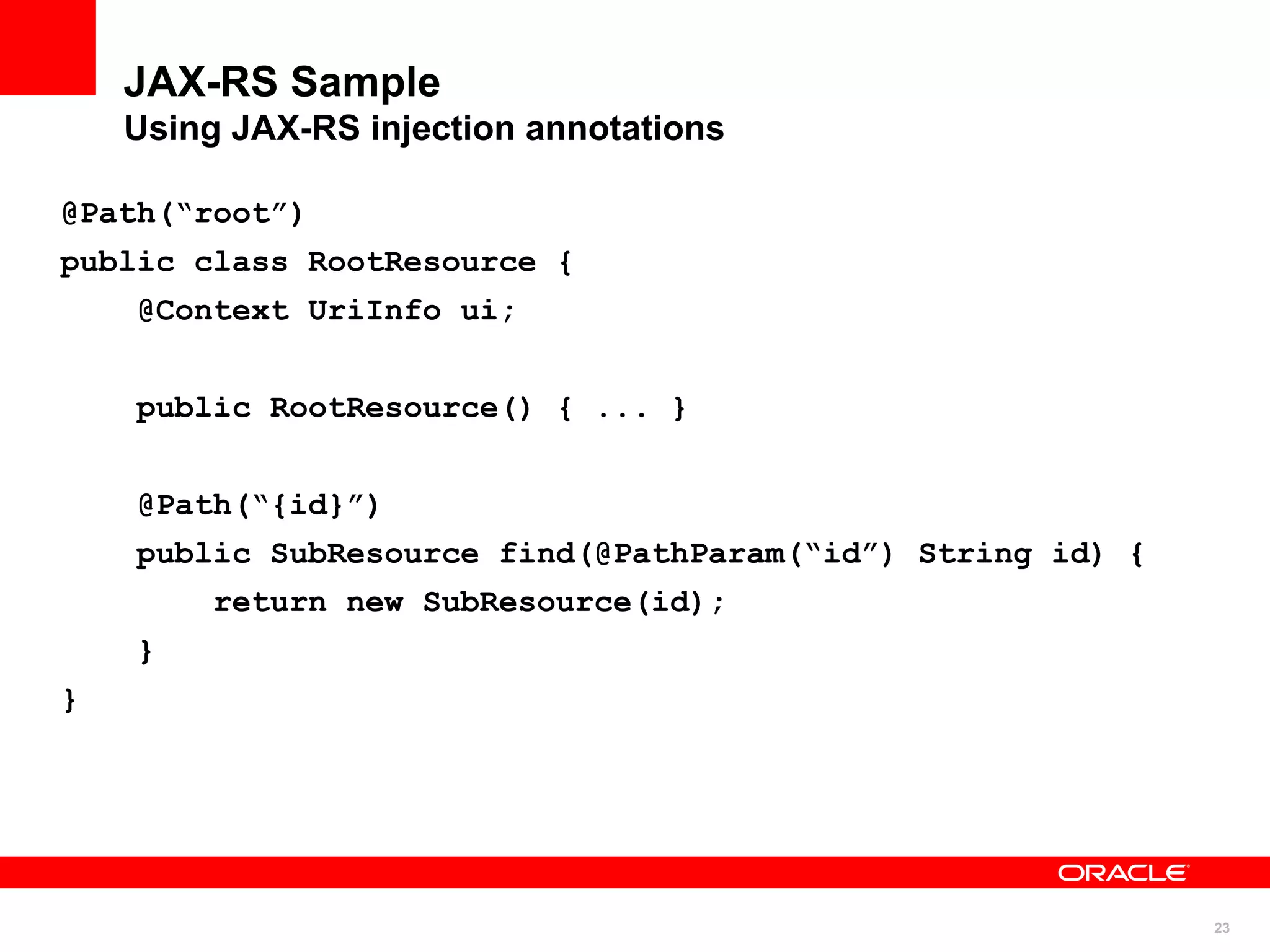

JAX-RS Sample
Using JAX-RS injection annotations

@Path(“root”)
public class RootResource {
@Context UriInfo ui;

public RootResource() { ... }

@Path(“{id}”)
public SubResource find(@PathParam(“id”) String id) {
return new SubResource(id);
}
}

23

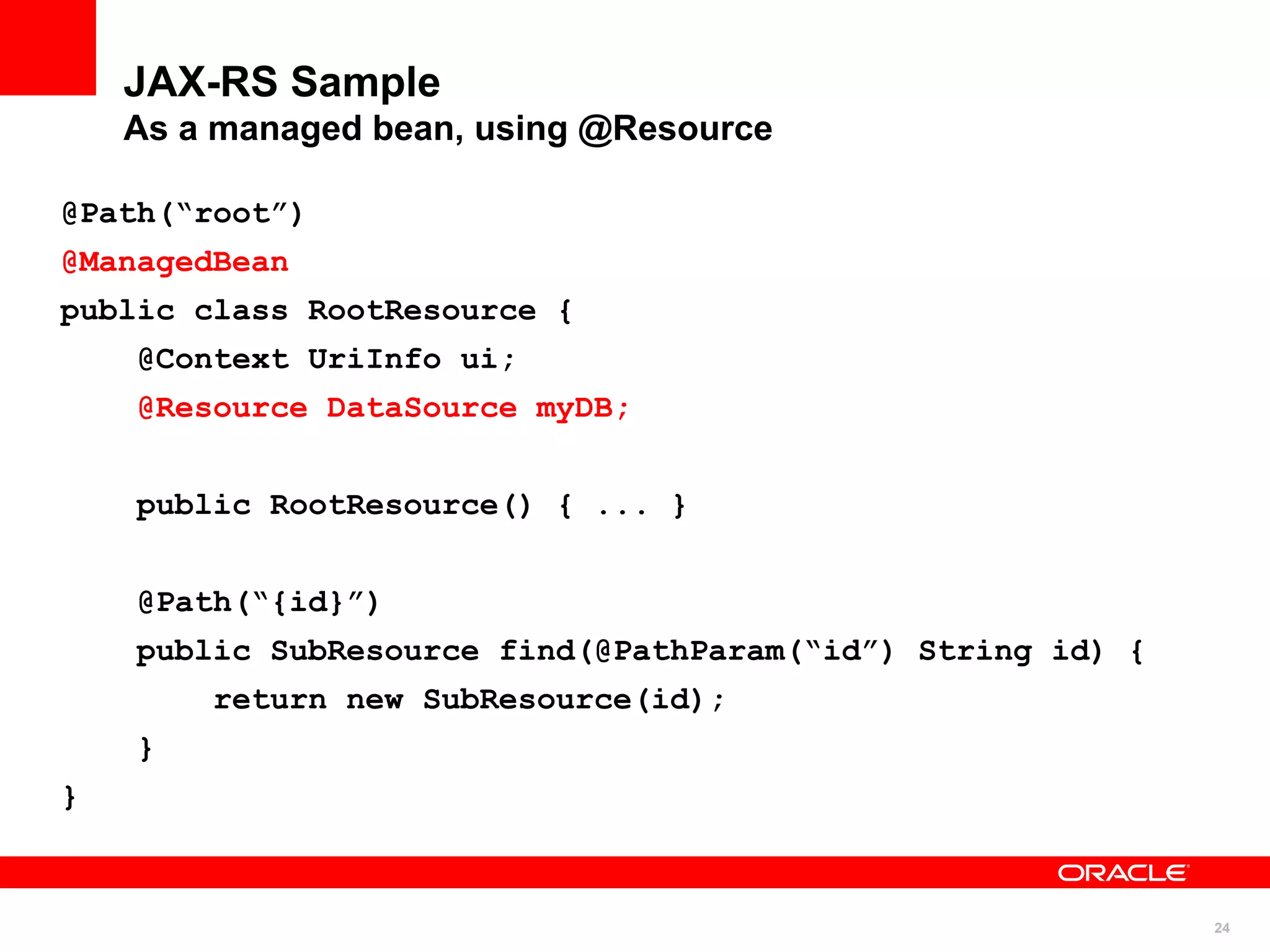

JAX-RS Sample
As a managed bean, using @Resource

@Path(“root”)
@ManagedBean


@Path(“{id}”)
}
}

24

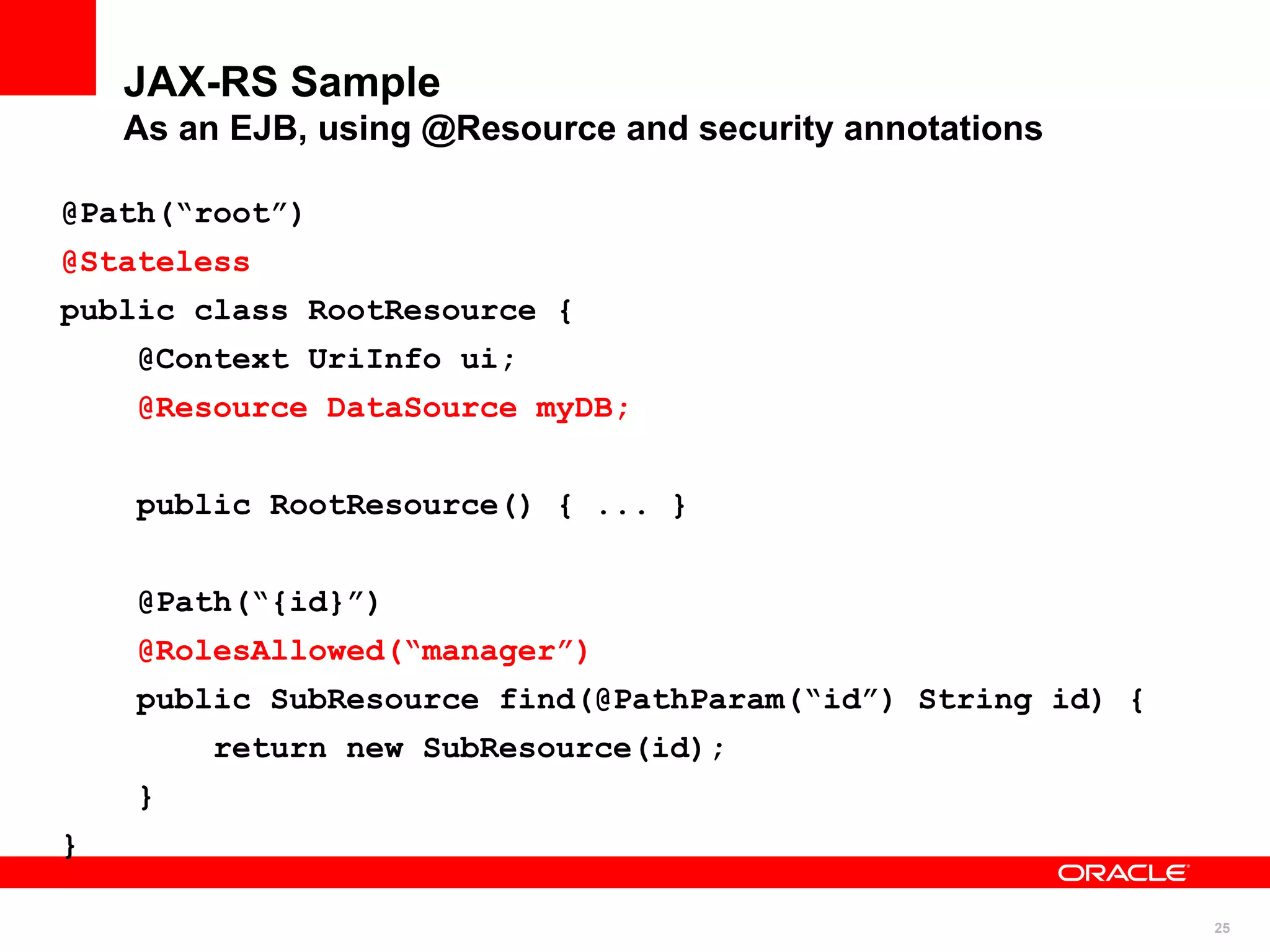

JAX-RS Sample
As an EJB, using @Resource and security annotations

@Path(“root”)
@Stateless


@Path(“{id}”)
@RolesAllowed(“manager”)
}
}

25

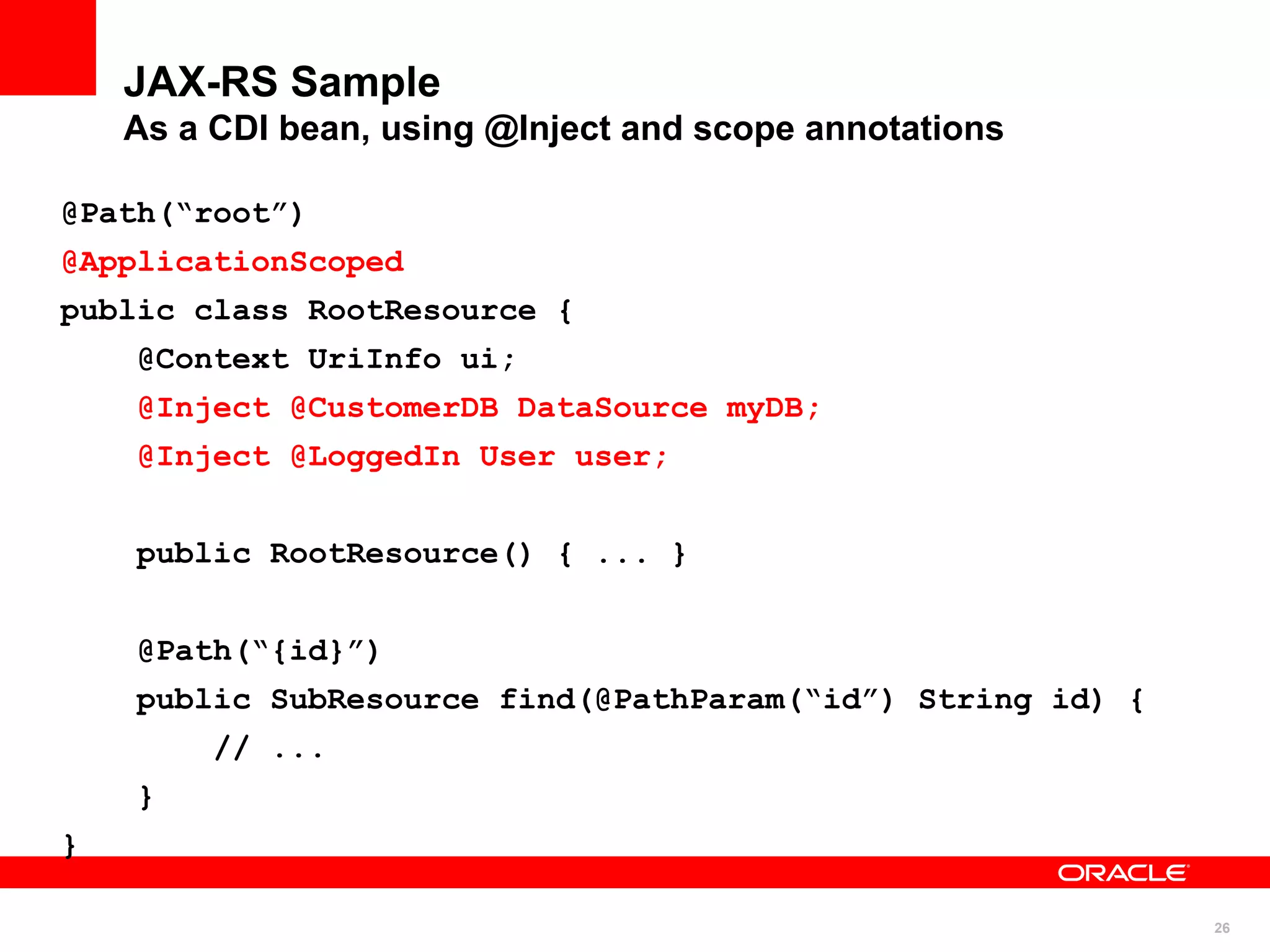

JAX-RS Sample
As a CDI bean, using @Inject and scope annotations

@Path(“root”)
@ApplicationScoped
@Inject @CustomerDB DataSource myDB;


@Path(“{id}”)
// ...
}
}

26

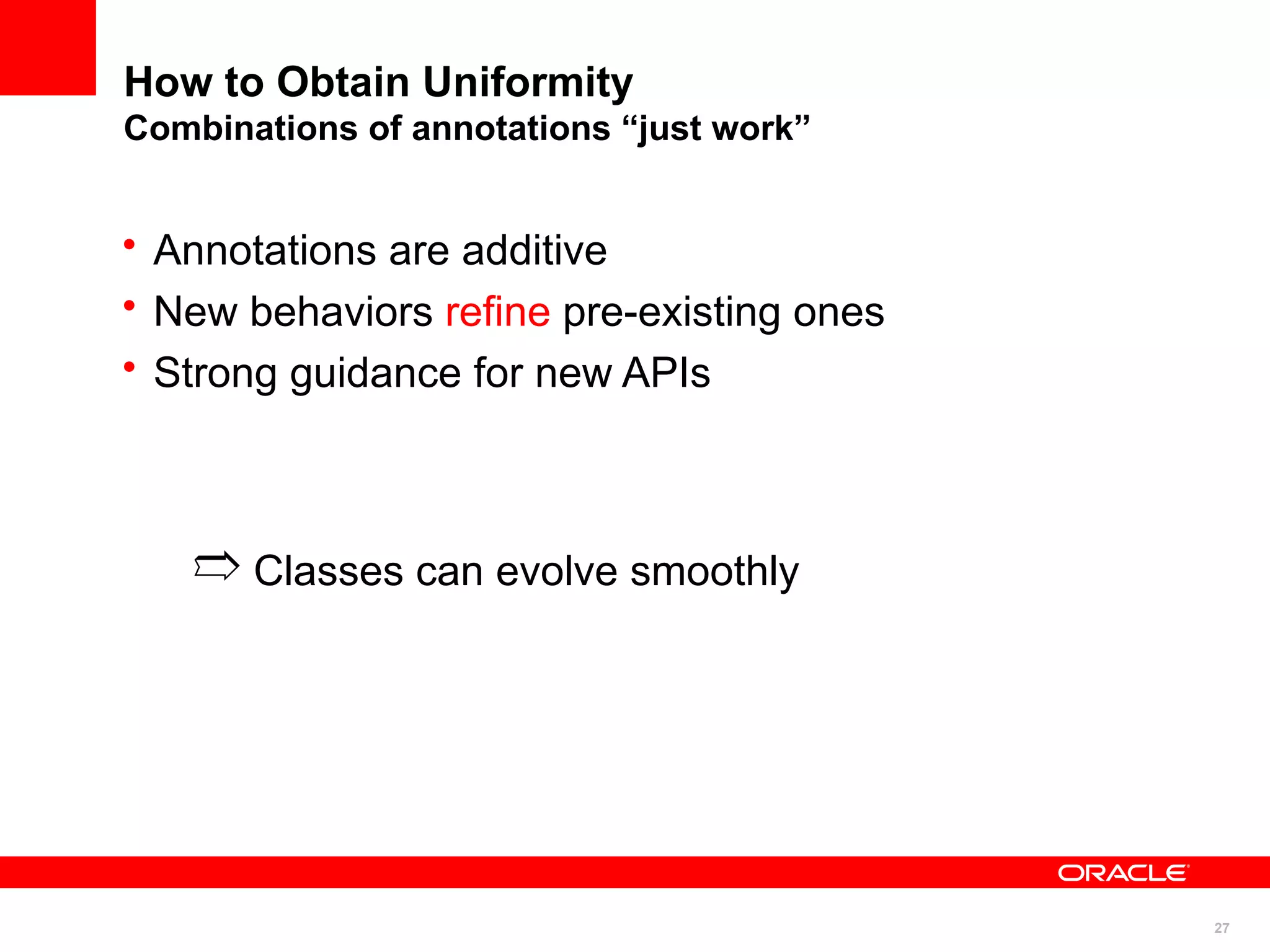

How to Obtain Uniformity
Combinations of annotations “just work”

• Annotations are additive
• New behaviors refine pre-existing ones
• Strong guidance for new APIs

➱ Classes can evolve smoothly

27

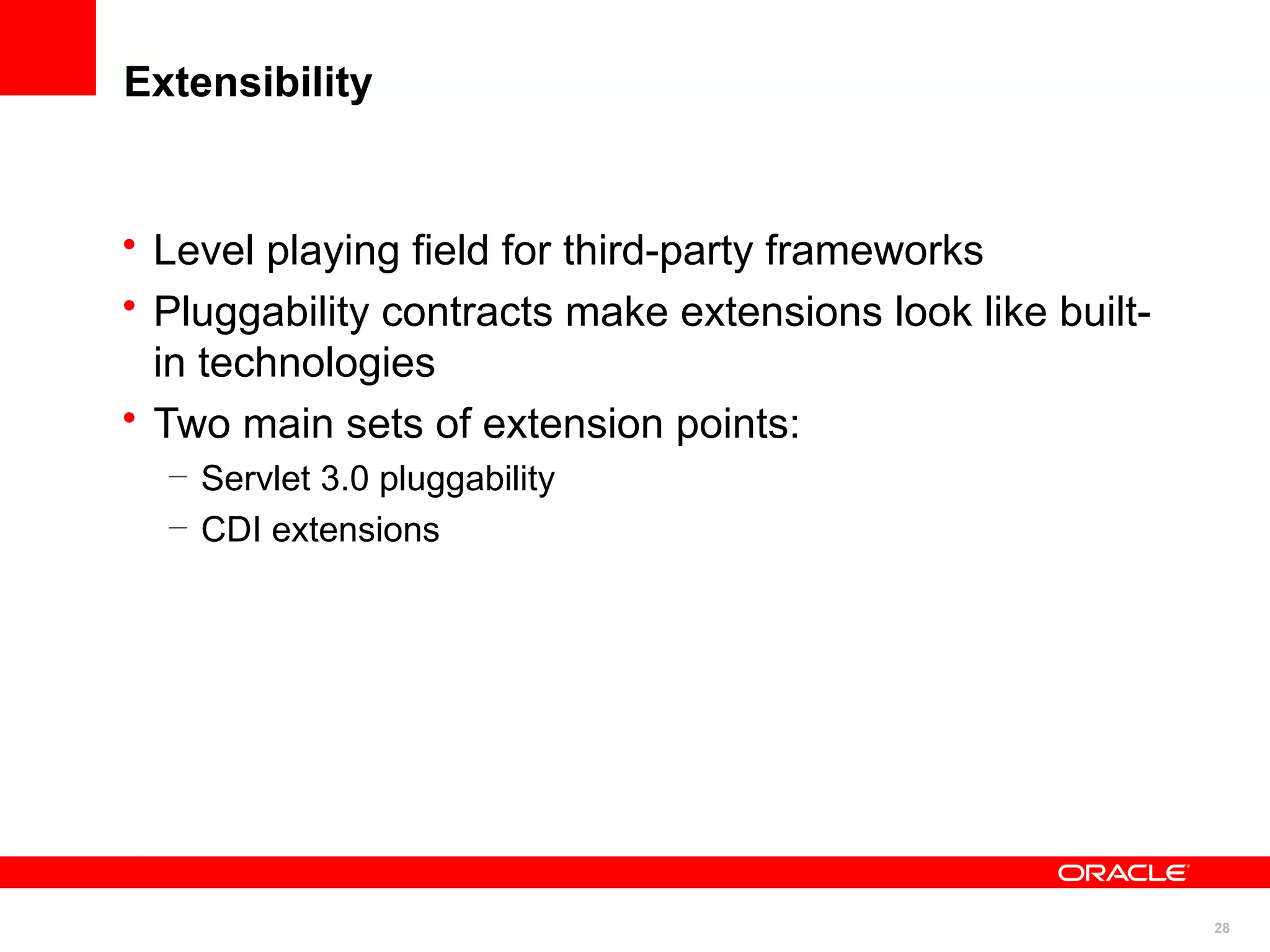

Extensibility

• Level playing field for third-party frameworks
• Pluggability contracts make extensions look like built-
in technologies
• Two main sets of extension points:
– Servlet 3.0 pluggability
– CDI extensions

28

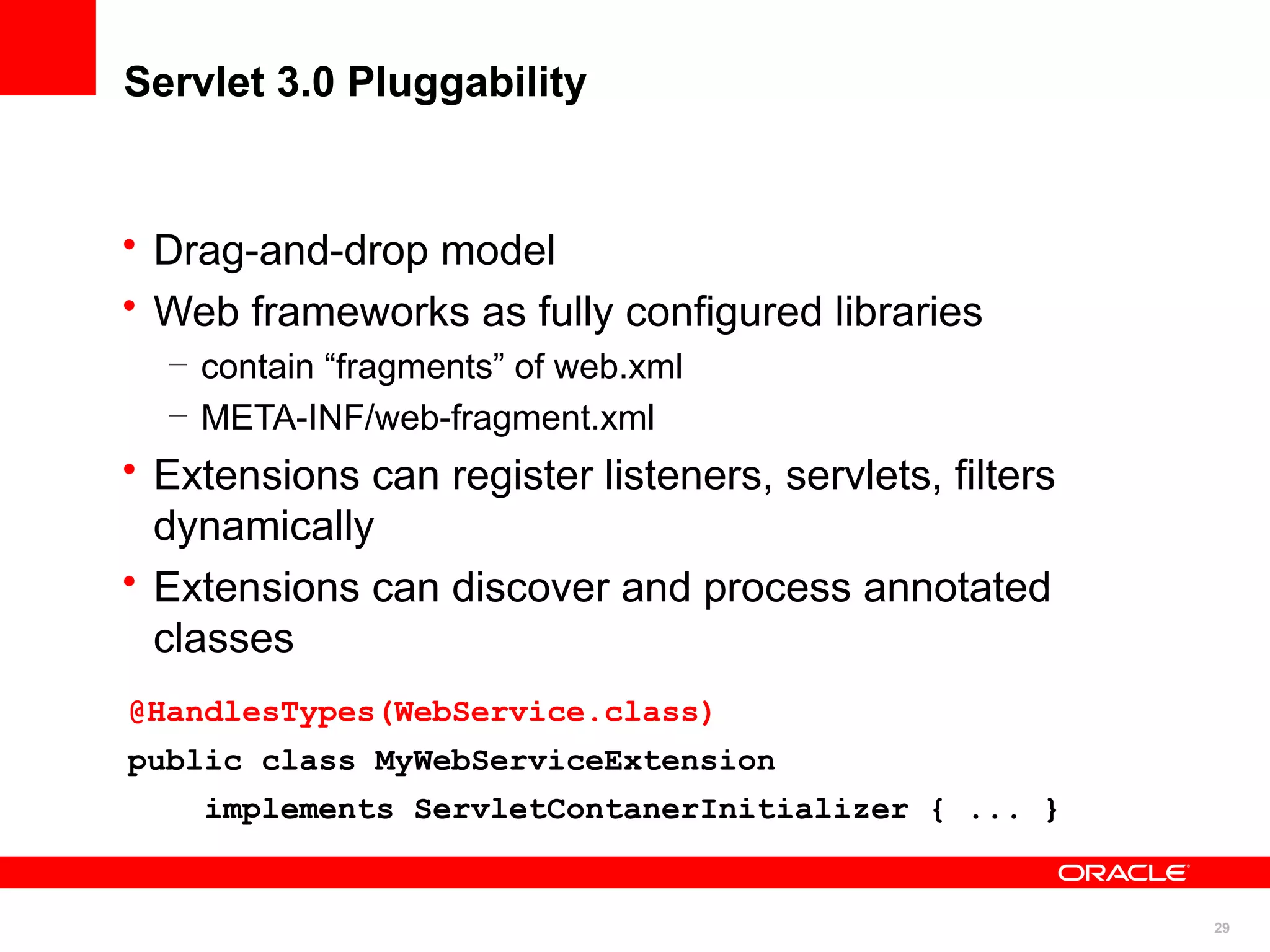

Servlet 3.0 Pluggability

• Drag-and-drop model
• Web frameworks as fully configured libraries
– contain “fragments” of web.xml
– META-INF/web-fragment.xml
• Extensions can register listeners, servlets, filters
dynamically
• Extensions can discover and process annotated
classes
@HandlesTypes(WebService.class)
public class MyWebServiceExtension
implements ServletContanerInitializer { ... }

29

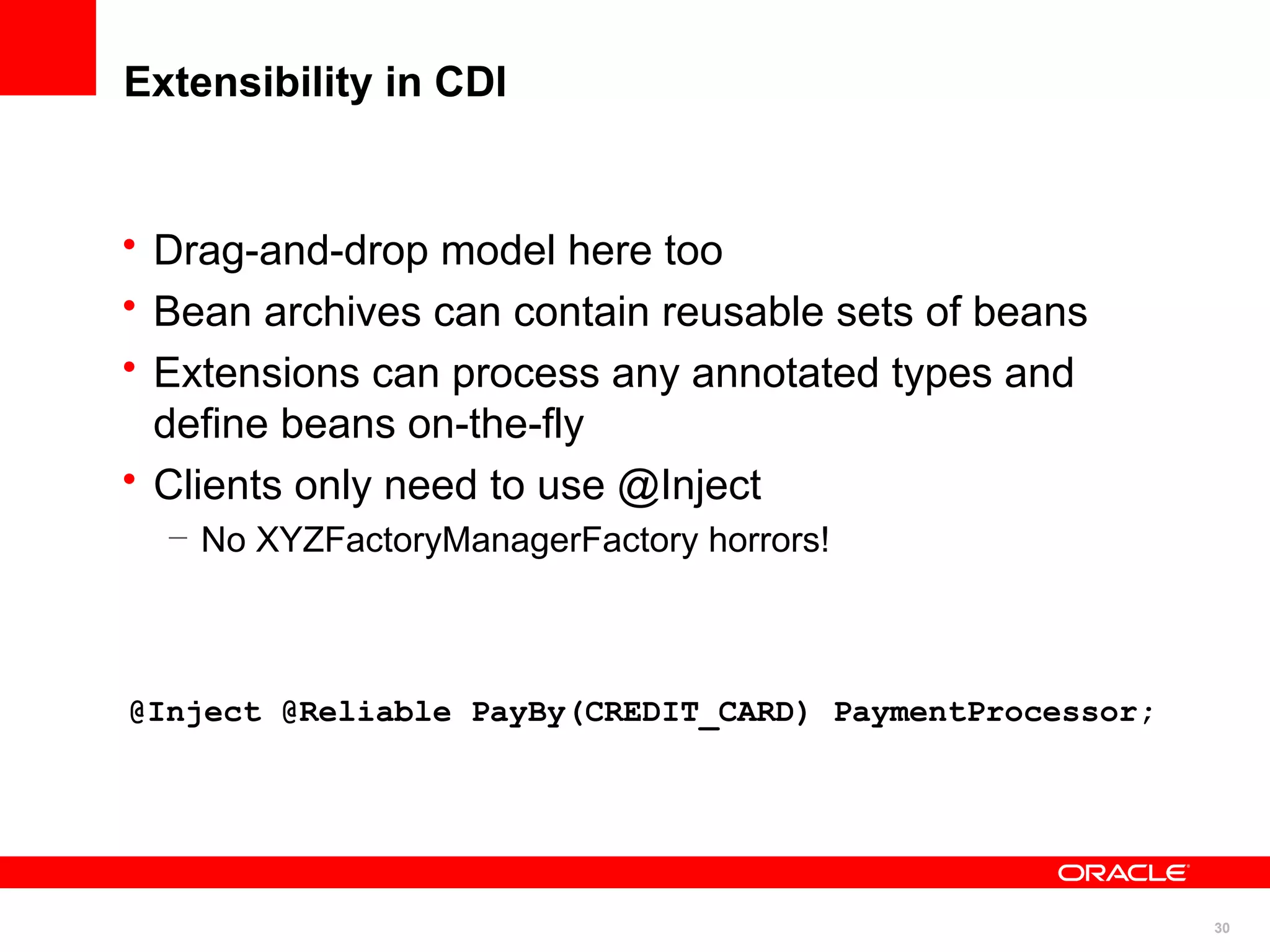

Extensibility in CDI

• Drag-and-drop model here too
• Bean archives can contain reusable sets of beans
• Extensions can process any annotated types and
define beans on-the-fly
• Clients only need to use @Inject
– No XYZFactoryManagerFactory horrors!

@Inject @Reliable PayBy(CREDIT_CARD) PaymentProcessor;

30

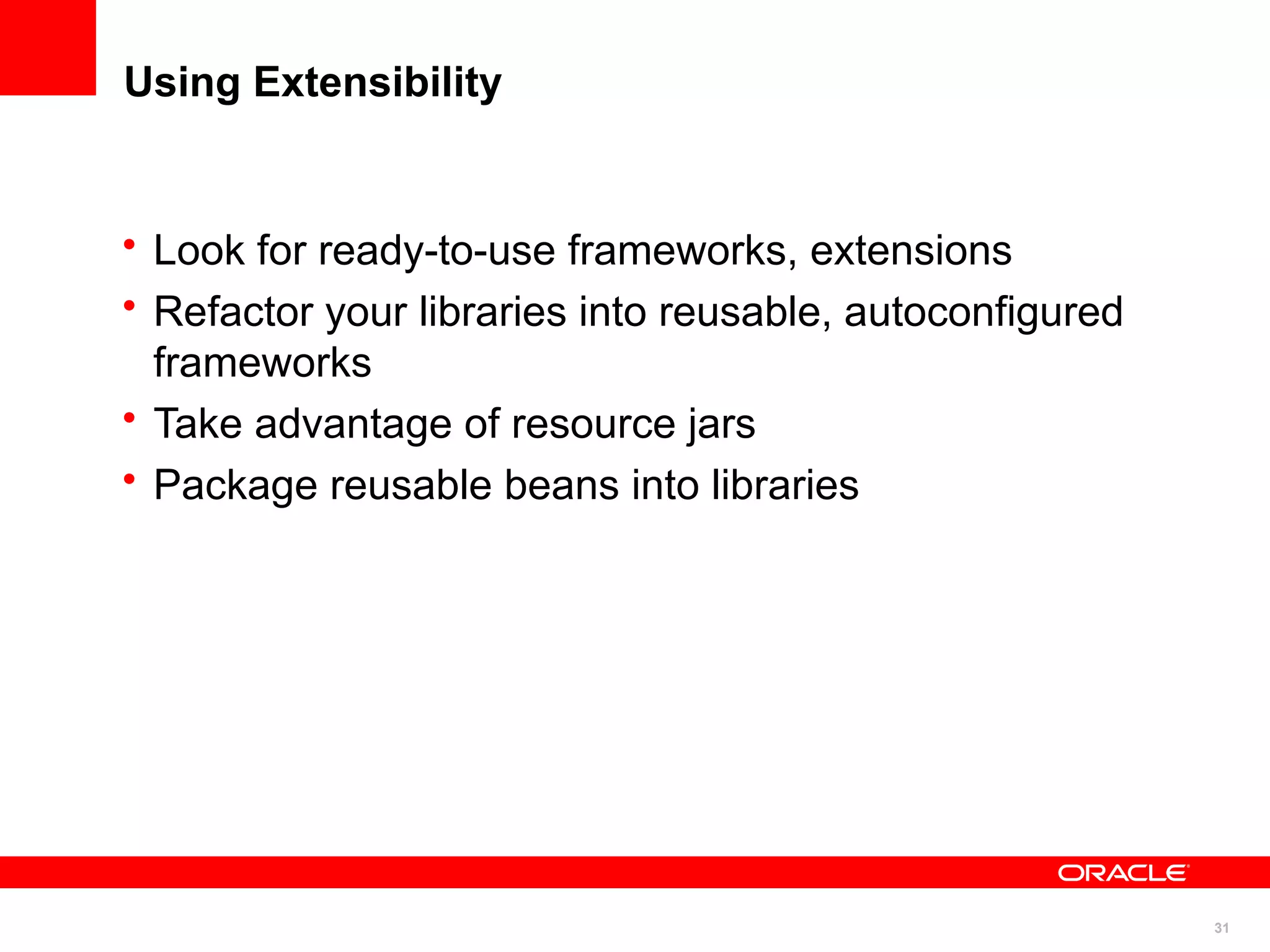

Using Extensibility

• Look for ready-to-use frameworks, extensions
• Refactor your libraries into reusable, autoconfigured
frameworks
• Take advantage of resource jars
• Package reusable beans into libraries

31

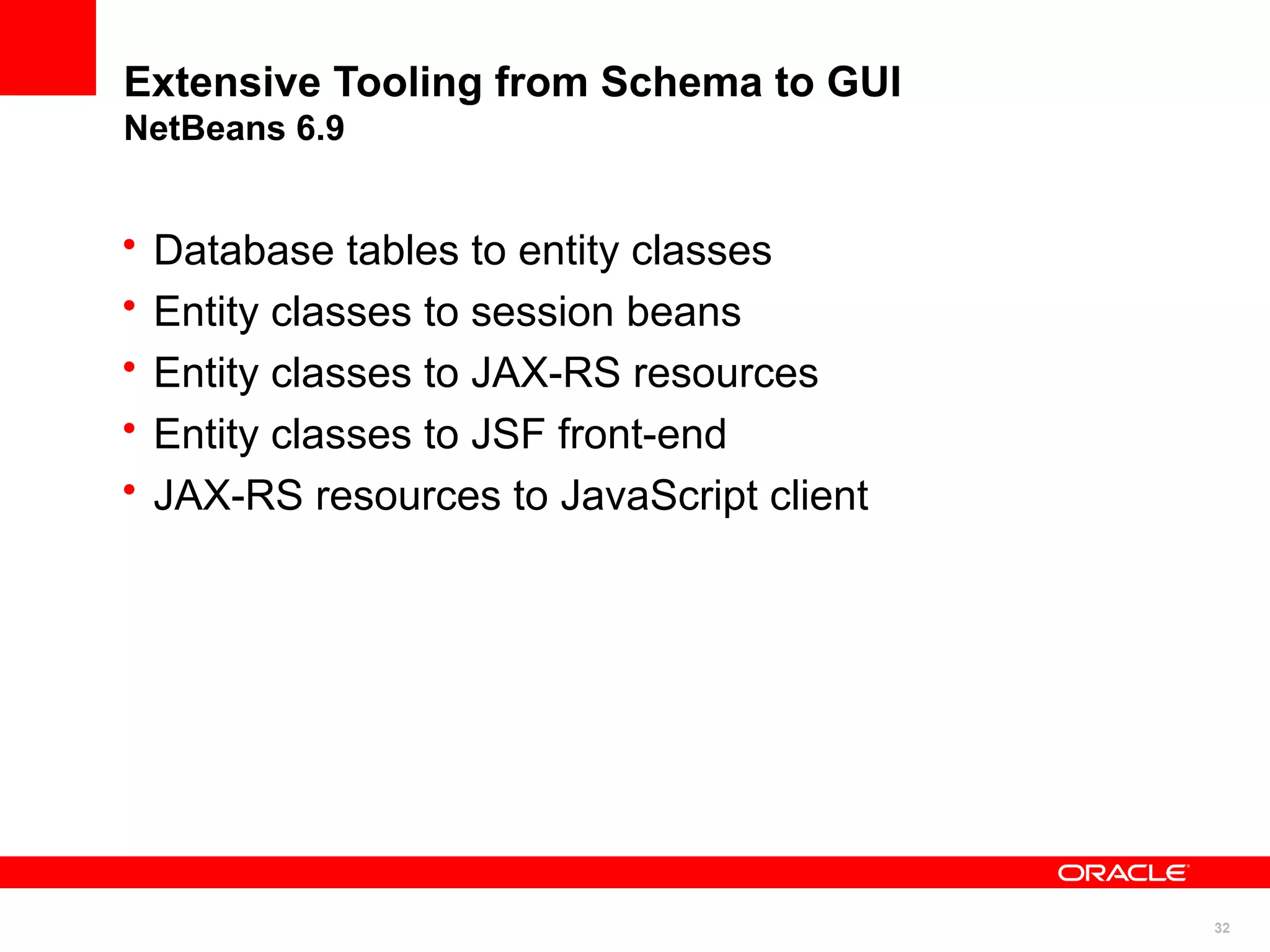

Extensive Tooling from Schema to GUI
NetBeans 6.9

• Database tables to entity classes
• Entity classes to session beans
• Entity classes to JAX-RS resources
• Entity classes to JSF front-end
• JAX-RS resources to JavaScript client

32

Features You Should Know About

33

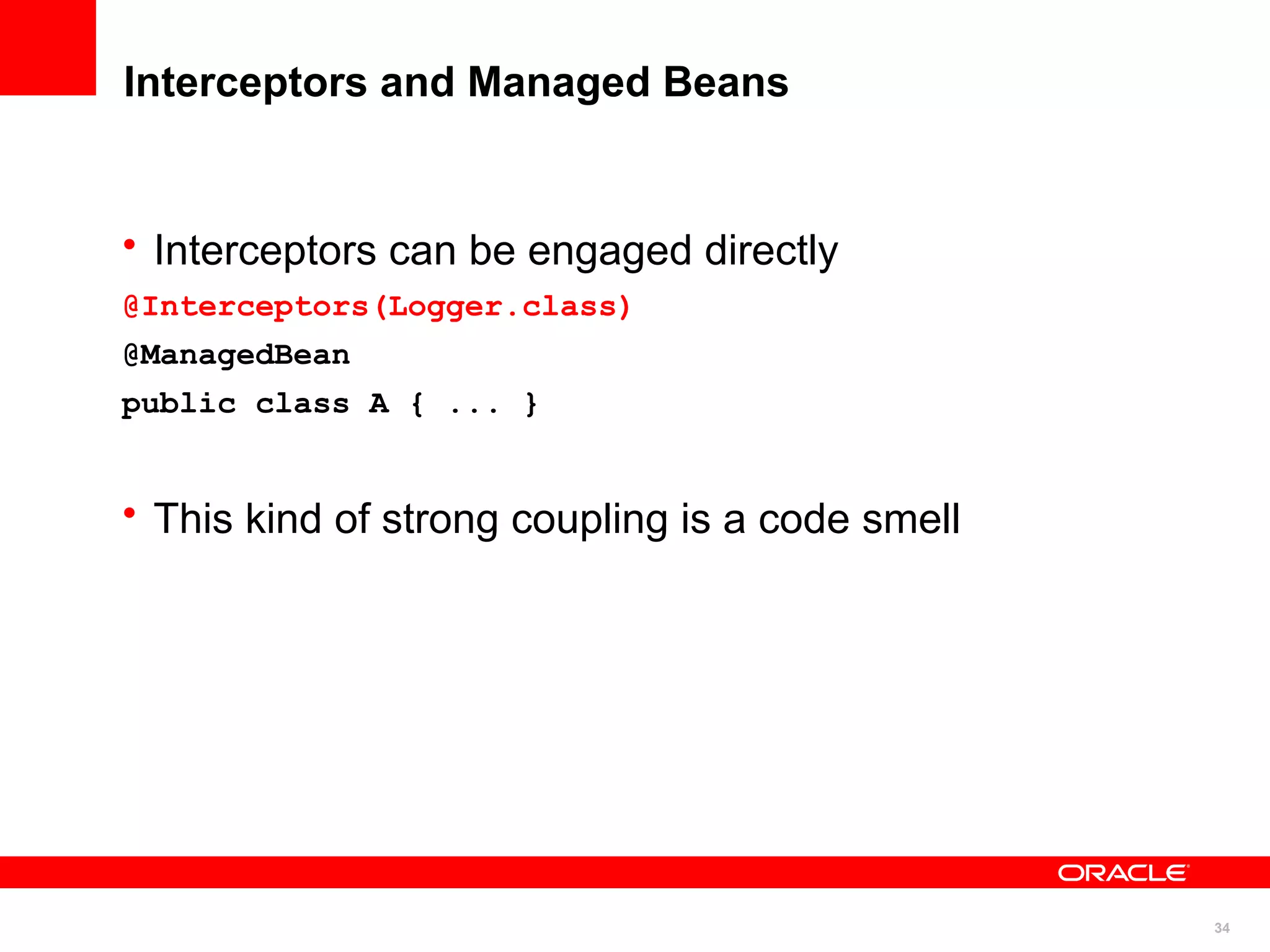

Interceptors and Managed Beans

• Interceptors can be engaged directly
@Interceptors(Logger.class)
@ManagedBean
public class A { ... }

• This kind of strong coupling is a code smell

34

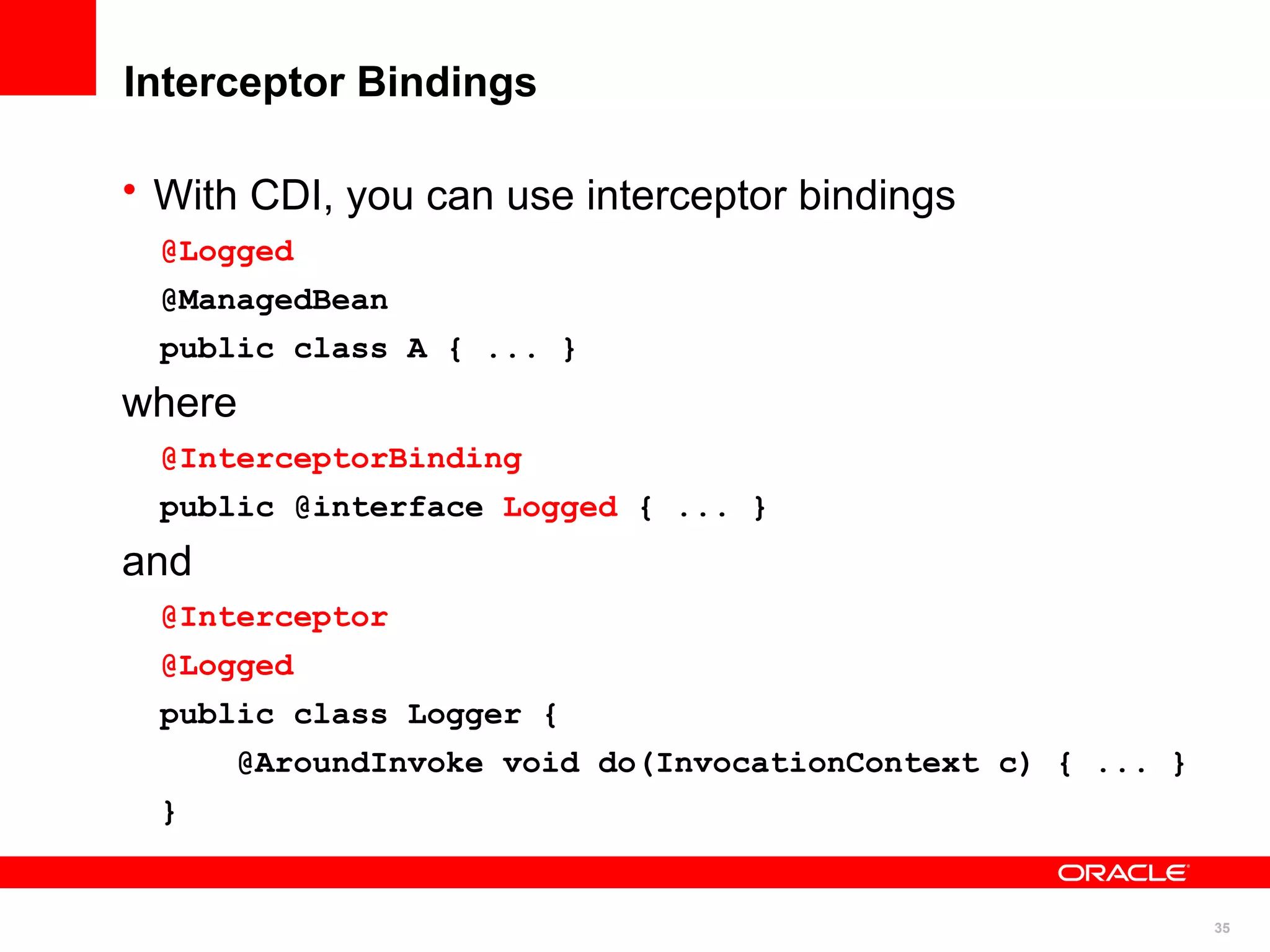

Interceptor Bindings

• With CDI, you can use interceptor bindings
@Logged
@ManagedBean
public class A { ... }
where
@InterceptorBinding
public @interface Logged { ... }
and
@Interceptor
@Logged
public class Logger {
@AroundInvoke void do(InvocationContext c) { ... }
}

35

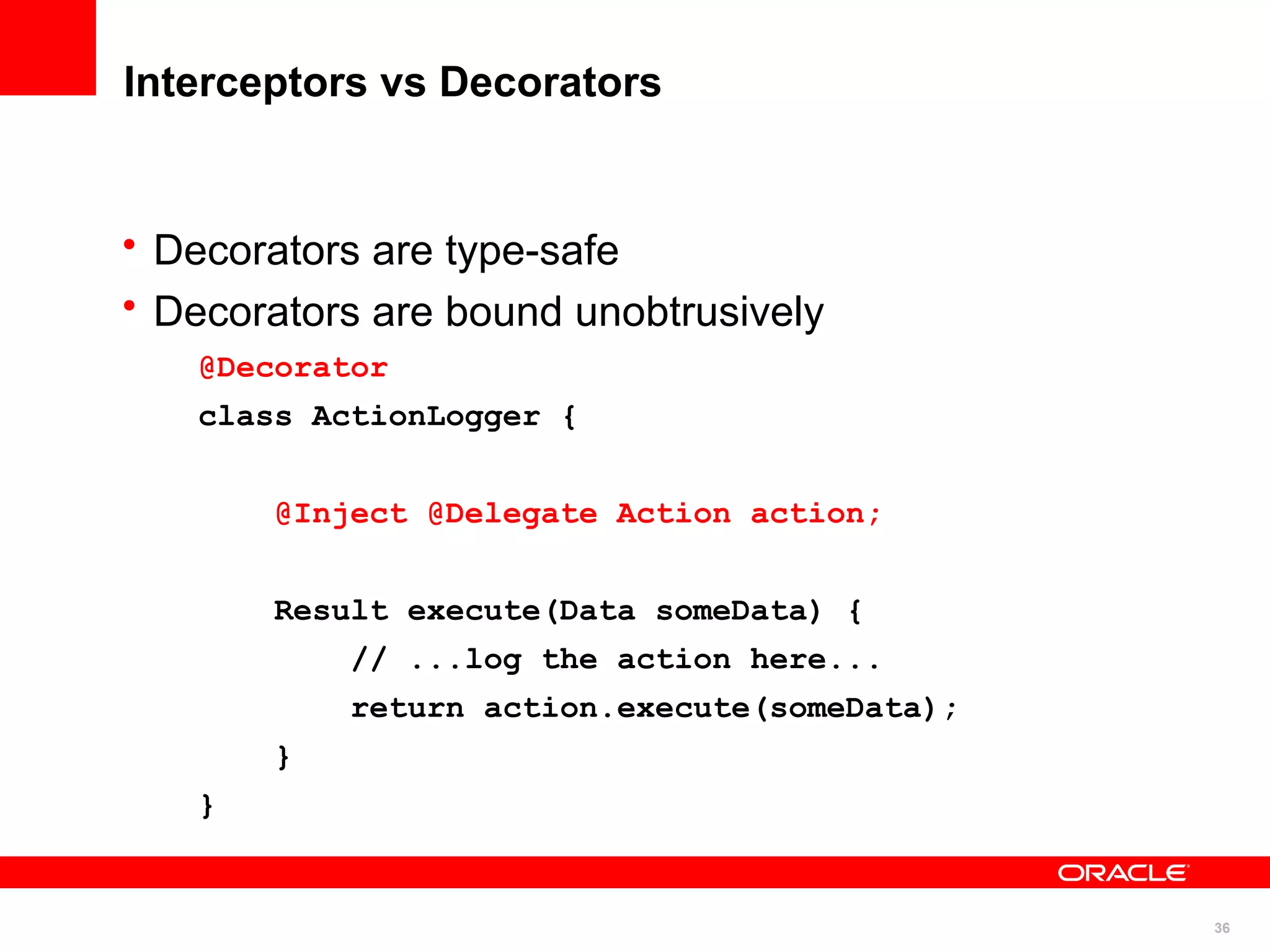

Interceptors vs Decorators

• Decorators are type-safe
• Decorators are bound unobtrusively
@Decorator
class ActionLogger {

@Inject @Delegate Action action;

Result execute(Data someData) {
// ...log the action here...
return action.execute(someData);
}
}

36

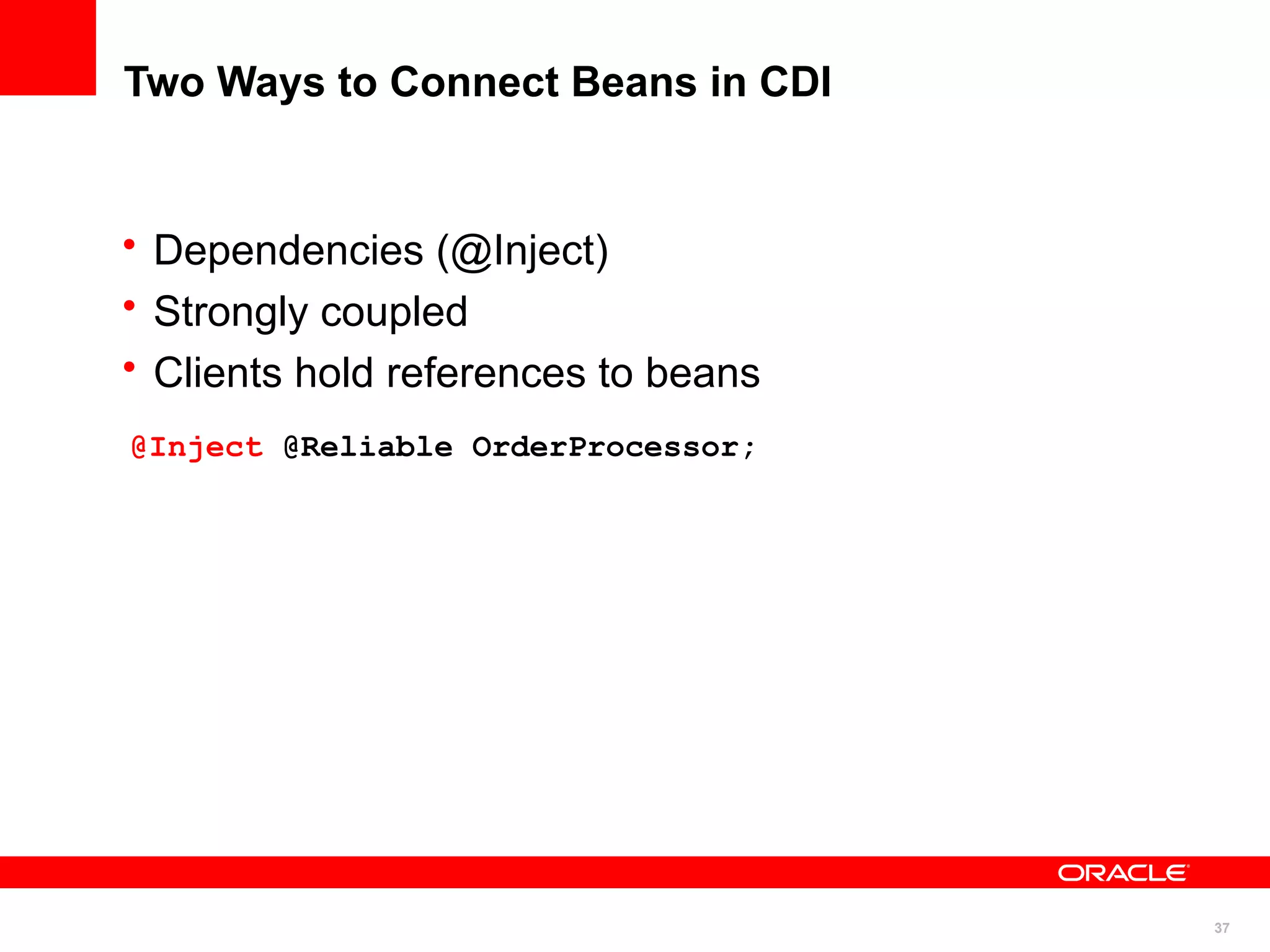

Two Ways to Connect Beans in CDI

• Dependencies (@Inject)
• Strongly coupled
• Clients hold references to beans
@Inject @Reliable OrderProcessor;

37

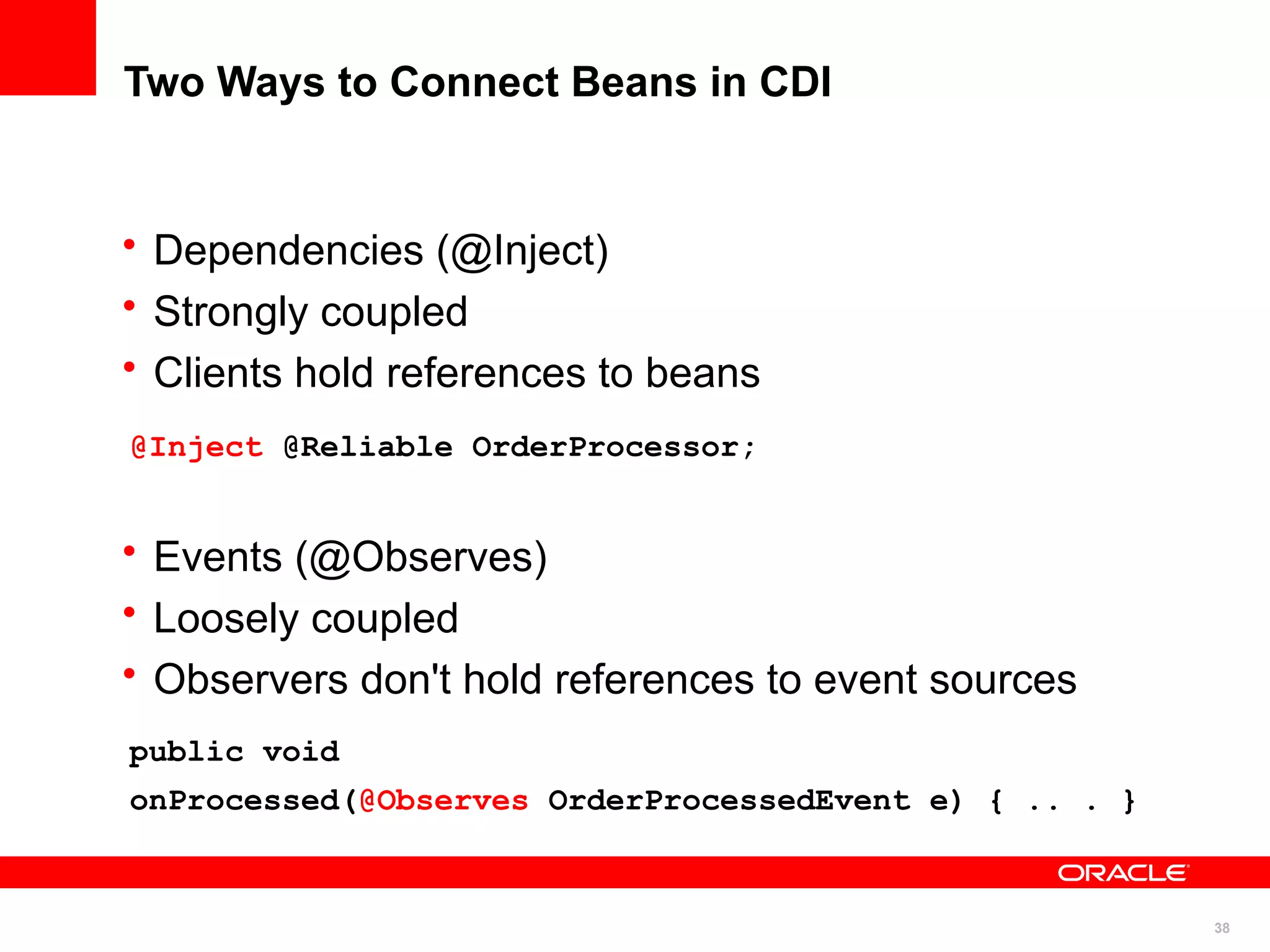

Two Ways to Connect Beans in CDI

• Dependencies (@Inject)
• Strongly coupled
• Clients hold references to beans
@Inject @Reliable OrderProcessor;

• Events (@Observes)
• Loosely coupled
• Observers don't hold references to event sources
public void
onProcessed(@Observes OrderProcessedEvent e) { .. . }

38

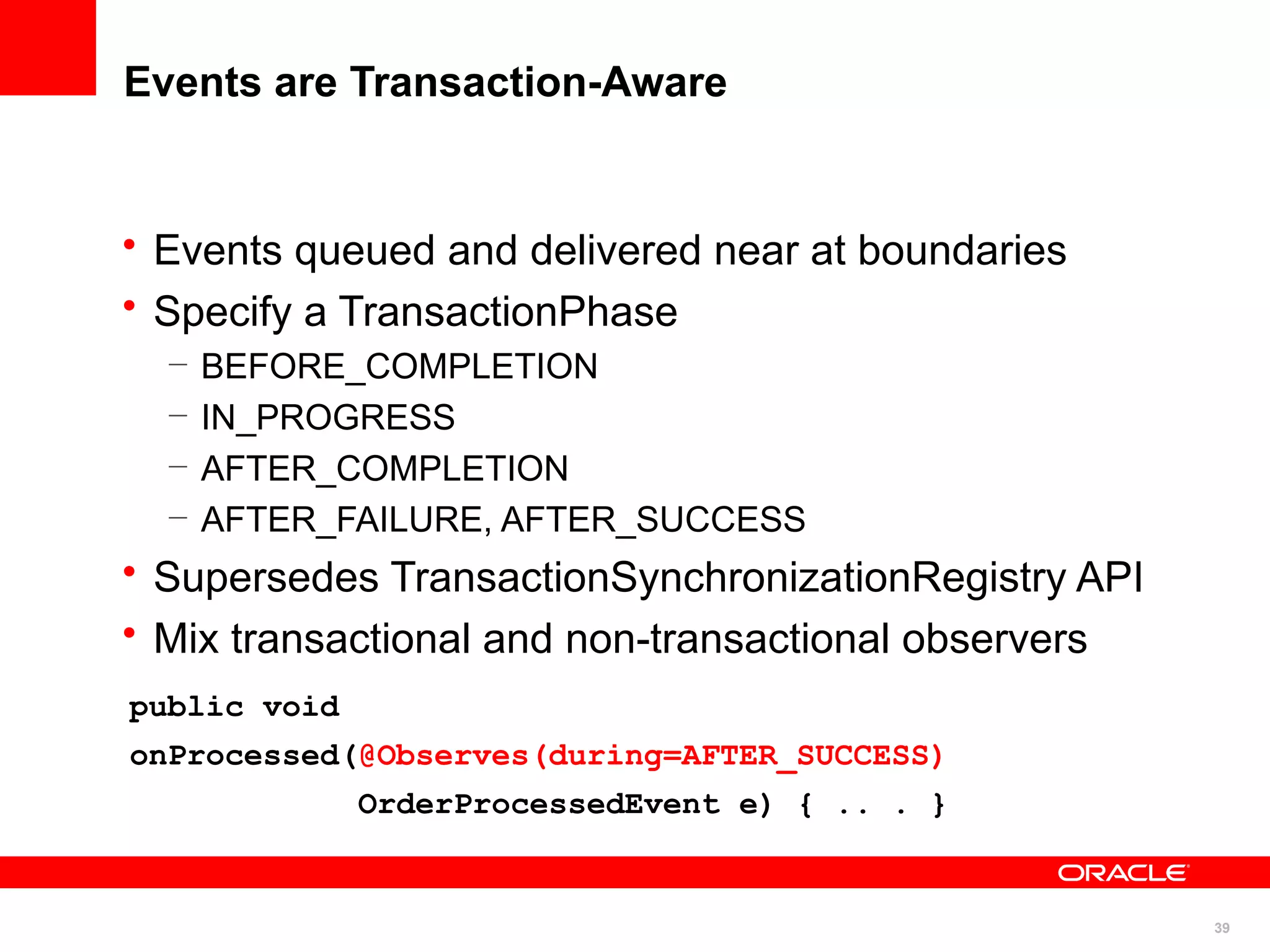

Events are Transaction-Aware

• Events queued and delivered near at boundaries
• Specify a TransactionPhase
– BEFORE_COMPLETION
– IN_PROGRESS
– AFTER_COMPLETION
– AFTER_FAILURE, AFTER_SUCCESS
• Supersedes TransactionSynchronizationRegistry API
• Mix transactional and non-transactional observers
public void
onProcessed(@Observes(during=AFTER_SUCCESS)
OrderProcessedEvent e) { .. . }

39

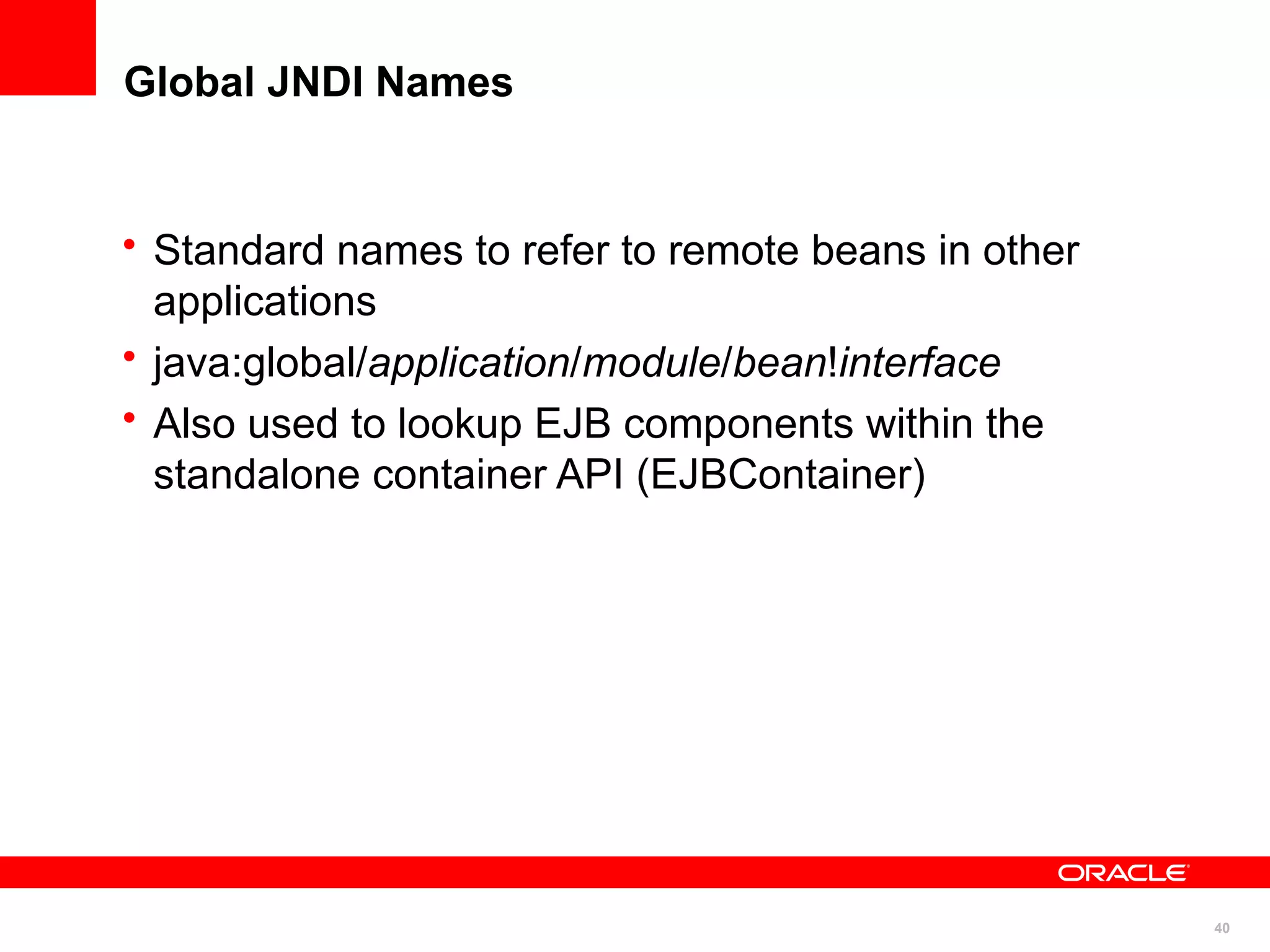

Global JNDI Names

• Standard names to refer to remote beans in other
applications
• java:global/application/module/bean!interface
• Also used to lookup EJB components within the
standalone container API (EJBContainer)

40

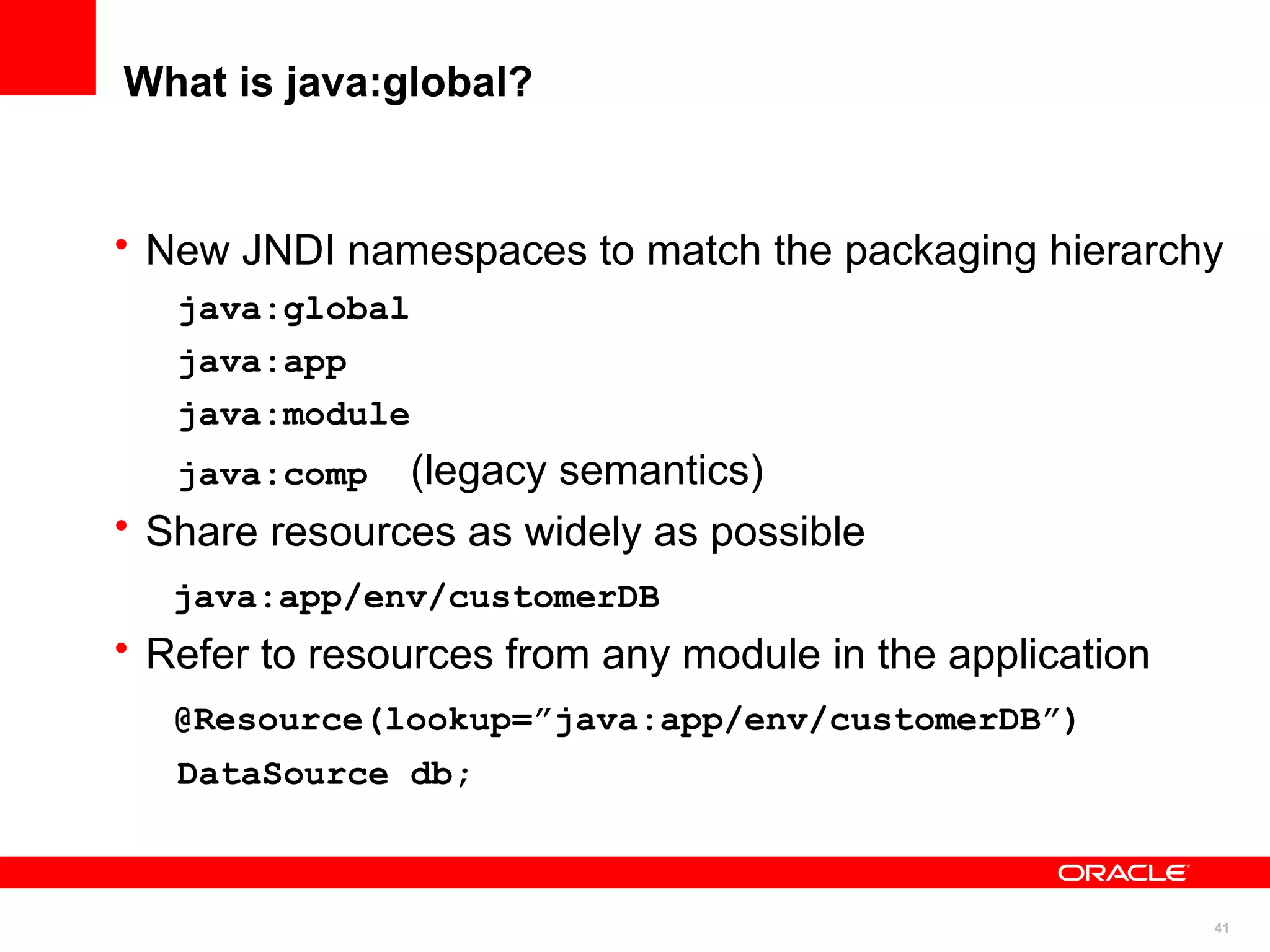

What is java:global?

• New JNDI namespaces to match the packaging hierarchy
java:global
java:app
java:module
java:comp (legacy semantics)
• Share resources as widely as possible
java:app/env/customerDB
• Refer to resources from any module in the application
@Resource(lookup=”java:app/env/customerDB”)
DataSource db;

41

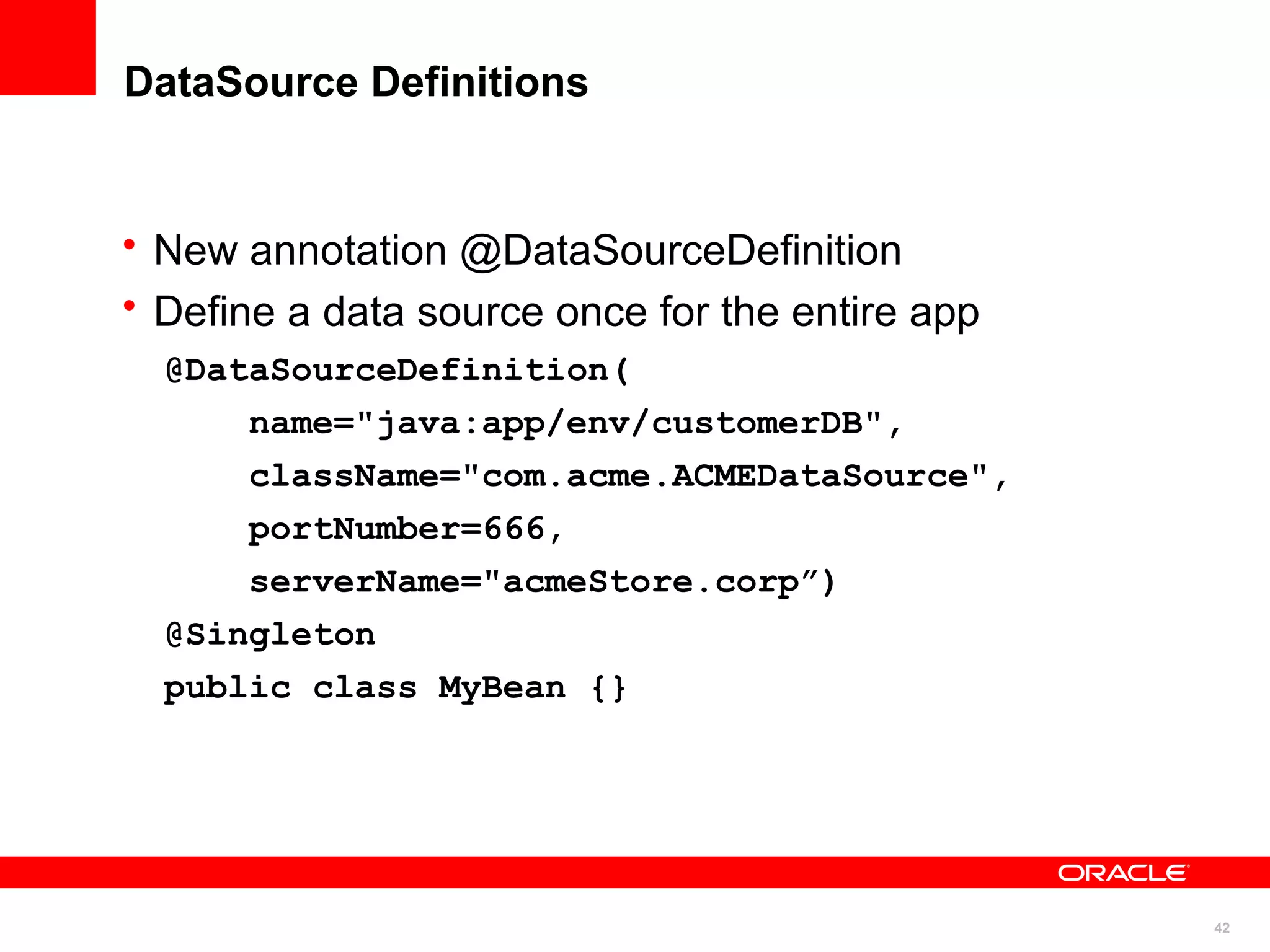

DataSource Definitions

• New annotation @DataSourceDefinition
• Define a data source once for the entire app
@DataSourceDefinition(
name="java:app/env/customerDB",
className="com.acme.ACMEDataSource",
portNumber=666,
serverName="acmeStore.corp”)
@Singleton
public class MyBean {}

42

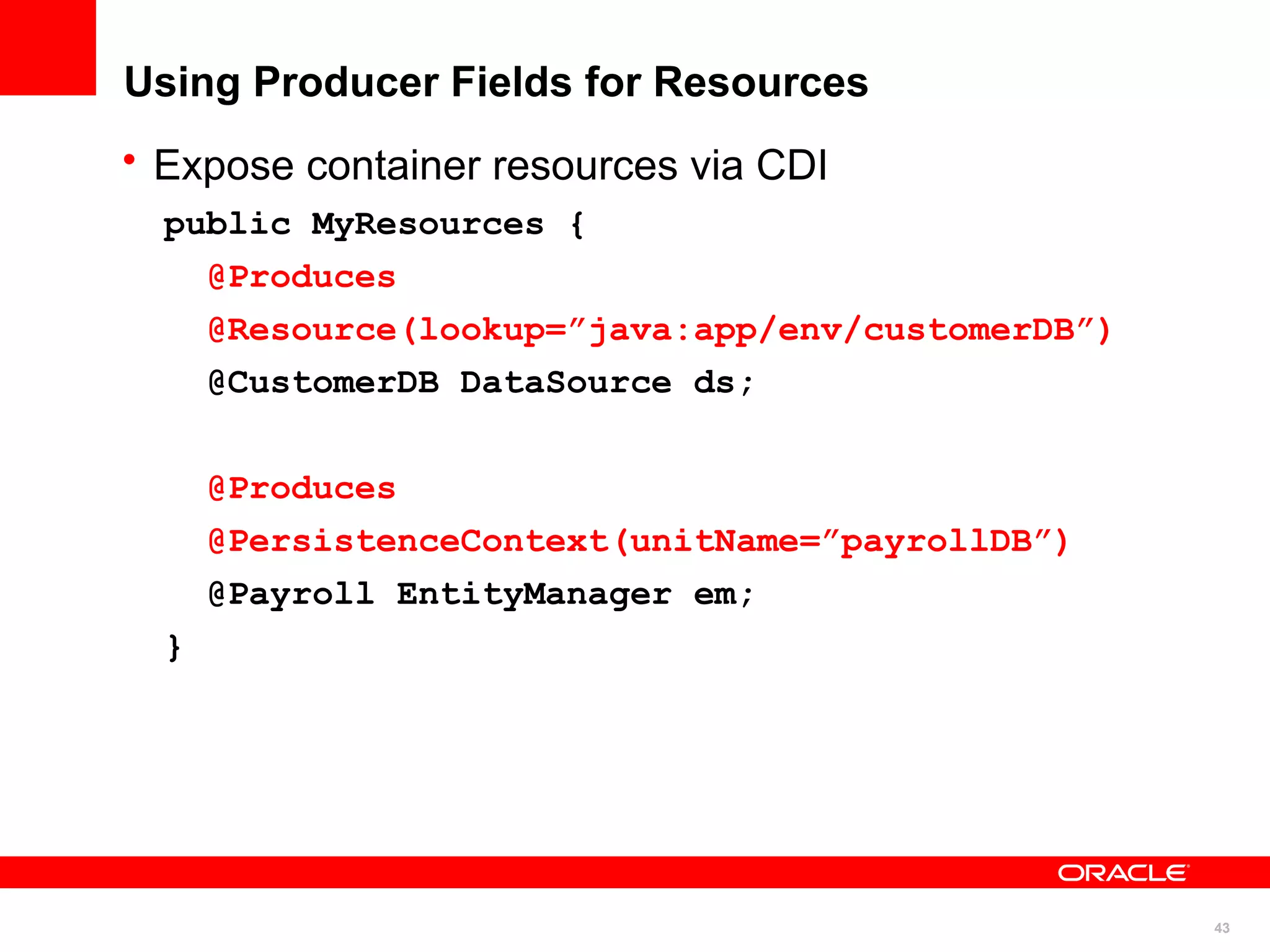

Using Producer Fields for Resources
• Expose container resources via CDI
public MyResources {
@Produces
@CustomerDB DataSource ds;

@Produces
@PersistenceContext(unitName=”payrollDB”)
@Payroll EntityManager em;
}

43

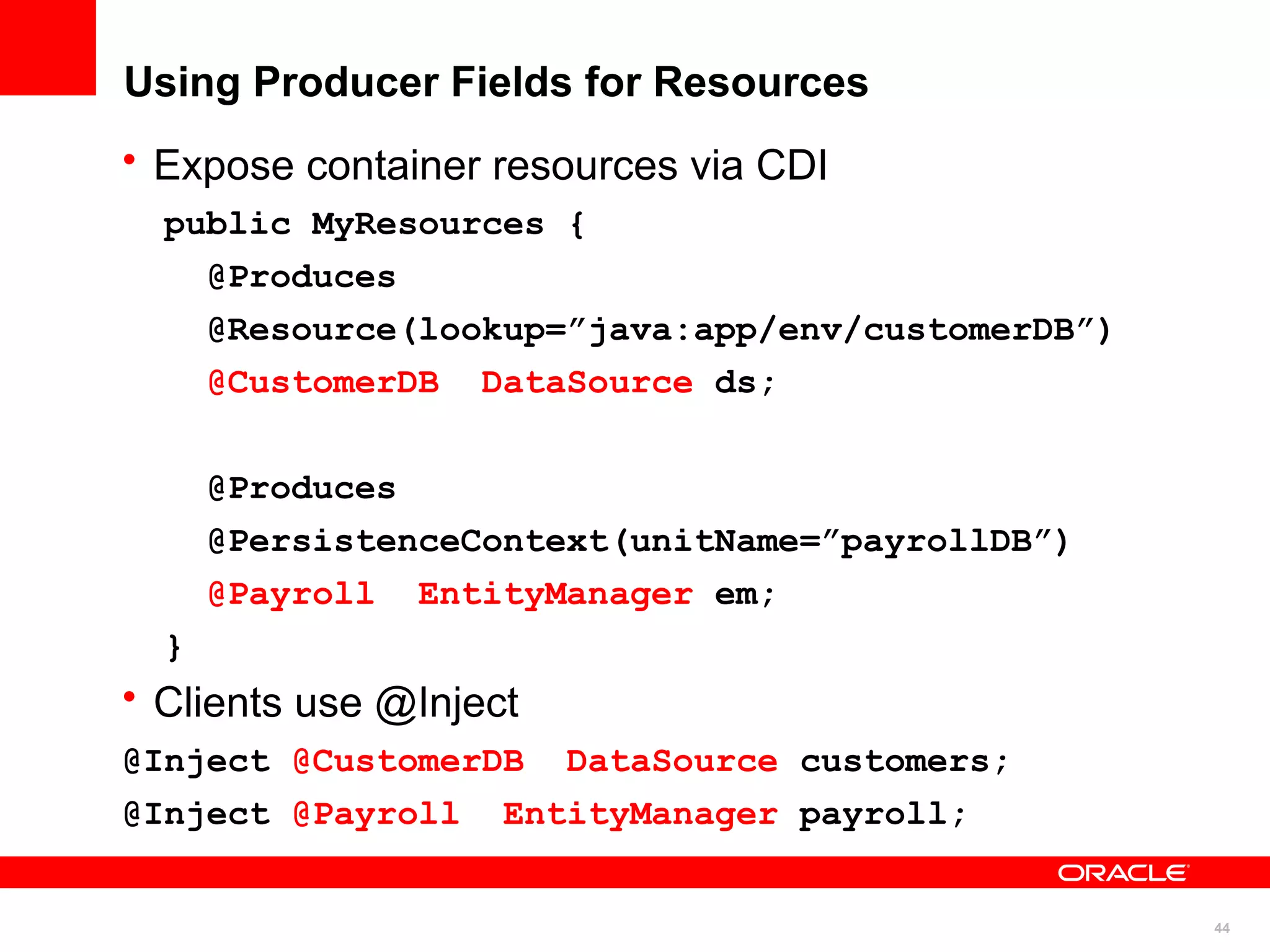

Using Producer Fields for Resources
• Expose container resources via CDI
public MyResources {
@Produces
@CustomerDB DataSource ds;

@Produces
@PersistenceContext(unitName=”payrollDB”)
@Payroll EntityManager em;
}
• Clients use @Inject
@Inject @CustomerDB DataSource customers;
@Inject @Payroll EntityManager payroll;

44

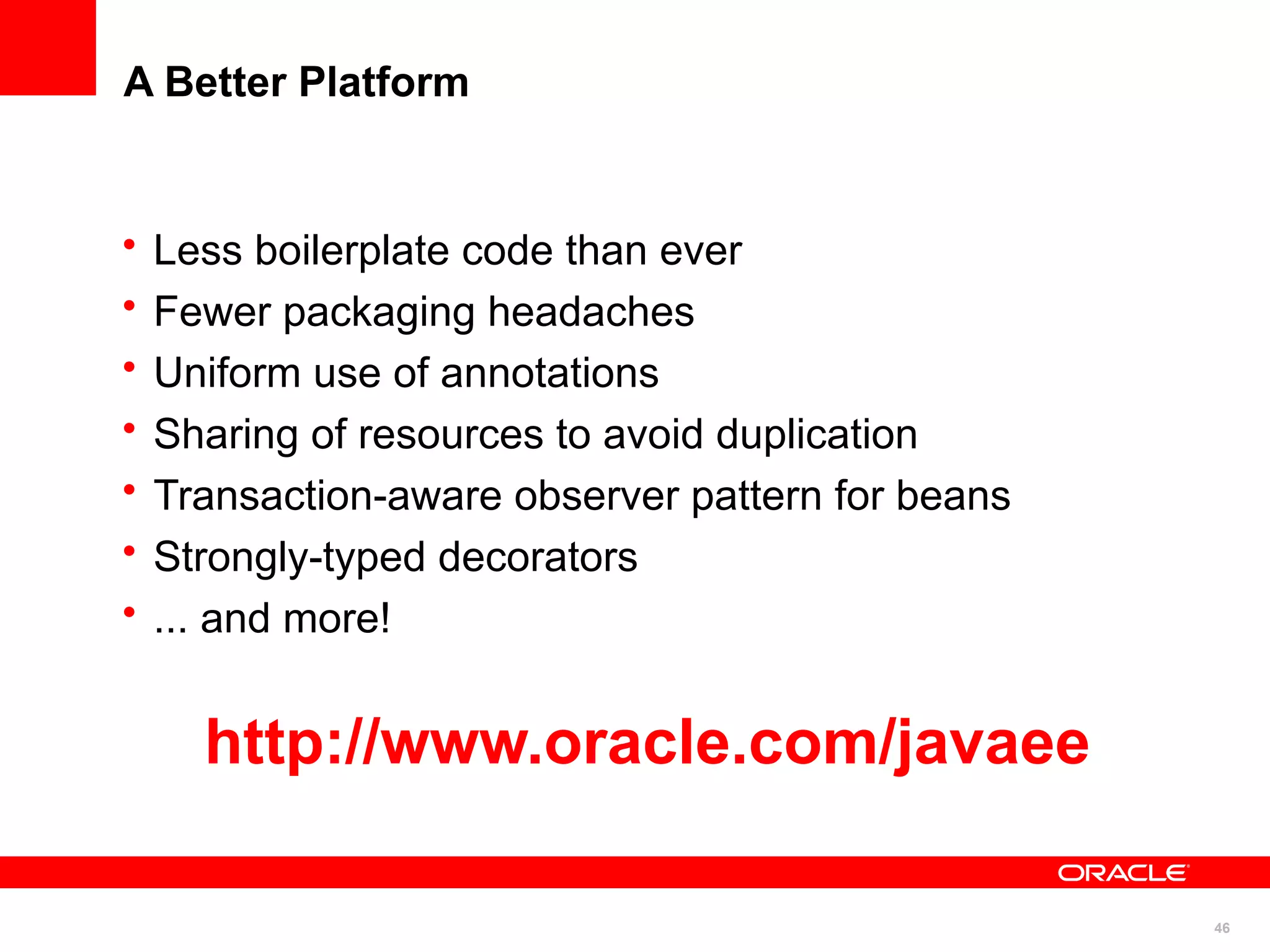

A Better Platform

• Less boilerplate code than ever
• Fewer packaging headaches
• Uniform use of annotations
• Sharing of resources to avoid duplication
• Transaction-aware observer pattern for beans
• Strongly-typed decorators
• ... and more!

http://www.oracle.com/javaee
