The Evolution of Java Persistence

The Evolution of Java
Persistence

Shaun Smith
@shaunMsmith

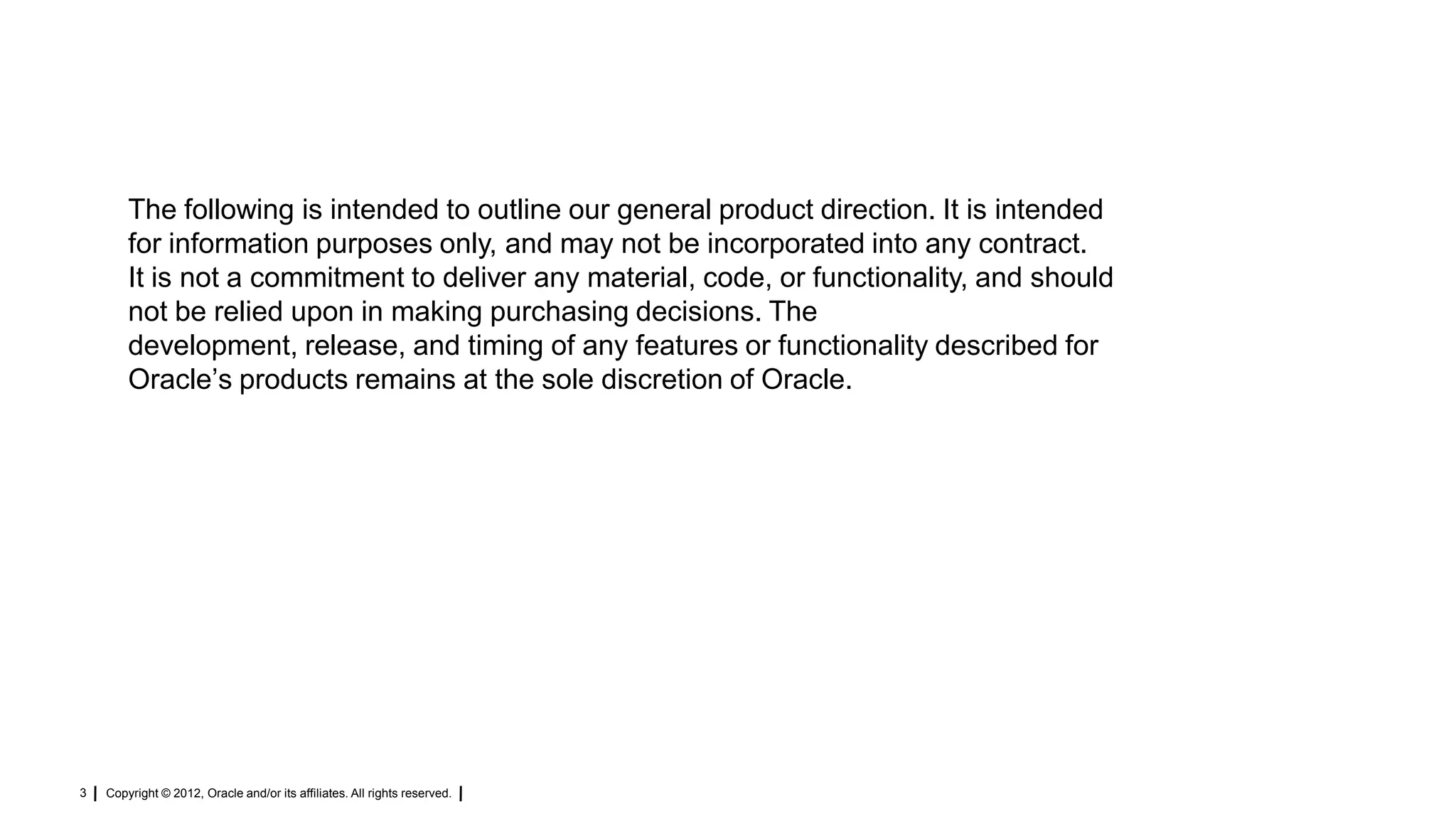

The following is intended to outline our general product direction. It is intended
for information purposes only, and may not be incorporated into any contract.
It is not a commitment to deliver any material, code, or functionality, and should
not be relied upon in making purchasing decisions. The
development, release, and timing of any features or functionality described for
Oracle‘s products remains at the sole discretion of Oracle.

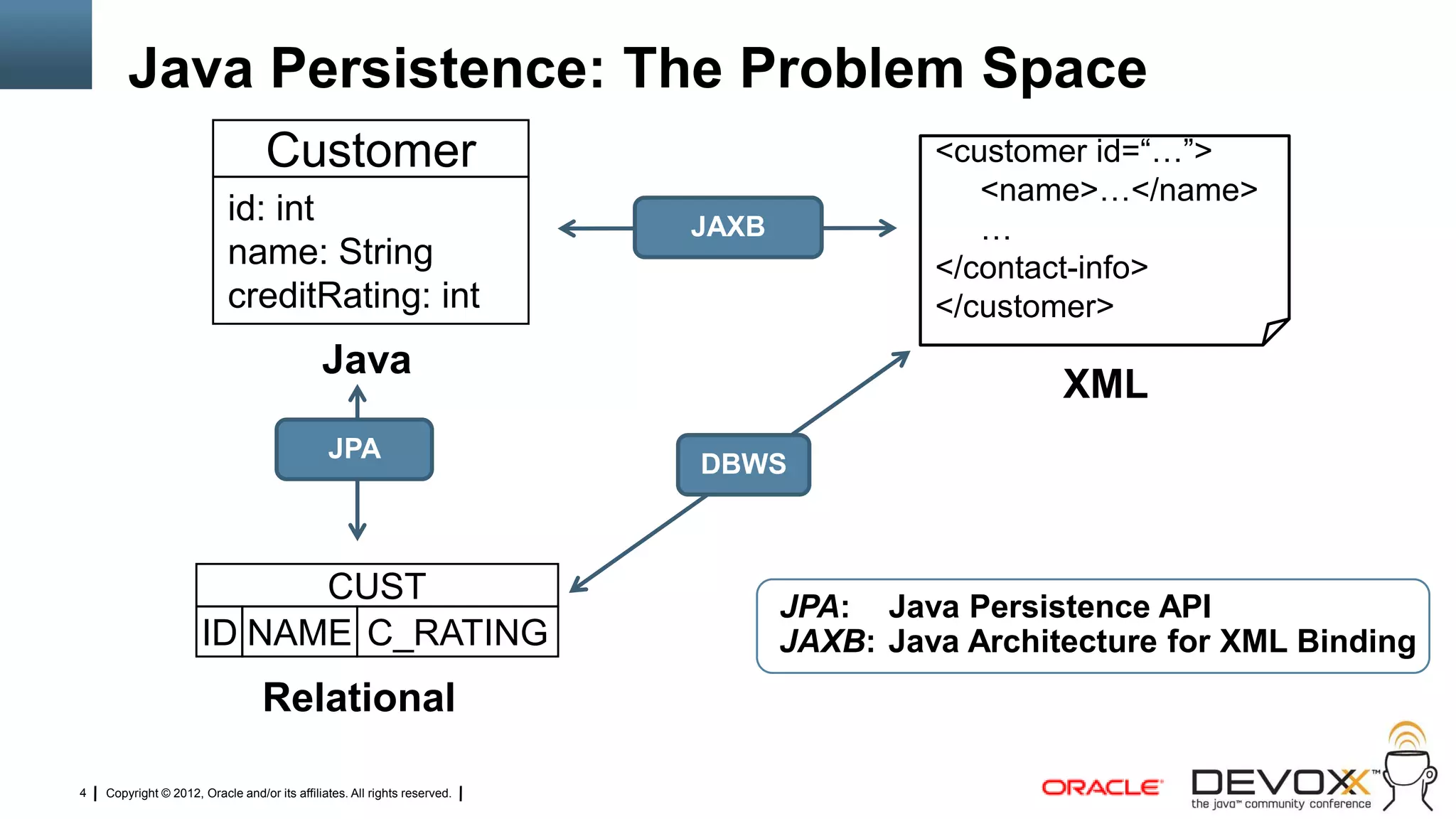

Java Persistence: The Problem Space
Customer <customer id=―…‖>
<name>…</name>
id: int JAXB …
name: String </contact-info>
creditRating: int </customer>
Java
XML
JPA
DBWS

CUST
JPA: Java Persistence API
ID NAME C_RATING JAXB: Java Architecture for XML Binding
Relational

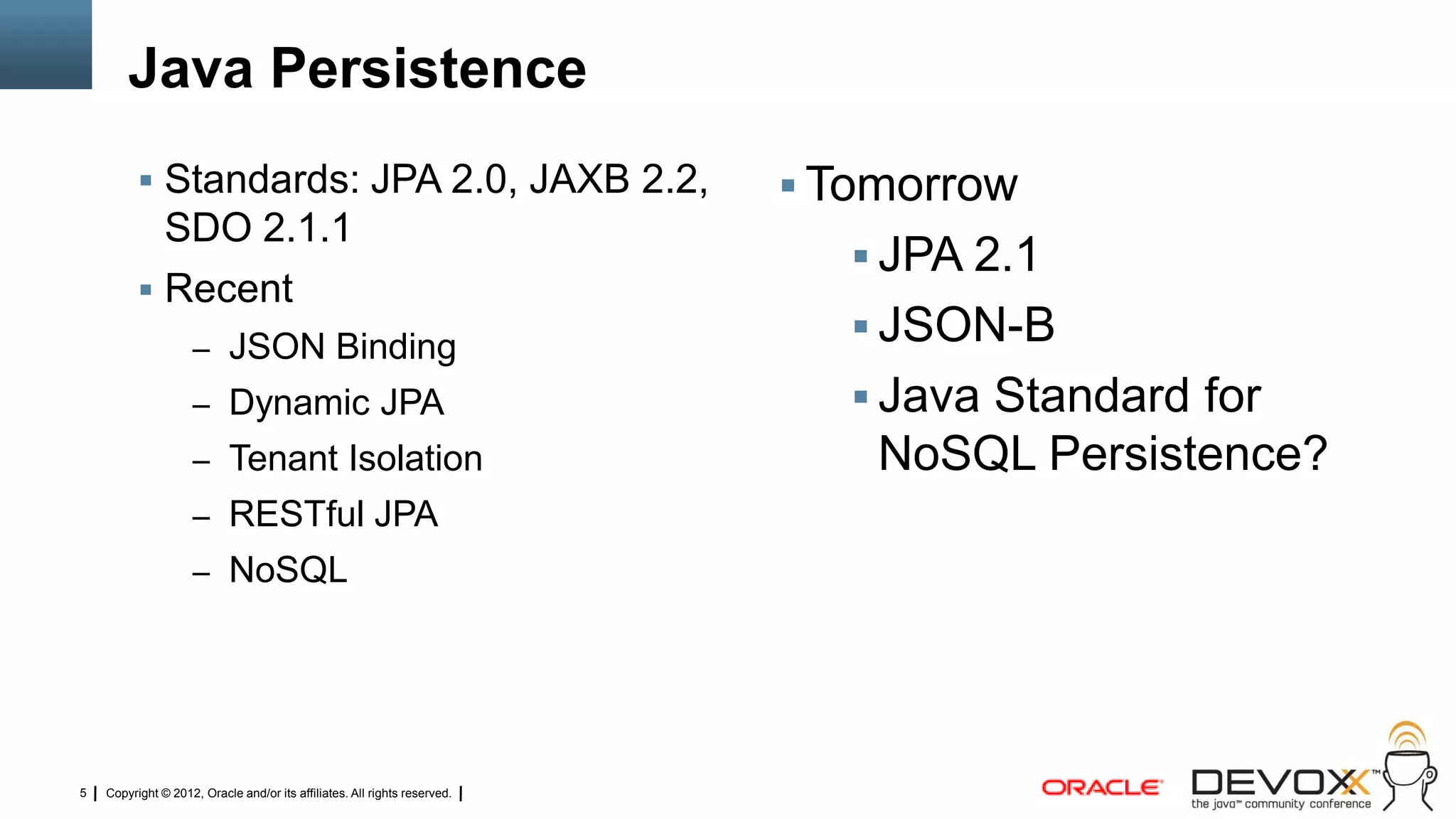

Java Persistence
 Standards: JPA 2.0, JAXB 2.2,  Tomorrow
SDO 2.1.1
 JPA 2.1
 Recent
– JSON Binding
 JSON-B
– Dynamic JPA  Java Standard for
– Tenant Isolation NoSQL Persistence?
– RESTful JPA
– NoSQL

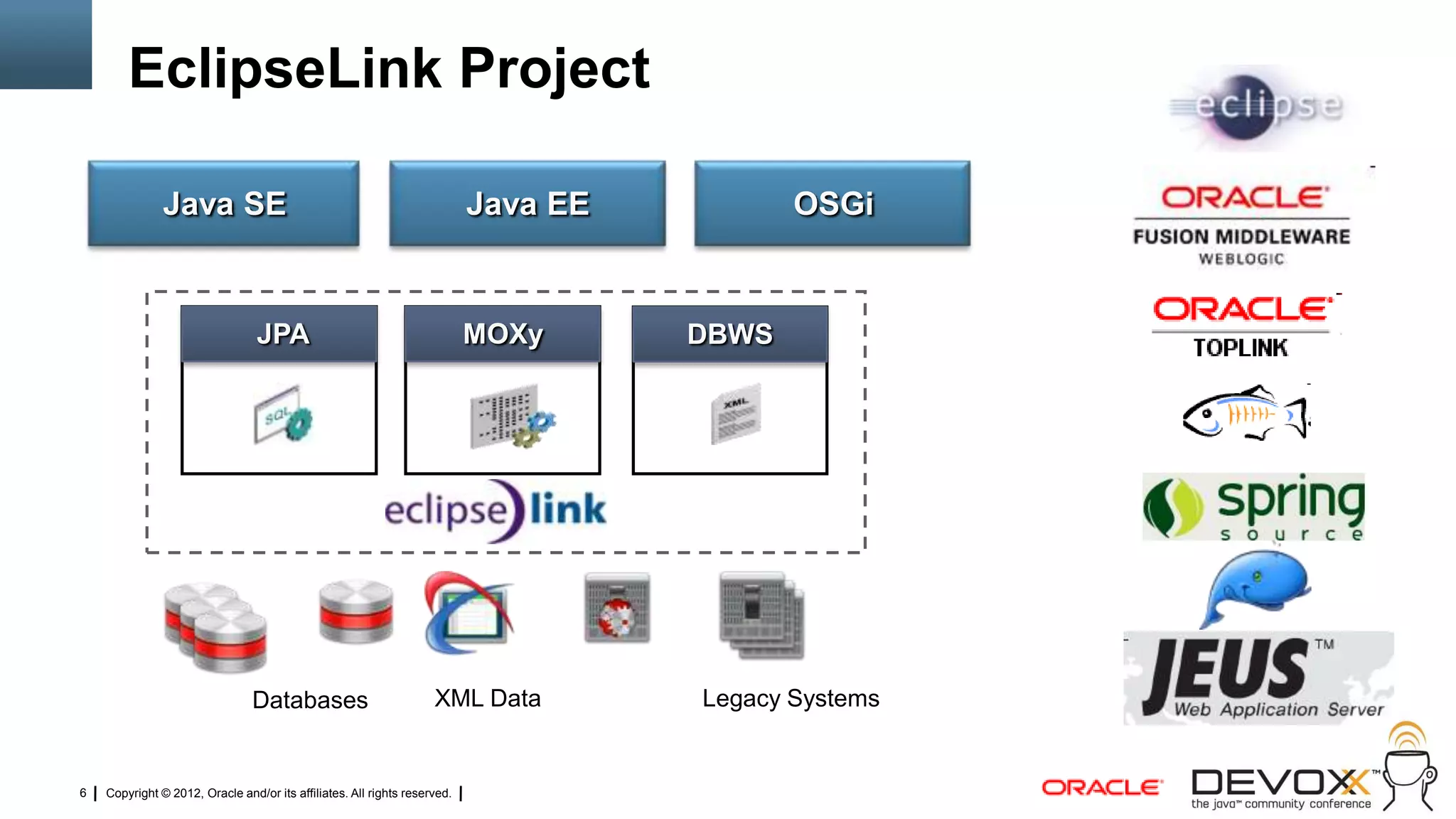

EclipseLink Project

Java SE Java EE OSGi

JPA MOXy DBWS

Databases XML Data Legacy Systems


JSON Binding

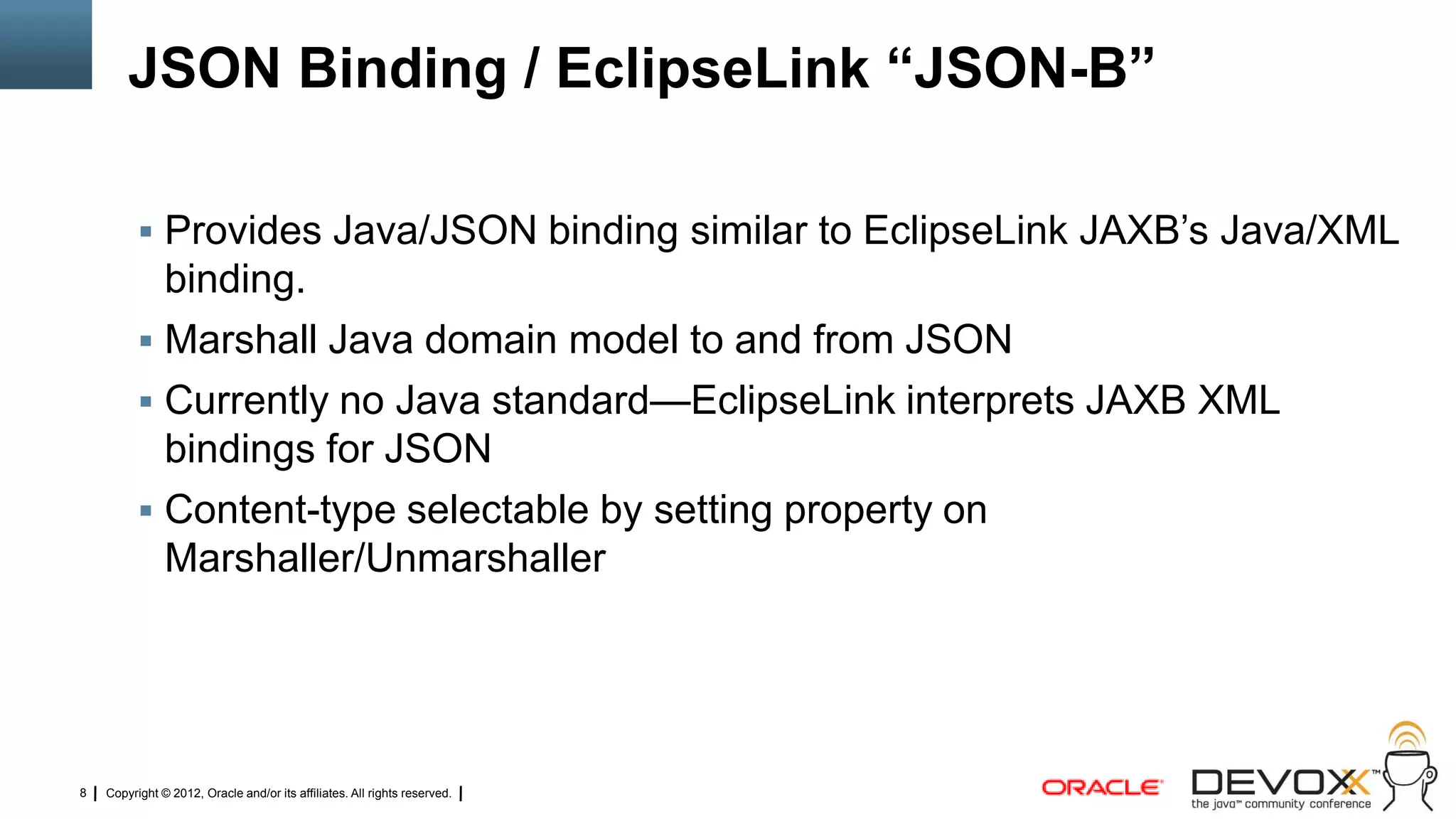

JSON Binding / EclipseLink ―JSON-B‖

 Provides Java/JSON binding similar to EclipseLink JAXB‘s Java/XML
binding.
 Marshall Java domain model to and from JSON
 Currently no Java standard—EclipseLink interprets JAXB XML
bindings for JSON
 Content-type selectable by setting property on
Marshaller/Unmarshaller

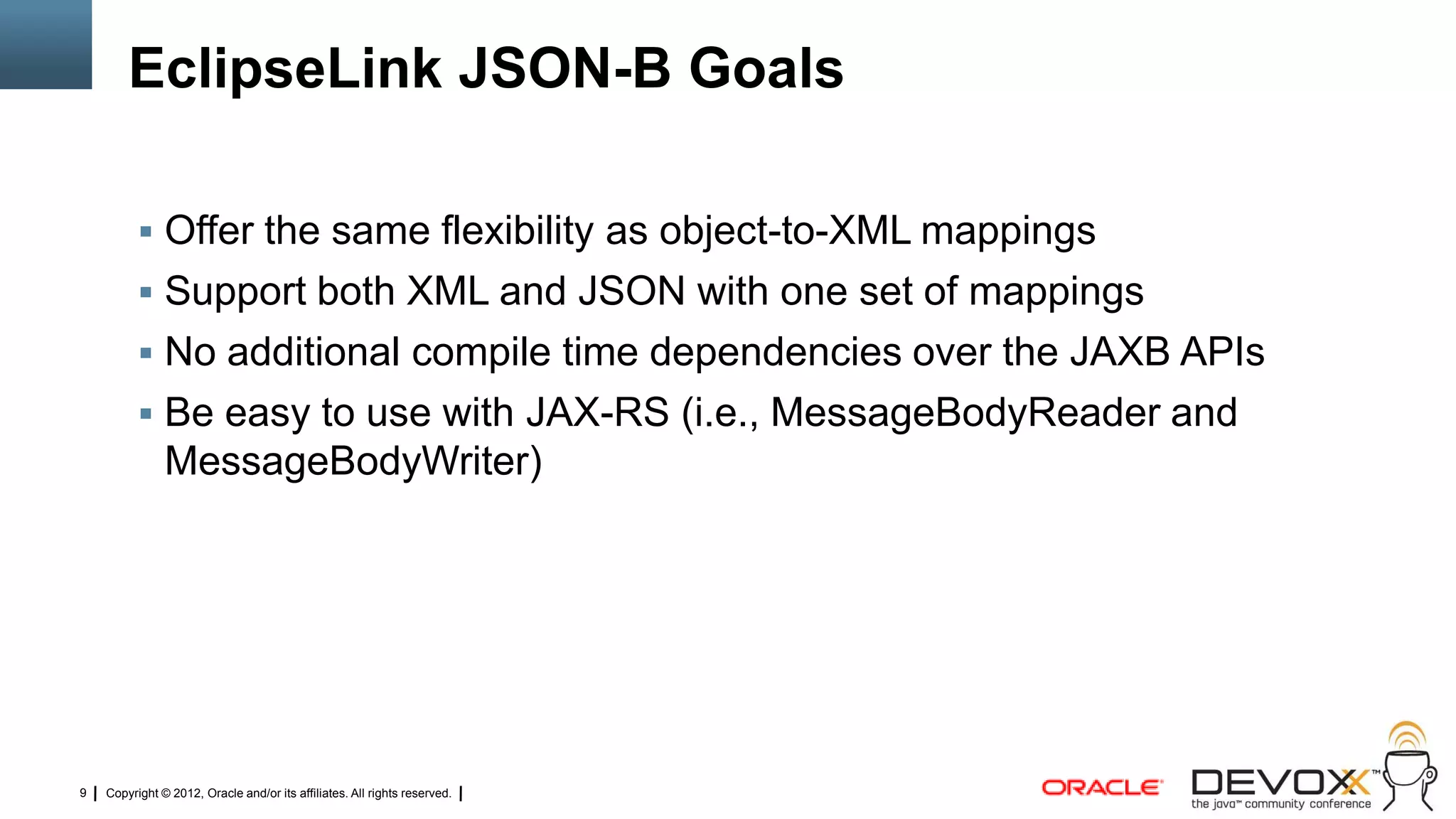

EclipseLink JSON-B Goals

 Offer the same flexibility as object-to-XML mappings
 Support both XML and JSON with one set of mappings
 No additional compile time dependencies over the JAXB APIs
 Be easy to use with JAX-RS (i.e., MessageBodyReader and
MessageBodyWriter)

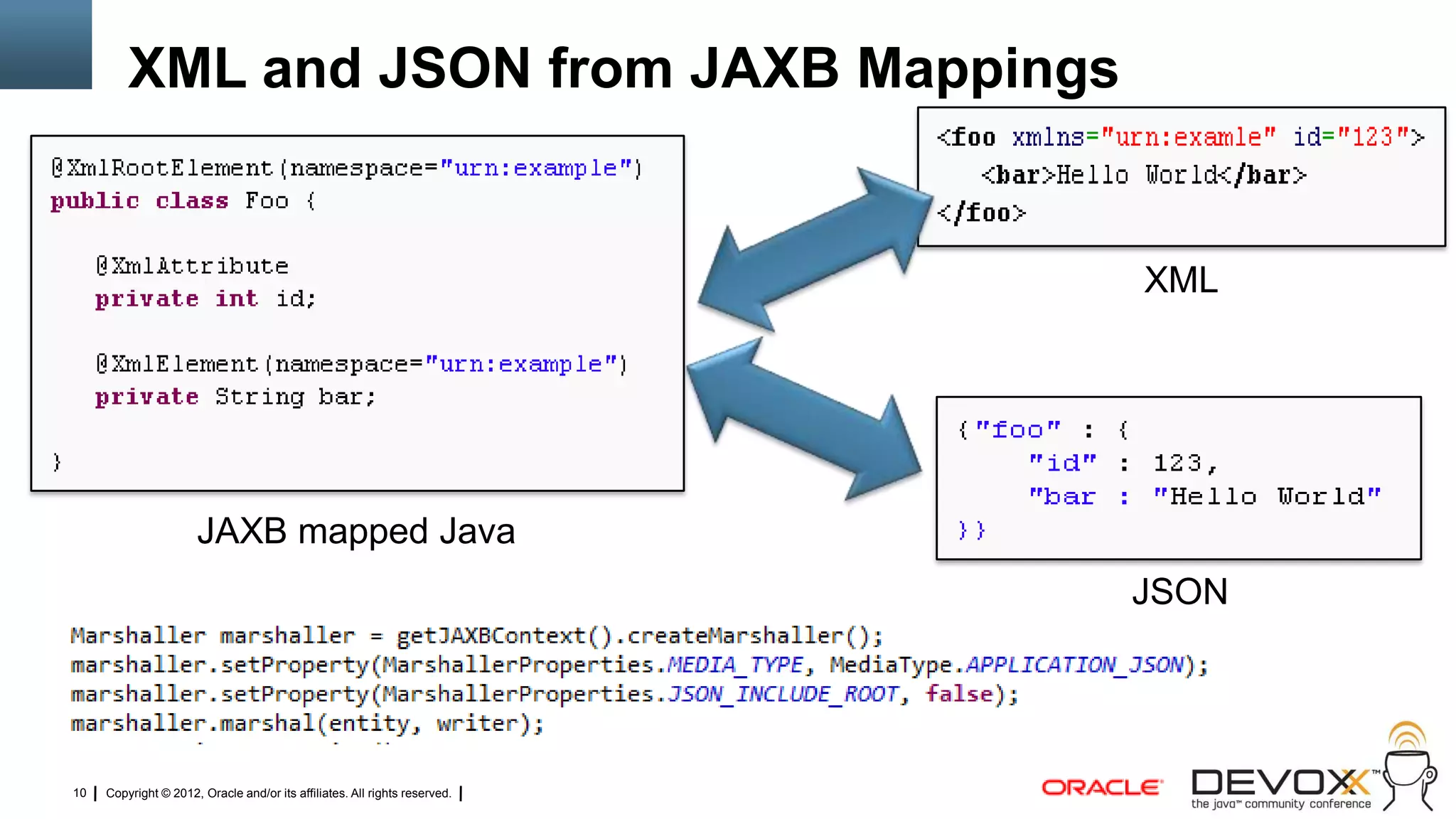

XML and JSON from JAXB Mappings

XML

JAXB mapped Java
JSON

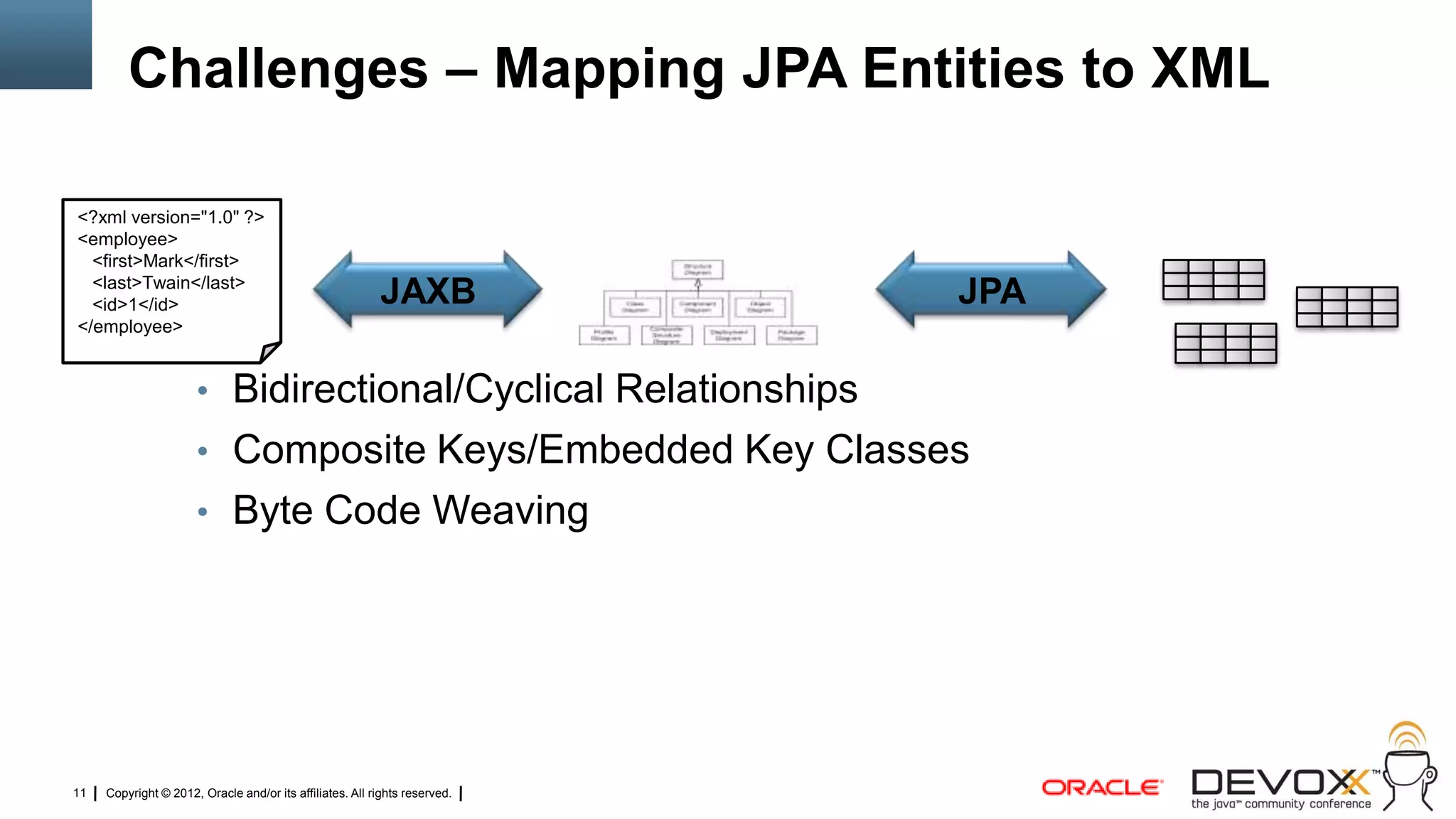

Challenges – Mapping JPA Entities to XML

<?xml version="1.0" ?>
<employee>
<first>Mark</first>
<last>Twain</last>
<id>1</id> JAXB JPA
</employee>

• Bidirectional/Cyclical Relationships
• Composite Keys/Embedded Key Classes
• Byte Code Weaving

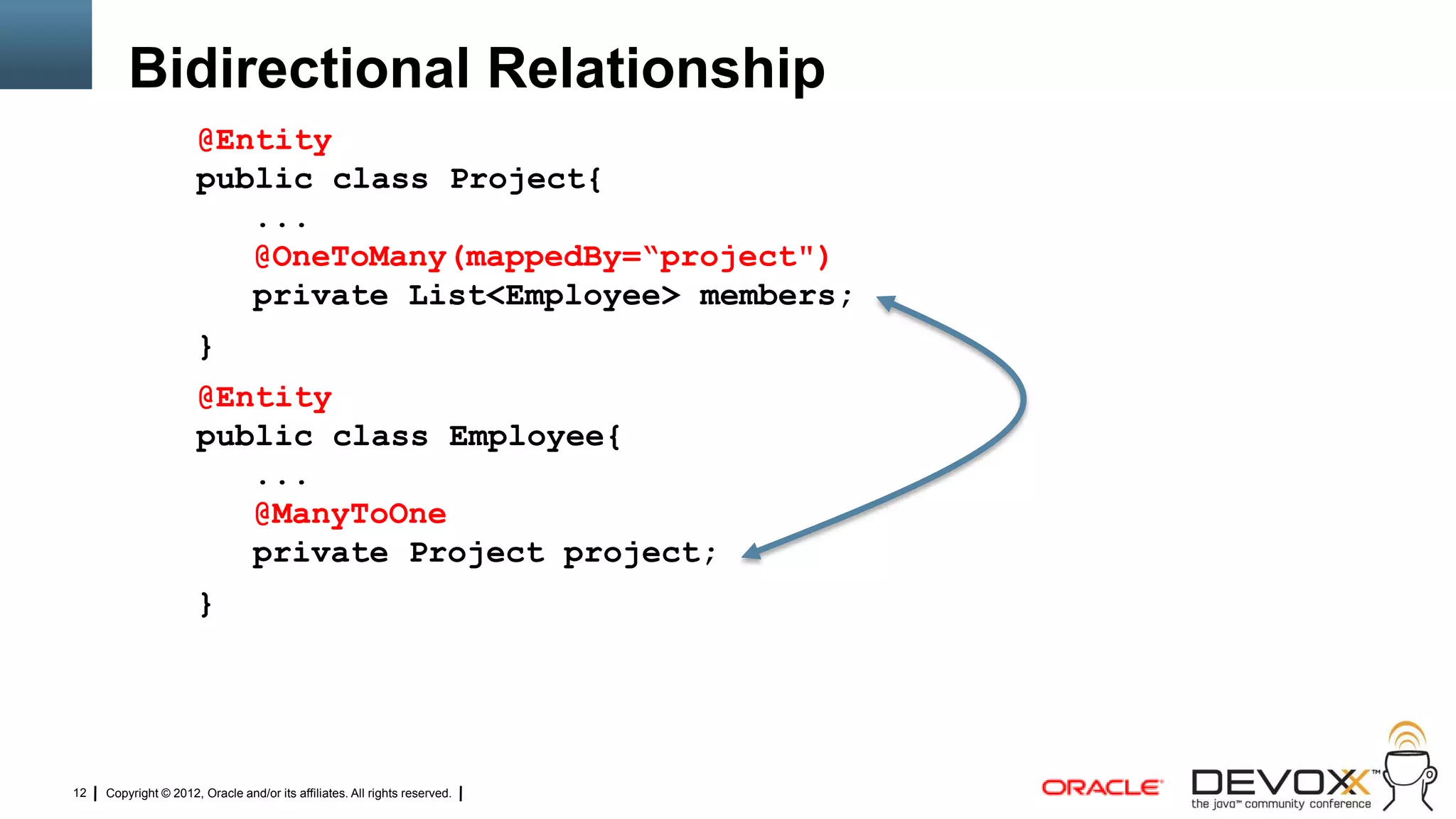

Bidirectional Relationship
@Entity
public class Project{
...
@OneToMany(mappedBy=“project")
private List<Employee> members;
}
@Entity
public class Employee{
...
@ManyToOne
private Project project;
}

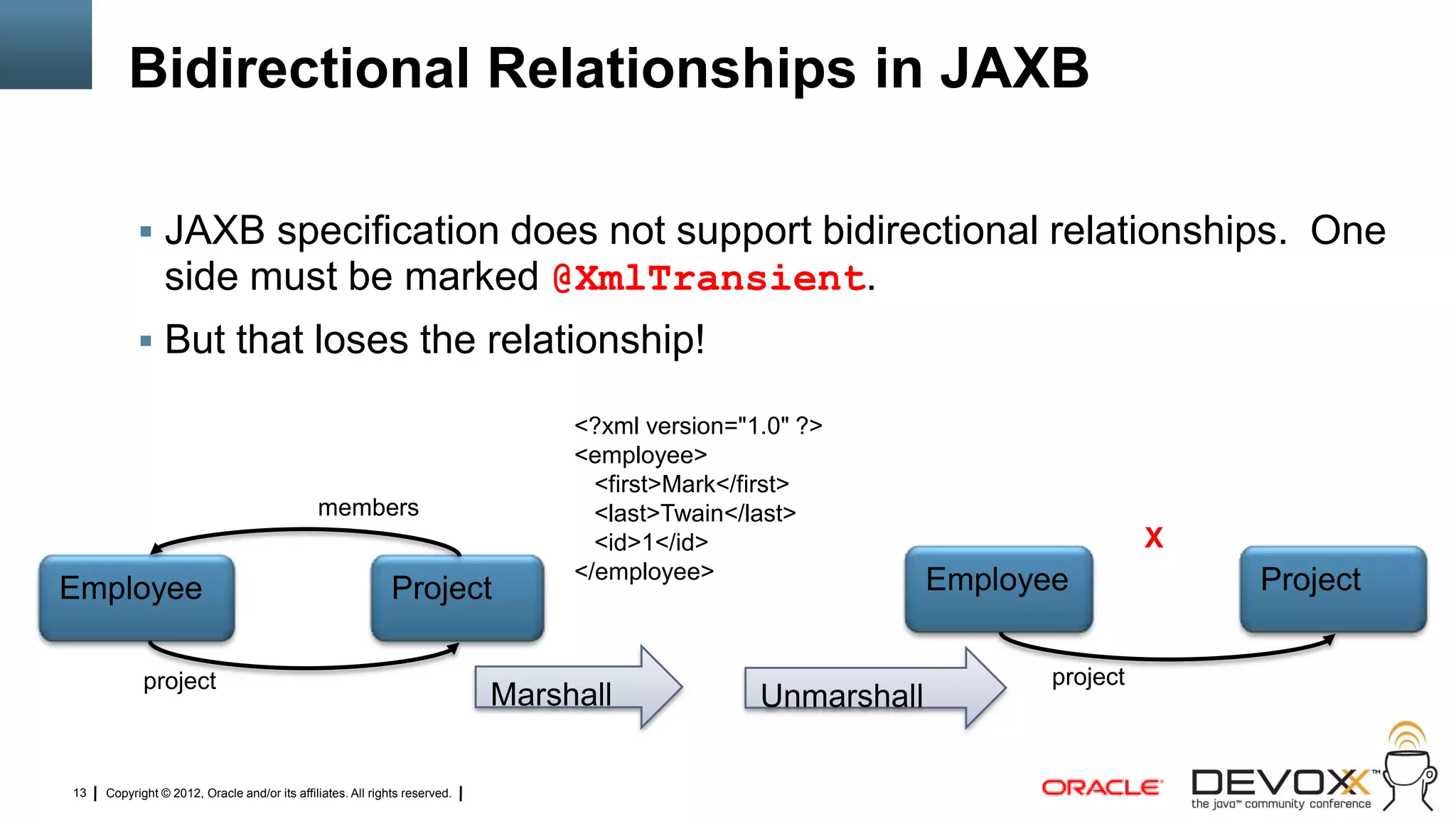

Bidirectional Relationships in JAXB

 JAXB specification does not support bidirectional relationships. One
side must be marked @XmlTransient.
 But that loses the relationship!

<?xml version="1.0" ?>
<employee>
<first>Mark</first>
members <last>Twain</last>
<id>1</id> X
</employee> Employee Project
Employee Project

project project
Marshall Unmarshall


EclipseLink XmlInverseReference
@Entity
public class Project{
...
@OneToMany(mappedBy=“project")
private List<Employee> members;
}
@Entity
public class Employee{
...
@ManyToOne
@XmlInverseReference(mappedBy=“members")
private Project project;
}

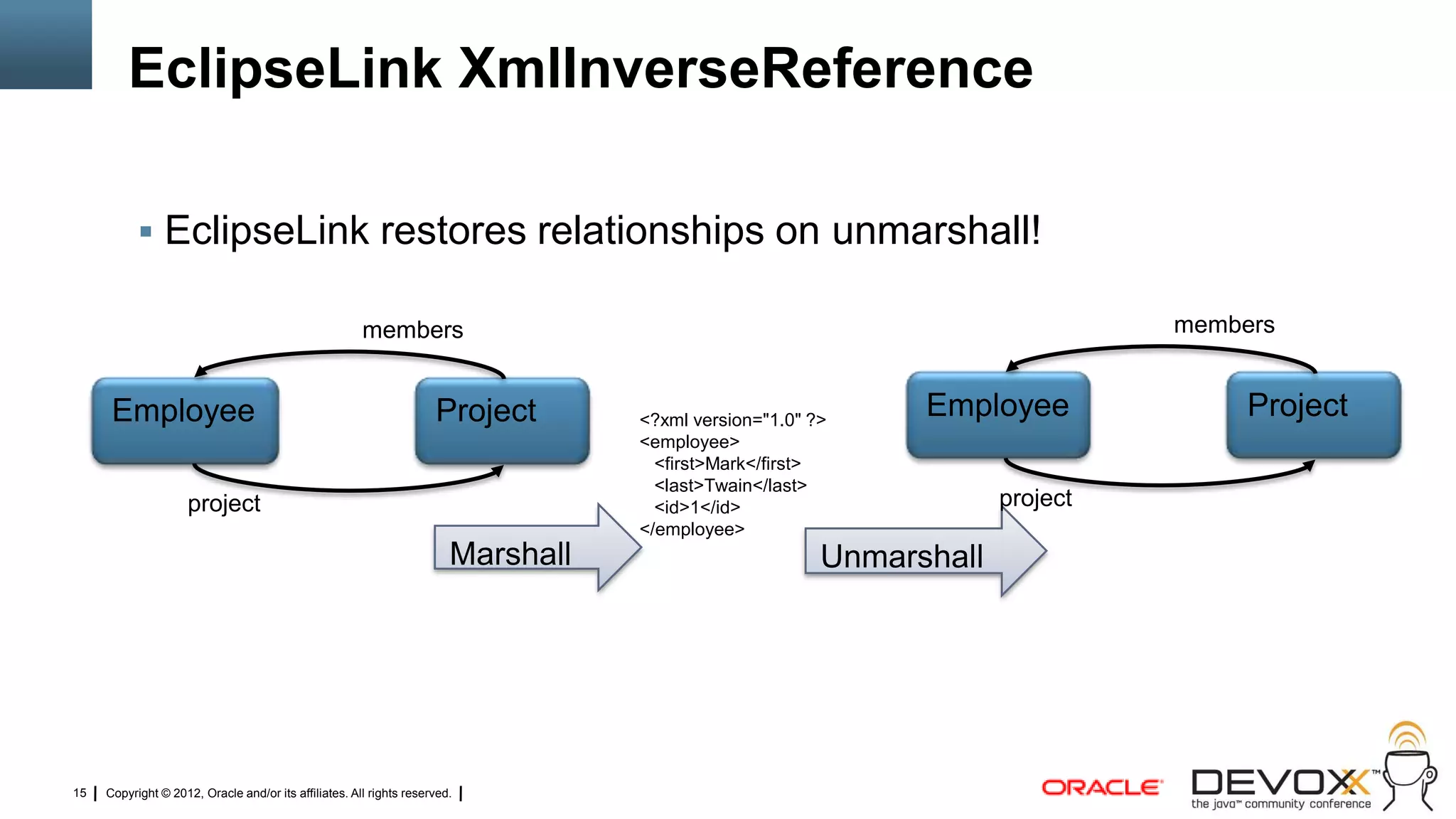

EclipseLink XmlInverseReference

 EclipseLink restores relationships on unmarshall!

members members

Employee Project <?xml version="1.0" ?>
Employee Project
<employee>
<first>Mark</first>
<last>Twain</last>
project <id>1</id> project
</employee>
Marshall Unmarshall

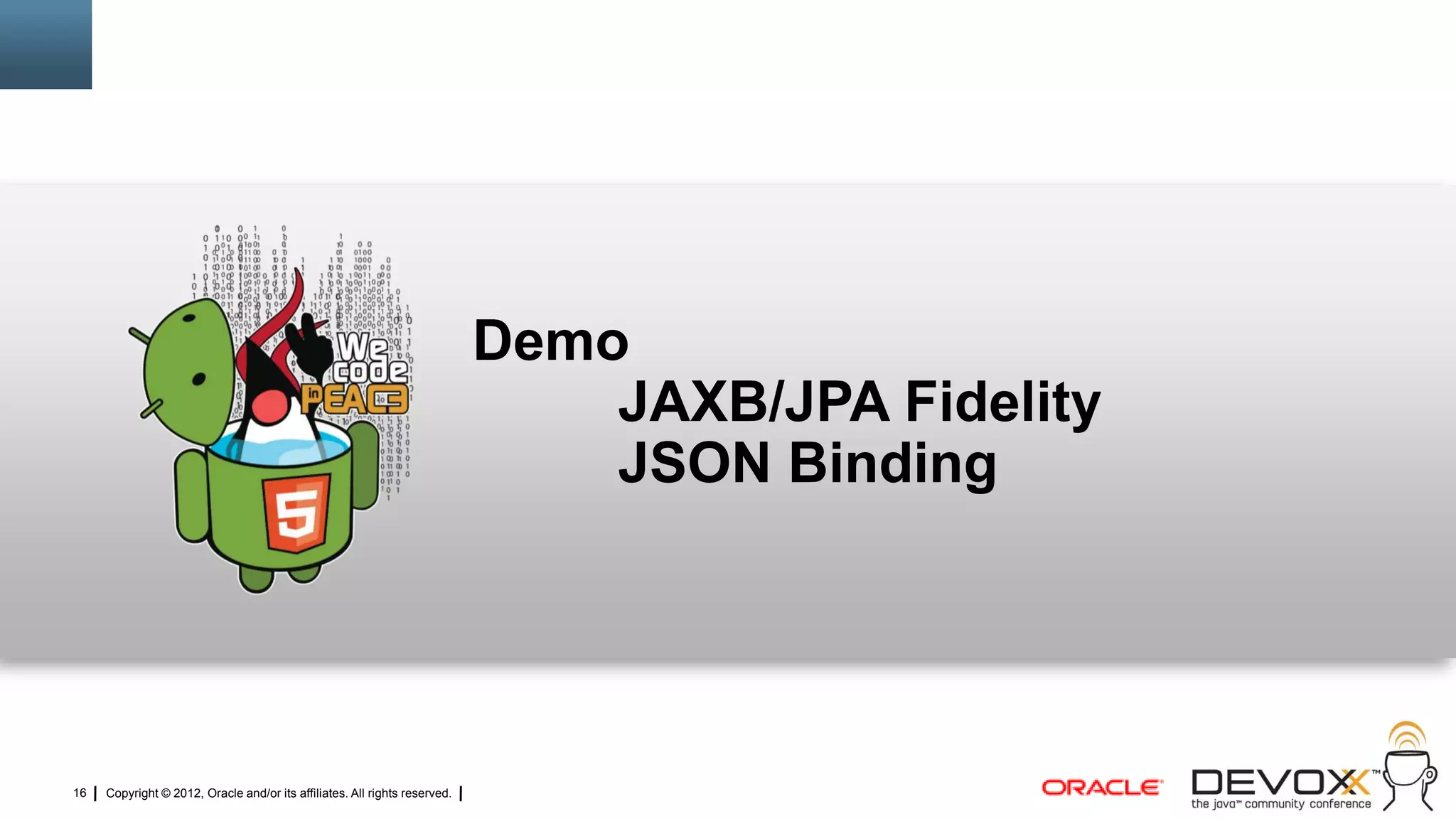

Demo
JAXB/JPA Fidelity
JSON Binding


Dynamic JPA

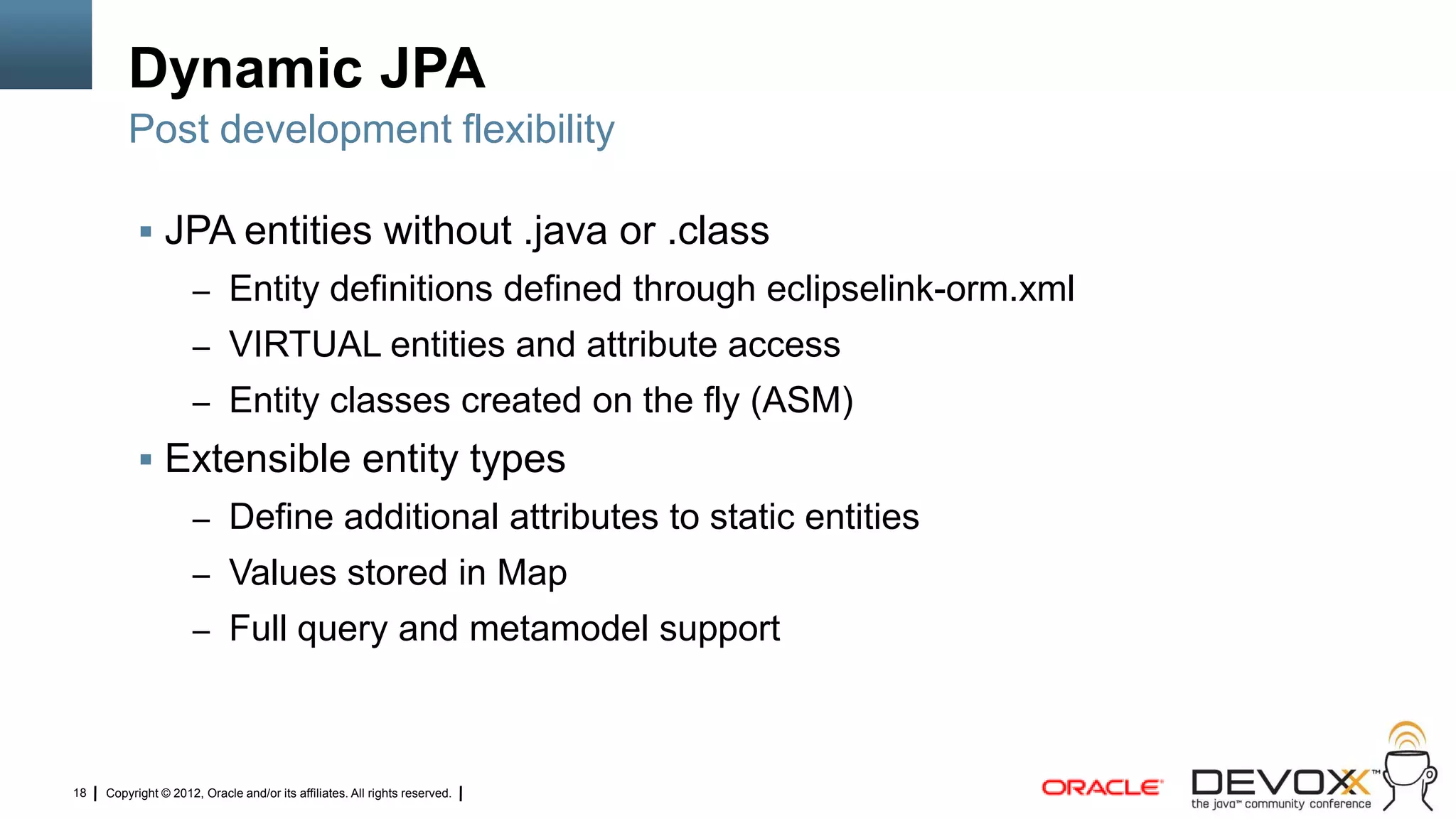

Dynamic JPA
Post development flexibility

 JPA entities without .java or .class
– Entity definitions defined through eclipselink-orm.xml
– VIRTUAL entities and attribute access
– Entity classes created on the fly (ASM)
 Extensible entity types
– Define additional attributes to static entities
– Values stored in Map
– Full query and metamodel support

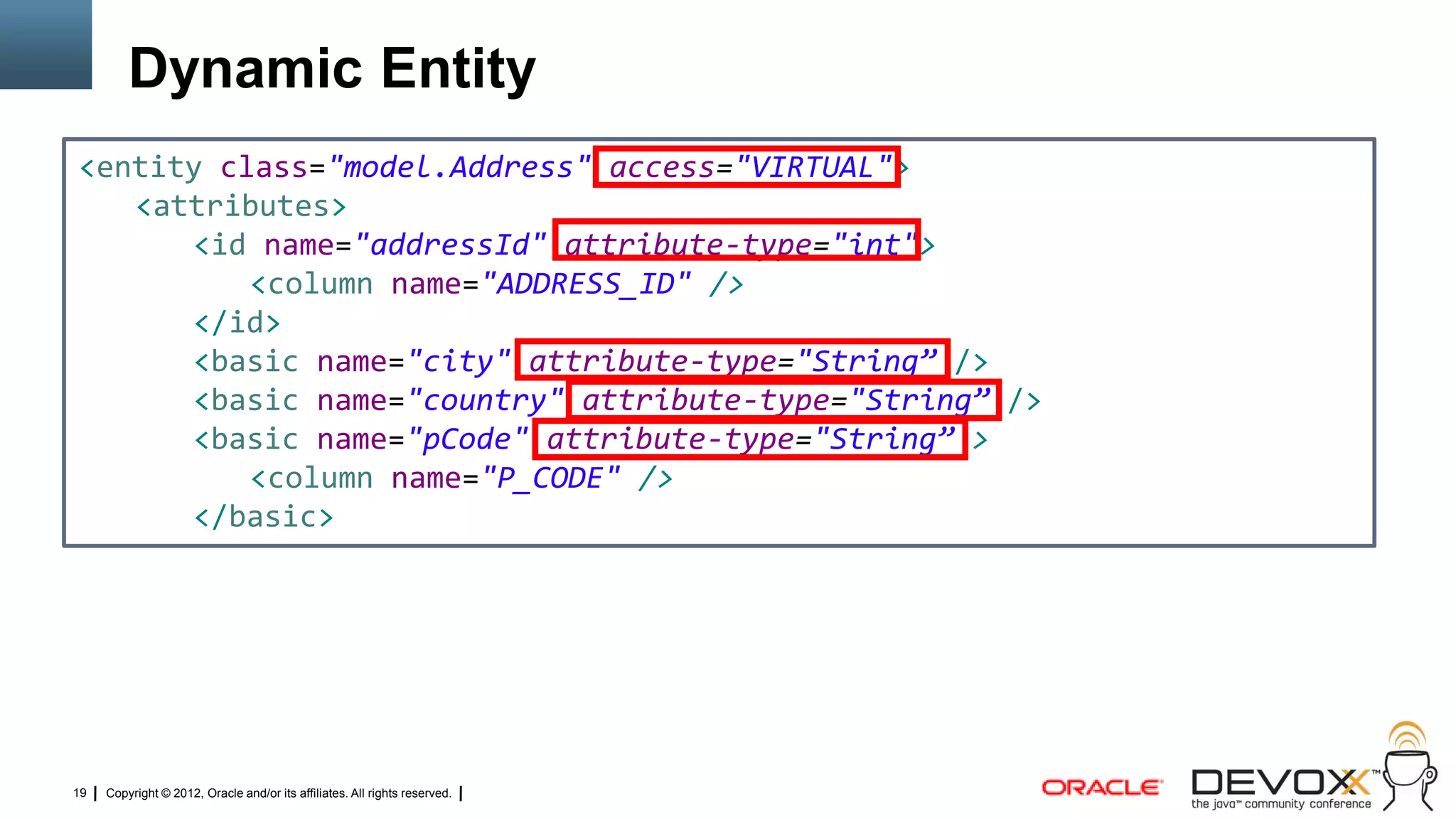

Dynamic Entity
<entity class="model.Address" access="VIRTUAL">
<attributes>
<id name="addressId" attribute-type="int">
<column name="ADDRESS_ID" />
</id>
<basic name="city" attribute-type="String” />
<basic name="country" attribute-type="String” />
<basic name="pCode" attribute-type="String” >
<column name="P_CODE" />
</basic>

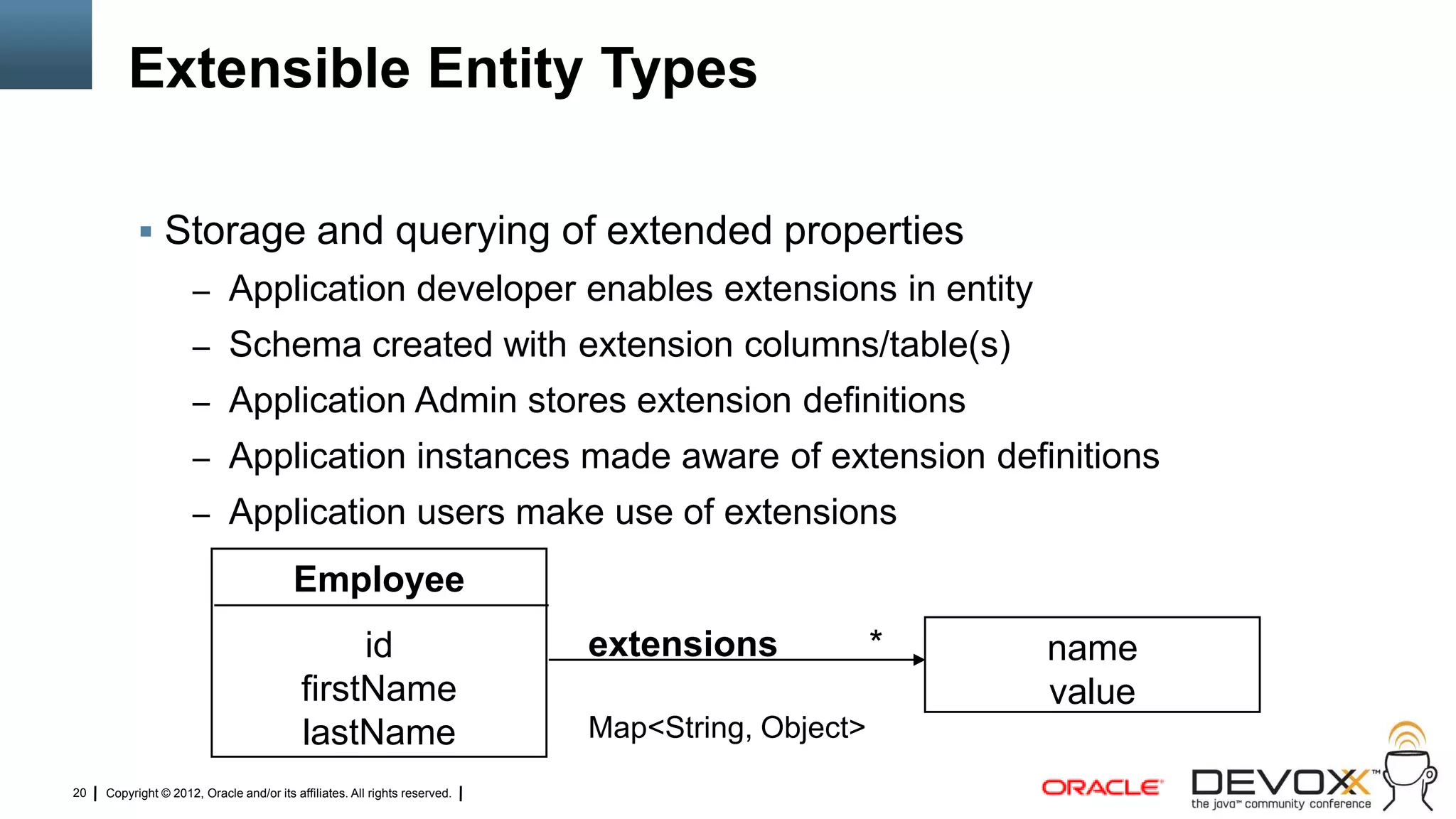

Extensible Entity Types

 Storage and querying of extended properties
– Application developer enables extensions in entity
– Schema created with extension columns/table(s)
– Application Admin stores extension definitions
– Application instances made aware of extension definitions
– Application users make use of extensions

Employee
id extensions * name
firstName value
lastName Map<String, Object>

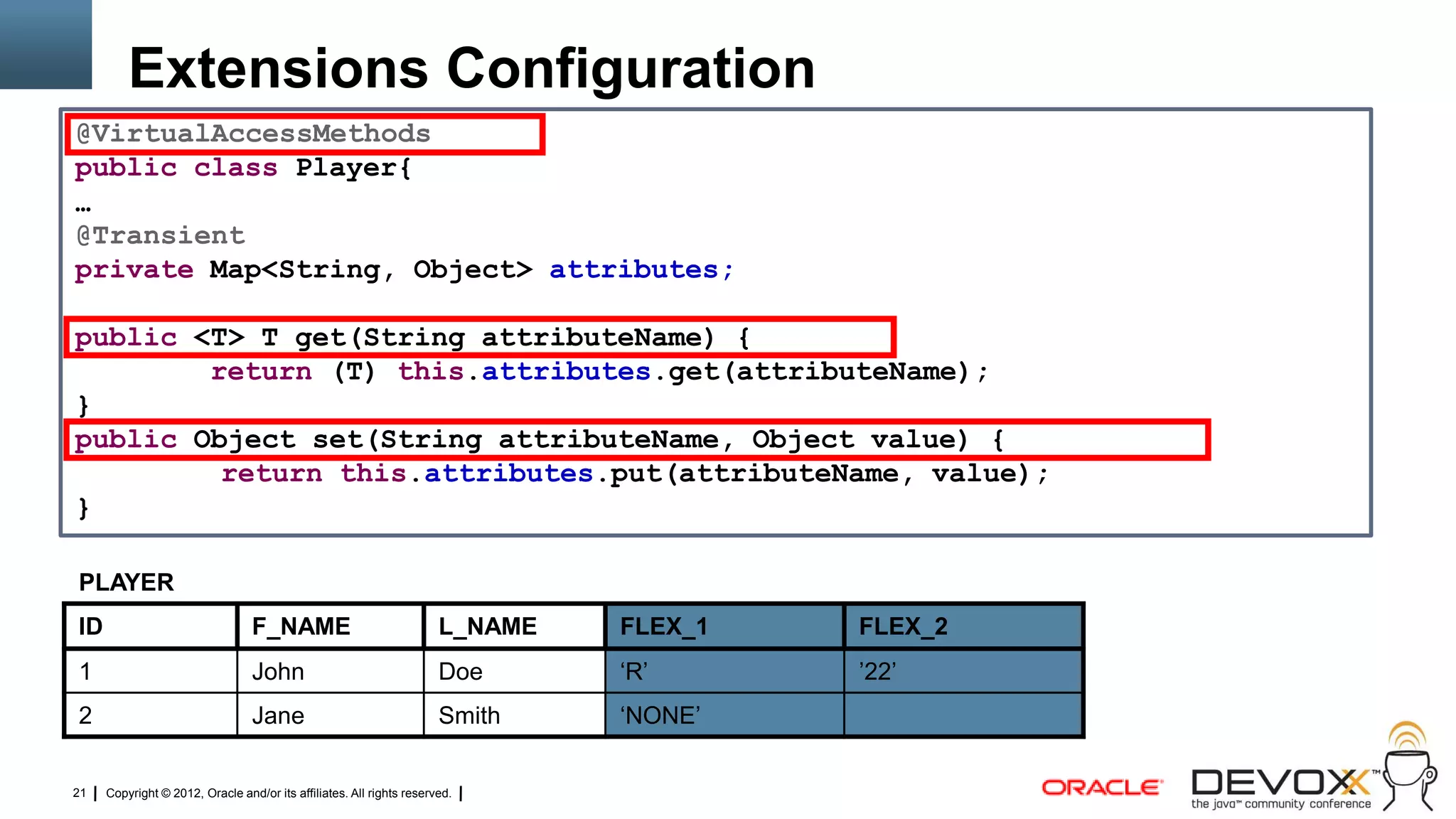

Extensions Configuration
@VirtualAccessMethods
public class Player{
…
@Transient
private Map<String, Object> attributes;

public <T> T get(String attributeName) {
return (T) this.attributes.get(attributeName);
}
public Object set(String attributeName, Object value) {
return this.attributes.put(attributeName, value);
}

PLAYER
ID F_NAME L_NAME FLEX_1 FLEX_2
1 John Doe ‗R‘ ‘22‘
2 Jane Smith ‗NONE‘

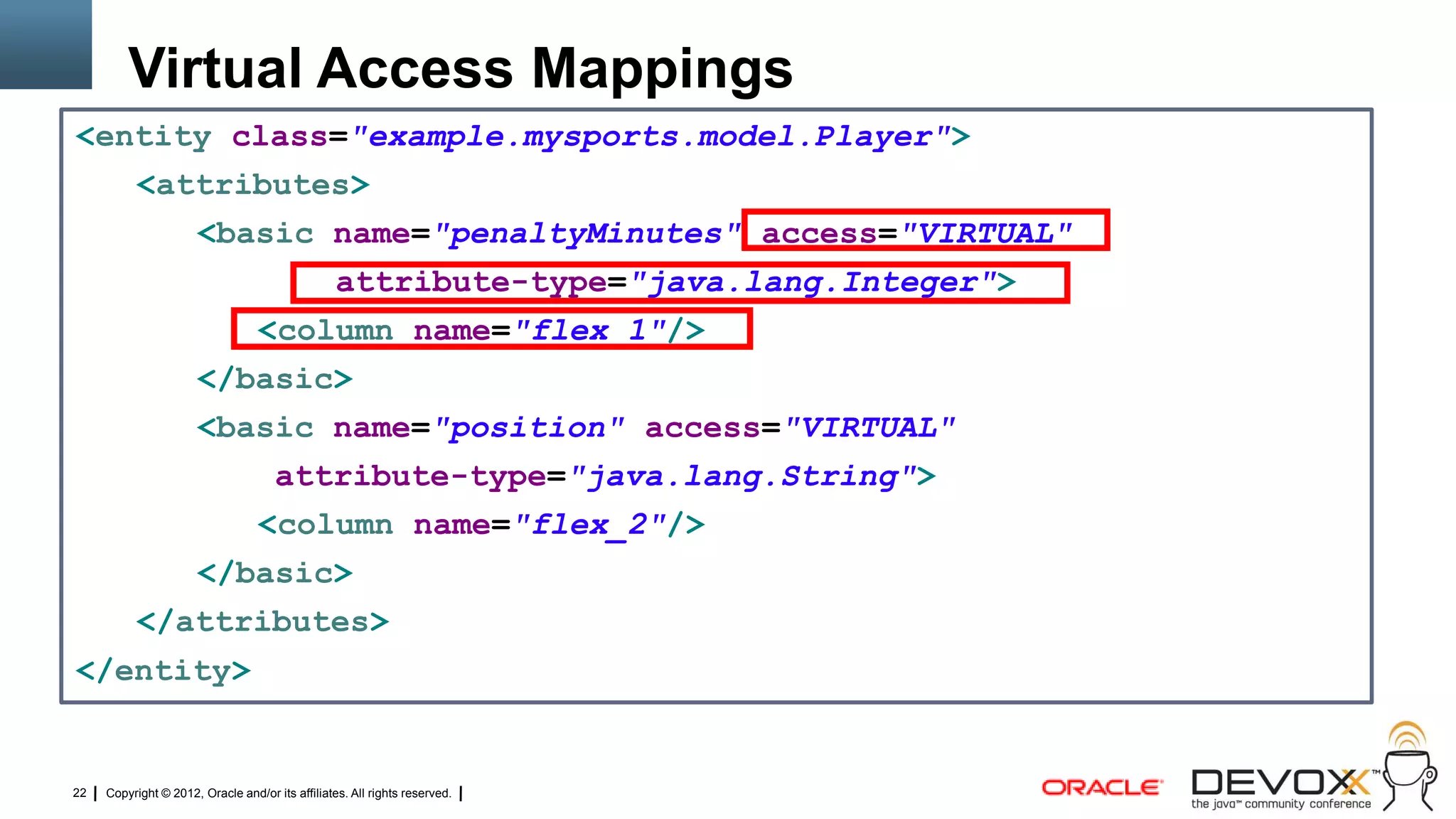

Virtual Access Mappings
<entity class="example.mysports.model.Player">
<attributes>
<basic name="penaltyMinutes" access="VIRTUAL"
attribute-type="java.lang.Integer">
<column name="flex_1"/>
</basic>
<basic name="position" access="VIRTUAL"
attribute-type="java.lang.String">
<column name="flex_2"/>
</basic>
</attributes>
</entity>


RESTful JPA: JPA-RS

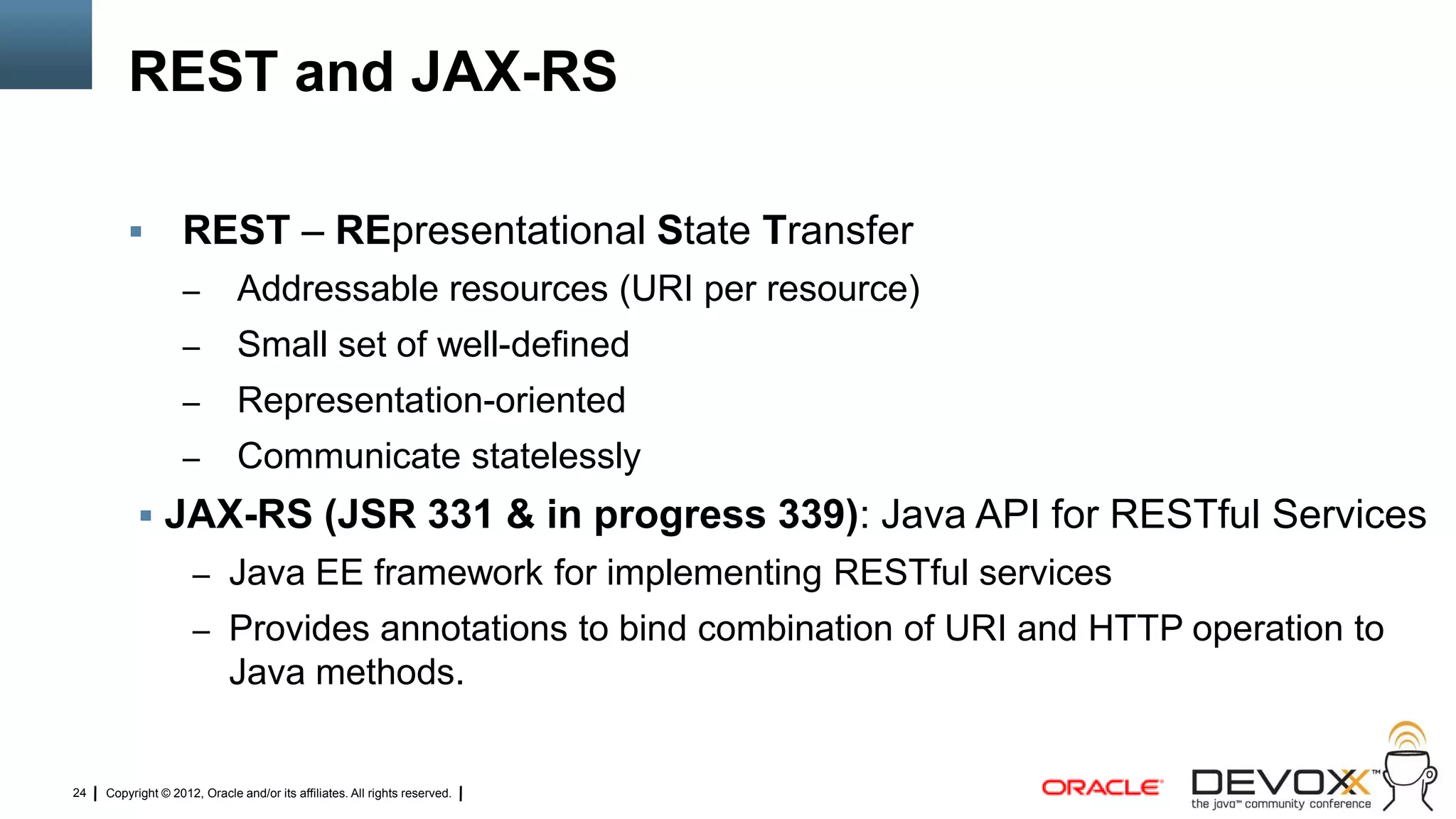

REST and JAX-RS

 REST – REpresentational State Transfer
– Addressable resources (URI per resource)
– Small set of well-defined
– Representation-oriented
– Communicate statelessly
 JAX-RS (JSR 331 & in progress 339): Java API for RESTful Services
– Java EE framework for implementing RESTful services
– Provides annotations to bind combination of URI and HTTP operation to
Java methods.

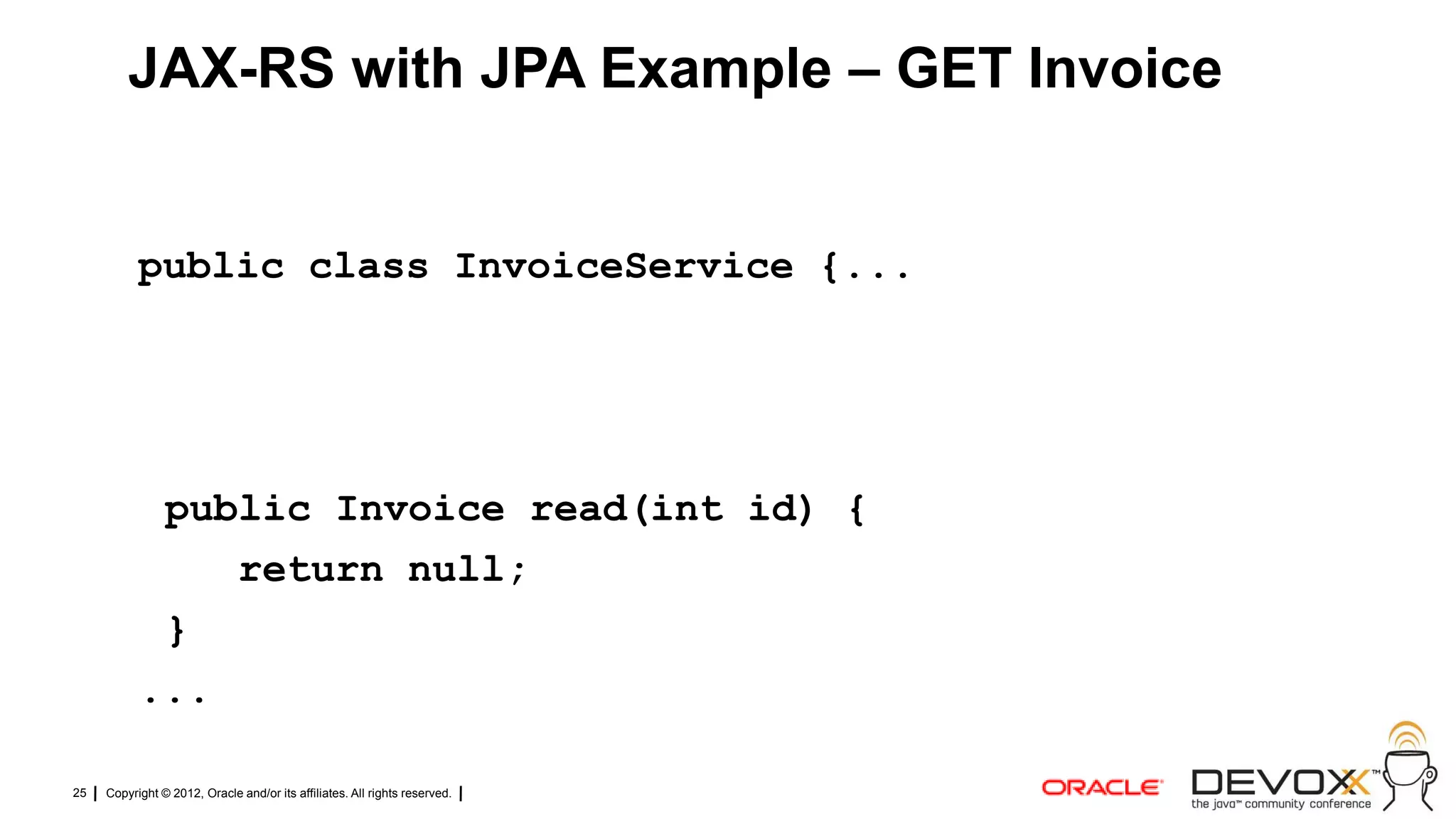

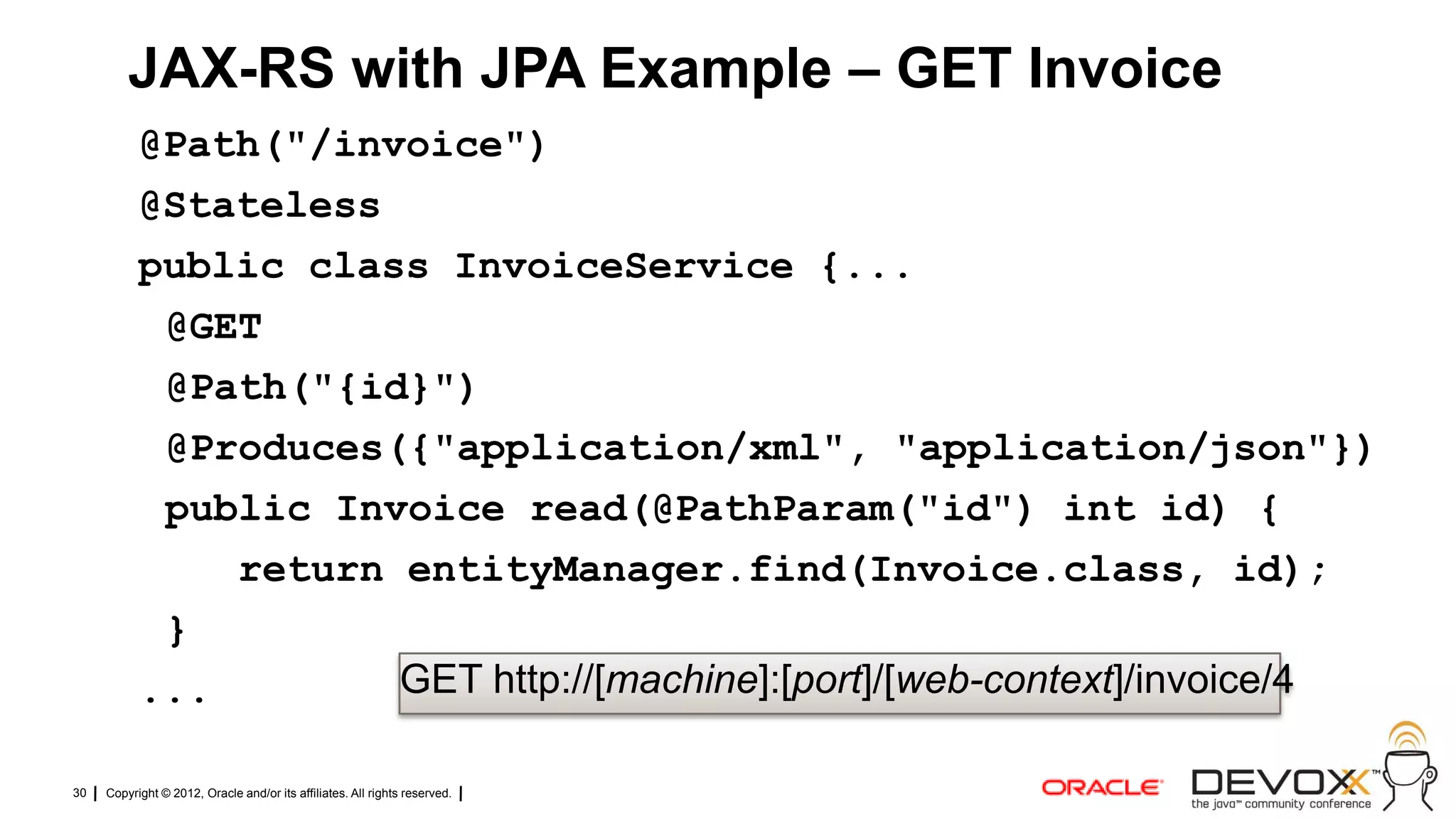

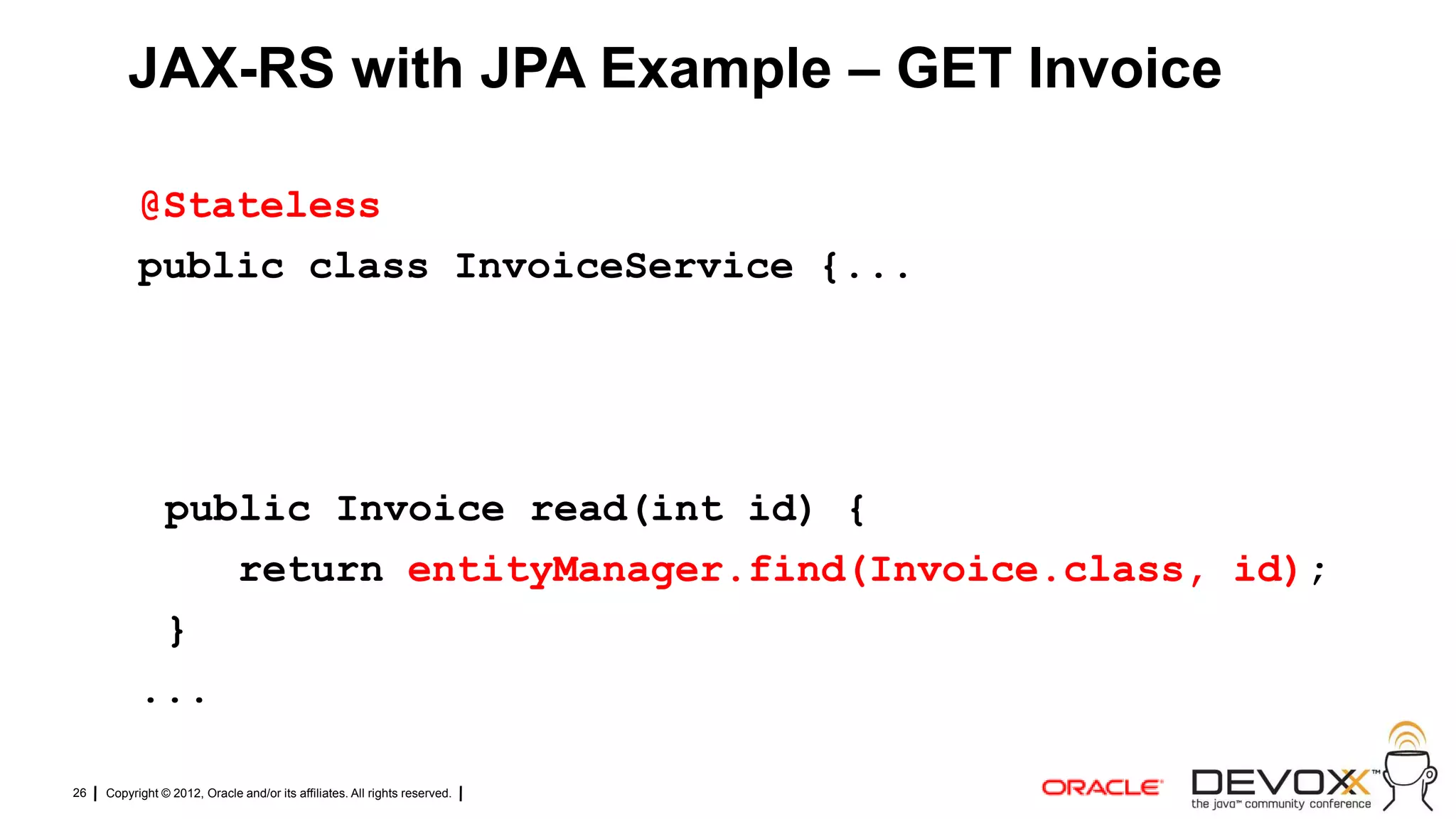

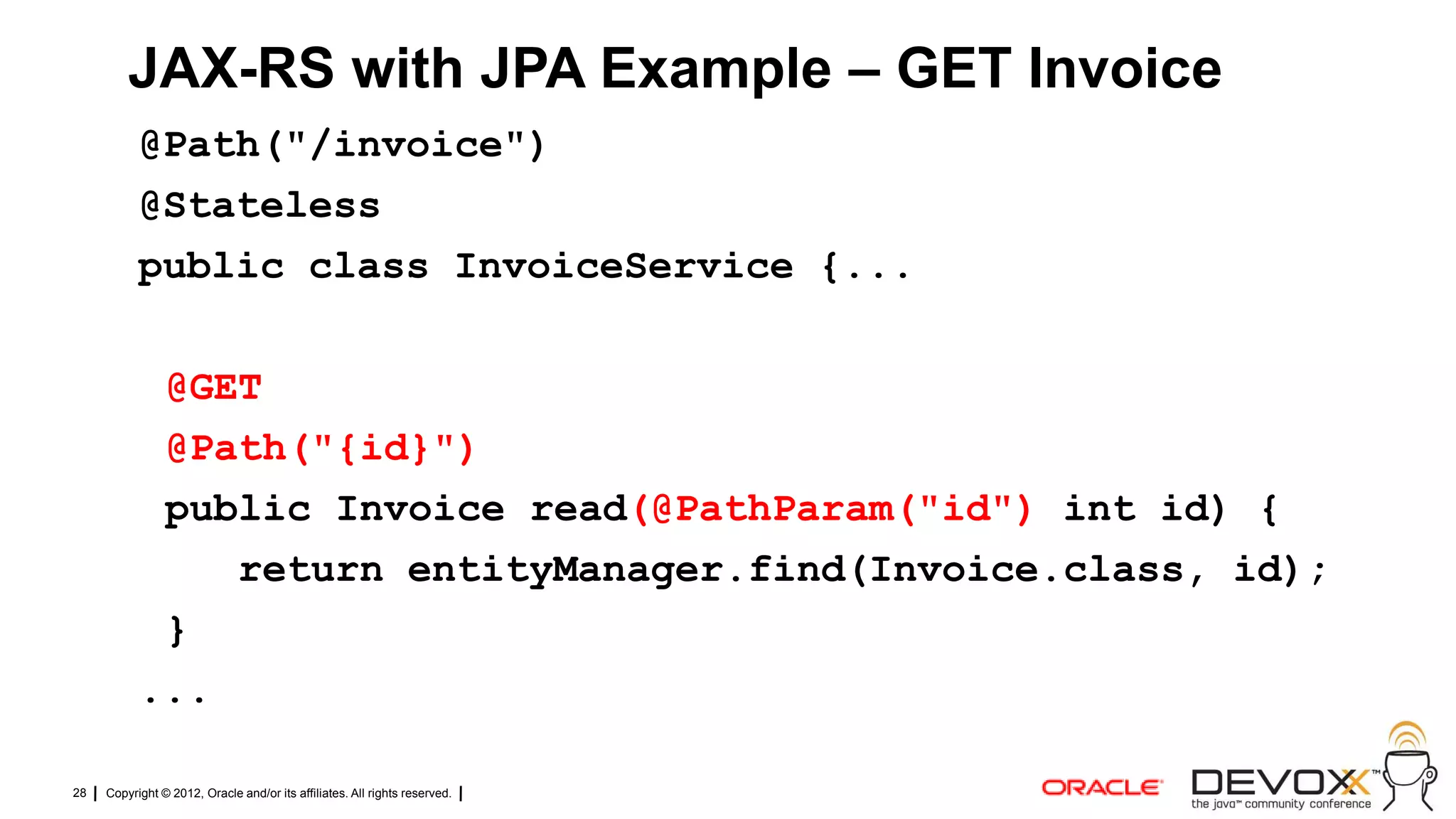

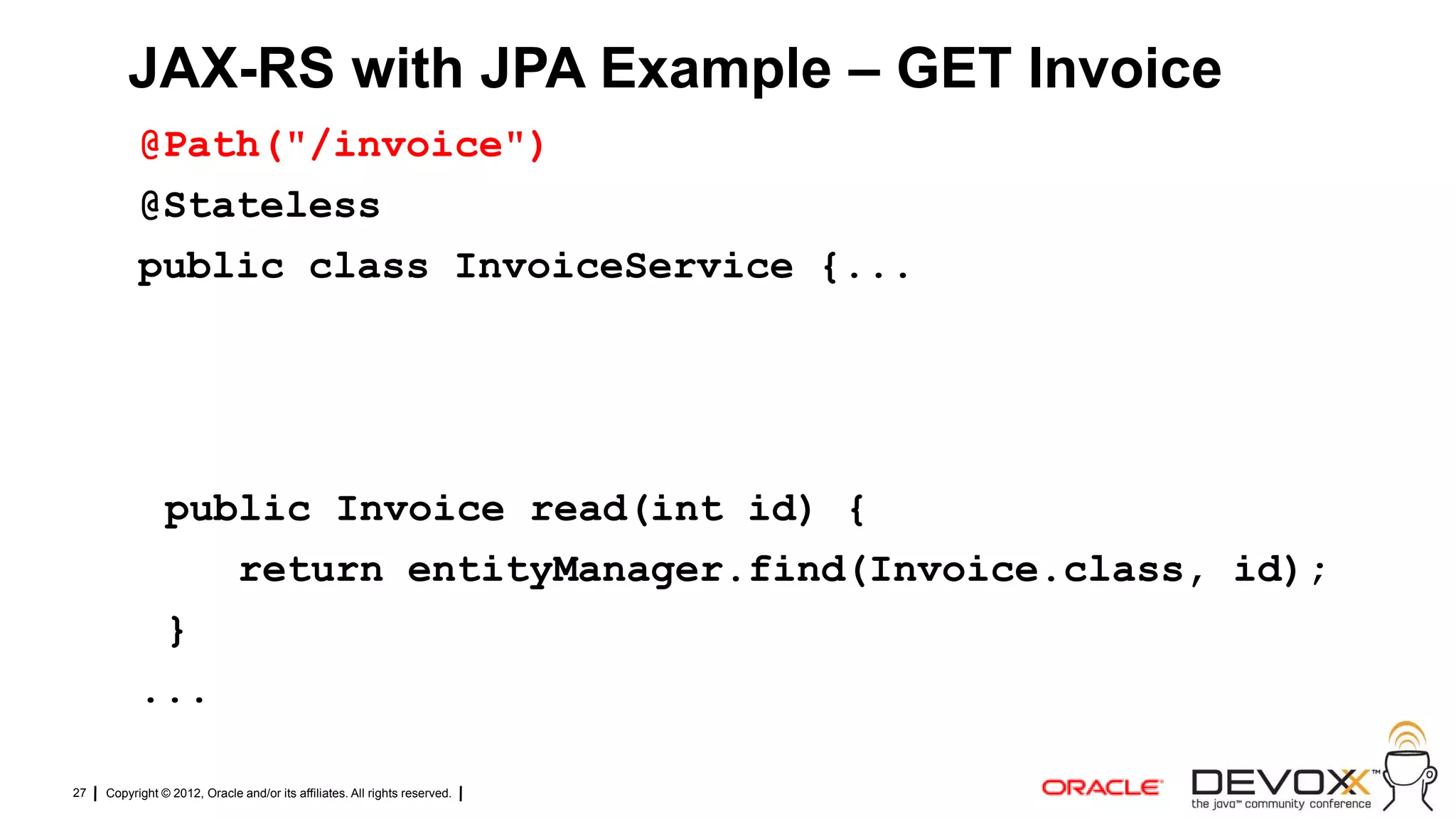

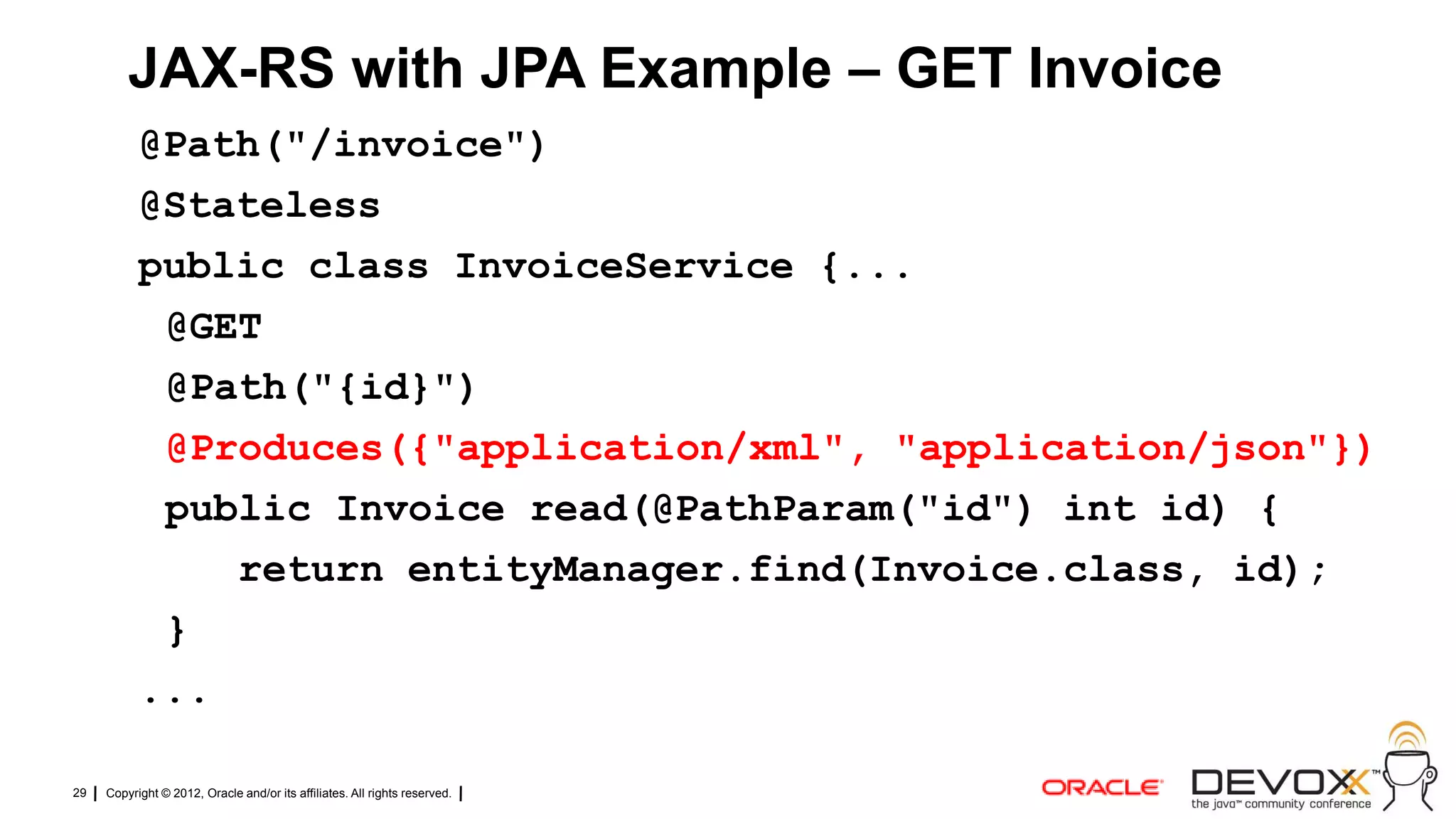

JAX-RS with JPA Example – GET Invoice

public class InvoiceService {...

public Invoice read(int id) {
return null;
}
...



@Stateless

return entityManager.find(Invoice.class, id);
}
...


@Path("/invoice")
@Stateless

}
...


@Path("/invoice")
@Stateless

@GET
@Path("{id}")
public Invoice read(@PathParam("id") int id) {
}
...


@Path("/invoice")
@Stateless
@GET
@Path("{id}")
@Produces({"application/xml", "application/json"})
}
...


@Path("/invoice")
@Stateless
@GET
@Path("{id}")
@Produces({"application/xml", "application/json"})
}
... GET http://[machine]:[port]/[web-context]/invoice/4

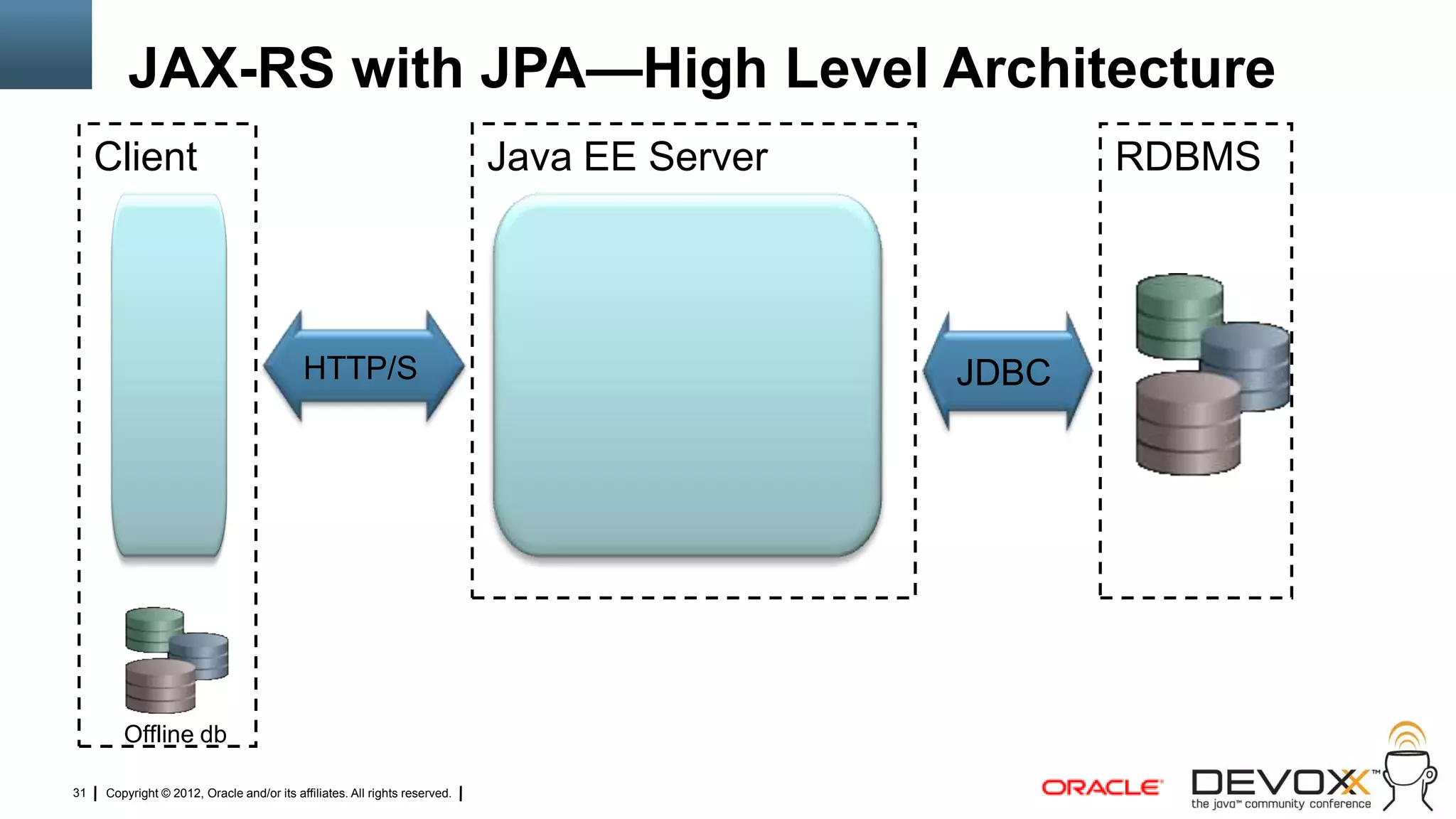

JAX-RS with JPA—High Level Architecture
Client Java EE Server RDBMS

HTTP/S JDBC

Offline db

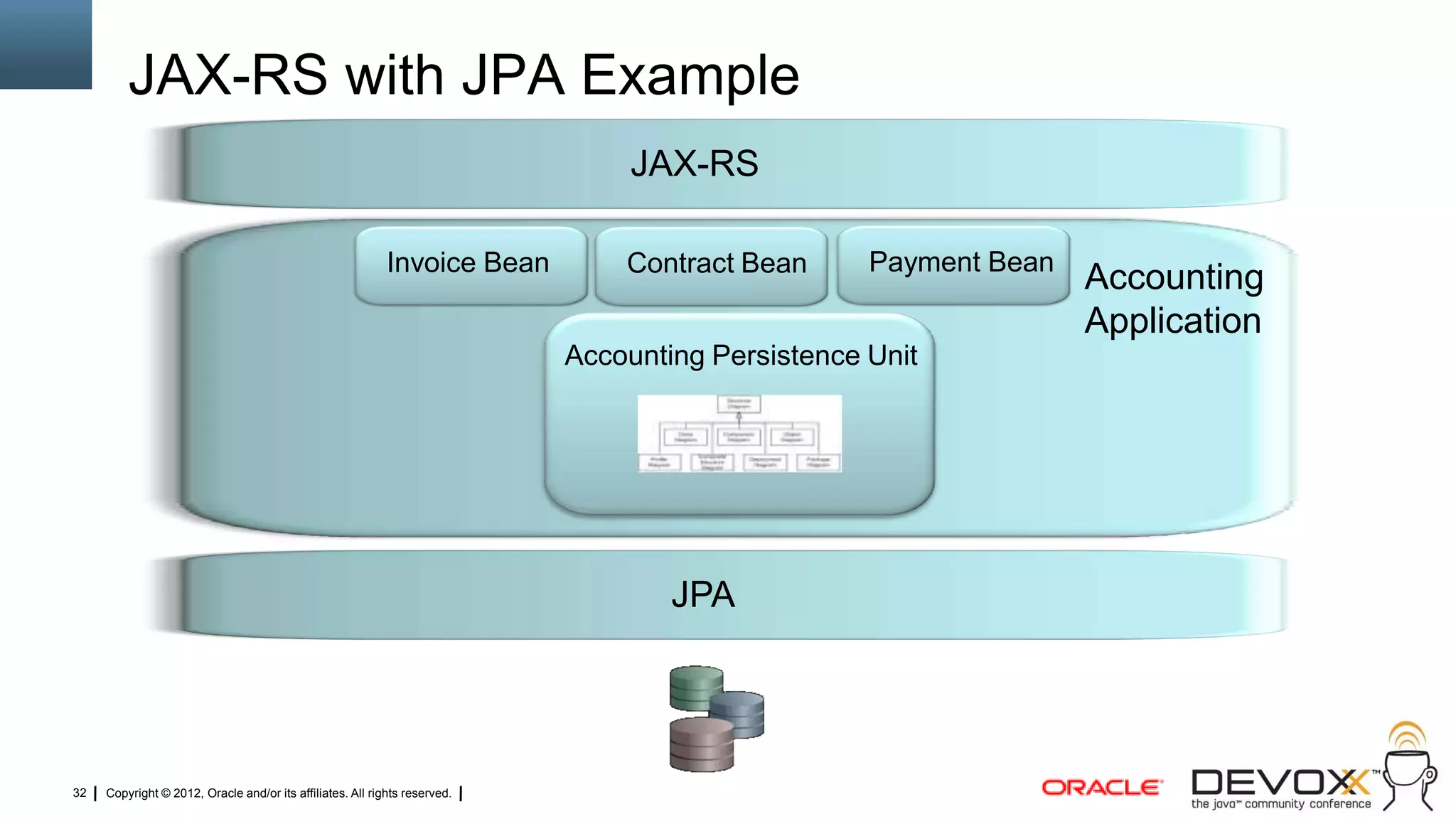

JAX-RS with JPA Example
JAX-RS

Invoice Bean Contract Bean Payment Bean
Accounting
Application
Accounting Persistence Unit

JPA

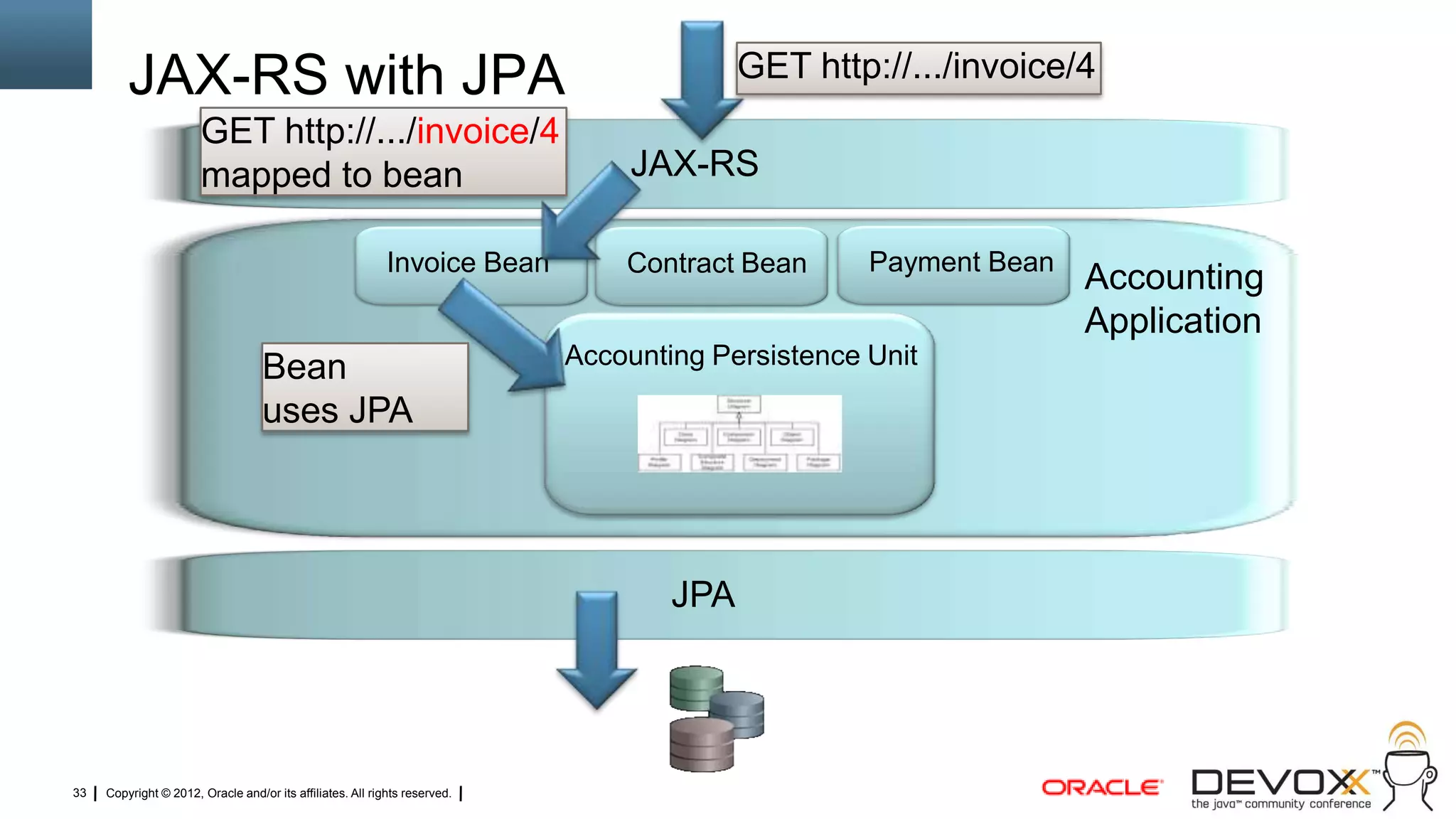

JAX-RS with JPA GET http://.../invoice/4
GET http://.../invoice/4
mapped to bean JAX-RS

Invoice Bean Contract Bean Payment Bean
Accounting
Application
Bean Accounting Persistence Unit

uses JPA

JPA

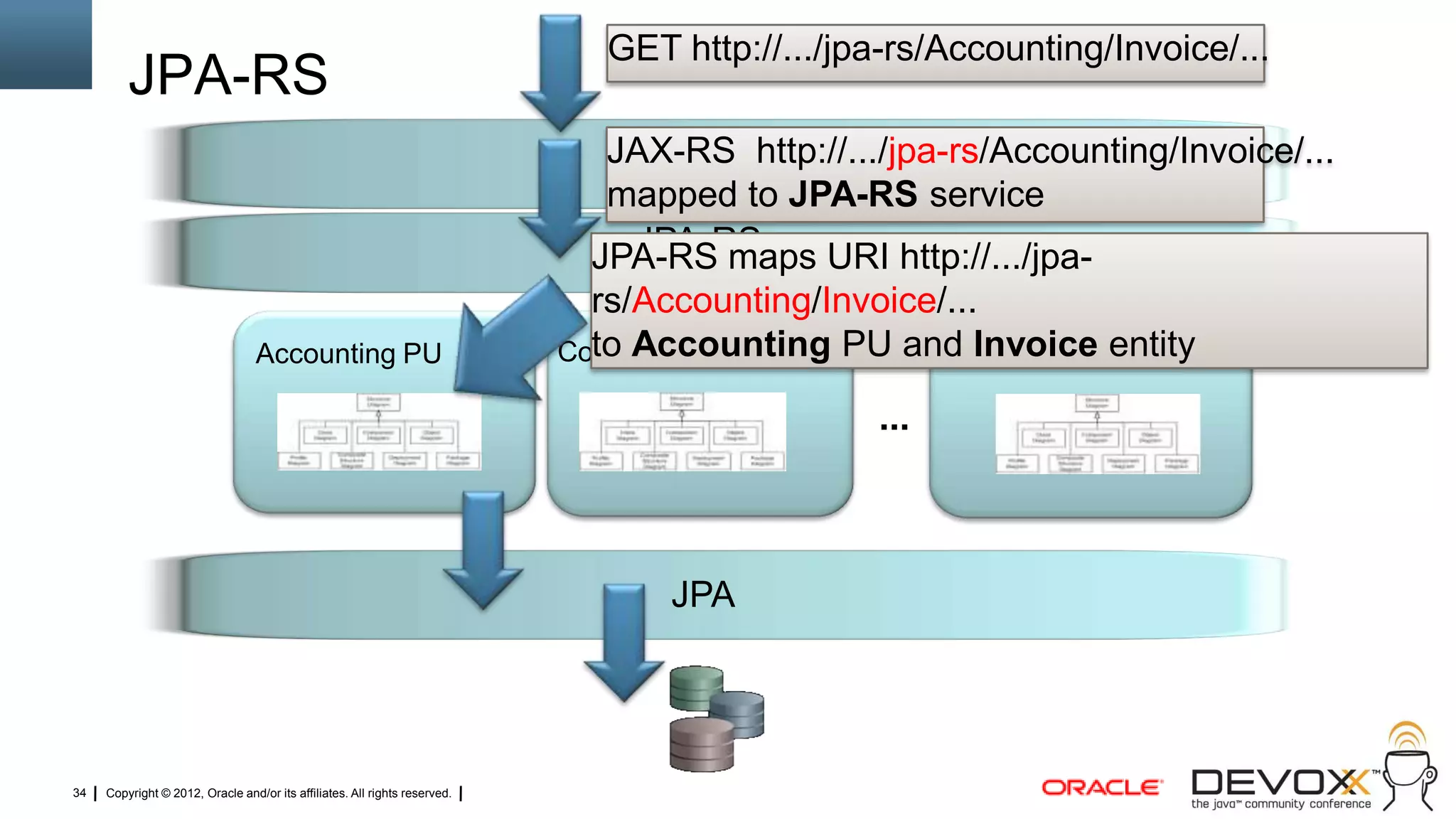

GET http://.../jpa-rs/Accounting/Invoice/...
JPA-RS
JAX-RS http://.../jpa-rs/Accounting/Invoice/...
JAX-RS
mapped to JPA-RS service
JPA-RS
JPA-RS maps URI http://.../jpa-
rs/Accounting/Invoice/...
Accounting PU to Accounting PU and Invoice entityPU
Contracting PU Human Resources

...

JPA

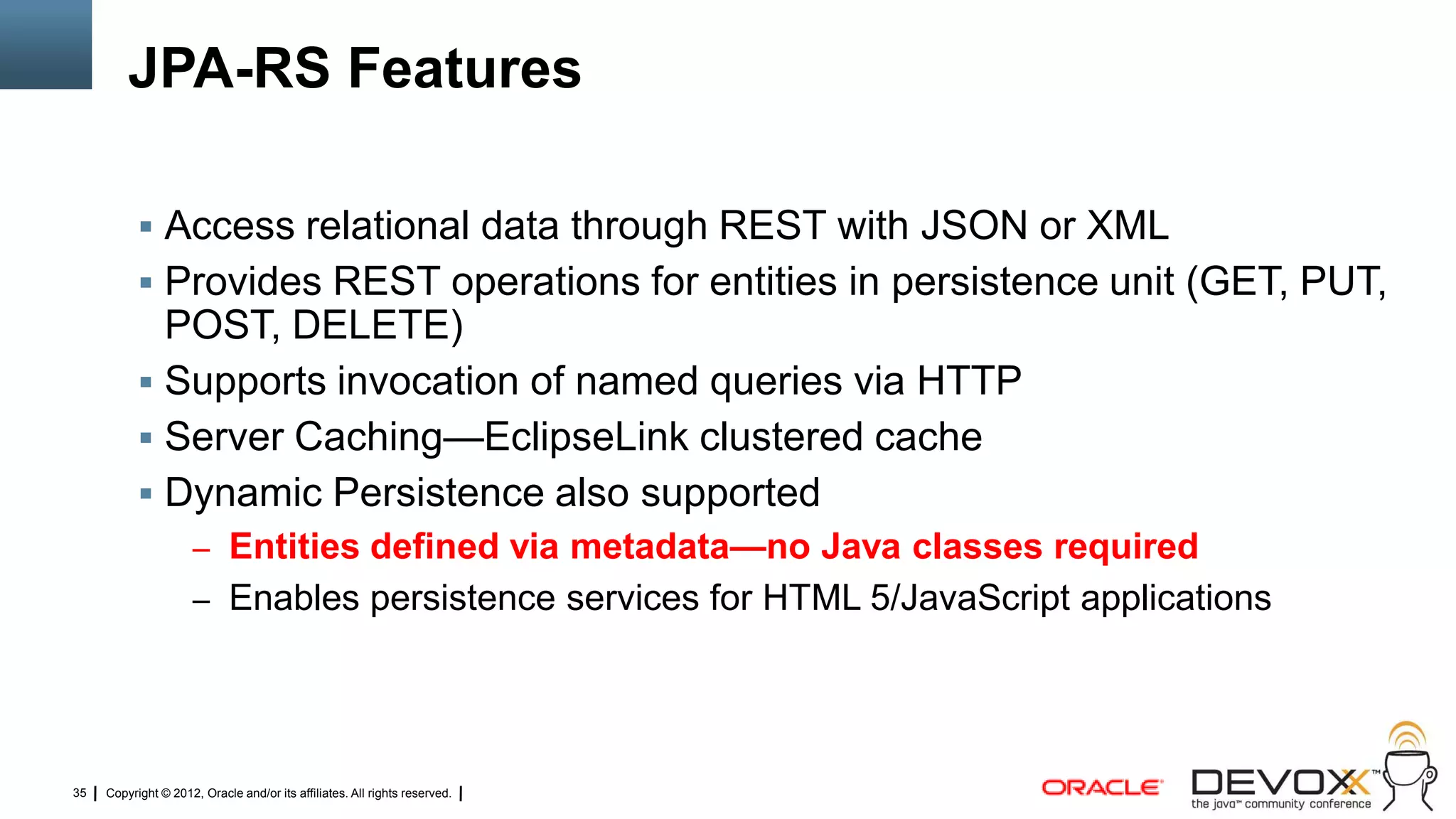

JPA-RS Features

 Access relational data through REST with JSON or XML
 Provides REST operations for entities in persistence unit (GET, PUT,
POST, DELETE)
 Supports invocation of named queries via HTTP
 Server Caching—EclipseLink clustered cache
 Dynamic Persistence also supported
– Entities defined via metadata—no Java classes required
– Enables persistence services for HTML 5/JavaScript applications


Demo EclipseLink JPA-RS


NoSQL Java Persistence

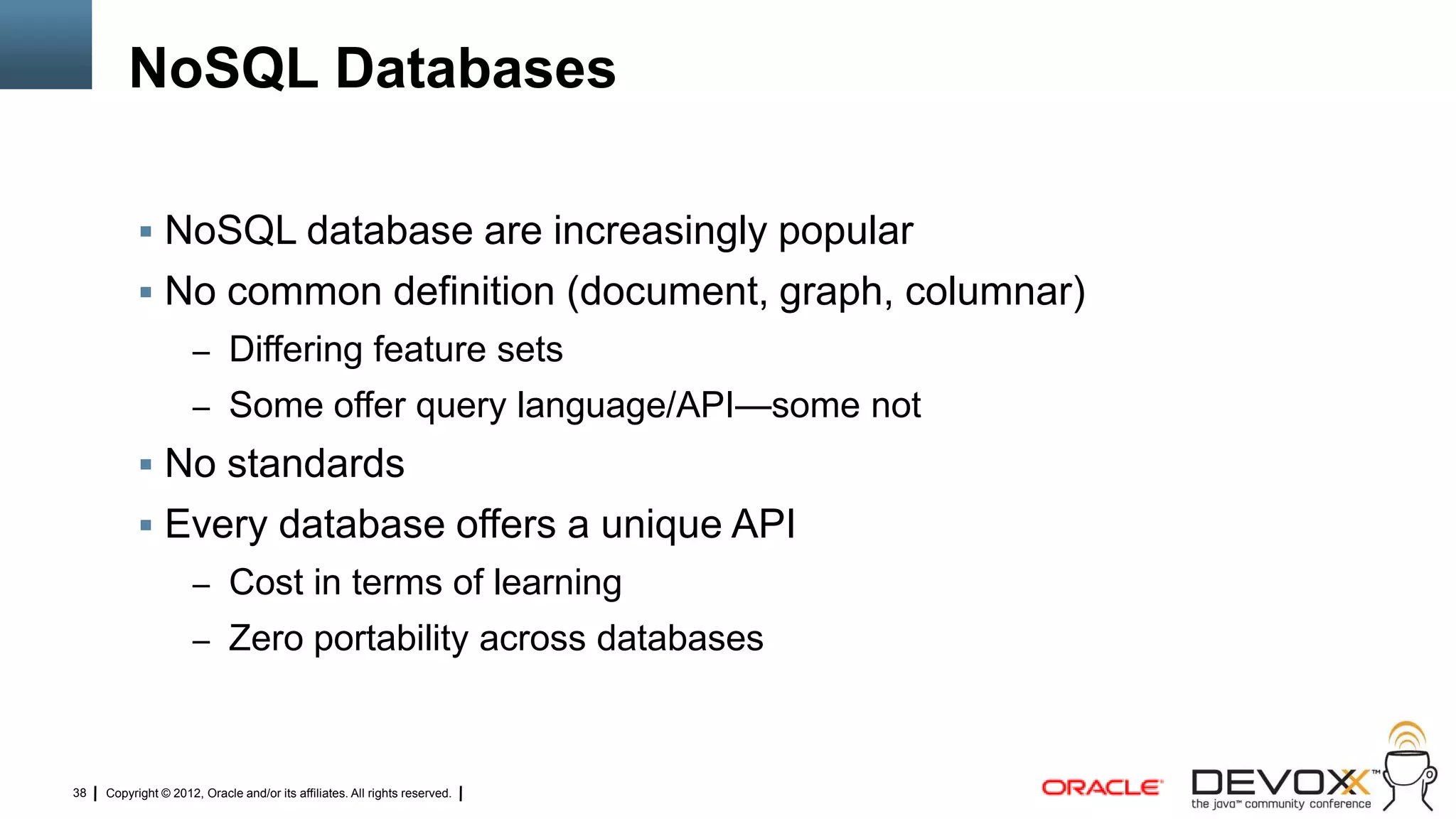

NoSQL Databases

 NoSQL database are increasingly popular
 No common definition (document, graph, columnar)
– Differing feature sets
– Some offer query language/API—some not
 No standards
 Every database offers a unique API
– Cost in terms of learning
– Zero portability across databases


EclipseLink NoSQL

 Support JPA-style access to NoSQL databases
– Leverage non-relational database support for JCA (and JDBC when
available)
 Define annotations and XML to identify NoSQL stored entities (e.g.,
@NoSQL)
 Support JPQL subset for each
– Key principal: leverage what‘s available
 Initial support for MongoDB and Oracle NoSQL.
 Support mixing relational and non-relational data in single composite
persistence unit (―polyglot persistence‖)

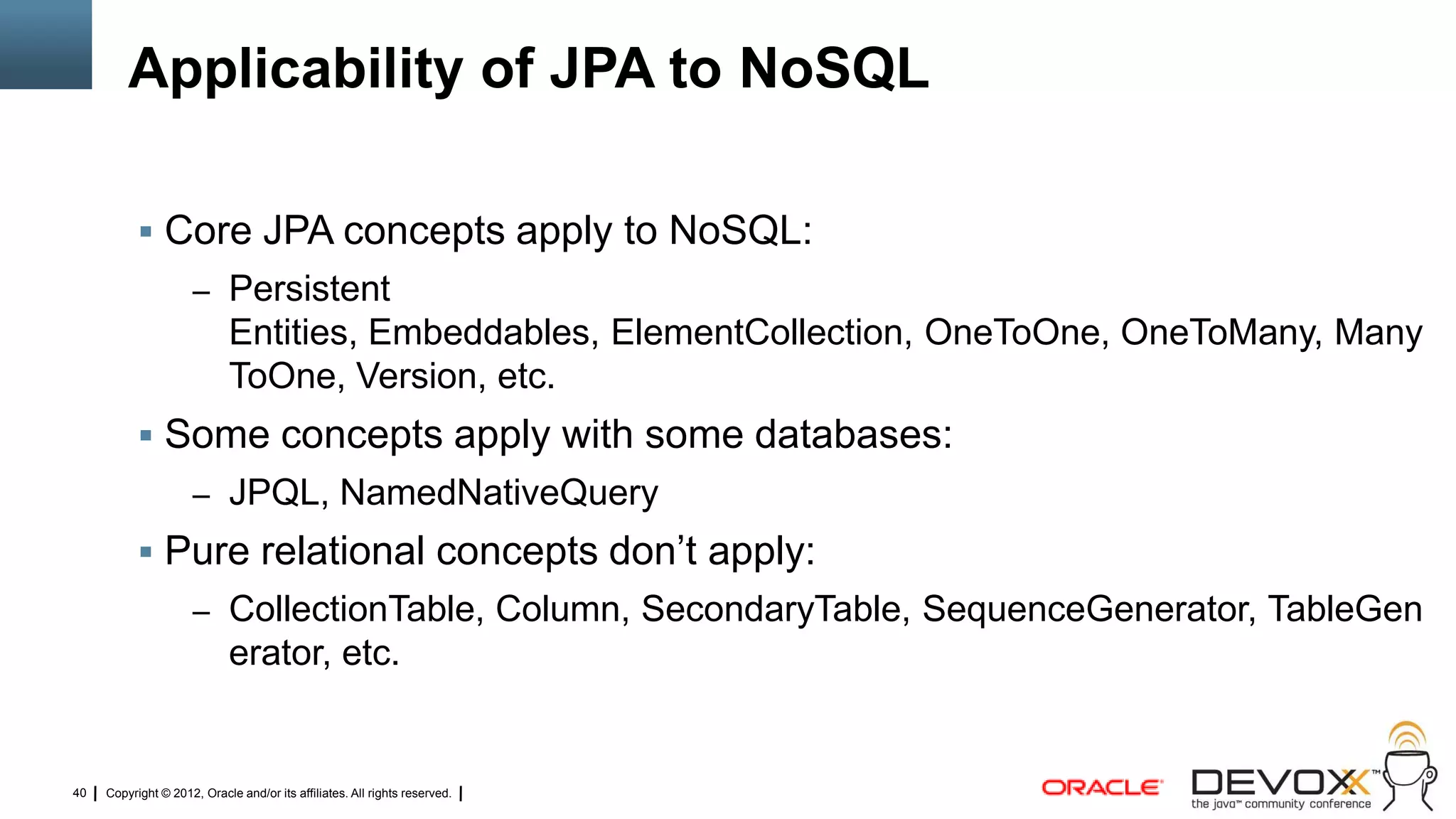

Applicability of JPA to NoSQL

 Core JPA concepts apply to NoSQL:
– Persistent
Entities, Embeddables, ElementCollection, OneToOne, OneToMany, Many
ToOne, Version, etc.
 Some concepts apply with some databases:
– JPQL, NamedNativeQuery
 Pure relational concepts don‘t apply:
– CollectionTable, Column, SecondaryTable, SequenceGenerator, TableGen
erator, etc.

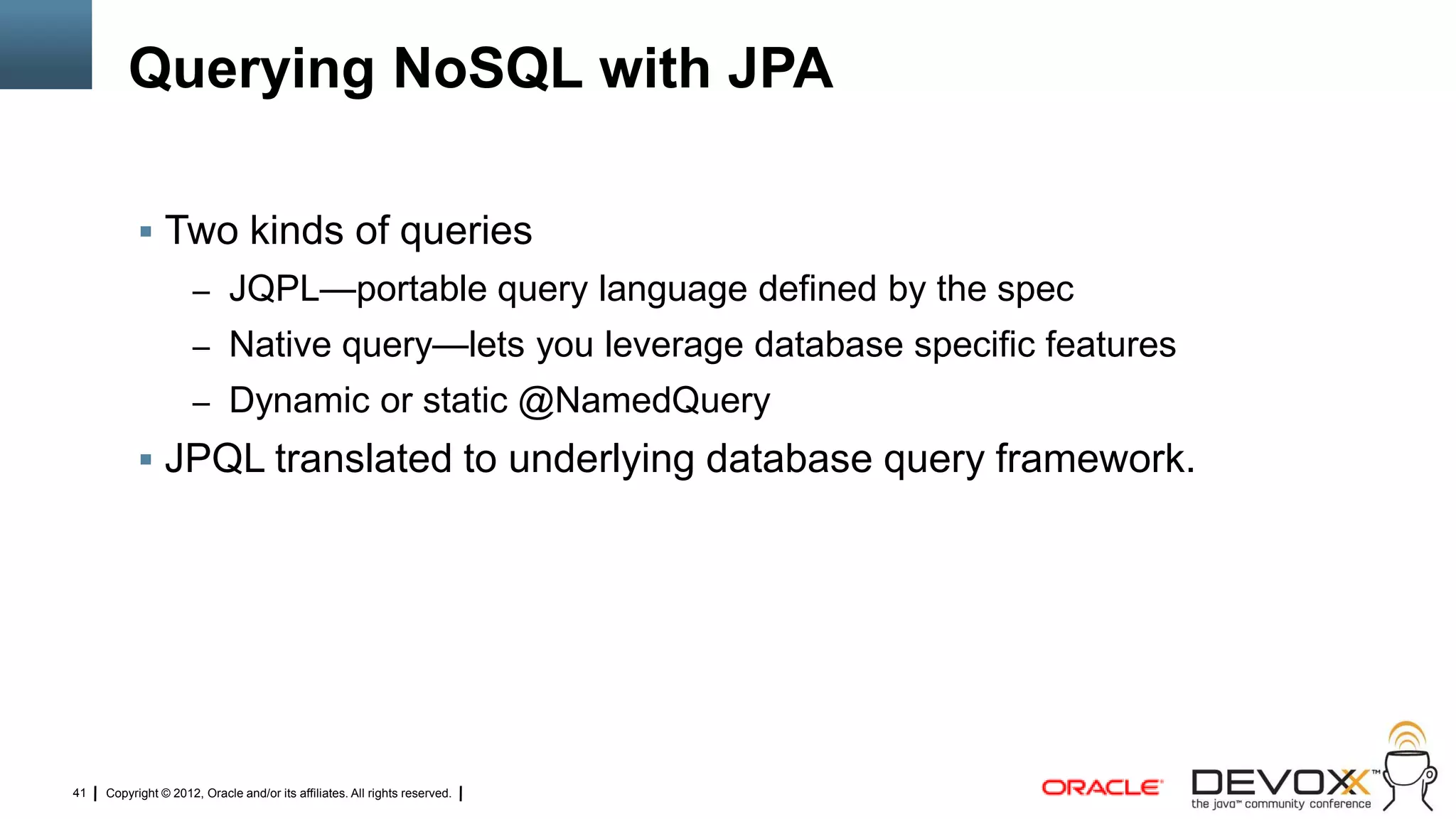

Querying NoSQL with JPA

 Two kinds of queries
– JQPL—portable query language defined by the spec
– Native query—lets you leverage database specific features
– Dynamic or static @NamedQuery
 JPQL translated to underlying database query framework.


Example MongoDB Mapped Entity

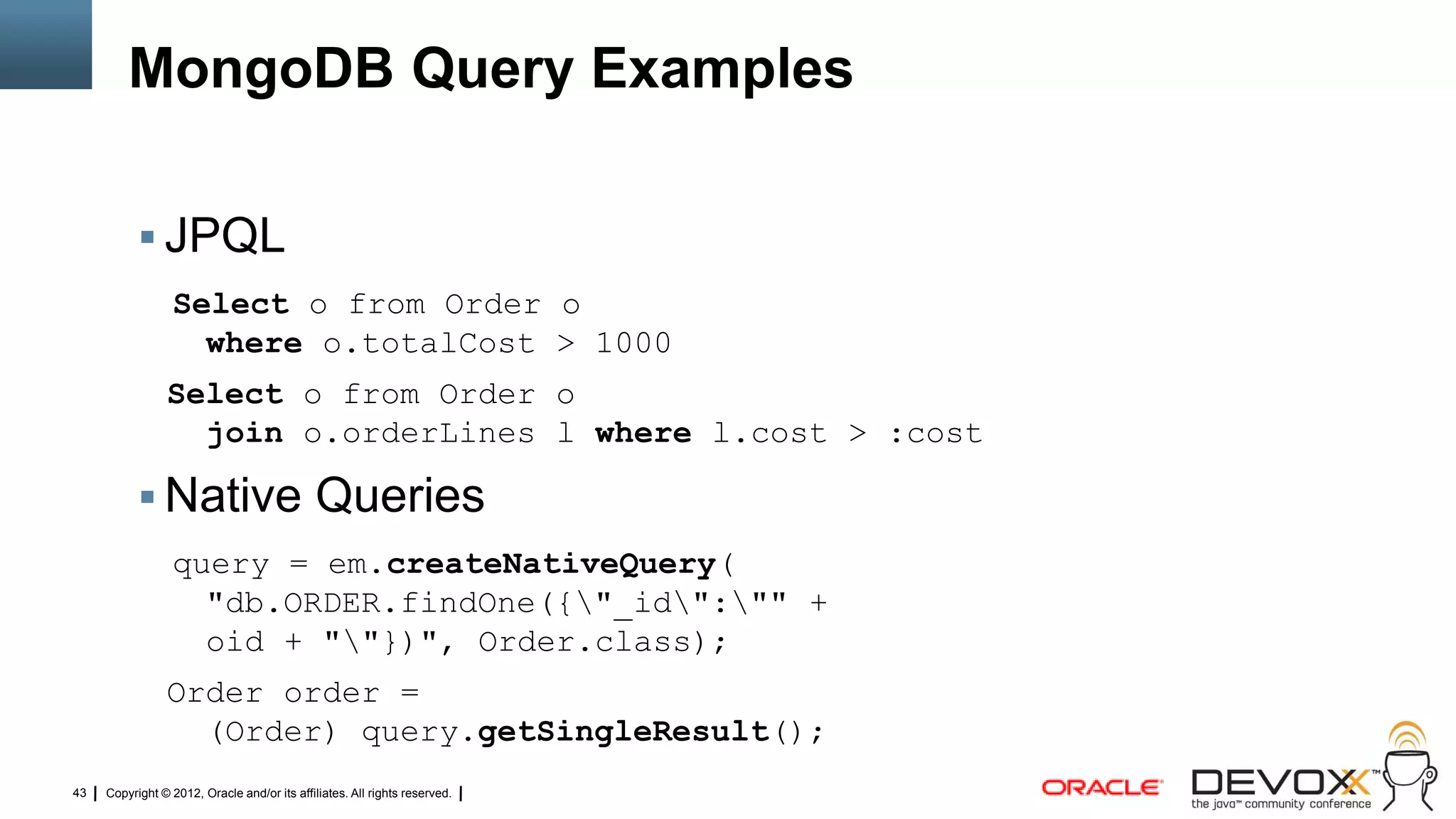

MongoDB Query Examples

 JPQL
Select o from Order o
where o.totalCost > 1000
Select o from Order o
join o.orderLines l where l.cost > :cost

 Native Queries
query = em.createNativeQuery(
"db.ORDER.findOne({"_id":"" +
oid + ""})", Order.class);
Order order =
(Order) query.getSingleResult();

Demo EclipseLink NoSQL

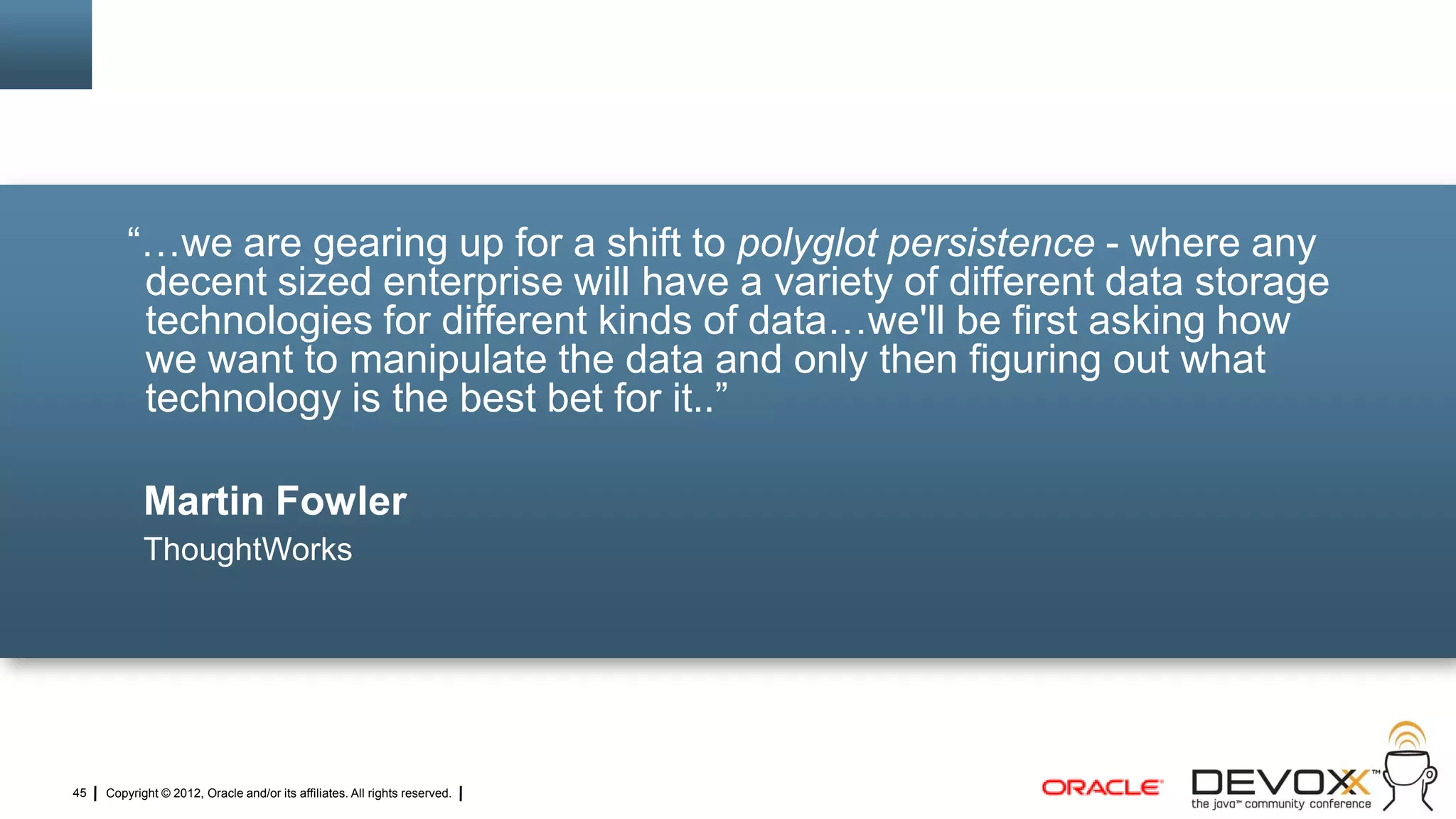

―…we are gearing up for a shift to polyglot persistence - where any
decent sized enterprise will have a variety of different data storage
technologies for different kinds of data…we'll be first asking how
we want to manipulate the data and only then figuring out what
technology is the best bet for it..‖

Martin Fowler
ThoughtWorks


Demo Polyglot Persistence

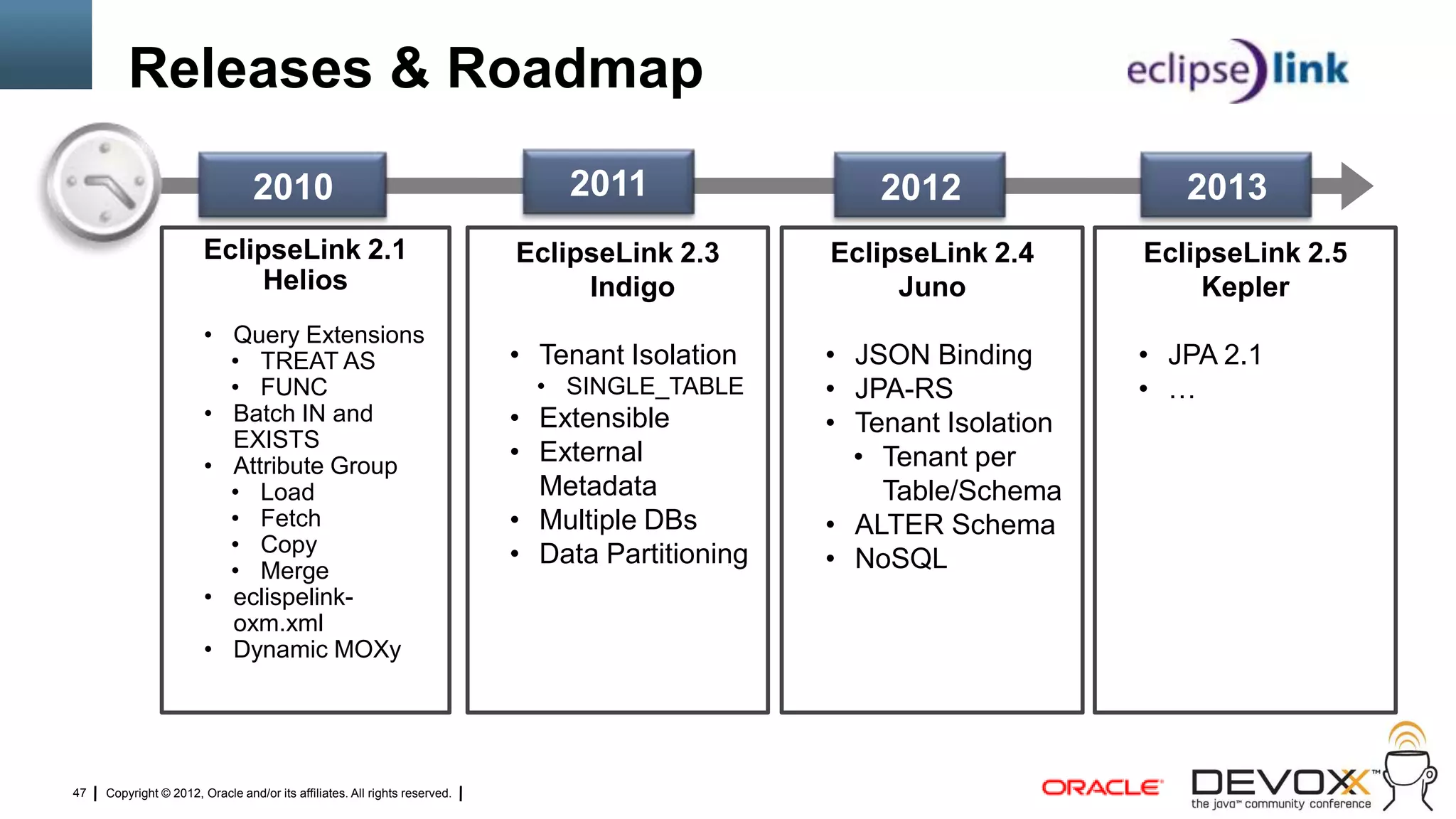

Releases & Roadmap
2010 2011 2012 2013
EclipseLink 2.1 EclipseLink 2.3 EclipseLink 2.4 EclipseLink 2.5
Helios Indigo Juno Kepler
• Query Extensions
• TREAT AS • Tenant Isolation • JSON Binding • JPA 2.1
• FUNC • SINGLE_TABLE • JPA-RS • …
• Batch IN and • Extensible • Tenant Isolation
EXISTS
• Attribute Group
• External • Tenant per
• Load Metadata Table/Schema
• Fetch • Multiple DBs • ALTER Schema
• Copy • Data Partitioning
• Merge • NoSQL
• eclispelink-
oxm.xml
• Dynamic MOXy

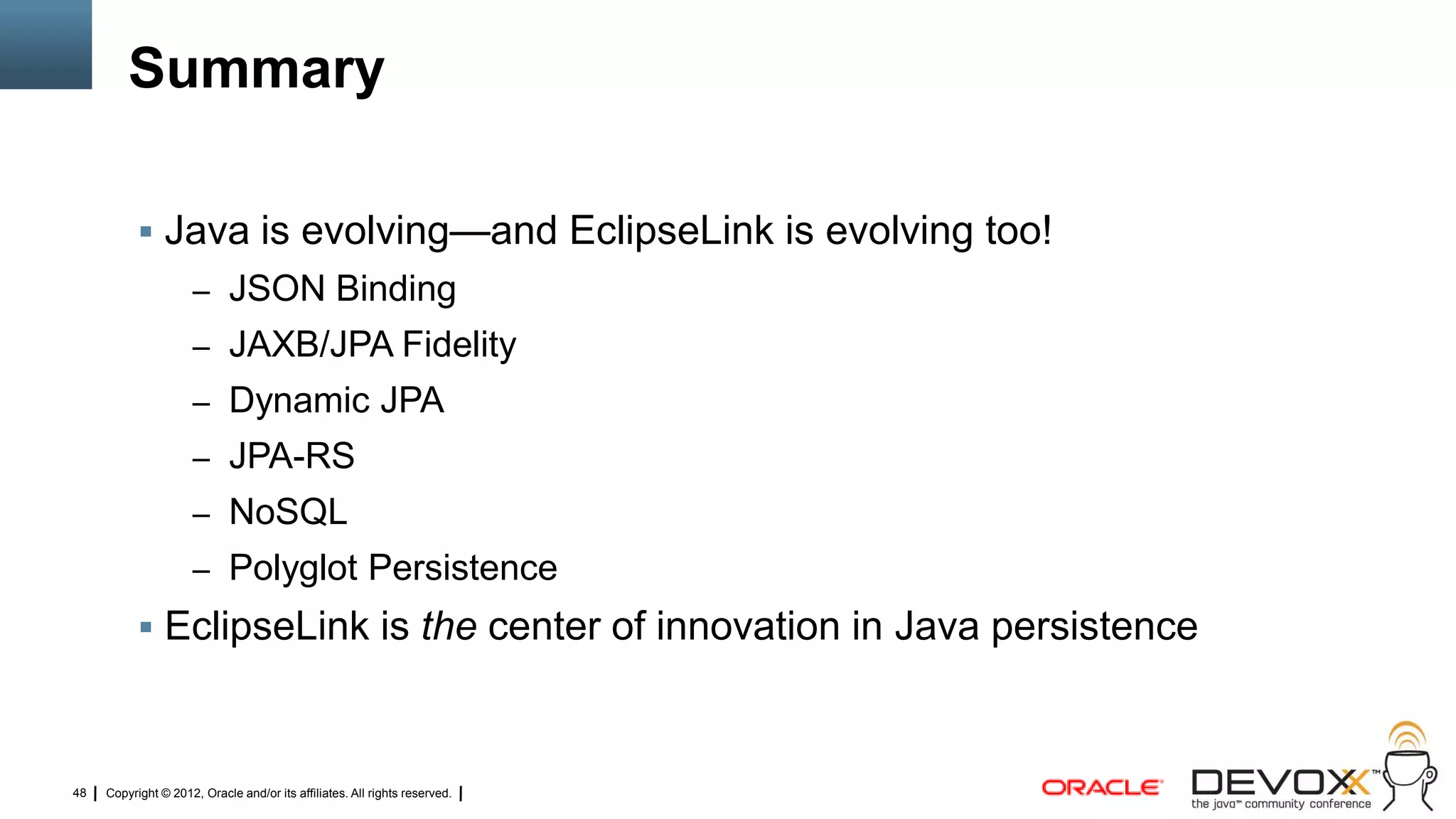

Summary

 Java is evolving—and EclipseLink is evolving too!
– JSON Binding
– JAXB/JPA Fidelity
– Dynamic JPA
– JPA-RS
– NoSQL
– Polyglot Persistence
 EclipseLink is the center of innovation in Java persistence
