Overview

The official n8n-nodes-scrapegraphai community node exposes the full v2 API as a single node with seven resources: Scrape, Extract, Search, Crawl, Monitor, History, and Credit. Drop it into any n8n workflow, point it at a URL, and you get markdown, structured JSON, screenshots, or a recurring monitor — wired into the rest of your stack via the 400+ nodes n8n already ships with.

Package on npm

n8n-nodes-scrapegraphai

Source on GitHub

Issues, PRs, and the changelog

Installation

Inside your n8n instance, open Settings → Community Nodes → Install and enter:

n8n-nodes-scrapegraphai

Acknowledge the risks prompt and install. The node appears as ScrapeGraphAI in the node panel.

Self-hosted n8n only — n8n Cloud does not yet allow community nodes. If you don’t have a host, follow the self-hosting guide.

Credentials

Add a new ScrapeGraphAI API credential and paste your API key. n8n will hit GET /api/credits to verify the key — a green banner confirms it works.

Get your API key from the ScrapeGraphAI dashboard.

What’s in the node

Resource	Operations	What it does
Scrape	`scrape`	Fetch a page in markdown, HTML, JSON (AI-extracted), screenshot, links, summary, branding, or any combination
Extract	`extract`	Run a natural-language prompt over a URL, raw HTML, or markdown — optional JSON schema
Search	`search`	AI web search with inline content; optional rollup prompt across results
Crawl	`start`, `getStatus`, `stop`, `resume`, `delete`	Async multi-page crawls with patterns, depth, per-page formats, MIME-type filters, and an external-link toggle
Monitor	`create`, `list`, `get`, `update`, `pause`, `resume`, `delete`, `activity`	Cron-scheduled fetches with diff detection and webhooks
History	`get`, `list`	Look up past results by `scrapeRefId` — used to fetch full content for crawled pages
Credit	`get`	Check remaining credits and plan

Every content-producing operation (Scrape / Extract / Search) exposes an Output parameter with three modes — Simplified, Raw, or Selected Fields — so the response shape stays predictable when chained into AI Agent tools or downstream nodes.

Tour the modules

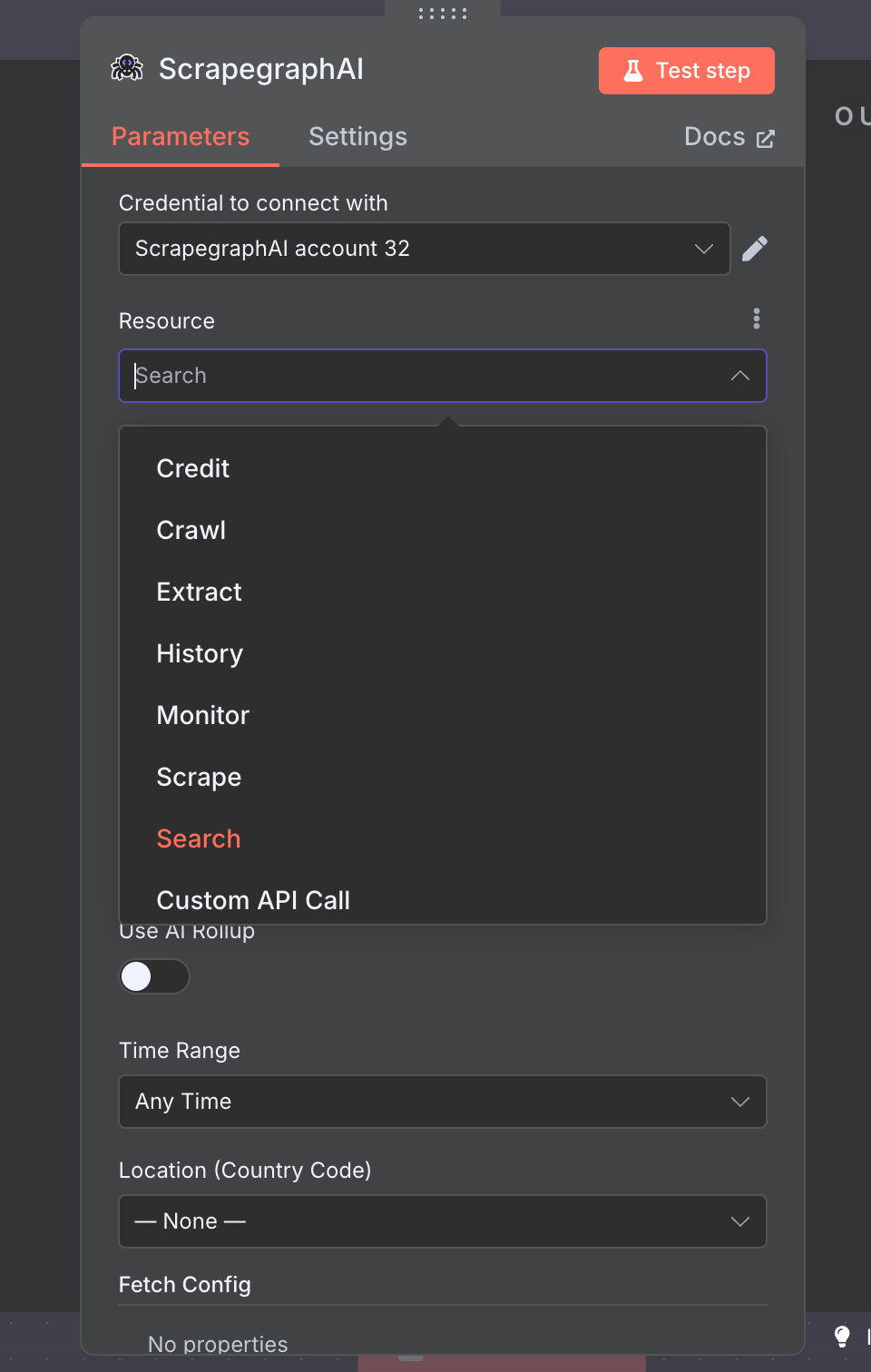

Drop a ScrapeGraphAI node onto the canvas, pick a credential, and the Resource dropdown gives you everything the v2 API exposes:

The rest of this section walks through each resource with its key fields visible.

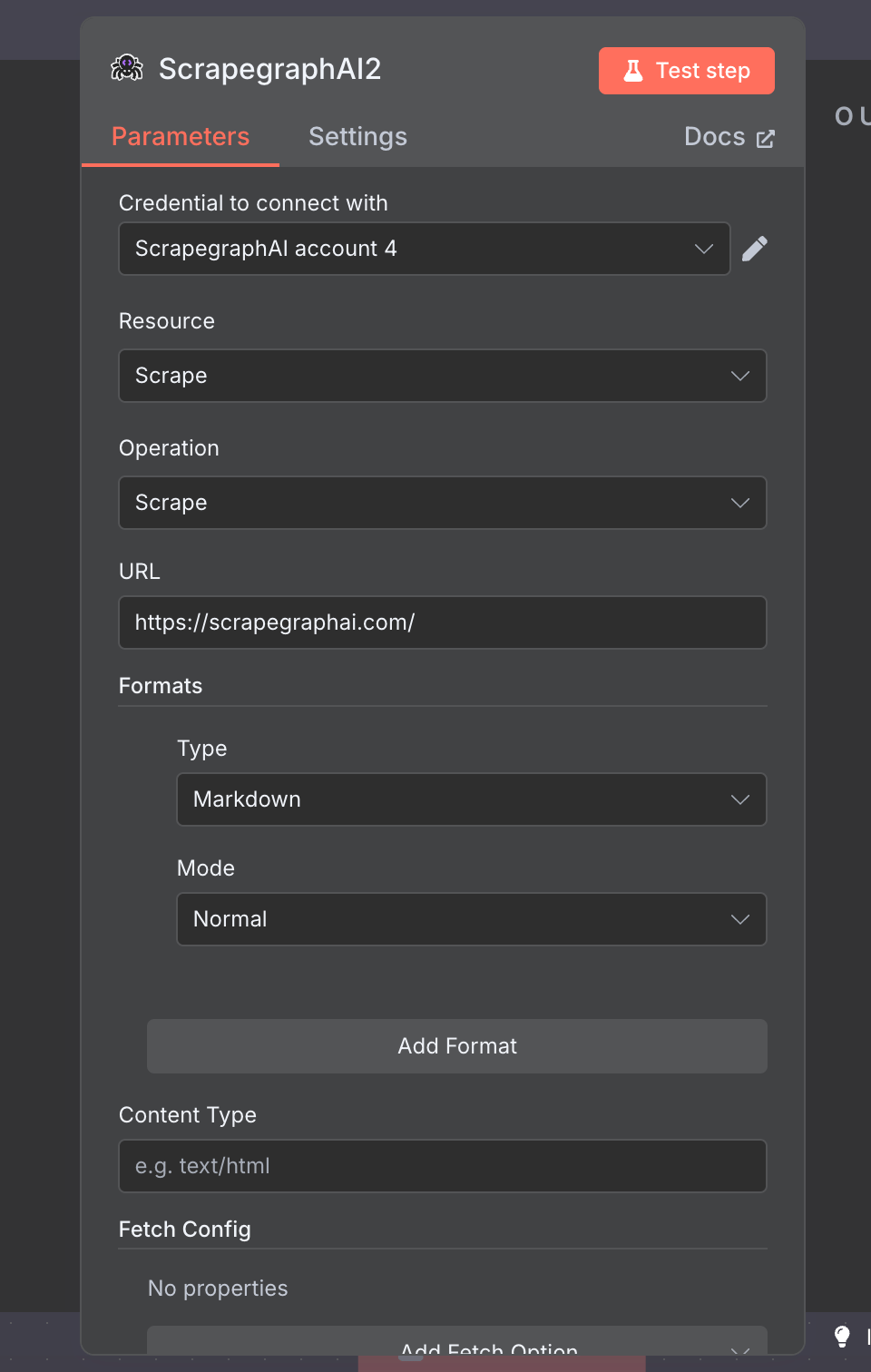

Scrape

Fetch a page in one or more formats — markdown, HTML, JSON (AI extraction), screenshot, links, summary, or branding. Add as many Format rows as you need; each one carries its own per-format options.

Field	Notes
URL	The page to fetch
Formats	Add one row per output format. Each format exposes its own sub-options (Mode for markdown/HTML, Prompt+Schema for JSON, Full Page/Width/Height/Quality for screenshots).
Content Type	Optional MIME-type hint for the fetcher
Fetch Config	See Fetch Config below

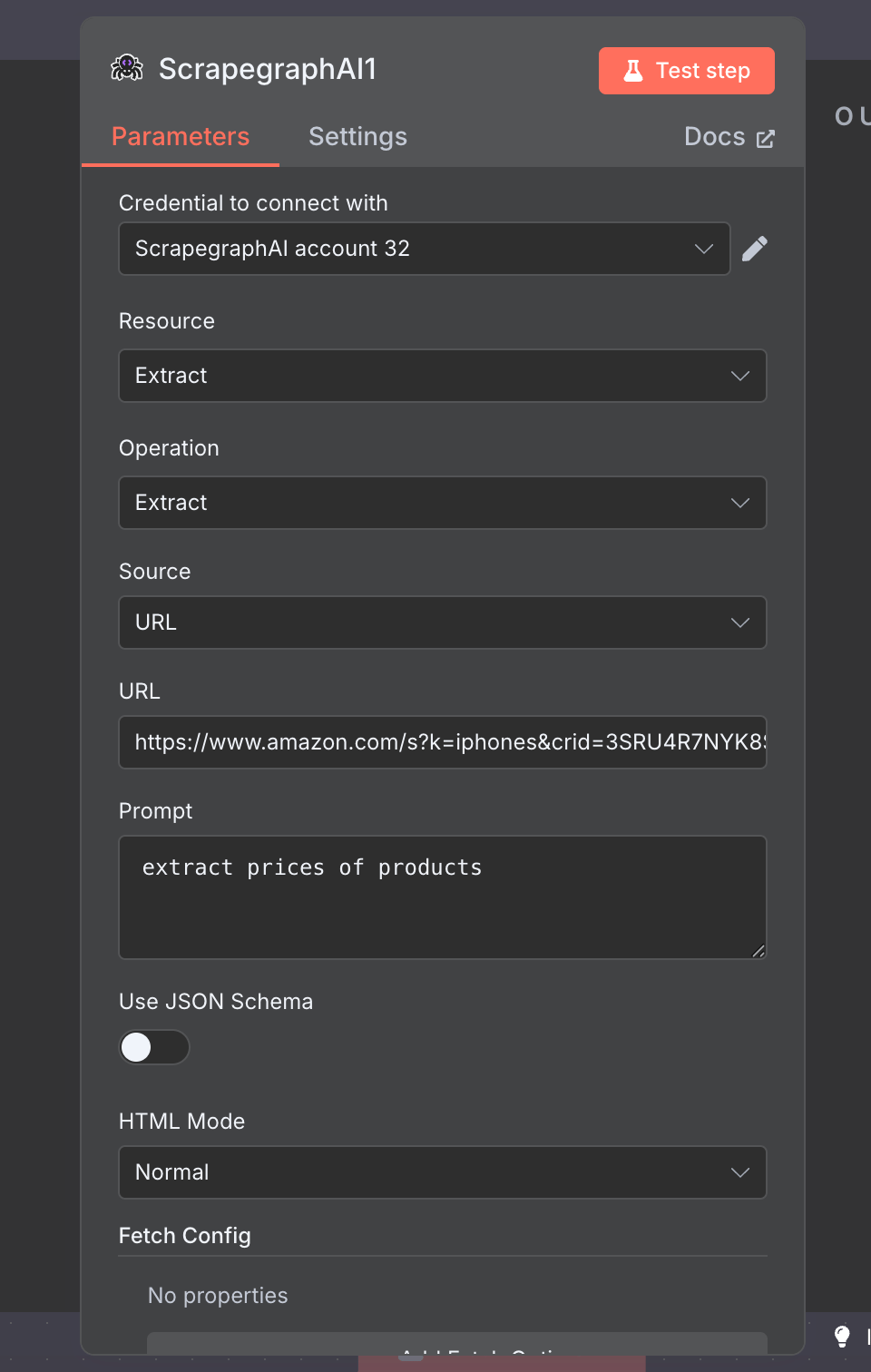

Extract

Run a natural-language prompt over a URL, raw HTML, or markdown. Toggle Use JSON Schema to constrain the output shape.

Field	Notes
Source	`URL`, `HTML`, or `Markdown` — picks the input mode
Prompt	What you want extracted, in plain English
Use JSON Schema	Toggle on to paste a JSON schema and lock the output shape
HTML Mode	`Normal`, `Reader`, or `Prune` — controls how the page HTML is preprocessed before extraction

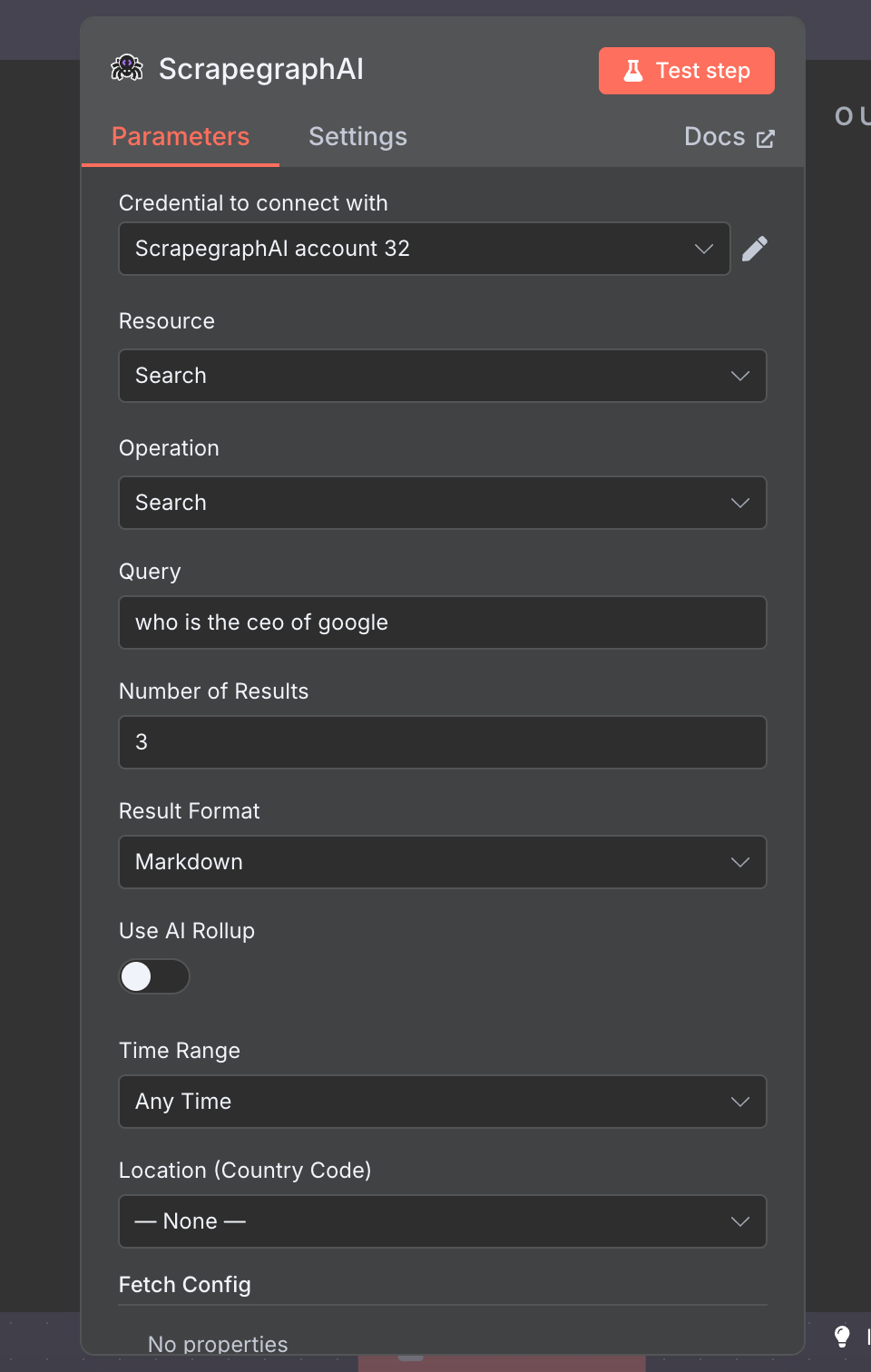

Search

Run an AI-powered web search and get the top results with content already fetched. Toggle Use AI Rollup to summarise across all results in one call.

Field	Notes
Query	The search query
Number of Results	1–20
Result Format	`Markdown` or `HTML` for each result’s inline content
Use AI Rollup	Toggle on to add a `Prompt` (and optional schema) that runs across the fetched results
Time Range	Filter to past hour / day / week / month / year
Location (Country Code)	52 curated ISO codes for geo-targeted results

Crawl

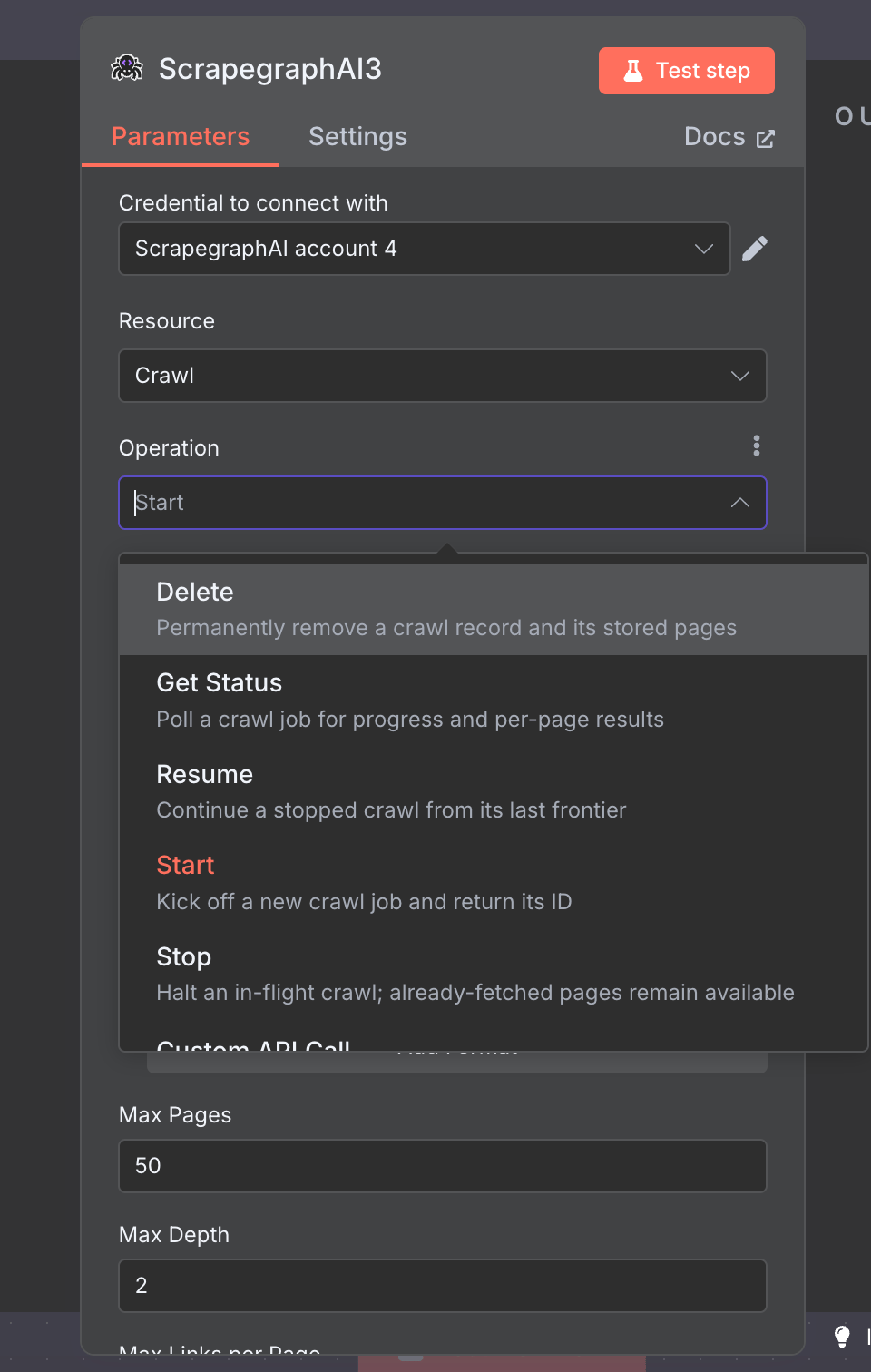

Asynchronous multi-page crawl with five operations:

Start kicks off a crawl and returns a job ID — the other ops drive the lifecycle (poll, halt, resume, clean up).

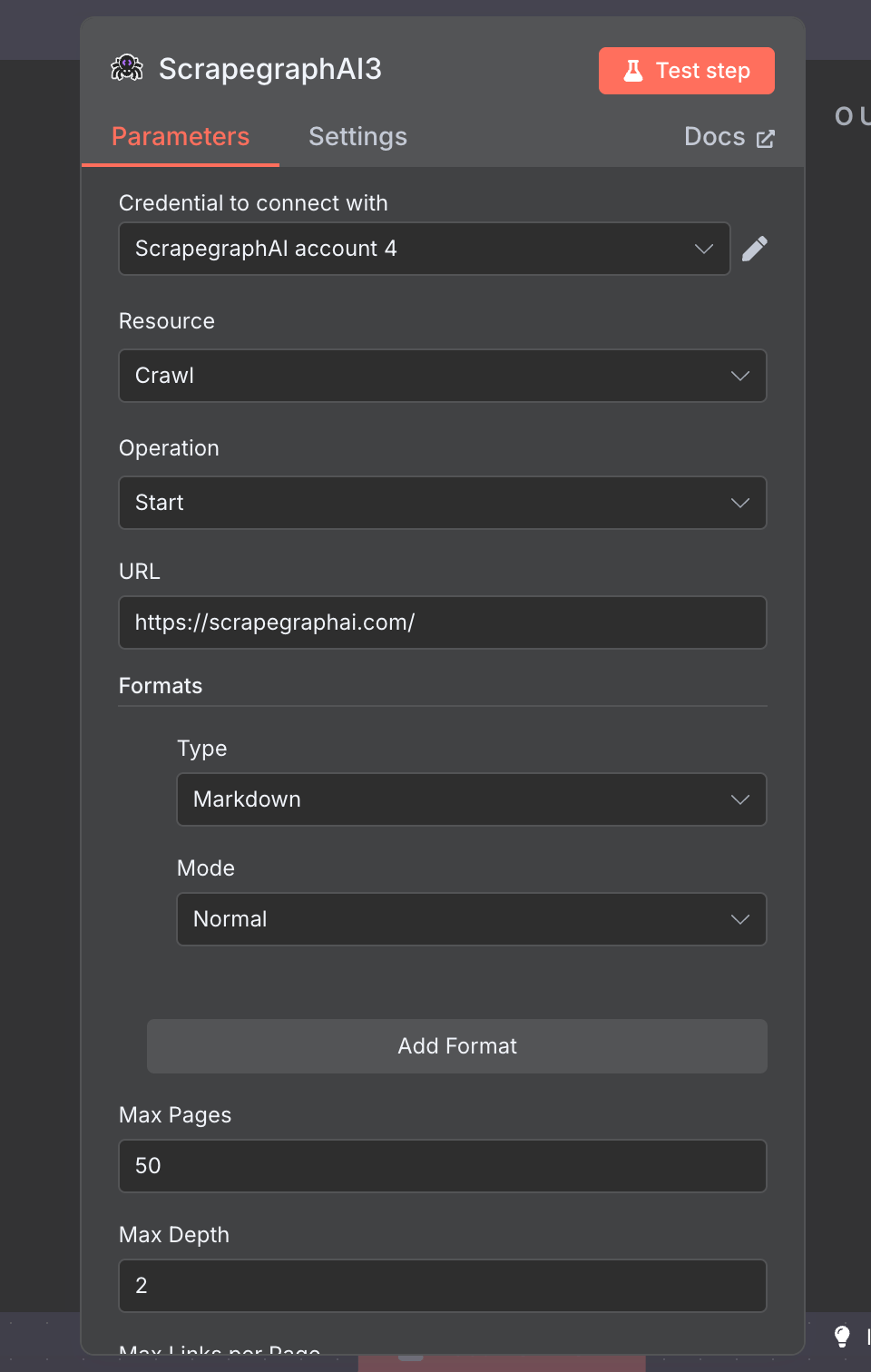

Crawl Start node with URL, Markdown format, Max Pages 50, Max Depth 2

Field	Notes
URL	Starting URL
Formats	Same multi-format model as Scrape — every crawled page is captured in each format you add
Max Pages	Default `50`, max `1000`
Max Depth	Default `2`
Max Links per Page	Default `10`
Allow External Links	Off by default — keeps the crawl on the starting domain
Include / Exclude Patterns	Glob-style URL filters
Content Types	Optional MIME-type filter (HTML, PDF, DOCX, images, …)

Monitor

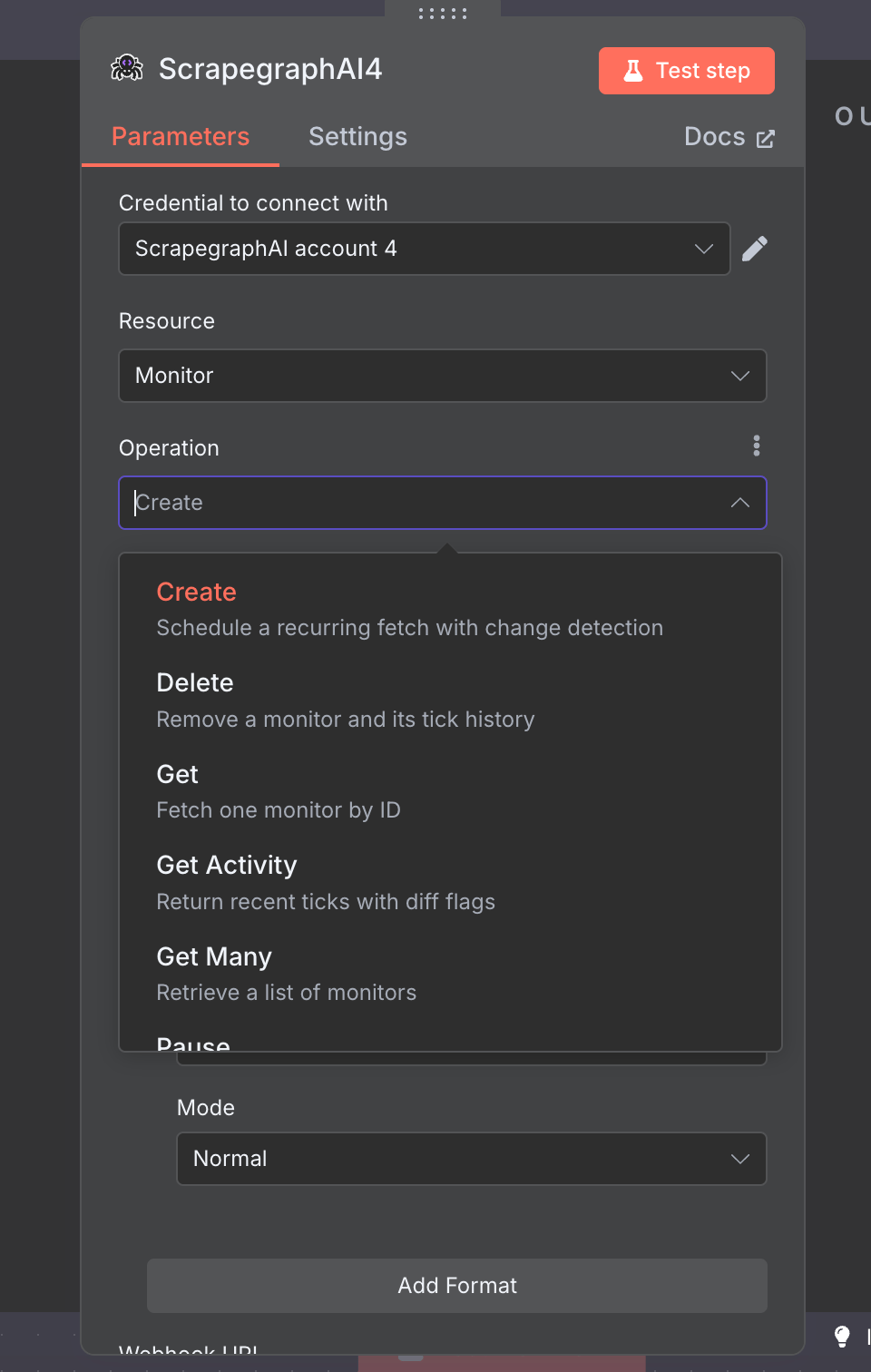

Cron-scheduled fetches with diff detection and webhook delivery. Eight operations cover the whole monitor lifecycle:

Create schedules a recurring fetch; Get Activity returns recent ticks with diff flags so you can react to changes.

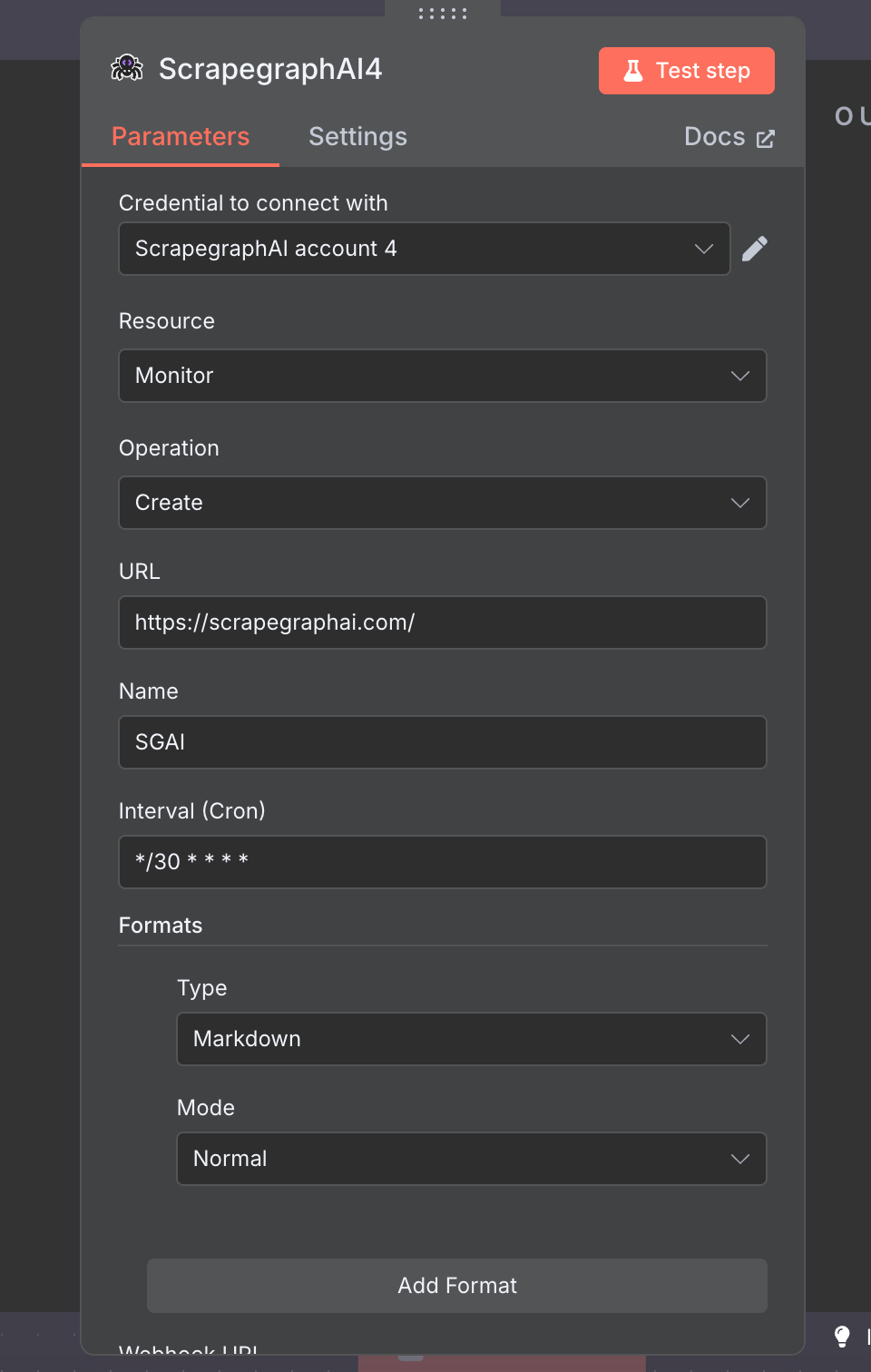

Monitor Create node with URL, Name, cron interval, and a Markdown format

Field	Notes
URL	Page to monitor
Name	Human label for the monitor
Interval (Cron)	Standard 5-field cron expression — e.g. `/30 * * *` for every 30 minutes
Formats	Same multi-format model — each tick captures all configured formats
Webhook URL	Optional. Wire to an n8n Webhook node for instant delta notifications.

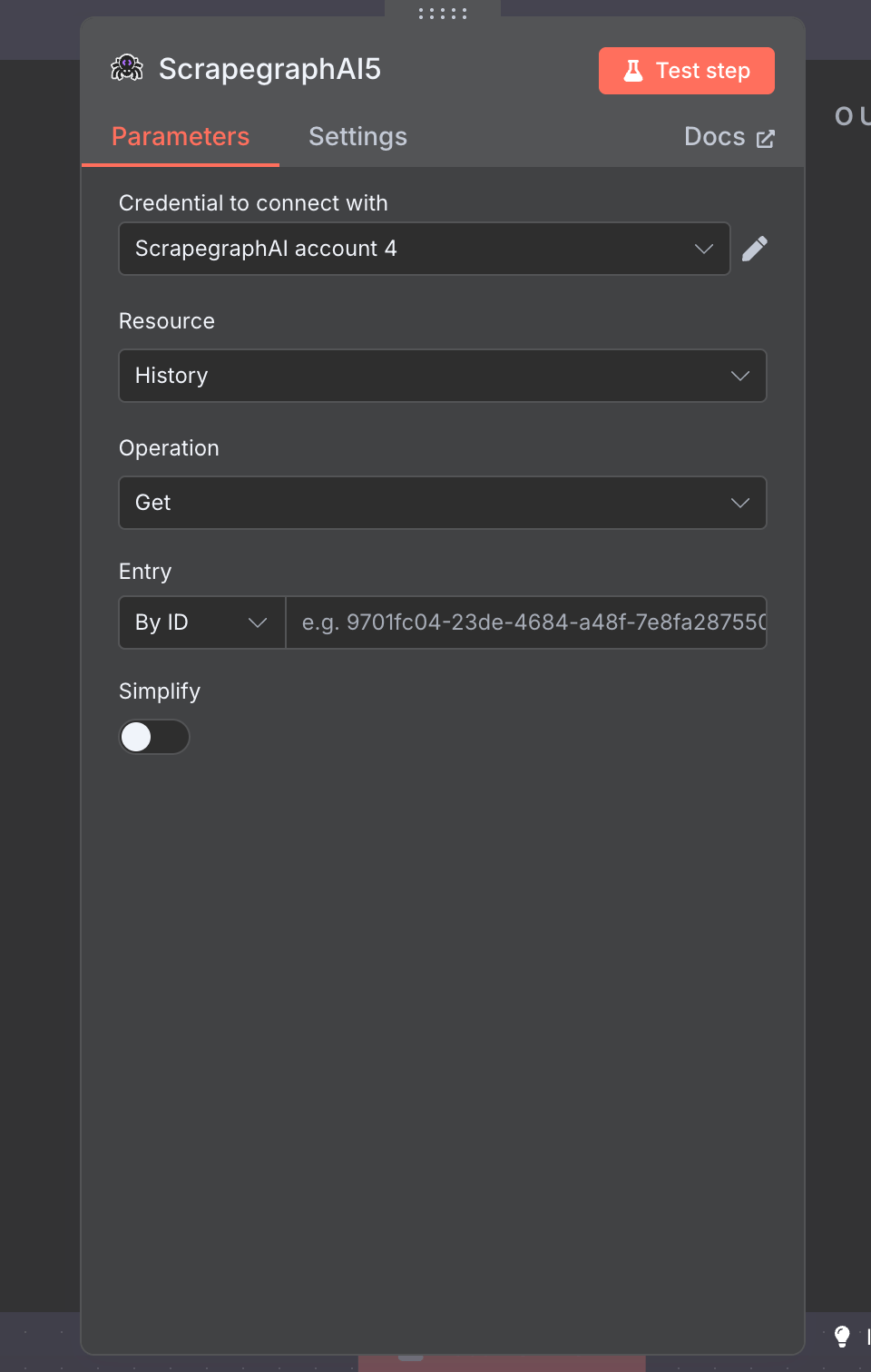

History

Look up past results by scrapeRefId. Used to retrieve full content for crawled pages (Crawl returns pointers, History fetches the bytes).

Field	Notes
Operation	`Get` (single entry by ID) or `Get Many` (paginated list)
Entry	Resource Locator — paste an ID directly, or use an expression like `={{ $json.scrapeRefId }}`
Simplify	Toggle off to get the full v2 response payload

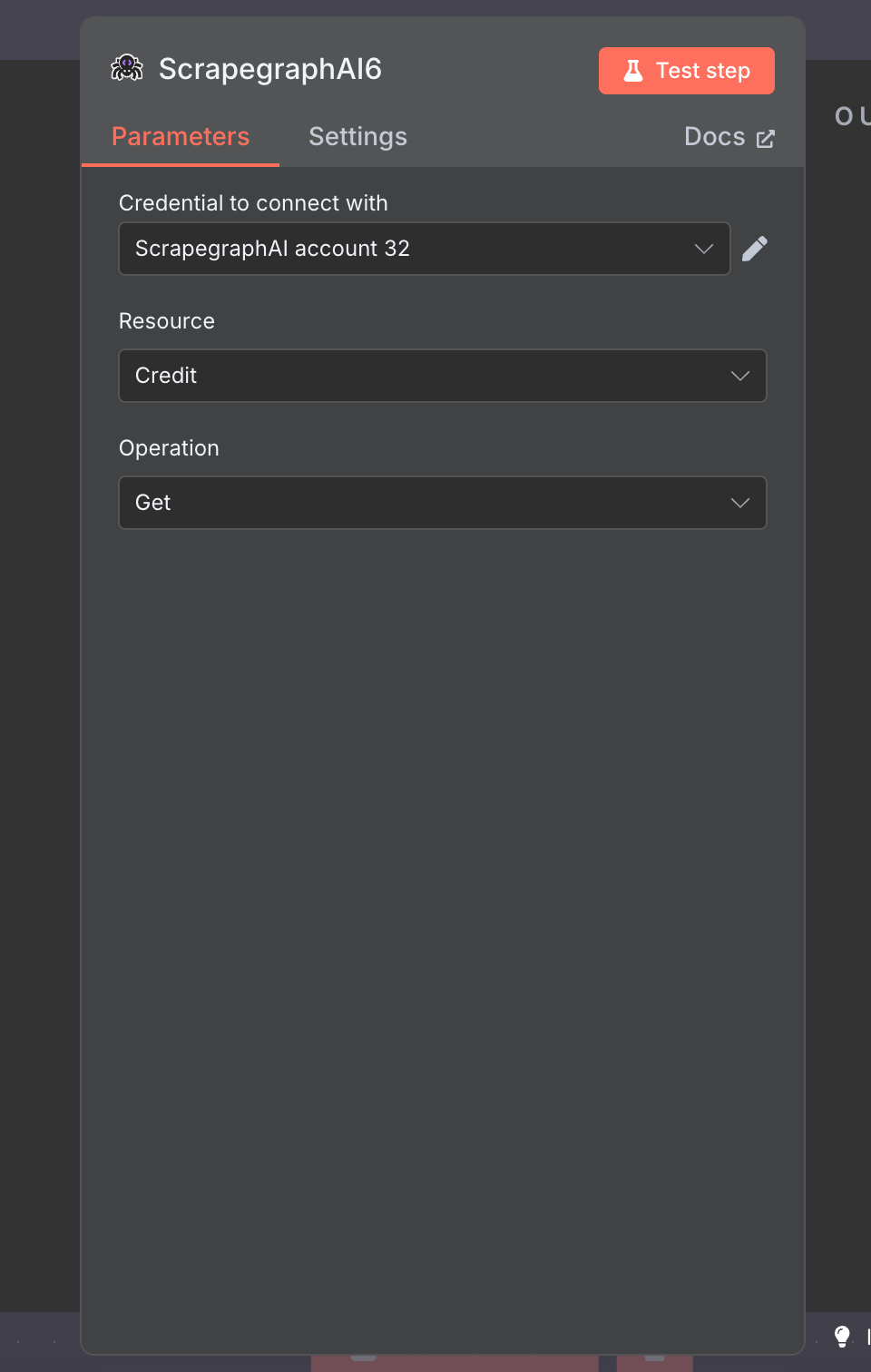

Credit

Quick check on remaining credits and current plan. Zero-config — pick the resource, hit Test step.

Example workflow: crawl a site, save every page to Airtable

End-to-end walkthrough that chains Crawl → Wait → Crawl Status → Split Out → History → Airtable. The same pattern works for Notion, Google Sheets, Postgres, S3 — anywhere n8n can write.

Full n8n workflow canvas: Manual Trigger → Crawl Start → Wait → Crawl Status → Split Out → History Get → Airtable

1. Crawl → Start

Kick off the crawl. The node returns a cronId (the crawl job ID) which the rest of the workflow chases.

Field	Value
Resource	`Crawl`
Operation	`Start`
URL	`https://scrapegraphai.com/`
Formats	one entry, `Markdown` (mode `Normal`)
Max Pages	`6`
Max Depth	`2`

2. Wait

Add a Wait node (~60 seconds). Crawls are asynchronous — give the worker time to fetch a few pages before polling.

3. Crawl → Get Status

Pull the job state. When status is completed (or partial), the response includes a pages array with one entry per crawled page — each carrying the page URL, depth, title, and a scrapeRefId pointer to the stored result.

Crawl Get Status node parameters with the Resource Locator filled by an expression

Field	Value
Resource	`Crawl`
Operation	`Get Status`
Crawl ID	`={{ $('ScrapegraphAI').item.json.id }}` (Resource Locator, expression)

4. Split Out

Split the pages array into one item per page so the next node runs once per crawled URL.

Split Out node configured to fan out the pages array

Field	Value
Field To Split Out	`pages`

5. History → Get

For each page, fetch the full content (markdown, HTML, JSON — whatever formats the crawl captured) using the scrapeRefId from Split Out.

Field	Value
Resource	`History`
Operation	`Get`
Entry	`={{ $json.scrapeRefId }}` (Resource Locator, expression)
Simplify	off

6. Airtable → Create

Map the page metadata + content into a row. Switch the Base and Table dropdowns to By ID mode and paste your IDs, then map fields with expressions:

Airtable node parameters with five mapped column expressions

Column	Expression
URL	`={{ $('Split Out').item.json.url }}`
Title	`={{ $('Split Out').item.json.title }}`
Depth	`={{ $('Split Out').item.json.depth }}`
ContentType	`={{ $json.metadata.contentType }}`
Markdown	`={{ $json.result.results.markdown.data[0] }}`

7. Run it

Hit Test workflow. The node fires once per crawled page and writes a row each time:

Airtable base populated with one row per crawled page

Output modes for AI Agent tools

When you attach the node as a tool to an n8n AI Agent, the Output parameter on Scrape / Extract / Search becomes load-bearing:

Simplified — flattened response with the most useful top-level fields (id, json, results, usage, …). Easiest for an LLM to reason over.
Raw — the full v2 API response, untouched.
Selected Fields — comma-separated allowlist of top-level keys.

Pick the mode that matches what your agent needs to see.

Patterns that carry over

Pattern	Resource(s)	Notes
One-shot fetch	Scrape	Use `formats=[{type:"markdown"}]` for the cheapest pass
Structured extraction	Extract or Scrape with JSON format	JSON schema is optional but locks the shape
Multi-page archive	Crawl + History (this guide)	`History → Get` is how you retrieve the bytes a crawl captured
Recurring fetch with diff	Monitor	Wire the `webhookUrl` field to an n8n Webhook node for instant deltas
AI search rollup	Search with prompt	Single-call alternative to “search → scrape each result → summarize”

Fetch Config

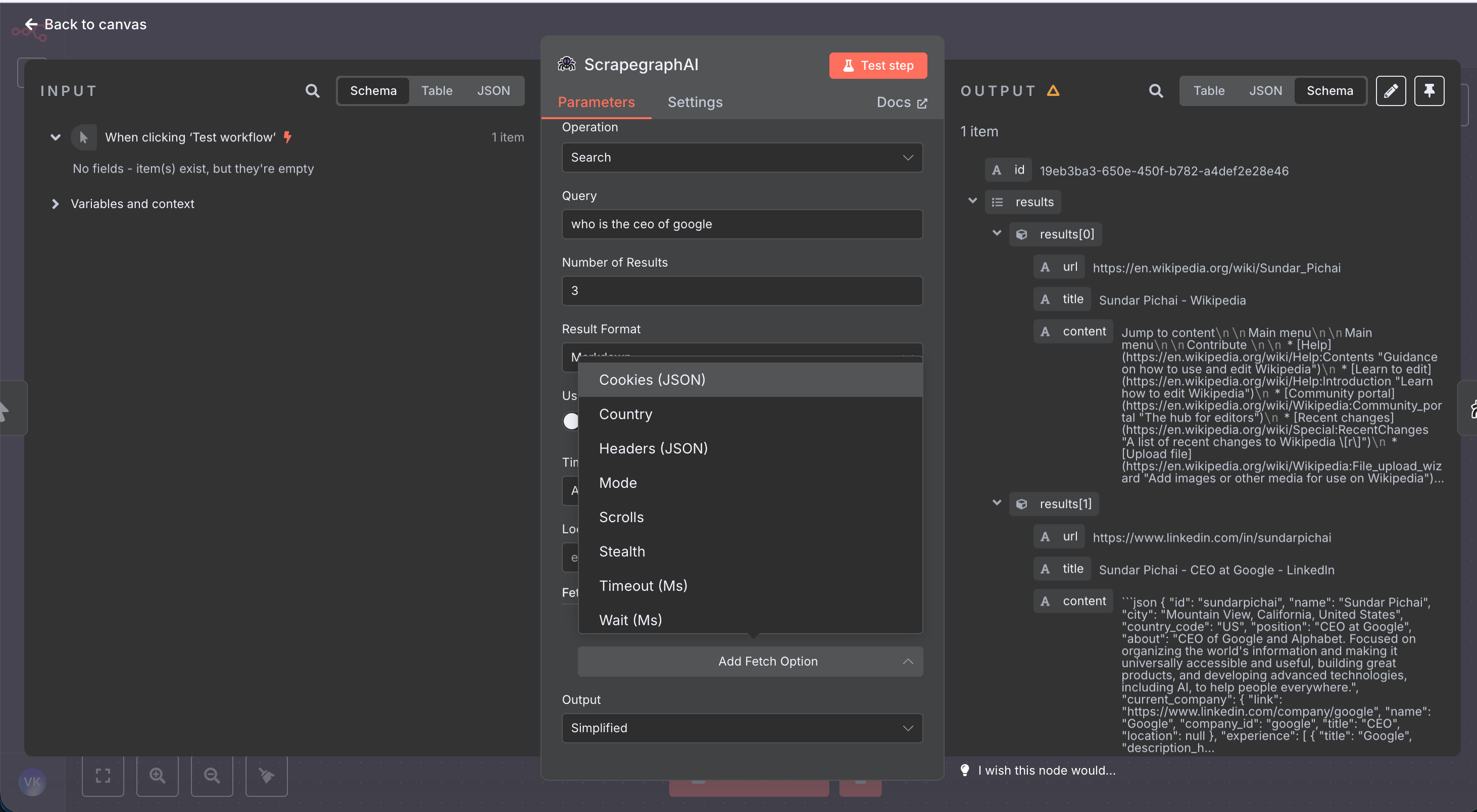

Five resources — Scrape, Extract, Search, Crawl, and Monitor — expose an optional Fetch Config collection that controls how each page is fetched. Open the dropdown on any of those operations to surface the eight knobs:

Field	Description
Mode	Fetch mode — `Auto` (default), `Fast` (skips JS rendering), or `JS` (executes scripts)
Stealth	Residential proxy + anti-bot headers. Adds 5 credits per call
Country	Two-letter ISO country code for geo-targeted proxy (e.g. `us`, `de`, `jp`)
Wait (Ms)	Milliseconds to wait after page load (0–30000)
Timeout (Ms)	Request timeout in milliseconds (1000–60000)
Scrolls	Number of page scrolls to trigger lazy-loaded content (0–100)
Headers (JSON)	Custom HTTP headers as a JSON object string
Cookies (JSON)	Cookies as a JSON object string

Reach for Stealth + Mode = JS + Wait = 2000–5000 when a site blocks bots or only renders content after JavaScript runs. Combine with Country for region-locked pages.

Troubleshooting

Unknown field name: "id" from Airtable — your column names don’t match. Switch the Airtable node’s mapping to Map Each Column Manually and only fill the columns that exist in your table.
Crawl Get Status returns pages: [] — the crawl is still running. Increase the Wait duration or poll until status === "completed".
History Get returns an old result — scrapeRefId always points to the latest result for that pointer. Trigger a fresh crawl to refresh.
Credentials test fails — confirm the key is from the v2 dashboard. The node calls https://v2-api.scrapegraphai.com/api/credits; v1 keys won’t validate.
