This example demonstrates the concept of workflows.

The actual payload of the tasks is rather trivial. The workflow consists of 26 tasks which convert an integer between 97 and 122 (ascii) into a character. A single task collects the results in the end and writes all characters into a text file.

Resources: luigi, law

There are multiple ways to setup and run this example:

1. Docker: docker run -ti riga/law:example loremipsum
2. Local: source setup.sh

law index --verbose

You should see:

loading tasks from 1 module(s)
loading module 'analysis.tasks', done

module 'analysis.tasks', 2 task(s):
    - CreateChars
    - CreateAlphabet

written 2 task(s) to index file '/law/examples/workflows/.law/index'

law run CreateAlphabet --print-status -1

No tasks ran so far, so no output target should exist yet. You will see this output:

print task status with max_depth -1 and target_depth 0

> check status of CreateAlphabet()
|   - check LocalFileTarget(path=/law/examples/workflows/data/CreateAlphabet/alphabet.txt)
|     -> absent
|
|   > check status of CreateChars(branch=-1, ...)
|   |   - check TargetCollection(len=26, threshold=1.0)
|   |     -> absent (0/26)

law run CreateAlphabet

This should take only a few seconds to process.

By default, this example uses a local scheduler, which - by definition - offers no visualization tools in the browser. If you want to see how the task tree is built and subsequently run, run luigid in a second terminal. This will start a central scheduler at localhost:8082 (the default address). To inform tasks (or rather workers) about the scheduler, either add --local-scheduler False to the law run command, or set the local-scheduler value in the [luigi_core] config section in the law.cfg file to False.

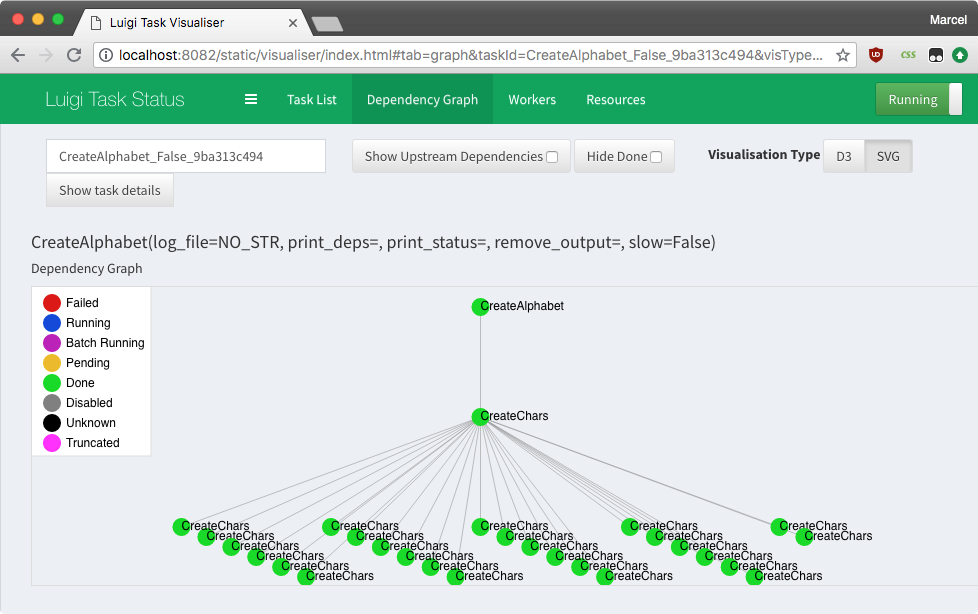

The task tree should look like this in the scheduler app:

Also, you might want to add the --slow parameter to make the tasks somewhat slower in order to see the actual progress in the scheduler (this is of course not a feature of law, but only implemented by the tasks in this example ;) ).

law run CreateAlphabet --print-status 1

When step 2 succeeded, all output targets should exist:

print task status with max_depth 1 and target_depth 0

> check status of CreateAlphabet()
|   - check LocalFileTarget(path=/law/examples/workflows/data/CreateAlphabet/alphabet.txt)
|     -> existent
|
|   > check status of CreateChars(branch=-1, ...)
|   |   - check TargetCollection(len=26, threshold=1.0)
|   |     -> existent (26/26)

To see the status of the targets in the collection, i.e., the grouped outputs of the branch tasks, set the target depth via --print-status 1,1.

cd data
ls

law run CreateAlphabet --remove-output -1
