Provide more specific file type descriptions on macOS - #117713

Merged
João Moreno (joaomoreno) merged 4 commits into
microsoft:mainfrom
NSExceptional:darwin-filetypes-pr
Jul 16, 2021
Merged

Provide more specific file type descriptions on macOS#117713
João Moreno (joaomoreno) merged 4 commits into
microsoft:mainfrom
NSExceptional:darwin-filetypes-pr

Conversation

@NSExceptional

@NSExceptional Tanner Bennett (NSExceptional) commented Feb 25, 2021

Copy link
Copy Markdown
Contributor

Motivation and Summary of Changes

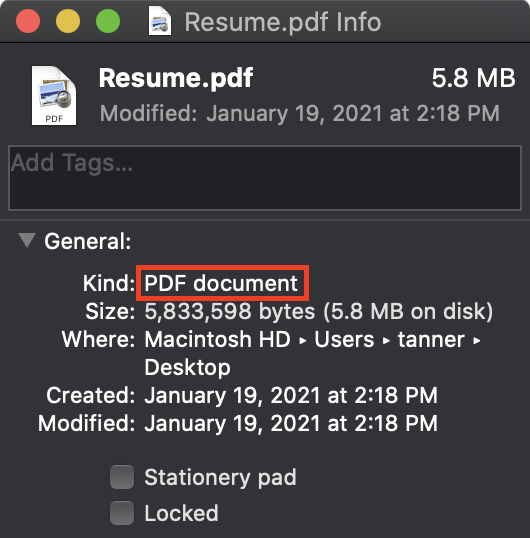

Right now, VS Code defines the file type description for every file association it creates as "VS Code document", which is not very useful. The file type description is what appears in the Info pane for a file in Finder:

Info pane, PDF document

This PR aims to 1) make it possible to specify specific names at all, and 2) to provide some default names for most of the existing supported file types.

My commit messages and code documentation have more detailed information on the approach I took to this.

Oh, also, I could not for the life of me figure out how to get these changes to build. I ran yarn compile inside build/ and it built the *.js files, but could not get the results published in the final product. If someone can tell me how to do that, I will test it on my machine to ensure it works as expected.

PR Checklist

  • There is no issue associated with this PR, because I just started on a PR first instead of making an issue.
    Do I need to create an issue anyway?

  • I have read through the coding guidelines and I think the only guideline I may be breaking is this one:

    Do not introduce new types or values to the global namespace

    However, I'm not sure where to put the two new types I declared. I need some direction here if my PR cannot be merged because of this.

@ghost

Deleted user (ghost) commented Feb 25, 2021

Copy link
Copy Markdown

CLA assistant check
All CLA requirements met.

@NSExceptional Tanner Bennett (NSExceptional) changed the title Provide more specific file type descriptions Provide more specific file type descriptions on macOS Feb 25, 2021
@NSExceptional
Tanner Bennett (NSExceptional) force-pushed the darwin-filetypes-pr branch 2 times, most recently from 853a28c to c9d10a8 Compare February 26, 2021 20:14
@NSExceptional

Copy link
Copy Markdown
Contributor Author

Fixed the build errors, but still haven't actually been able to test it

@joaomoreno

Copy link
Copy Markdown
Contributor

PR Checklist

  • There is no issue associated with this PR, because I just started on a PR first instead of making an issue.
    Do I need to create an issue anyway?

Yeah let's create one.

  • I have read through the coding guidelines and I think the only guideline I may be breaking is this one:

    Do not introduce new types or values to the global namespace

    However, I'm not sure where to put the two new types I declared. I need some direction here if my PR cannot be merged because of this.

You're good here, no worries. 👌

Oh, also, I could not for the life of me figure out how to get these changes to build. I ran yarn compile inside build/ and it built the *.js files, but could not get the results published in the final product. If someone can tell me how to do that, I will test it on my machine to ensure it works as expected.

You'll be able to build an OSS version of VS Code with yarn gulp vscode-darwin, let me know how that goes.

@joaomoreno

Copy link
Copy Markdown
Contributor

Tanner Bennett (@NSExceptional) I'll set the PR to draft until you've tested and we're ready for a review.

@joaomoreno João Moreno (joaomoreno) added engineering VS Code - Build / issue tracking / etc. macos Issues with VS Code on MAC/OS X install-update VS Code installation and upgrade system issues workbench-os-integration Native OS integration issues and removed engineering VS Code - Build / issue tracking / etc. labels Mar 1, 2021
@joaomoreno
João Moreno (joaomoreno) marked this pull request as draft March 1, 2021 08:53
@NSExceptional

Tanner Bennett (NSExceptional) commented Mar 1, 2021

Copy link
Copy Markdown
Contributor Author

João Moreno (@joaomoreno) No dice, it builds without errors then fails to run :/

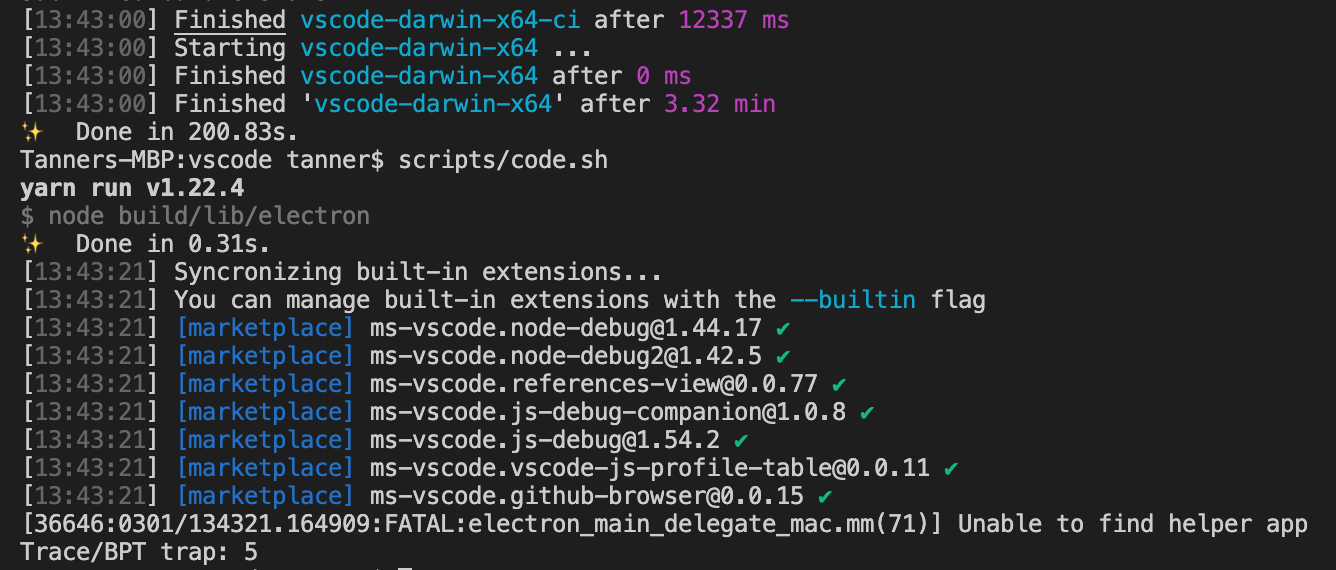

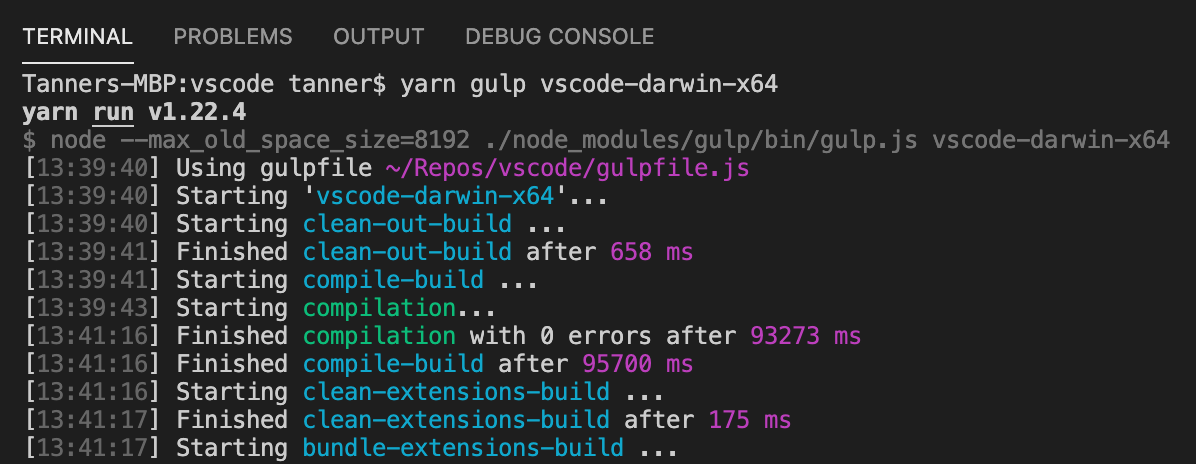

Screenshots Screenshot 2021-03-01 at 1 44 18 PM Screenshot 2021-03-01 at 1 44 51 PM

Is it possible I messed something up while snooping around in the OSS build folder? I tried yarn cache clean hoping that would blow away any build artifacts but I'm not sure if it does that

@joaomoreno

João Moreno (joaomoreno) commented Mar 2, 2021

Copy link
Copy Markdown
Contributor

Try rm -r .build, that will clean the local electron build, so it fetches a new one.

@NSExceptional

Tanner Bennett (NSExceptional) commented Mar 2, 2021

Copy link
Copy Markdown
Contributor Author

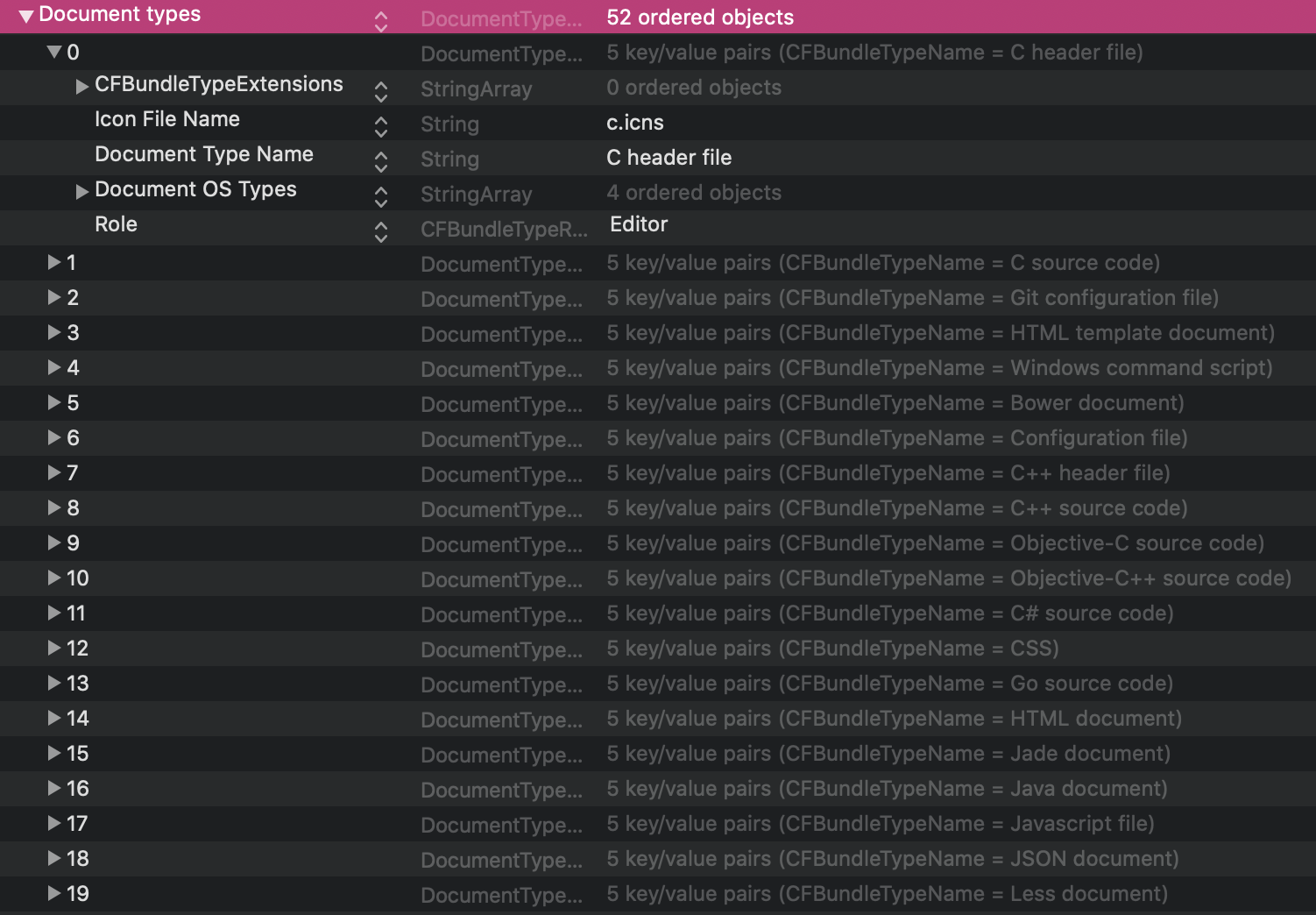

That did the trick. It worked! Here's the generated Info.plist

Screenshot 2021-03-02 at 10 59 38 AM

@NSExceptional
Tanner Bennett (NSExceptional) marked this pull request as ready for review March 3, 2021 23:35
@NSExceptional

Copy link
Copy Markdown
Contributor Author

Noticed there were no associated file extensions in my screenshot 🤪 Fixed; I was indexing the object improperly in darwinBundleDocumentTypes:

function darwinBundleDocumentTypes(types: { [name: string]: string | string[] },  {
    return Object.keys(types).map((name: string, idx: number): DarwinDocumentType => {
        const extensions = types[idx]; // <-- using idx by mistake
        ...

function darwinBundleDocumentTypes(types: { [name: string]: string | string[] },  {
    return Object.keys(types).map((name: string): DarwinDocumentType => {
        const extensions = types[name]; // <-- use name instead
        ...

@NSExceptional

Tanner Bennett (NSExceptional) commented Mar 4, 2021

Copy link
Copy Markdown
Contributor Author

Compilation is now failing here because of src/vs/workbench/test/browser/api/extHostBulkEdits.test.ts passing an extra argument to a function, but I didn't touch that file or any related files? 😟

@NSExceptional

Tanner Bennett (NSExceptional) commented Mar 15, 2021

Copy link
Copy Markdown
Contributor Author

João Moreno (@joaomoreno) Do you know what's going on? I need some guidance

@joaomoreno

Copy link
Copy Markdown
Contributor

Just merge main into your branch and let's see if CI gets over that hump.

With this change, to define a document type, you need only pass the name (or relative path) of the darwin icon.

So instead of passing 'resources/darwin/css.icns' you would just pass 'css'
Allow the caller to provide a specific file type description.

The new function will not require source changes to existing calls, but will change how the file type description is generated. An unmodified call to darwinBundleDocumentType will use the given icon name as the file type description. All extensions passed to this function continue to use the same icon as before, and all extensions will have the same file type description as before.
Split darwinBundleDocumentType into two separate functions. The first function is unchanged.

The second function allows you to specify specific names for different groups of extensions while all sharing the same icon. For example, this would allow you to differentiate between a C header and a C source file while using the same icon for both.

Inherently, the second function will generate multiple file type declarations, so it returns an array instead of a single object. As a result we must use the splat operator on it when passing the result to an array literal.
Make use of the changes in the previous commit
@NSExceptional

Copy link
Copy Markdown
Contributor Author

No wonder, I was rebasing on my local main which was tracking my fork, not upstream 🤦🏻‍♂️

@NSExceptional

Copy link
Copy Markdown
Contributor Author

João Moreno (@joaomoreno) All checks passed!

@joaomoreno João Moreno (joaomoreno) added this to the April 2021 milestone Mar 24, 2021
@NSExceptional

Copy link
Copy Markdown
Contributor Author

João Moreno (@joaomoreno) does this have any blockers?

@NSExceptional

Copy link
Copy Markdown
Contributor Author

João Moreno (@joaomoreno) will this be put into the May milestone?

@joaomoreno
João Moreno (joaomoreno) merged commit 8df547f into microsoft:main Jul 16, 2021
@joaomoreno

Copy link
Copy Markdown
Contributor

Thanks! 🍻
