fix(ui): preserve sent inline references with Astryx - #1927

Merged
Astro-Han merged 5 commits into
mainfrom
refactor/1861-sent-reference-hierarchy
Aug 3, 2026
Merged

fix(ui): preserve sent inline references with Astryx#1927
Astro-Han merged 5 commits into
mainfrom
refactor/1861-sent-reference-hierarchy

Conversation

@Astro-Han

@Astro-Han Astro-Han commented Aug 3, 2026

Copy link
Copy Markdown
Contributor

Summary

  • Persist the exact occurrences of sent inline references instead of reconstructing UI from matching text: workspace @file references come from surviving Composer tokens, while successful explicit Skill invocations come from runtime receipts.
  • Render Composer and ChatMessage references through one Astryx-backed token projection, so Skill and workspace-file tokens keep the same label, icon, dimensions, and wrapping behavior before and after send.
  • Keep the native Astryx sent-message hierarchy intact: compact file attachments, quote references, and image thumbnails remain direct ChatMessage children before the authored-text bubble.
  • Keep authority at the narrowest existing seam: renderer sends only canonical workspace value/offset pairs; main derives file labels and joins runtime-owned Skill receipts; Core owns the closed schema and its shared bounds.
  • Preserve explicit inlineReferences: [] end to end as the current-format marker. Only legacy messages with the field absent use text-token fallback.
  • Keep inline references display-only: providers still receive the original authored text.

Closes #1861

Verification

  • npm run format:check, npm run lint, and npm run typecheck — passed after rebasing onto current main.
  • npm --workspace @maka/core test — 695/695 passed.
  • npm --workspace @maka/runtime test — 2700 passed, 9 skipped.
  • npm --workspace @maka/ui test — 240/240 passed.
  • npm --workspace @maka/storage test -- session-store — 1024 passed, 1 skipped.
  • npm --workspace @maka/desktop test — 1375/1375 passed.
  • npm --workspace @maka/desktop run e2e -- composer-mention-token.spec.ts — 4/4 passed after rebase, including real token selection, identical plain-text occurrence, send, and reload persistence.
  • npm --workspace @maka/desktop run build-storybook — passed after rebase.
  • Fresh-eye review completed with no remaining P0–P3 findings. Its count/label-bound and surrogate-boundary findings are covered by regression tests.

Visual evidence

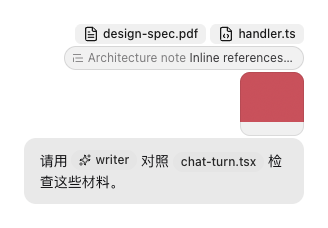

Storybook sent reference hierarchy

Live Storybook state: Product/Attachments/Sent Reference Hierarchy.

The inspected state covers unclipped attachment icons, the native Astryx image thumbnail, the quote row, and /skill:writer plus @chat-turn.tsx using the same token projection as Composer.

Review focus

  • start is a UTF-16 offset into displayText ?? text. It is necessary to distinguish a selected token from an identical plain-text occurrence and is validated at Core and IPC boundaries.
  • Main caps the final projection to the shared Core count/label bounds, never splits a surrogate pair while shortening a derived label, and drops malformed or overlapping candidates fail-plain.
  • Slash-command projection rebases workspace token offsets to the actual submitted task text; normal send keeps the original offsets.

@Astro-Han Astro-Han changed the title refactor(ui): align sent references with Astryx fix(ui): preserve sent inline references with Astryx Aug 3, 2026
@Astro-Han
Astro-Han force-pushed the refactor/1861-sent-reference-hierarchy branch from f329b56 to 1af3849 Compare August 3, 2026 05:07
@Astro-Han
Astro-Han marked this pull request as ready for review August 3, 2026 05:56
@Astro-Han
Astro-Han force-pushed the refactor/1861-sent-reference-hierarchy branch from 1af3849 to 664704a Compare August 3, 2026 05:57
@Astro-Han
Astro-Han merged commit 980dd72 into main Aug 3, 2026
5 checks passed
@Astro-Han
Astro-Han deleted the refactor/1861-sent-reference-hierarchy branch August 3, 2026 06:03
