Change

Tree rails become a full-mode affordance. Compact mode indents by exactly the
width the rails would have occupied, so hierarchy still reads and no column
downstream moves.

compact                          full
──────────────────────────       ──────────────────────────
  ● Prepare Patch Release          ● Prepare Patch Release
▼ ● Session Statuses ⑂2            – 14s ago – …
  ⑂ ● No Nested Session
  ⑂ ● Has A Nested Fork          ▼ ● Session Statuses ⑂2
     ⑂ ● Grandchild Fork           – 16s ago – …

                                 ├─⑂ ● No Nested Session
                                 │    – 14s ago – …
                                 │
                                 └─⑂ ● Has A Nested Fork
                                      – 15s ago – …

Why

The two modes have different problems to solve. Compact packs its rows with
nothing between them, so depth alone already carries the hierarchy — the rails
are ink in the view whose entire purpose is density. Full mode breaks each
session into a title row, a detail row, and a spacing row; without a
continuous rail a child stops reading as attached to its parent across that
gap, which is exactly what the rails were introduced for in #1156.

Archived-children rows follow the same rule, so nothing in the list draws a
rail compact mode doesn't.

Screenshots

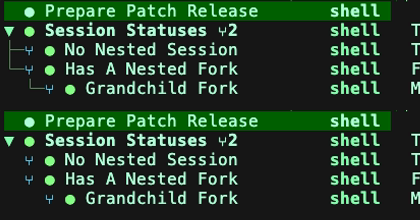

Compact, main on top and this branch below — same fleet, same width. The
marks, the disclosure, and every title stay in their columns; only
the rails go.

compact before/after

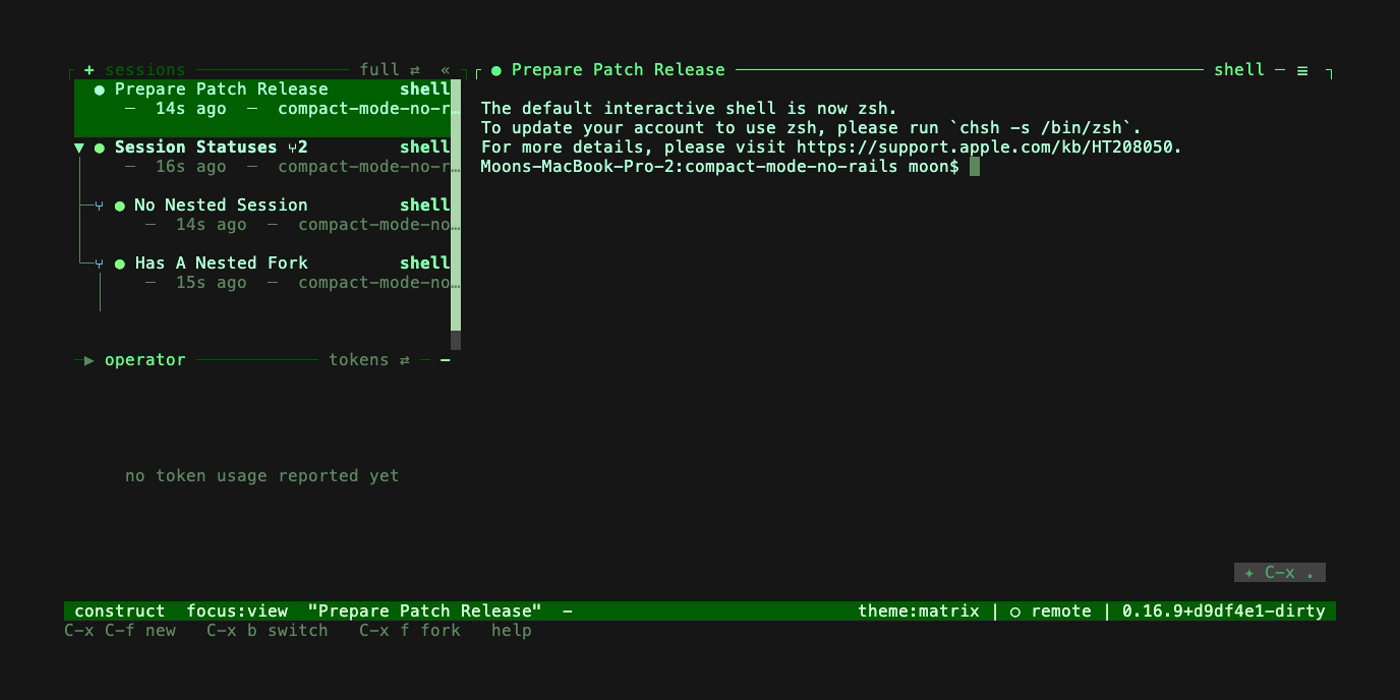

Full mode on this branch, unchanged — rails still run through the detail and
spacing rows:

full

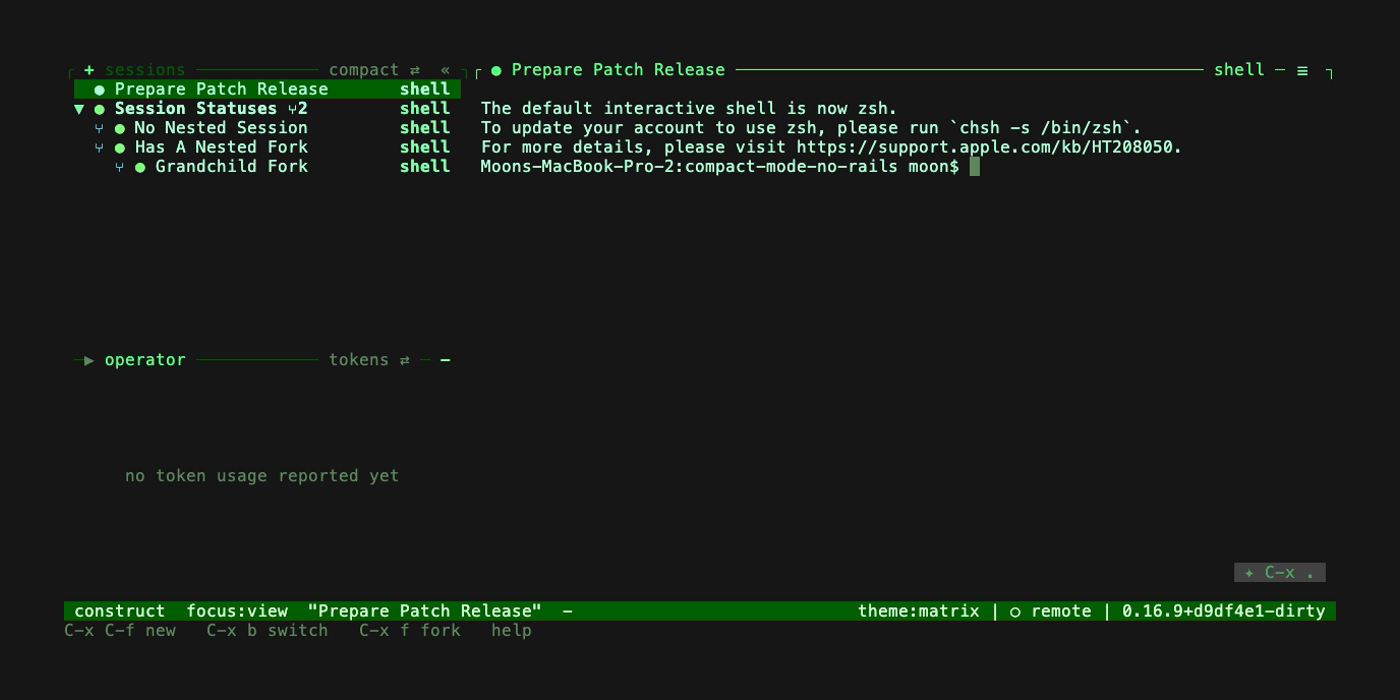

Compact, full frame

compact

Tests

  • New test asserts the compact prefix is blank at every depth and the same
    display width as the full-mode prefix it replaces, so dropping the rails can
    never shift a row.
  • The existing rail test now pins full mode explicitly.
  • cargo test --workspace green.

Relevant binary: construct (this PR only touches crates/cli).

Compact mode packs its rows with nothing between them, so the two-cell
indentation step already reads as hierarchy and the rails are ink the
densest view can't afford. Full mode keeps them: its cards are broken up
by detail and spacing rows, and without a continuous rail a child stops
looking attached to its parent. Compact indents by exactly the width the
rails would have occupied, so switching modes moves no column.
