Python struct.pack(): Format Strings, Bytes, and Endianness

Quick answer: Use struct.pack(format, values…) to encode Python values into bytes, and struct.unpack() with the same layout to decode them. Choose byte order, field sizes, signedness, and alignment deliberately.

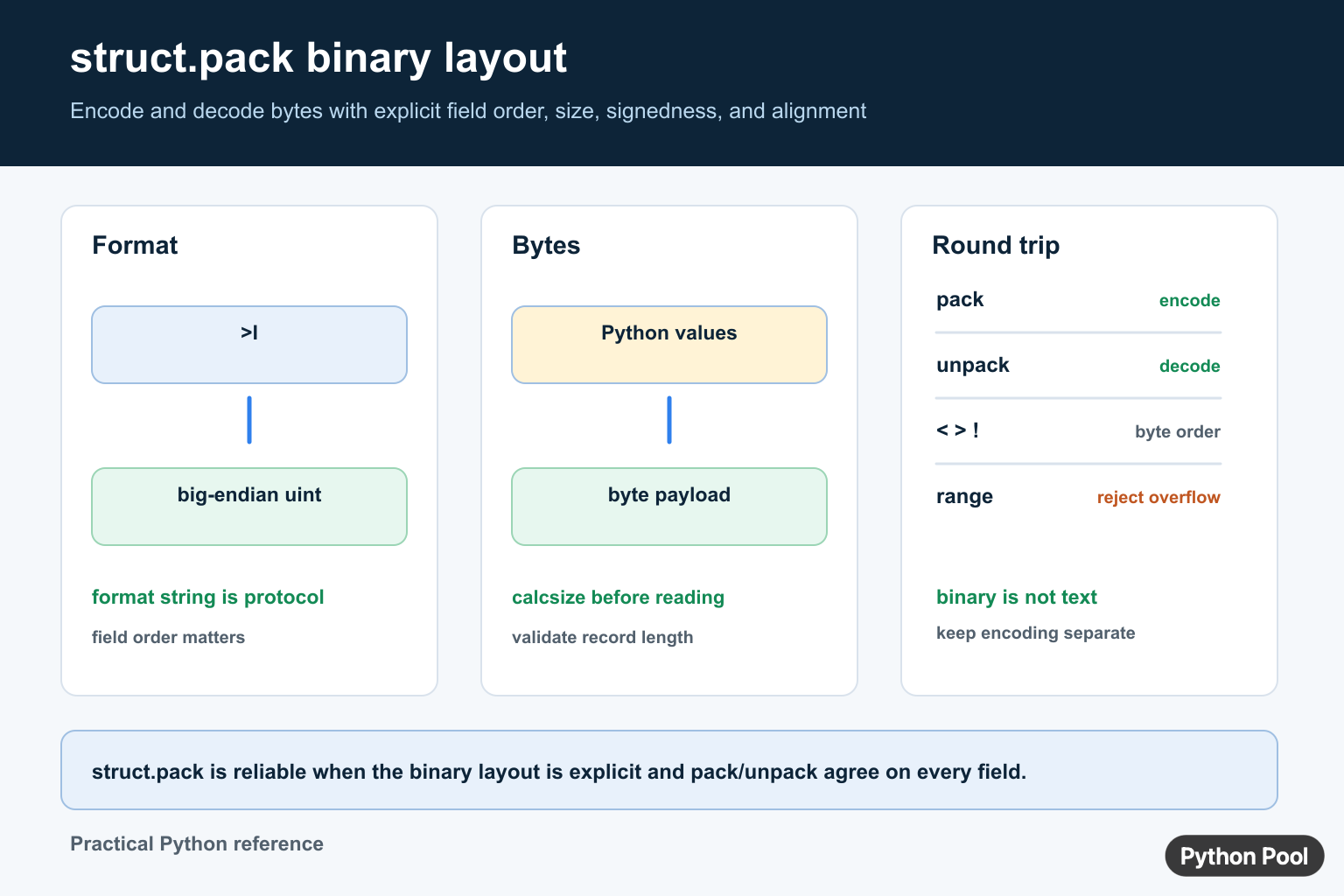

Python struct.pack infographic showing format string, byte order, values to bytes, calcsize, unpack, and range validation — struct.pack is reliable when the binary layout is explicit and pack and unpack agree on every field.

struct.pack() converts Python values into a bytes object using a binary format string. It is useful when you need a precise byte layout for files, network protocols, embedded data, or interoperability with C-style binary structures.

The format string controls byte order, field types, field sizes, and order. The values passed after the format string must match that layout.

The official Python struct documentation defines format characters, byte order markers, size rules, pack(), unpack(), and calcsize(). The CPython struct.py source shows the standard-library wrapper.

Contents

Pack A Simple Integer

Use a format character that matches the type and size you need. For example, I means an unsigned integer.

import struct

payload = struct.pack("I", 1024)

print(payload)
print(type(payload))

The result is bytes, not text. Its exact byte order can depend on the default native format when no byte-order marker is supplied.

For portable files and protocols, specify byte order explicitly instead of relying on the platform default.

Specify Byte Order

Prefix the format string with a byte-order marker. > means big-endian, and < means little-endian.

import struct

big = struct.pack(">I", 1024)
little = struct.pack("<I", 1024)

print(big.hex())
print(little.hex())

The same integer has different byte sequences depending on byte order.

Network protocols often use big-endian order. File formats and hardware protocols should follow their own specification.

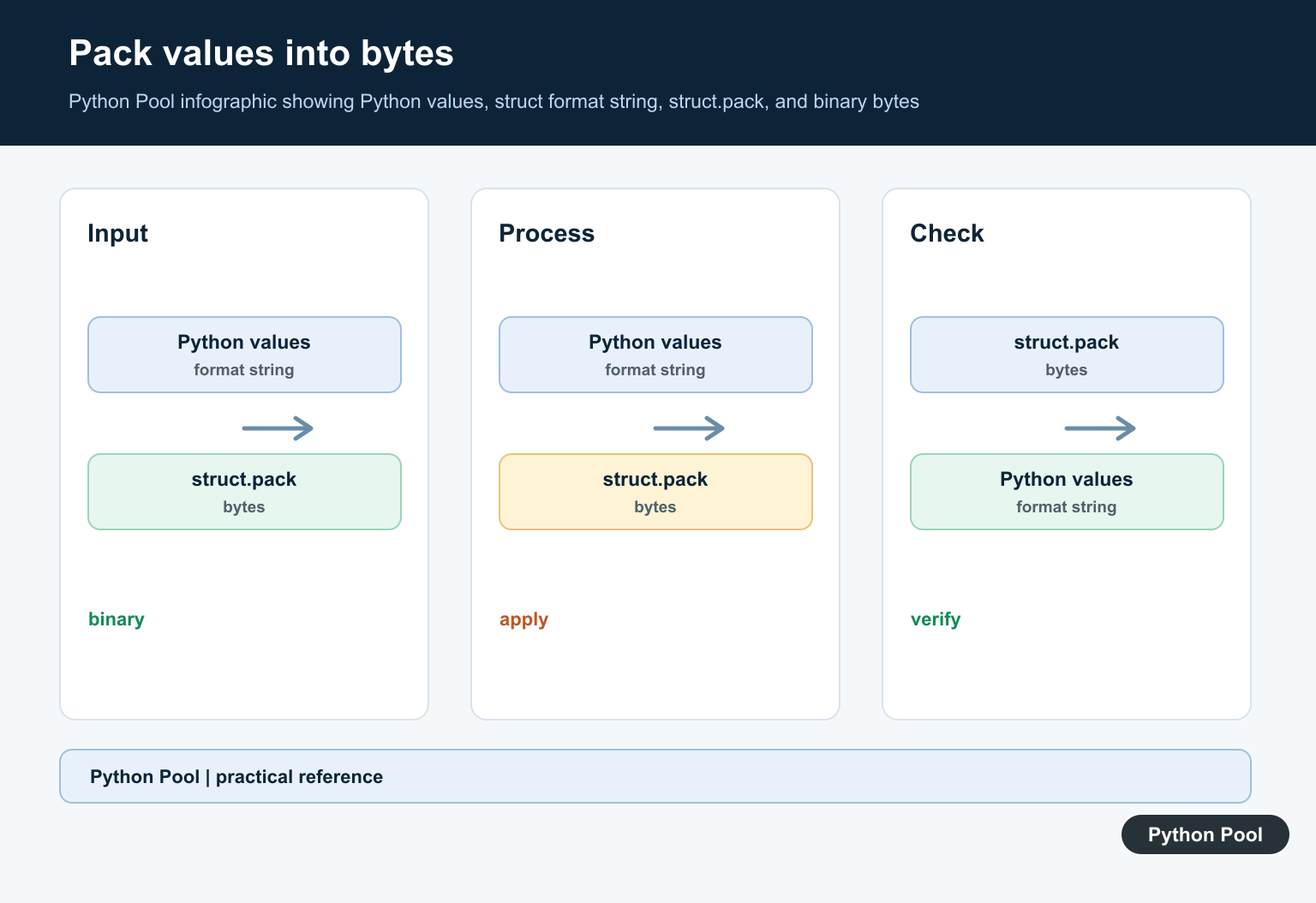

Python Pool infographic showing Python values, struct format string, struct.pack, and binary bytes — struct.pack converts Python values into a bytes object according to a format string.

Pack Multiple Values

Format characters are read from left to right. The values must be passed in the same order.

import struct

record_id = 7
temperature = -3
enabled = 1

payload = struct.pack(">IhB", record_id, temperature, enabled)

print(payload.hex())

Here I packs an unsigned integer, h packs a signed short, and B packs an unsigned byte.

If the value count or value range does not match the format, struct.error is raised.

Check The Packed Size

struct.calcsize() returns how many bytes a format requires.

import struct

fmt = ">IhB"

print(struct.calcsize(fmt))

payload = struct.pack(fmt, 7, -3, 1)
print(len(payload))

The calculated size should match the length of the packed bytes.

This is useful when reading fixed-size records from a file or validating protocol payload lengths.

Python Pool infographic comparing little-endian and big-endian byte order, integer value, and byte sequence — The format prefix controls byte order, size conventions, and alignment for the packed data.

Unpack Bytes Again

Use struct.unpack() with the same format string to recover the original values.

import struct

fmt = ">IhB"
payload = struct.pack(fmt, 7, -3, 1)

values = struct.unpack(fmt, payload)

print(values)

unpack() returns a tuple. Even a single value is returned in a tuple.

The format used for unpacking must match the binary layout. A wrong format can produce incorrect values or raise an error.

Write Packed Bytes To A File

Because pack() returns bytes, open files in binary mode when writing the result.

import struct
from pathlib import Path

payload = struct.pack(">IhB", 7, -3, 1)
path = Path("record.bin")

path.write_bytes(payload)

print(path.read_bytes().hex())

Do not write packed bytes through text APIs. Text encoding can alter data and break the binary layout.

Choose Format Characters Carefully

Every format character has a size and meaning. For example, B is an unsigned byte, h is a signed short, I is an unsigned integer, f is a float, and d is a double. The format must match the data specification you are implementing.

Do not guess field sizes from sample data. A value that fits in one byte today may require a larger field later. Follow the file format, network protocol, hardware manual, or API contract.

Native mode can include platform-specific size and alignment behavior. That can be useful when matching a local C structure on the same machine, but it is risky for portable files. For shared data, use explicit markers such as >, <, =, or !.

Use x padding bytes only when the binary layout requires padding. Padding should be intentional and documented so another reader can unpack the same data correctly.

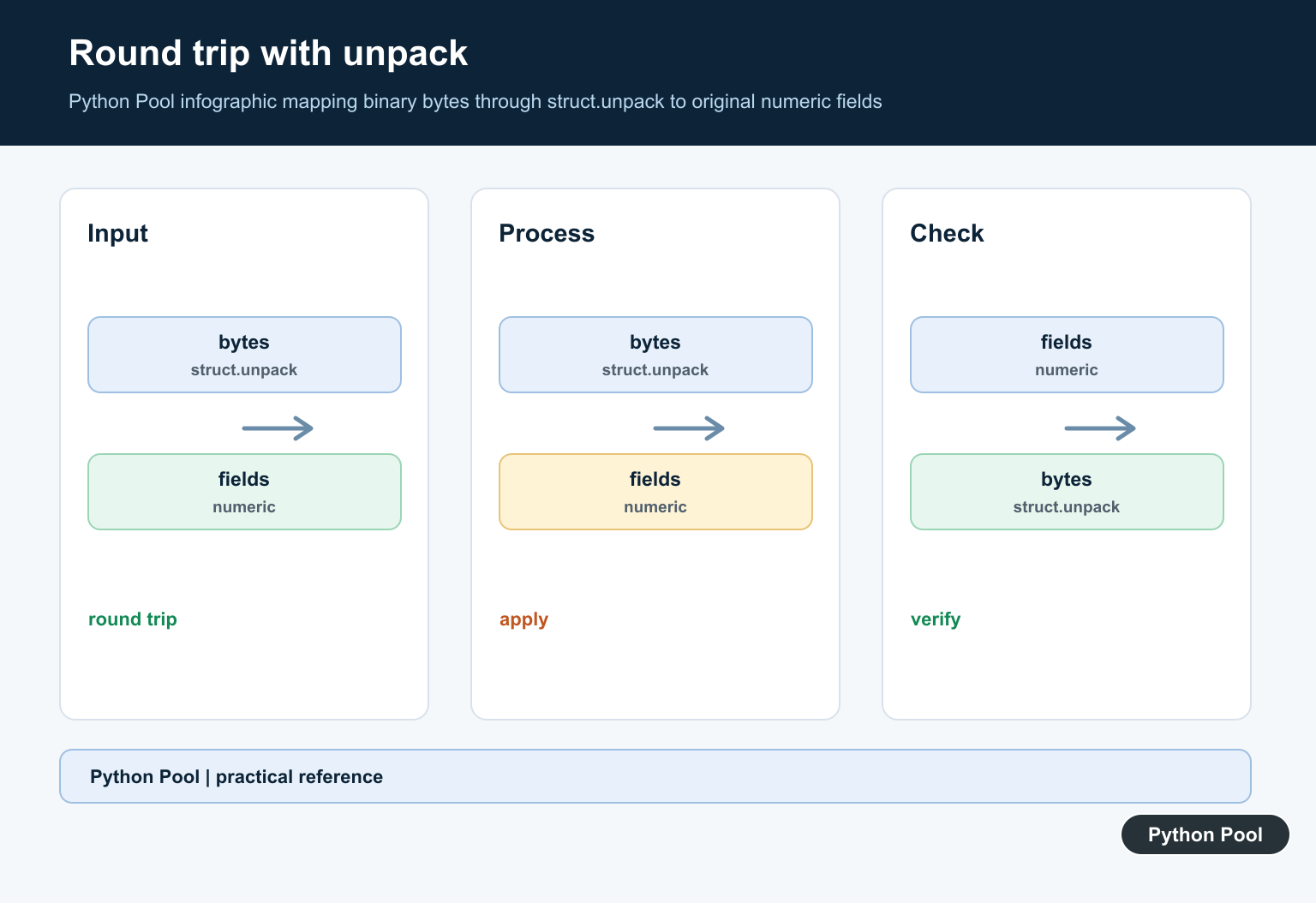

Python Pool infographic mapping binary bytes through struct.unpack to original numeric fields — Use the matching unpack format to decode fields and verify that the byte layout is correct.

Know When struct Is Not Enough

struct is excellent for fixed binary records. It is less convenient for length-prefixed strings, nested records, checksums, compression, optional fields, or complex file formats. Those cases may need a parser, a schema, or a dedicated library.

For plain text formats such as CSV, JSON, or logs, do not use struct.pack(). Use text encoders and parsers instead. Binary packing is for byte-level layouts where size and order are part of the contract.

When debugging packed data, bytes.hex() is often the clearest display. It shows the raw bytes without trying to decode them as text. Pair that with calcsize() to confirm offsets and record lengths.

Keep the format string close to the code that explains it. A named constant such as HEADER_FORMAT = ">IhB" is easier to review than a hidden string repeated across a file.

The practical rule is to define the binary format first, specify byte order, pack values in the same order as the format string, and use calcsize() or unpack() to verify the layout.

Use struct.pack() for binary data, not for formatting human-readable strings.

Pack A Stable Binary Layout

The struct module is for fixed binary layouts, not general text serialization. A format such as >Ih describes a big-endian unsigned integer followed by a signed short. The format controls how values are represented, so document it alongside the protocol or file specification.

import struct

message_format = ">Ih"
payload = struct.pack(message_format, 42, -7)
sequence, temperature = struct.unpack(message_format, payload)

print(payload)
print(sequence, temperature)

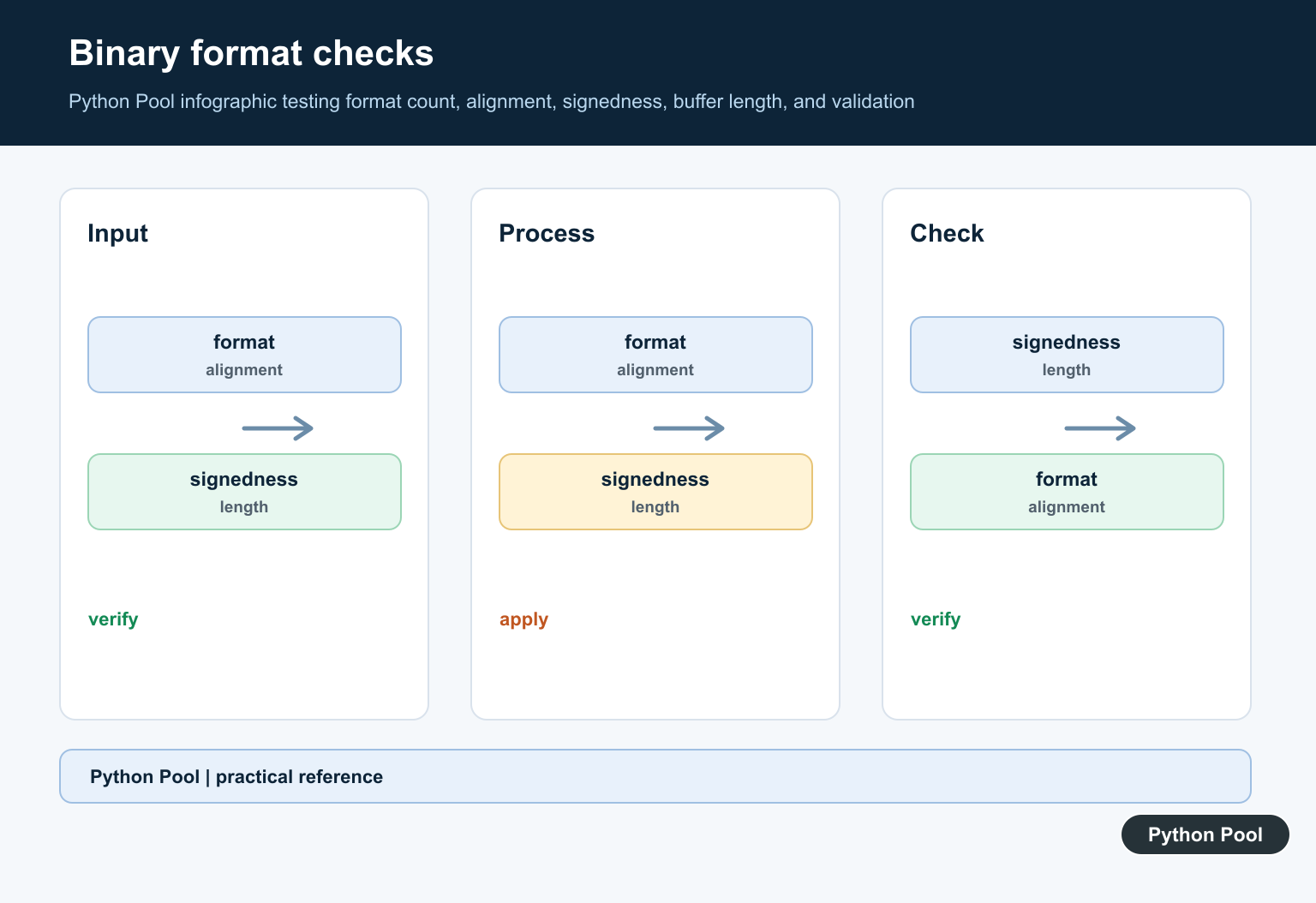

Python Pool infographic testing format count, alignment, signedness, buffer length, and validation — Check field count, signedness, alignment, buffer length, ranges, and external protocol documentation.

Byte Order, Size, And Alignment

Use a prefix such as <, >, or ! when the byte order must be portable. The native @ mode can include platform-dependent alignment, while standard-size prefixes make a wire format easier to reproduce across machines. Call struct.calcsize() before reading or writing a fixed-size record.

Validate Values And Boundaries

Each format code accepts a defined range. A value outside that range raises an error instead of being safely clipped. Check that the input bytes have the expected length before unpacking, handle truncated records, and keep text encoding separate from binary field packing.
